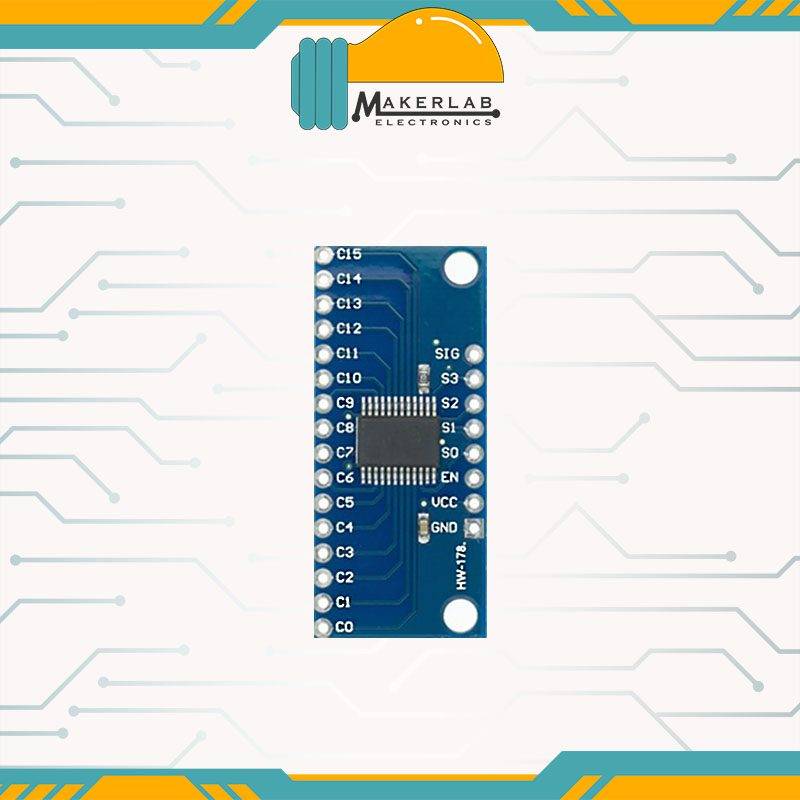

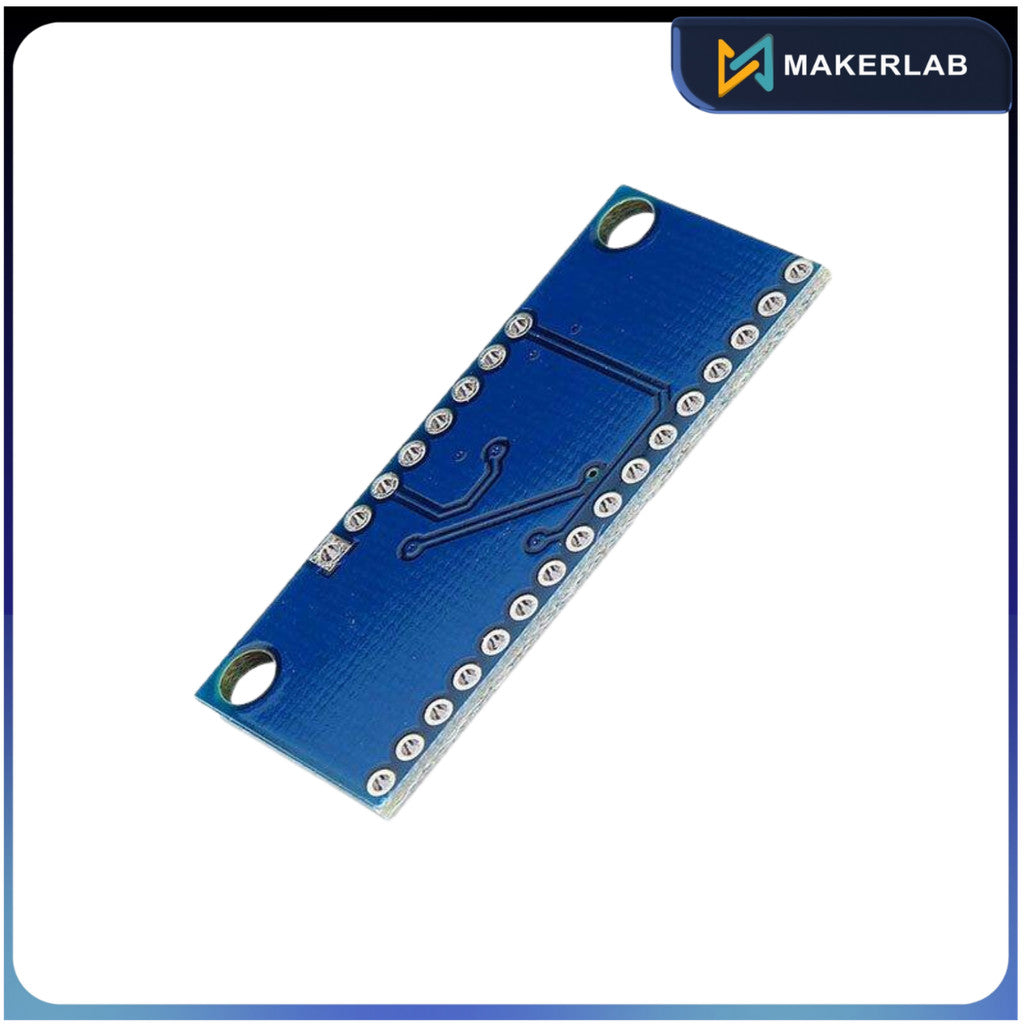

High Speed CMOS 16 Channel Analog Digital Multiplexer CD74HC4067

Description

Module with 16 channel CD74HC4067 multiplexer allows you to connect up to 16 signals to a single analog output. The system can work as a demultiplexer and work with digital signals. This means that with a single contact you can display up to 16 signals or you can connect 16 sensors to one terminal. The module is supplied with the voltage from 2 V to 6 V.

Specification

Supply voltage: 2 V to 6 V

Standards compatibility CMOS and TTL

Output current per channel: up to 25 mA

Operating temperature: -55 °C to 125 °C

Settings when the power voltage of 4.5 V:

The resistance of the complete channel (It): 70 Ohm

Response time: 6 NS
