SKU:MLE00182

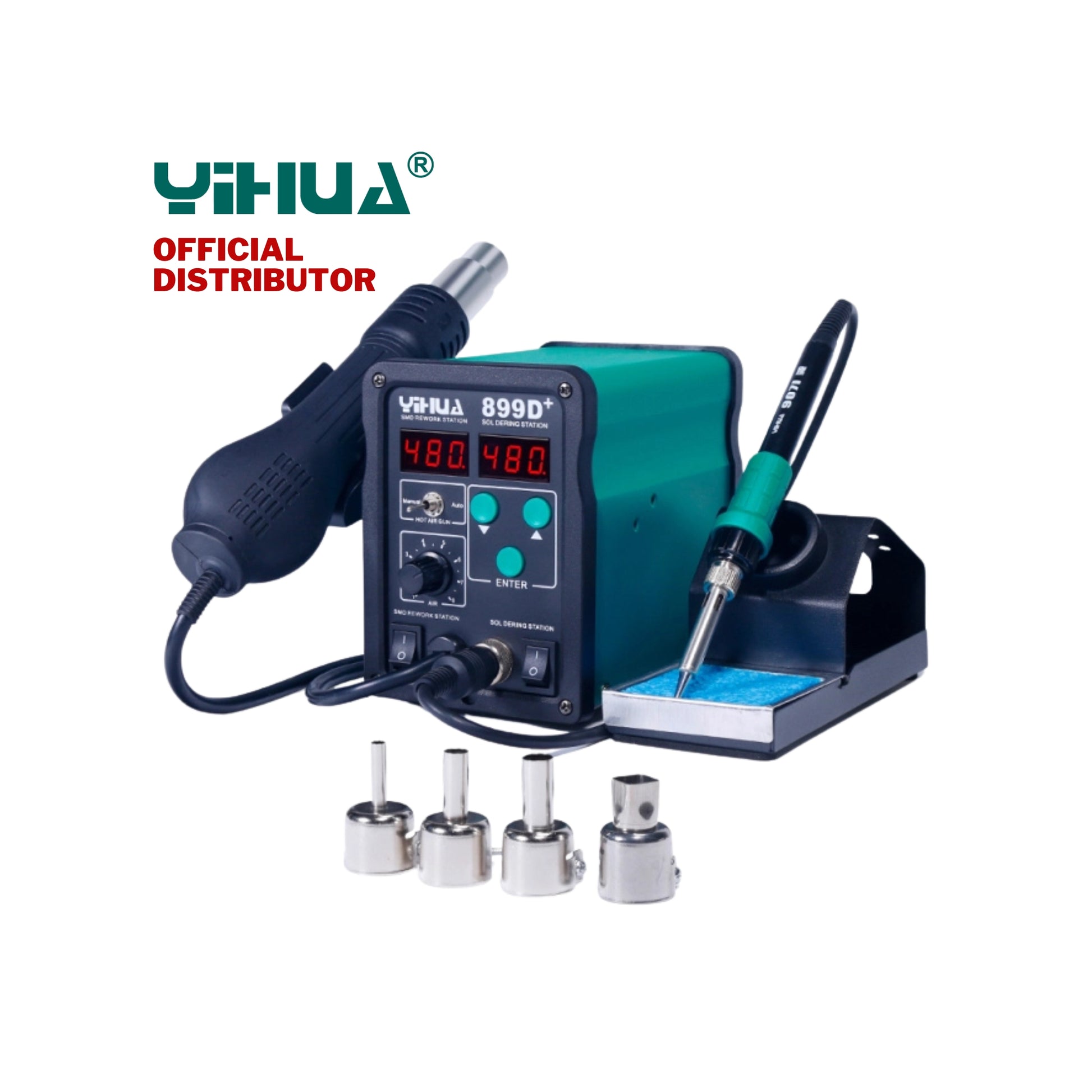

Yihua 899D+ Hot Air Rework and Soldering Station 2 in 1
₱3,500.00
₱3,500.00
₱3,500.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
//www.makerlab-electronics.com/cdn/shop/files/MLE00182_1_medium.jpg?v=1750320133
07:59 PM
Couldn't load pickup availability
Product Description
Description:
YIHUA-899D+ hot air rework station with soldering iron has an air gun, which can be manually or automatically set according to the application environment. If the air gun is frequently used, it can be manually operated to leave out the repeated heating time, thereby increasing the working efficiency.
Features:
-
Auto mode:
When you put the hot air gun on the holder, the gun will be cooled to 100°C and automatically shut down. When next time use, it will automatically heat up to the temperature you set. -
Manual mode:
When you put the hot air gun on the holder, the hot air gun continues working and emitting heat. - YIHUA-899D+ soldering iron is equipped with an imported high-power heater which comes with fast temperature compensation. Therefore, it is ideal for de-soldering all sorts of welded spots, particularly suitable for de-soldering large solder joints, rough blocks, and miscellaneous difficult solder joints.
- Our YIHUA-899D+ hot air rework station uses blue Ferro-alloy iron holder, thereby averting scalding.
Specifications:
Machine
- Rated Voltage AC 220V±10% 50Hz
- Machine Power 730W
- 300℃ Constant Temperature Power 250W±10%
- Working Environment 0~40℃ Relative humidity< 80%
- Storage Temperature -20~80℃ Relative humidity< 80%
- Machine Size 13.5*15*10cm
- Weight 2.65KG
Hot Air Gun
- Working Voltage: AC 220V±10% 50Hz
- Output Power: 650W
- Temperature Range: 100℃~480℃
- Mode of Airflow: Brushless fan
- Airflow: 120L/min (max.)
- Temperature Stability: ±5℃(static)
- Display: LED (red/green)
- Temperature Correction: PID digital program proofreading
- PID Temperature Cycle: Fast 200ms
- Heater: Heating core ceramics heater
Soldering Iron
- Working Voltage: AC 26V±10% 50Hz
- Output Power: 75W
- Temperature Range: 200℃~480℃
- Temperature Stability: ±5℃(static)
- Display: LED (red/green)
- Temperature Correction: PID digital program proofreading
- PID Temperature Cycle: Fast 200ms
- Heater: Common metal heater (898D+ use imported high-power heater)
- Tips to Ground Impedance: < 2Ω
- Tips Voltage to Ground: < 2mV
Part List:
- Machine: 1 set
- Specifications: 1pc
- Air Gun Handle: 1pc
- Nozzle: 3pcs (5mm, 8mm, 10mm)
- IC Puller: 1pc
- Handle Frame: 1pc
- Iron Handle (including a heater and tips): 1pc
- Iron Holder: 1pc
- Power Plug: 1pc
