MLE00181

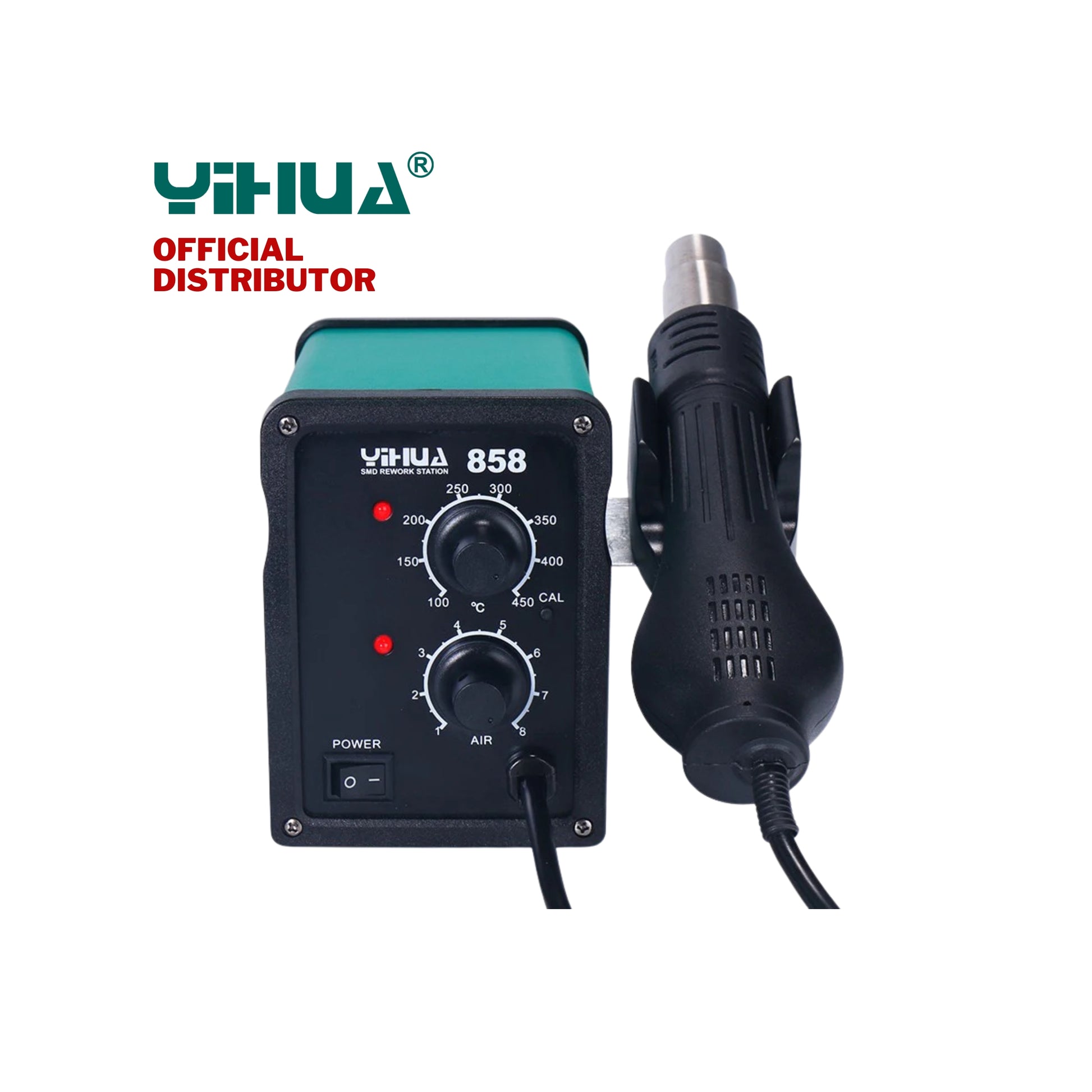

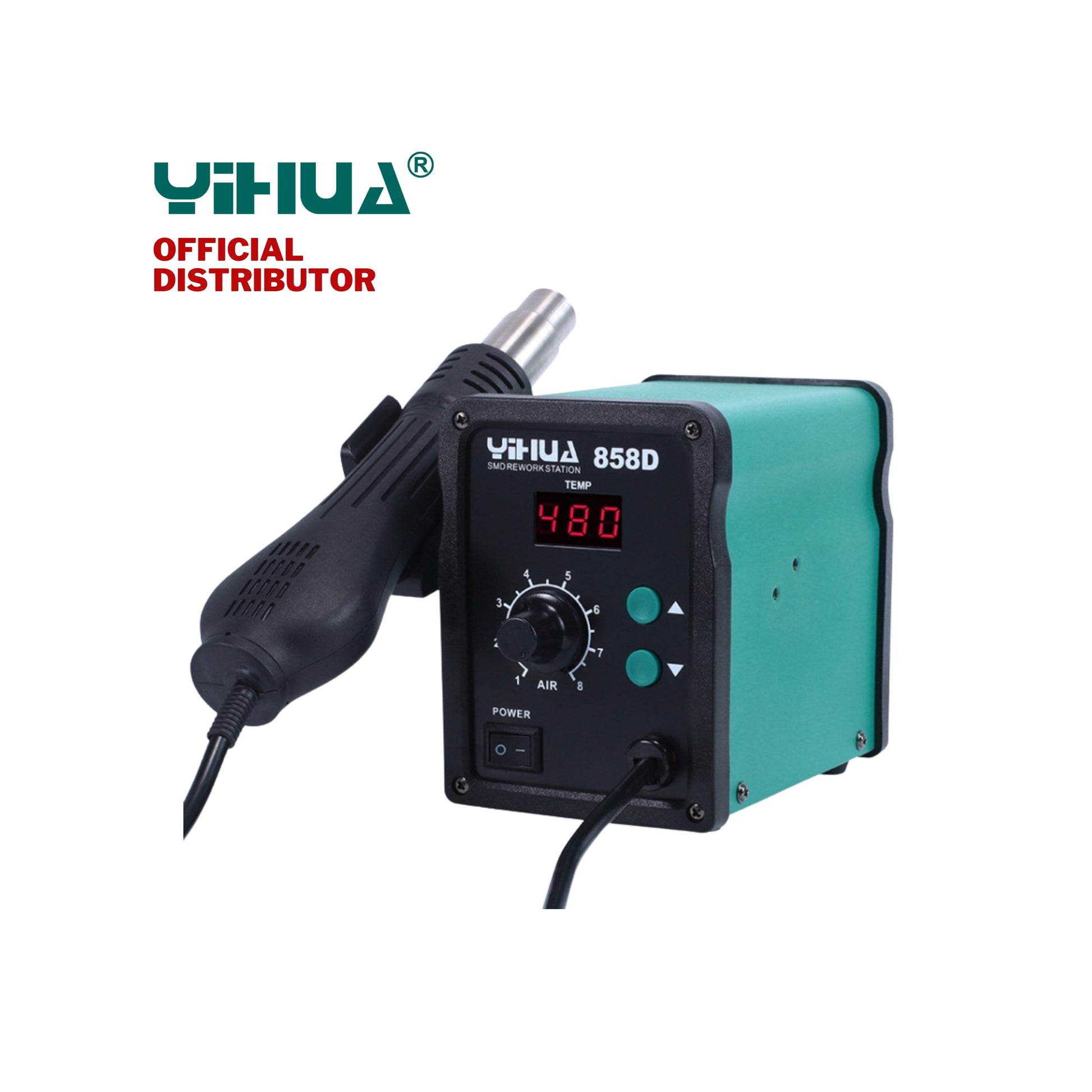

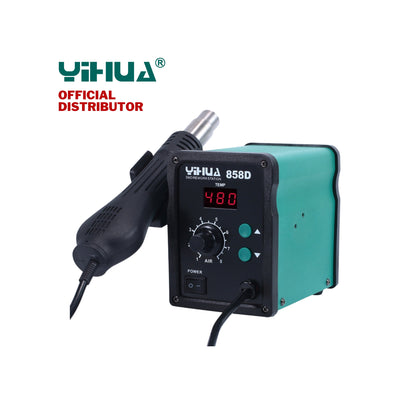

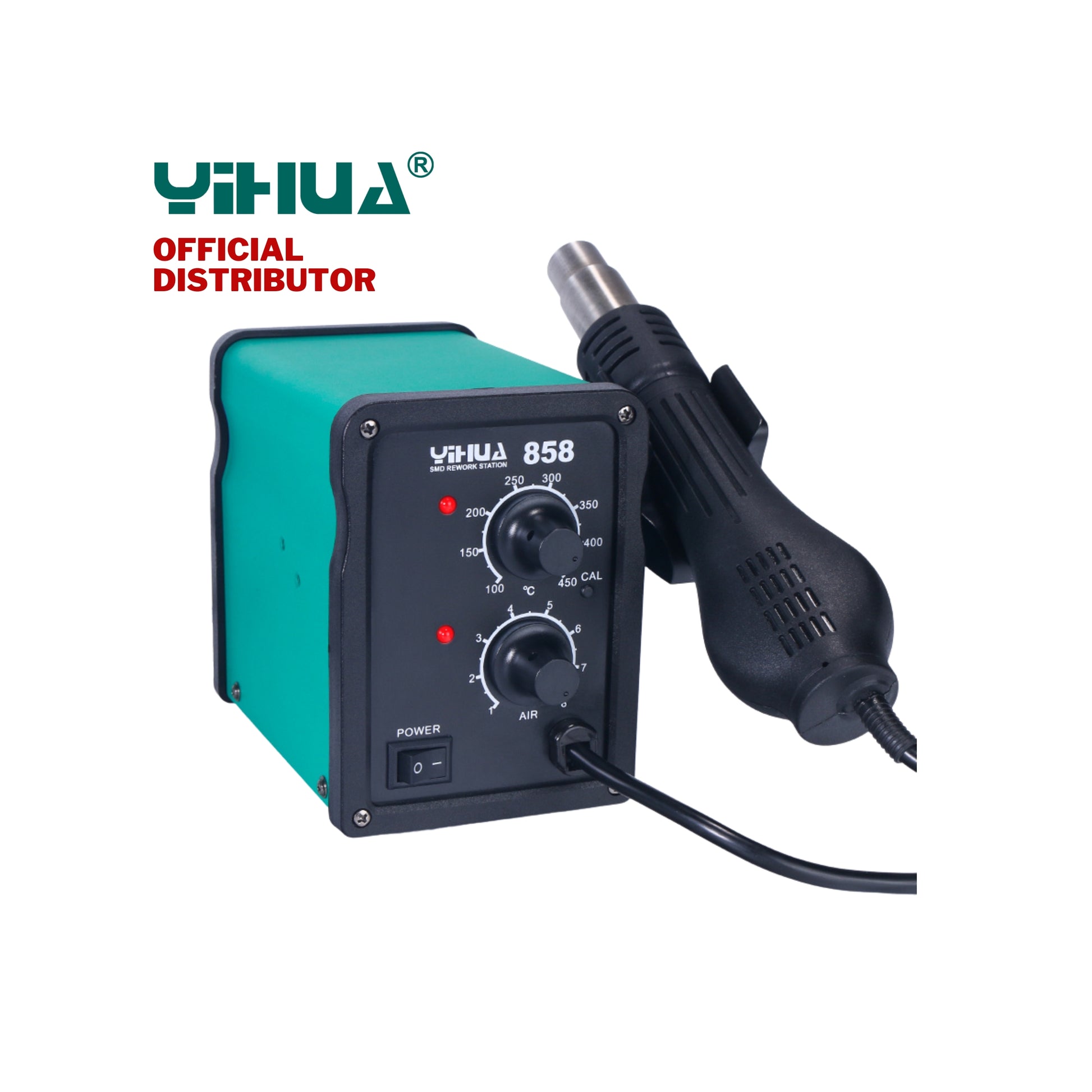

Yihua 858/858D Hot Air Rework Station SMD

₱1,500.00
₱1,500.00 ₱1,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.
MODEL: Yihua 858D
Loading locations...
Product Description

Description:

The YIHUA 858/858D SMD Hot Air Rework Station is ideal for soldering SMD components, multi-pin integrated circuits, and circuit boards. Its main unit features a high-quality iron alloy casing that resists high temperatures and ensures long-lasting durability.

Features:

  • With the high-quality air fan which makes spiral wind, even, and soft wind, it will not damage the delicate components.
  • The hot air rework station comes with low vibration and low noise generation, maintaining a quiet working environment.
  • Its air gun handle with the ceramic skeleton heater can be used for a long time. The heating efficiency is extremely high.
  • Our hot air rework station adopts the ferro-alloy casing which is durable and high temperature resistant.
  • The handle can be automatically cooled to the standby status, when it is placed in the handle frame.
  • Handle tube and nozzles, both of which are made of high-grade stainless steel, are characterized by good thermal conductivity and excellent resistance to oxidation.
    • Especially, YIHUA-858D hot air rework station applies the SAMSUNG SCM and PID program for the real-time tracking, correction of air gun temperature and soldering temperature. It also has a LED display which allows for more accurate temperature control.

Specifications:

Machine

  • Operating Voltage    AC 220V±10% 50Hz
  • Output Power    650W
  • Working Environment    0 ~ 40℃ relative humidity < 80%
  • Storage Environment    -20 ~ 80℃ relative humidity < 80%
  • Dimensions    130*100*145mm
  • Weight    1.85KG
Item 858D 858
  • Temperature Range
 100℃~500℃ 100℃ ~ 450℃
  • Display Mode
 LED digital display ---
  • Air Supply Mode
 Brushless fan Brushless fan
  • Air Volume
 120L/min (Max.) 120L/min (Max.)
  • Temperature stability
 ±10℃ (static state) ±15℃(static state)
  • Temperature Correction Mode
 PID Digital Program Calibrate ---
  • PID Temperature Correction Cycle
 200ms ---
  • Heater
 Ceramic skeleton heater Ceramic skeleton heater



Applications:

YIHUA-858D or YIHUA-858 hot air rework station is commonly found in schools, laboratories, electronic production lines, mobile phone repair industry, home appliance maintenance departments, and so on. It is ideal for soldering SMD components, multi-pin IC, and circuit board components.

Part List:

  • Desoldering Station: 1pc
  • User Manual: 1pc
  • Air Gun Handle: 1pc

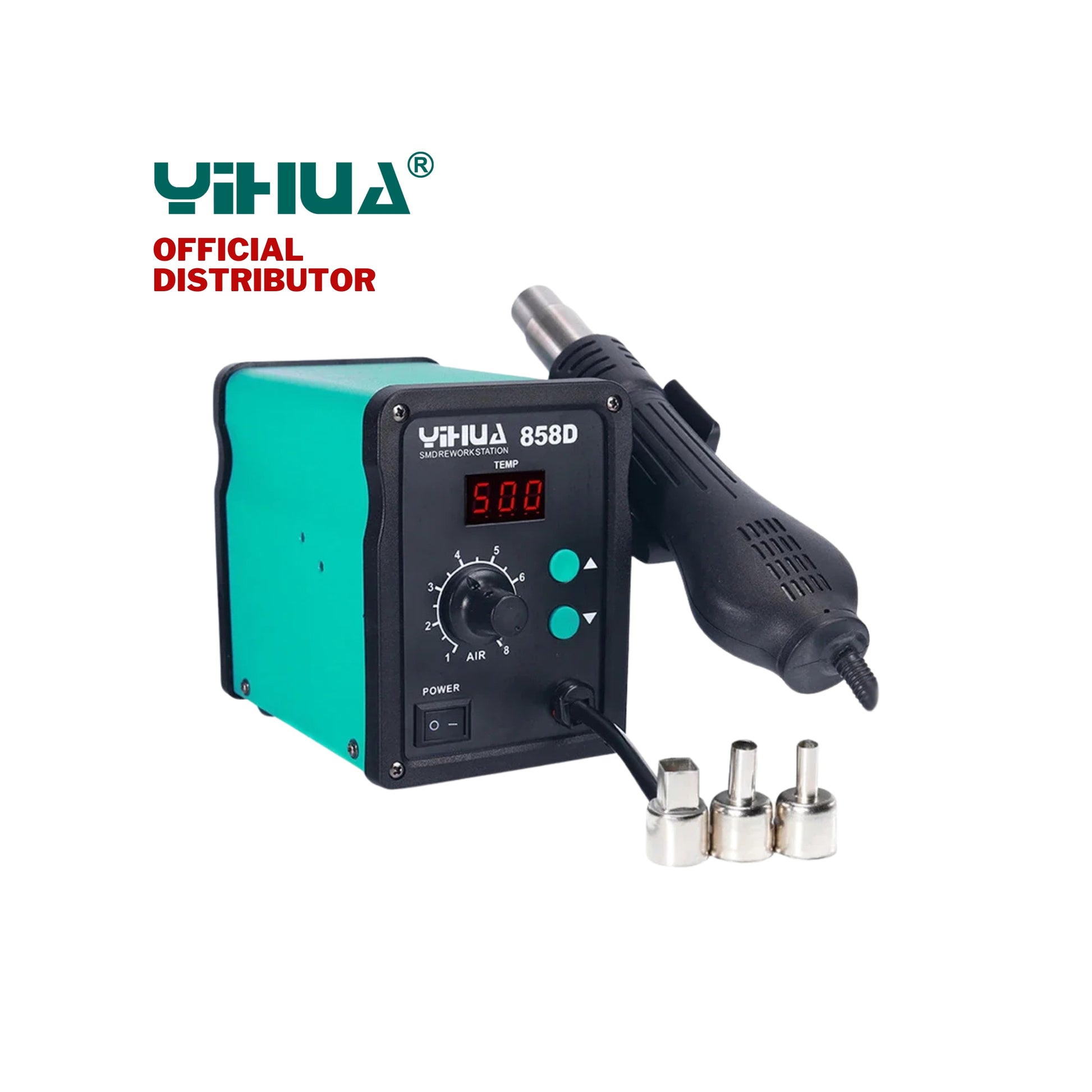

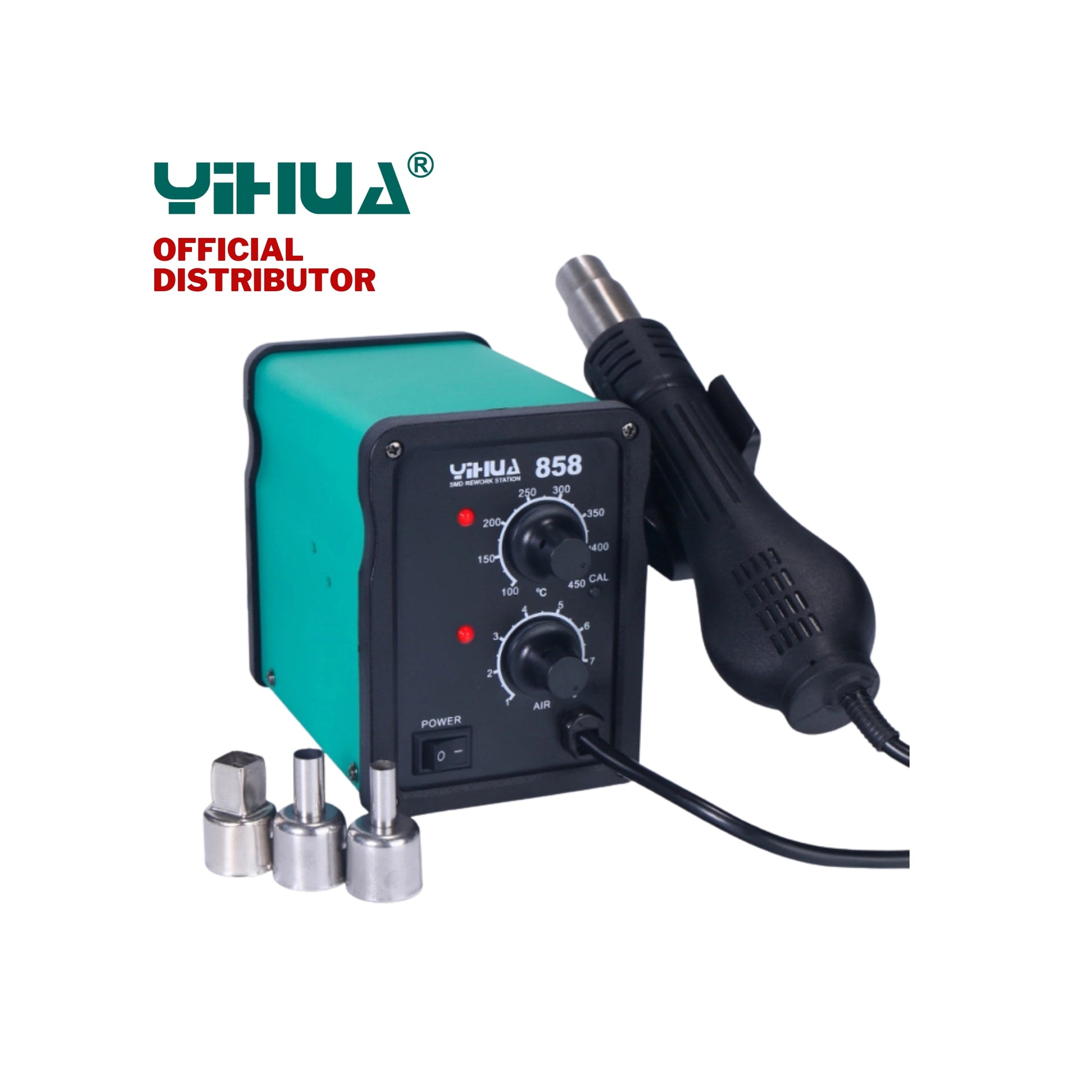

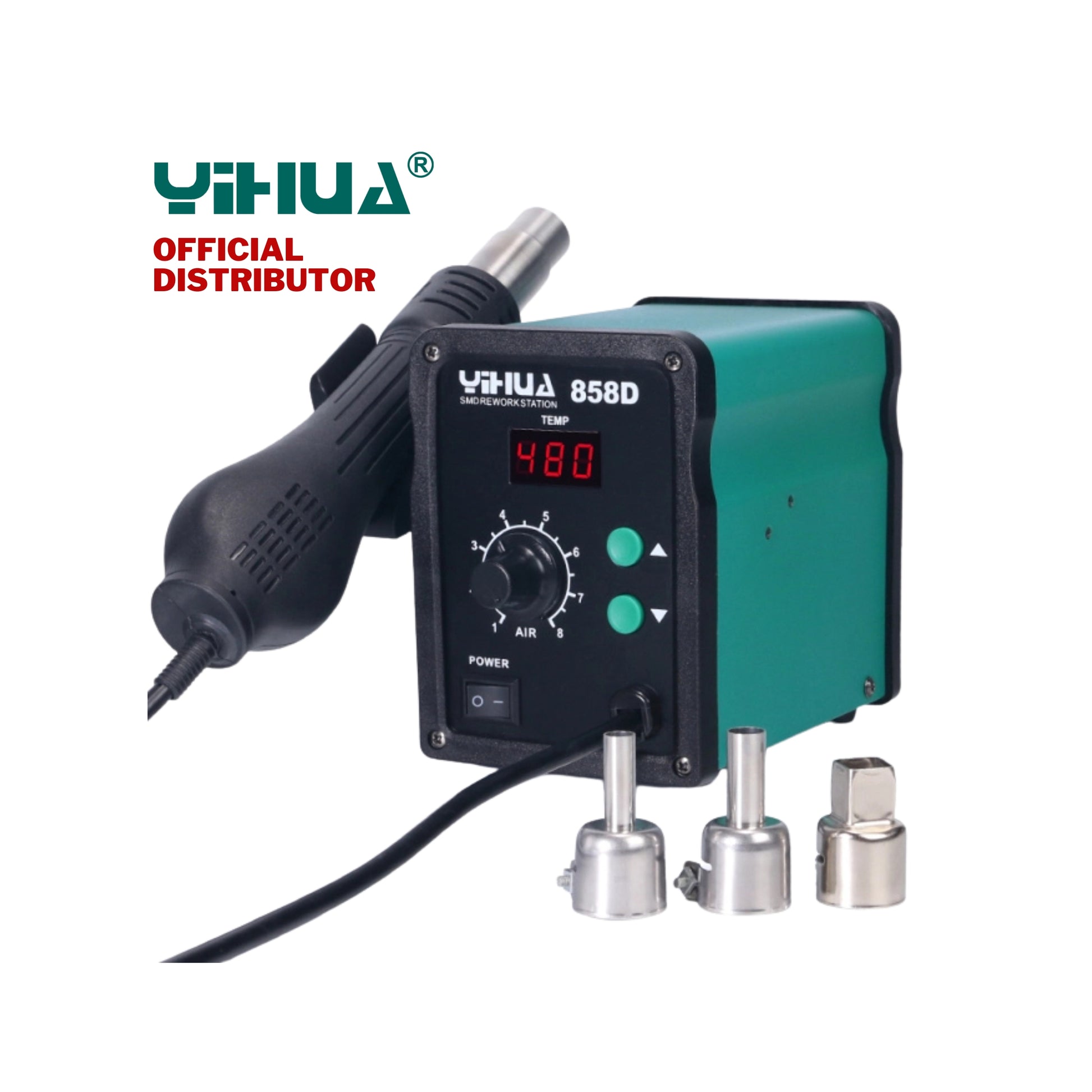

  • Nozzle: 3 (5mm, 8mm, 10mm)
  • IC Extractor: 1pc
  • Small Spanner (for nozzles disassembly): 1pc
  • Power Plug: 1pc

Warranty Policy

This warranty is valid within 1 month from the date of purchase and covers any defects in materials or workmanship under normal use during the warranty period. During this time, we will repair or replace, at no charge, products or parts of a product that prove defective because of improper material or workmanship, under normal use and maintenance.

The warranty does not cover:

  • Damage due to misuse, abuse, negligence, or accidents.
  • Damage caused by unauthorized repairs or modifications.
  • Normal wear and tear.

To file a warranty claim, please contact our customer service department with the following information:

  • Proof of purchase (Sales Invoice).
  • Detailed description of the issue.
  • Photos or videos of the defect (if applicable).
