SKU:MLE00473

DFRobot Gravity: I2C BME280 Environmental Sensor

₱1,095.00 PHP
₱1,095.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 5 units left

About the Product

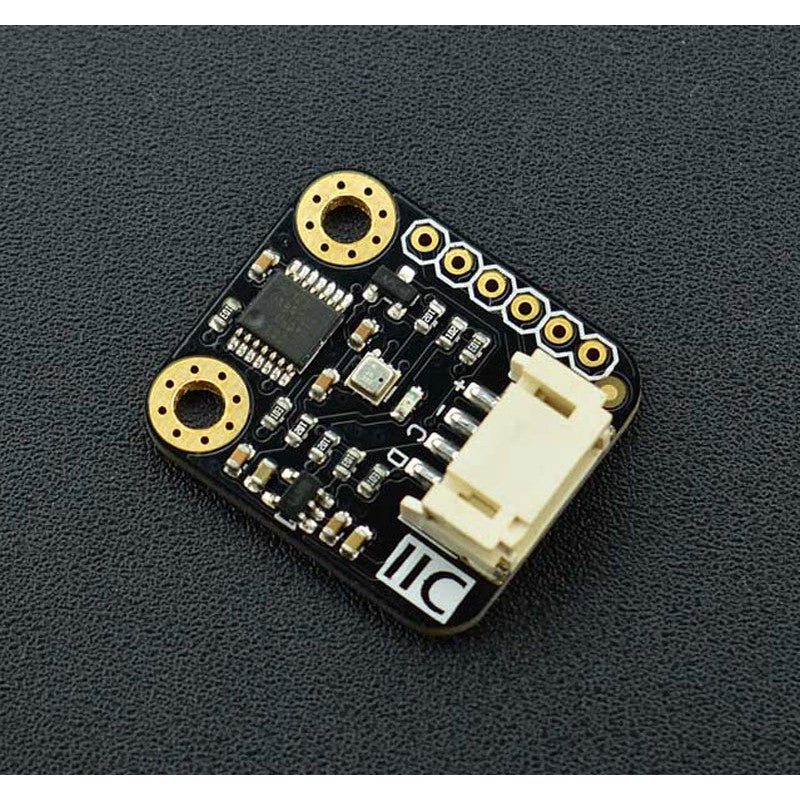

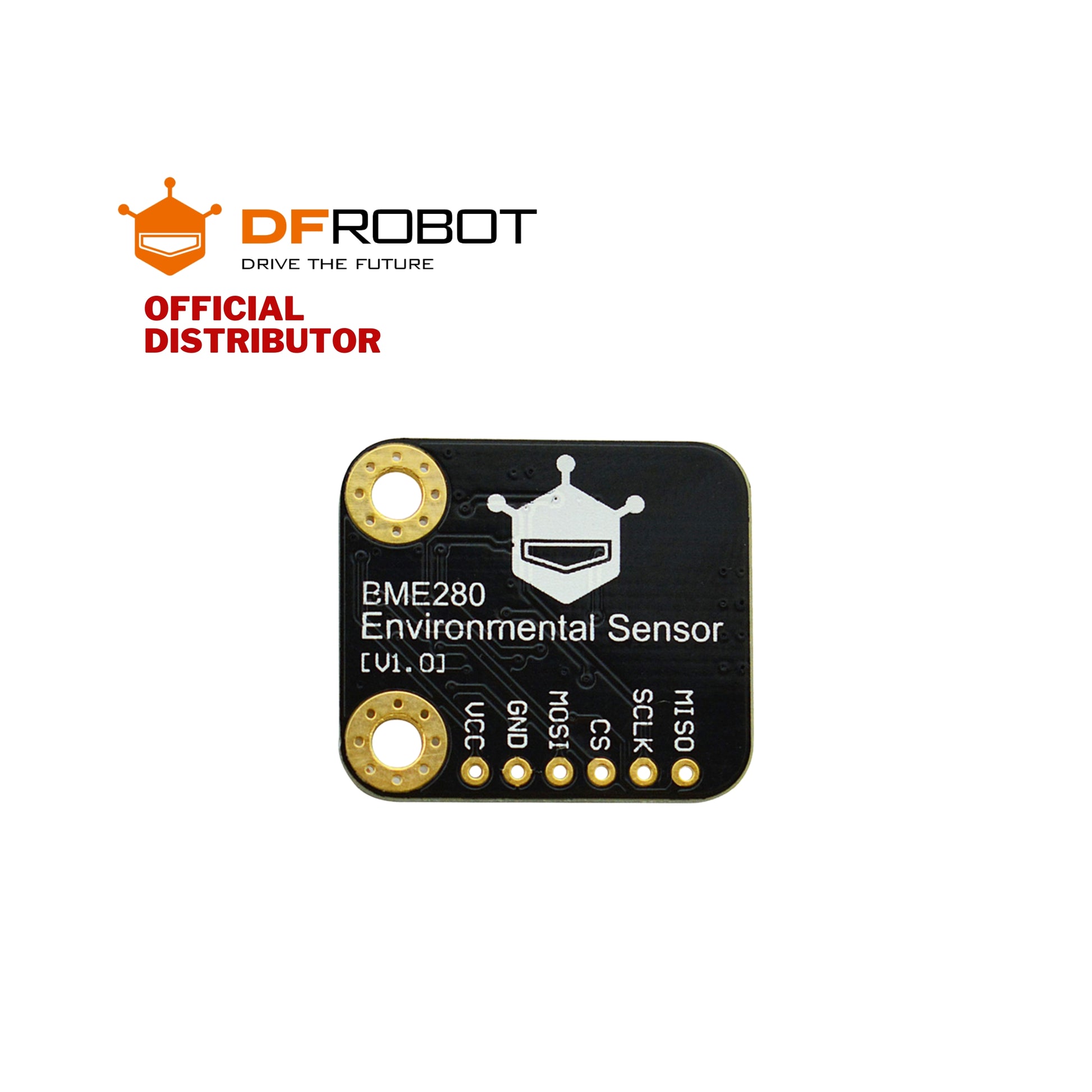

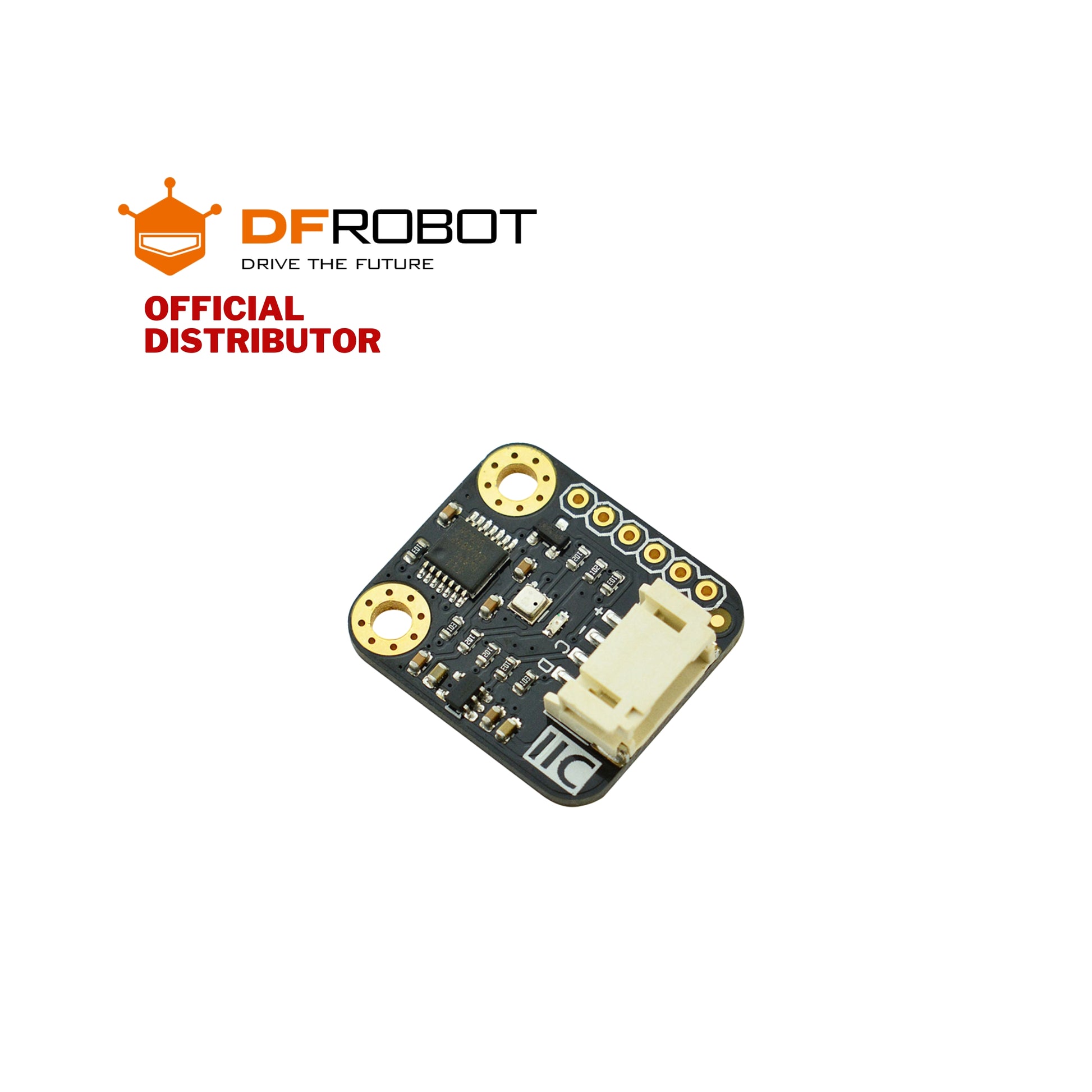

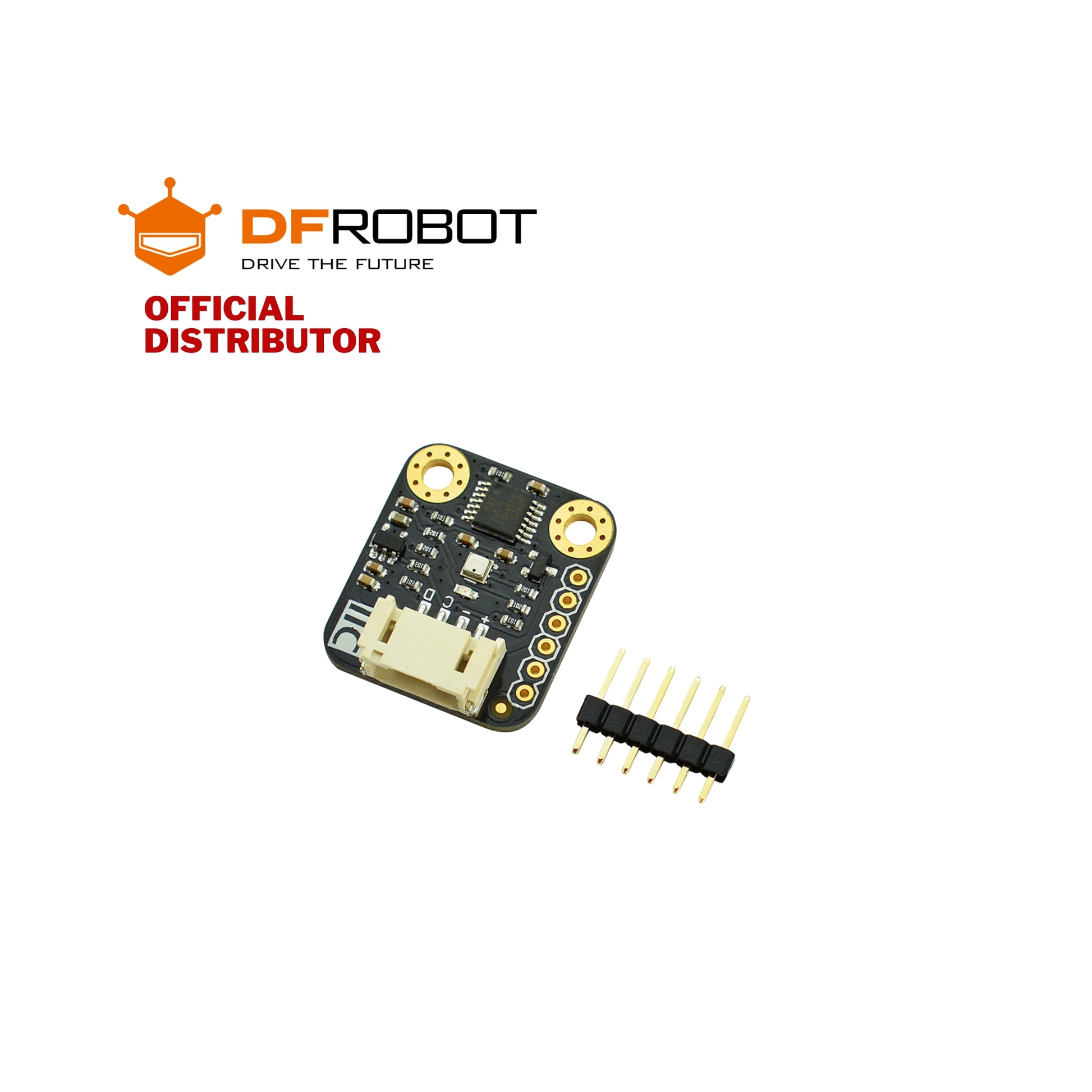

I2C BME280 Environmental Sensor (Temperature, Humidity, Barometer)

This I2C BME280 Environmental Sensor integrates onboard temperature sensor, humidity sensor and barometer. The sensor is of high precision, multiple functions, and small size etc. It provides both SPI and I2C interfaces, which make it easy to make a fast prototypes. It can be widely used in environmental monitoring, story height measurement and Internet of Things (IoT) control and so on.

Features:

  • Compatible with 3.3V/5V microcontrollers
  • Environmental monitoring: temperature, humidity and barometer
  • Gravity I2C interface and reserve XH2.54 SPI interface
  • Small size, convenient to install

Specifications:

  • Working Voltage: 3.3V~5.0V
  • Working Current: 2mA
  • Working Temperature?-40?~+85?
  • Temperature Measuring Range: -40?~+85?, resolution of 0.1?, deviation of ±0.5?
  • Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH
  • Pressure Measuring Range: 300~1100hPa
  • Humidity Sampling Time: 1s
  • Dimension: 22 * 25 mm/ 0.87 * 0.98 inches
  • Weight: 12g

Applications:

  • Context awareness (skin detection, room change detection)
  • Home automation control (control heating, venting, air conditioning (HVAC))
  • Internet of things
  • GPS enhancement (time-to-first-fix improvement, dead reckoning, slope detection)
  • Indoor navigation (change of floor detection, elevator detection)
  • Outdoor navigation, leisure and sports applications
  • Weather forecast
  • Vertical velocity indication (rise/sink speed)

Documents:
