MLE01363

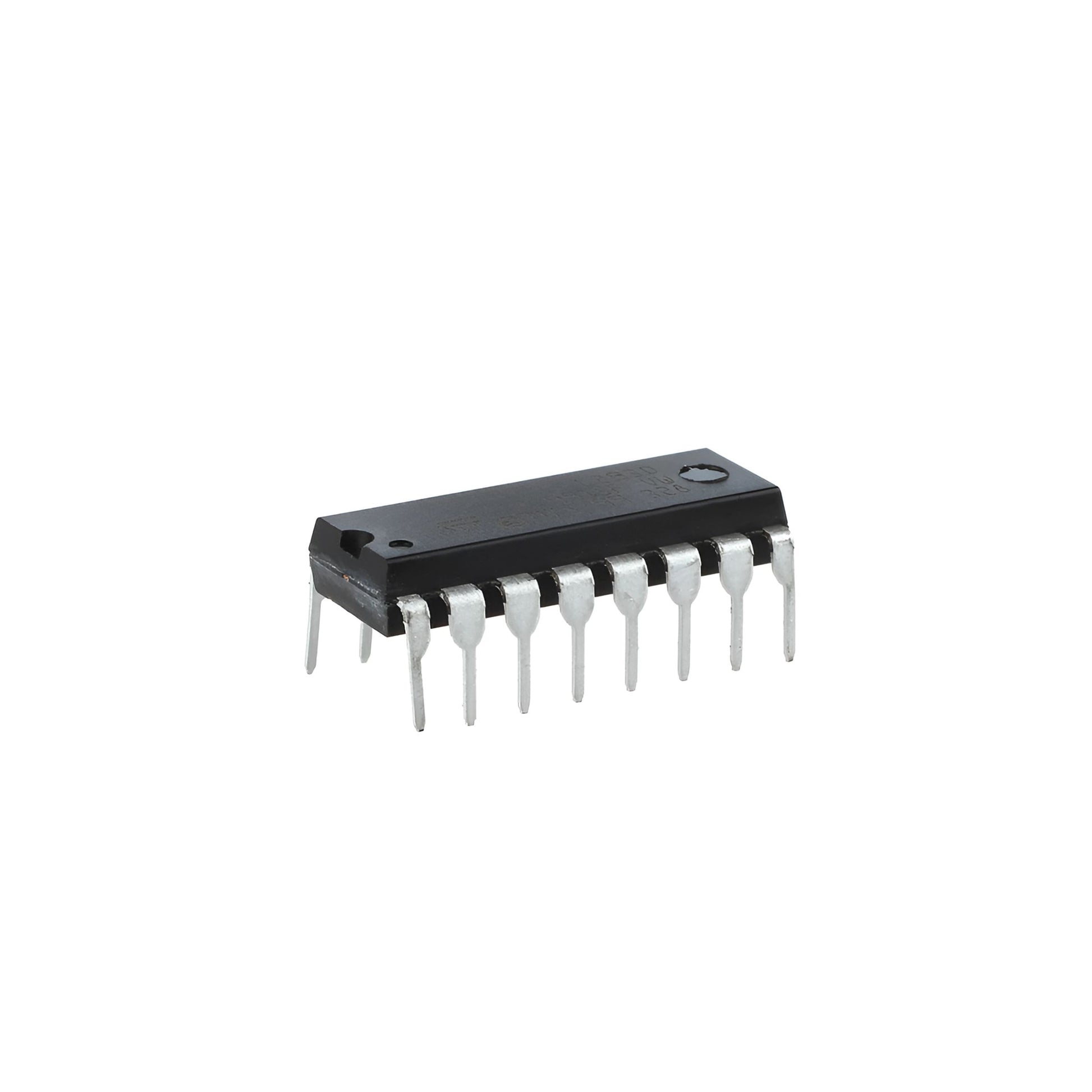

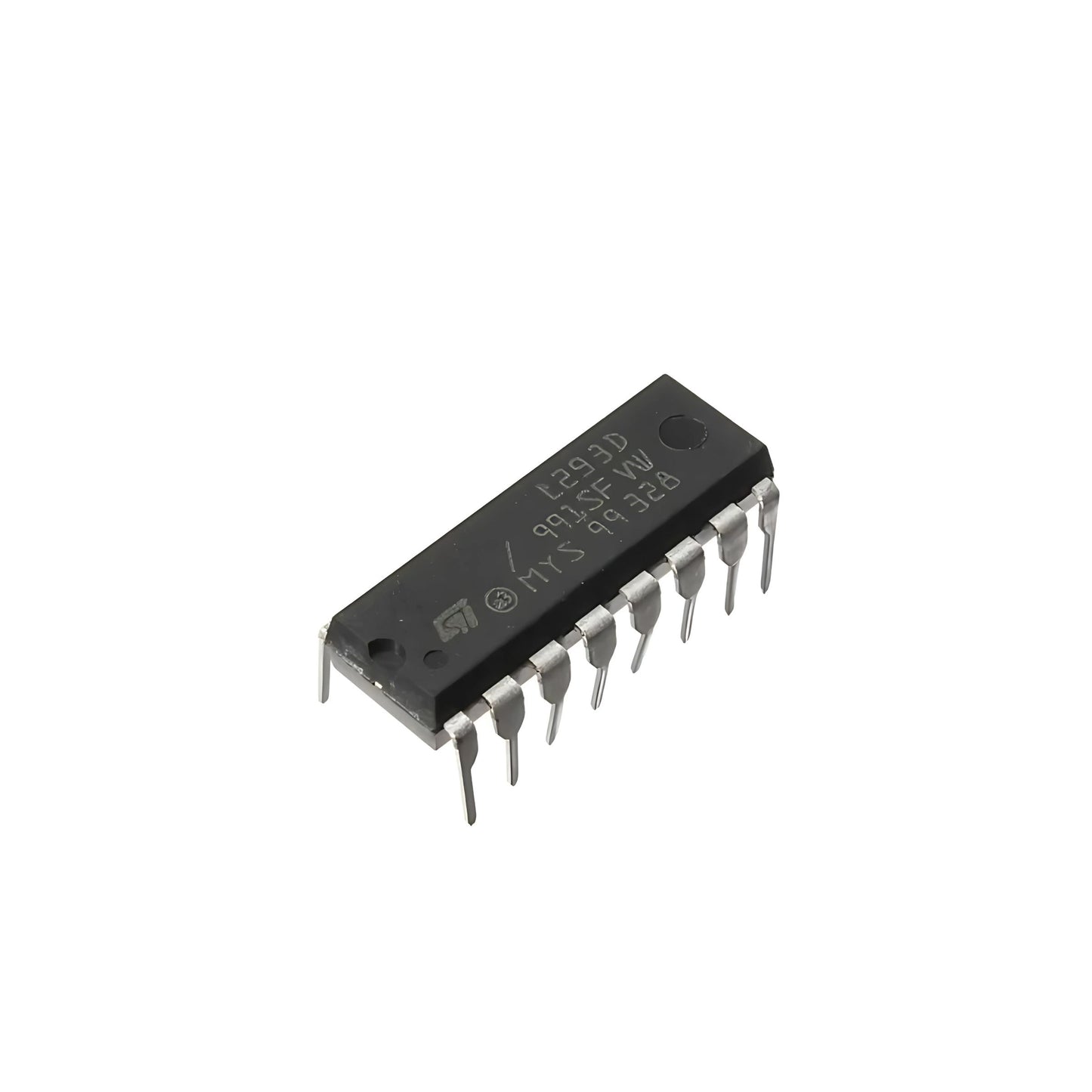

L293D IC

₱60.00
₱60.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

The L293D IC is a popular 16-pin Motor Driver IC mainly used to drive motors. It is a dual H-bridge motor driver integrated circuit (IC) wherein it acts as a current amplifier, taking low-current control signals from a microcontroller or other digital logic and providing the higher current needed to drive motors. The L293D IC is capable of running two DC motors in any direction at the same time.


L293D IC Pinout
Motor Driver IC L293D Pinout


L293D IC 2D Model
L293D IC Dimensions


Features:

  • Wide Supply-Voltage Range
  • Separate Input-Logic Supply
  • Internal ESD Protection
  • High-Noise-Immunity Inputs
  • Output Clamp Diodes for Inductive Transient Suppression
  • Dual H-Bridge Driver
  • Bidirectional Control
  • High Output Current
  • Wide Supply Voltage Range
  • Thermal Shutdown Protection
  • TTL Compatible Inputs


Specifications:

Motor Supply Voltage: 4.5 V - 36 V
Logic Supply Voltage: 4.5 V - 7 V
Output Current per Channel: 600 mA
Peak Output Current per Channel: 1.2 A
Input Logic Voltage (High): 2.3 V - 7 V
Input Logic Voltage (Low): -0.3 V - 1.5 V
Operating Temperature: 0°C - 70°C
Package Type: 16-pin DIP


Application:

DC Motor Drivers
Stepper Motor Drivers
Latching Relay Drivers
Robotics
Automated Systems
Hobbyist Projects
Actuators
Solenoid Control
