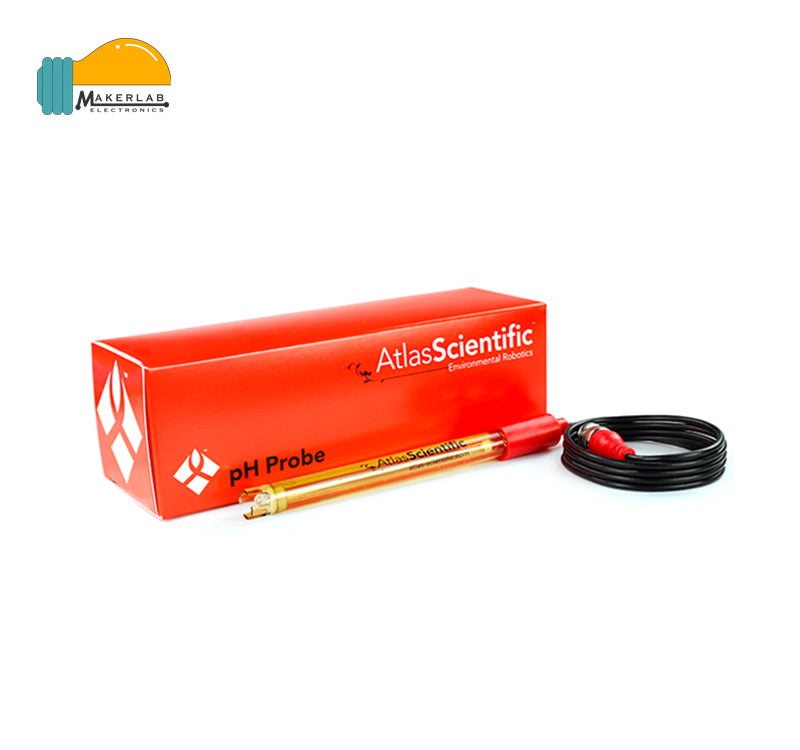

Atlas Lab Grade pH Probe | ENV-40-pH

Description:

This Atlas Scientific Lab Grade pH probe is our highest accuracy pH probe. The internal double junction lets you read the pH of protein-rich solutions without damaging the probe. The green Vanadium III tip is a hydrogen amplifier, reducing noise and increasing reading stability. A Tyvek™ junction connects the pH probe to the outside world. Because Tyvek™ resists water flow, the internal electrolyte is held in the probe longer, leading to less frequent recalibrations.

Note: This pH Probe can be fully submerged in fresh water or salt water, up to the SMA connector indefinitely.

Specifications:

• Silver / silver chloride
• Reads: pH
• Range: 0 ? 14
• Accuracy: +/– 0.002
• Connector: Male BNC
• Resolution: +/- 0.0001
• Response time: 95% in 1s
• Max pressure: 100 PSI
• Max depth: 60m (197 ft)
• Temperature range °C: 1 ? 99 °C
• Cable length: 1 meter
• Internal temperature sensor: No
• Time before recalibration: ~1 Year
• Life expectancy: ~2.5 Years +

Documents & Downloads:

• Lab Grade pH Probe Datasheet
• LEGACY Lab Grade probe Datasheet
• How to measure the pH of soil
• How to properly cut your probe cable
• Connecting probes into a pipe
• pH Temperature Compensation Calculator
• ENV-40-pH 3D model (*step)
