MLE03363

M5Stack LCD Unit 1.14'' 135 × 240 Pixels Display

₱1,200.00
₱1,200.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 4 units left

About the Product

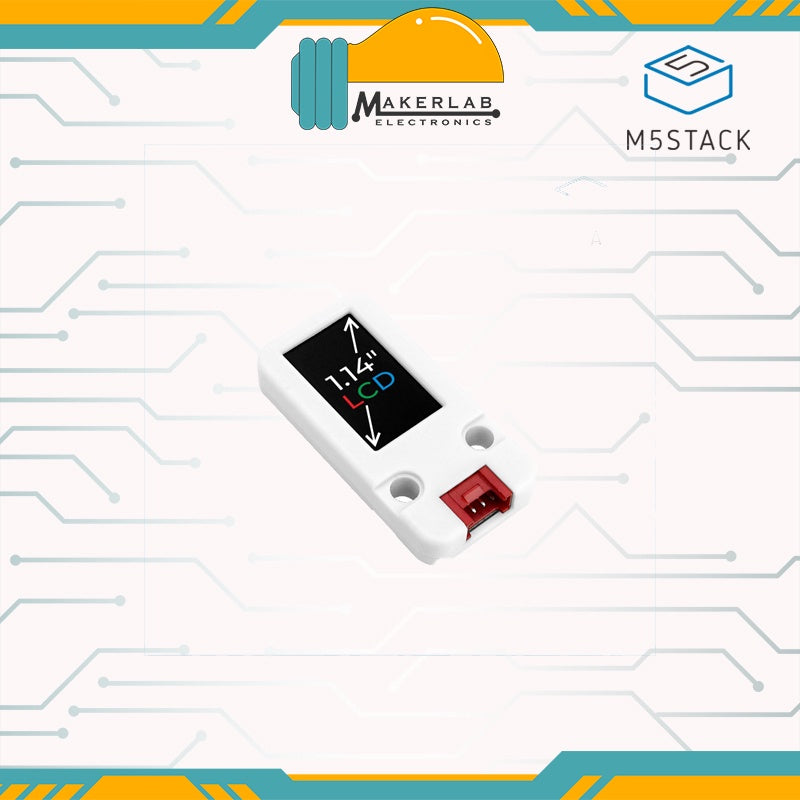

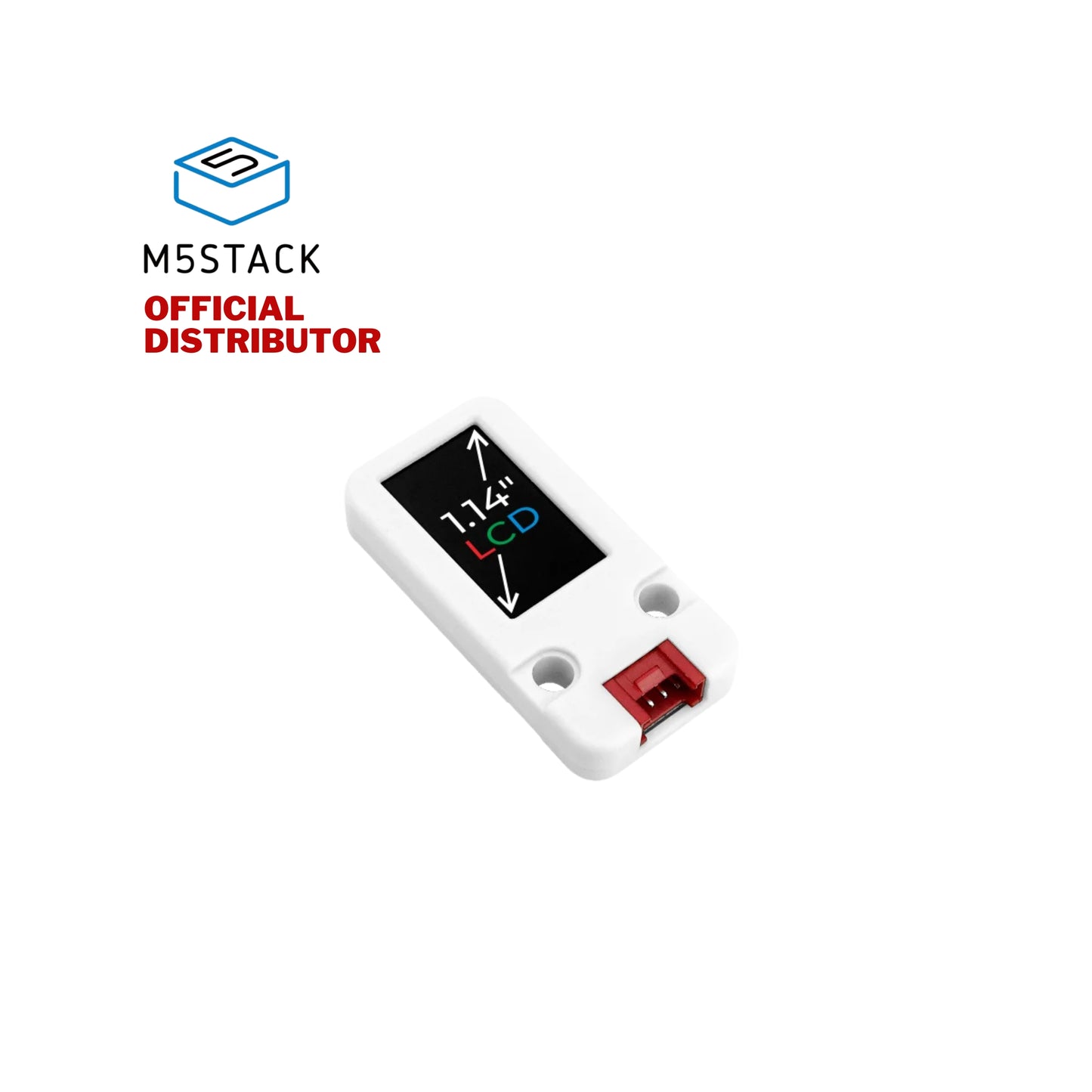

Unit LCD is a 1.14 inch color LCD expansion screen unit. It adopts ST7789V2 drive scheme, the resolution is 135*240, and it supports RGB666 display (262,144 colors). The internal integration of ESP32-PICO control core (built-in firmware, display development is more convenient), support through I2C (addr: 0x3E) communication interface for control and firmware upgrades. The back of the screen is integrated with a magnetic design, which can easily adsorb the metal surface for fixing. The LCD screen extension is suitable for embedding in various instruments or control devices that need to display simple content as a display panel.

Product Features

  • 1.14 inch color LCD display panel
  • ST7789V2 drive scheme

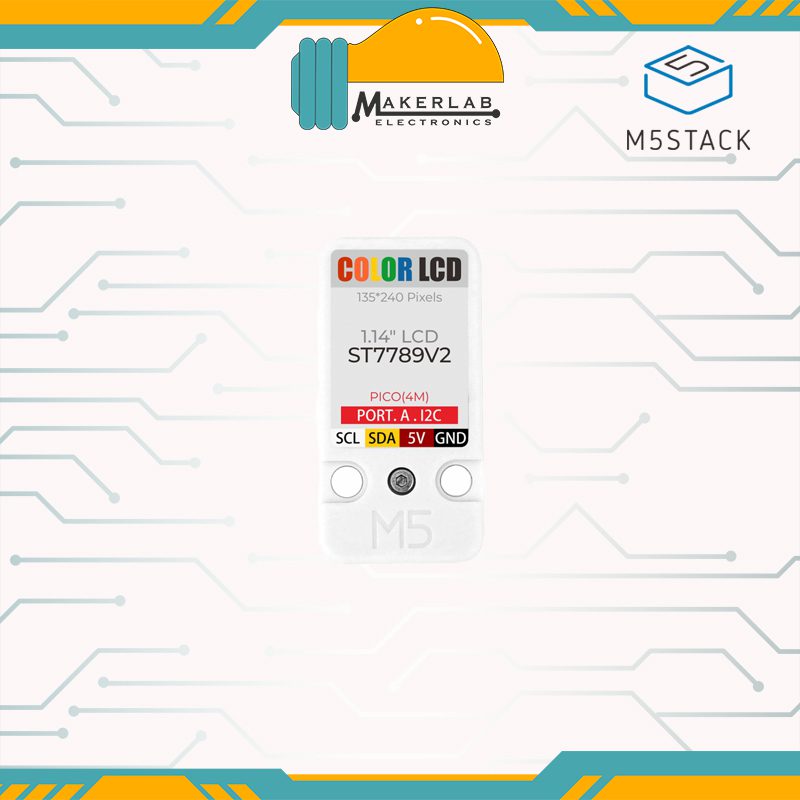

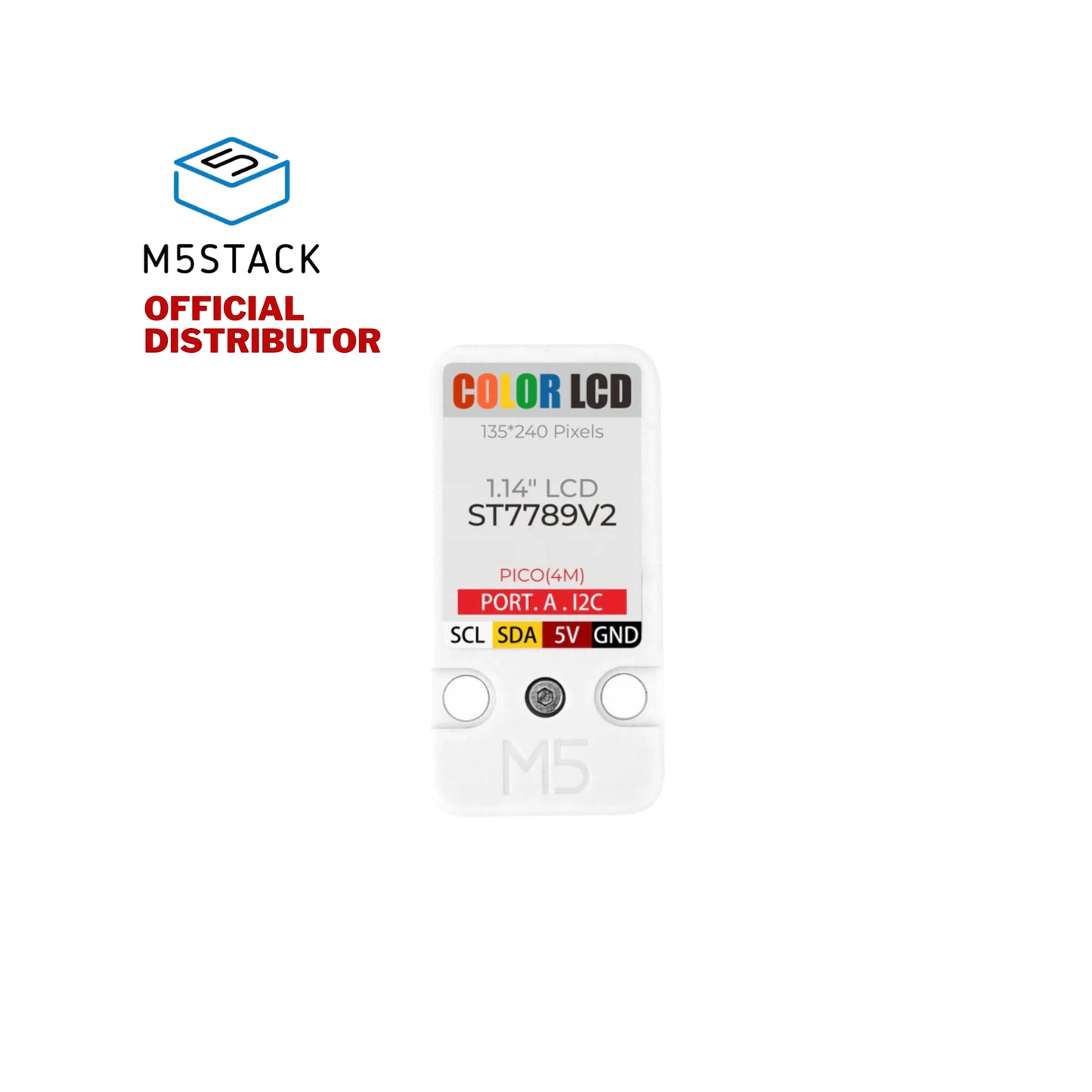

  • I2C communication interface
  • 135*240 resolution
  • Viewing angle: full viewing angle
  • Magnetic back design
  • Support I2C firmware upgrade

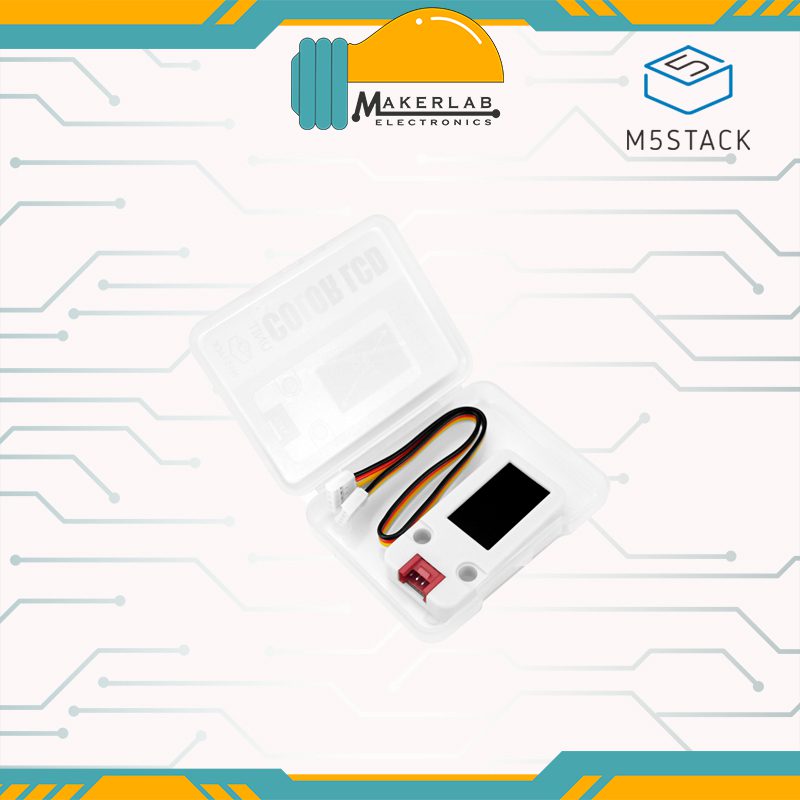

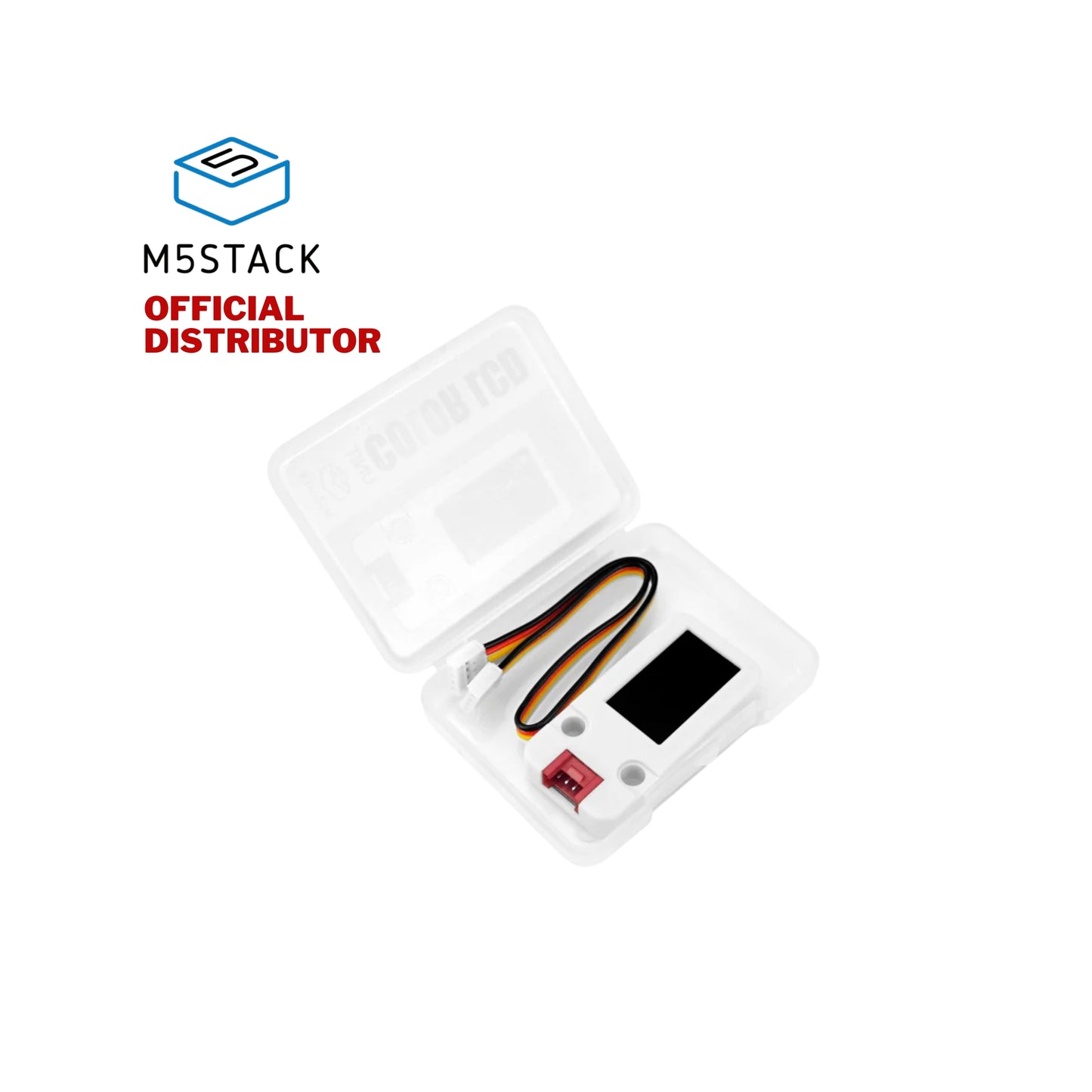

Include

  • 1x Unit LCD
  • 1x HY2.0-4P Cable

Applications

  • Information display

Specification

Specification Parameter
Working current 45.7mA
Communication protocol I2C address: 0x3E
Display size 1.14 inch
Pixel pitch 0.1101(H) x 0.1038(V) mm
Resolution 135*240
Viewable Full view
Operating temperature 0°C to 60°C
Net weight 8.5g
Gross weight 20g
Product Size 48*24*8mm
Package Size 67*52*12.5mm
Case material Plastic ( PC )
