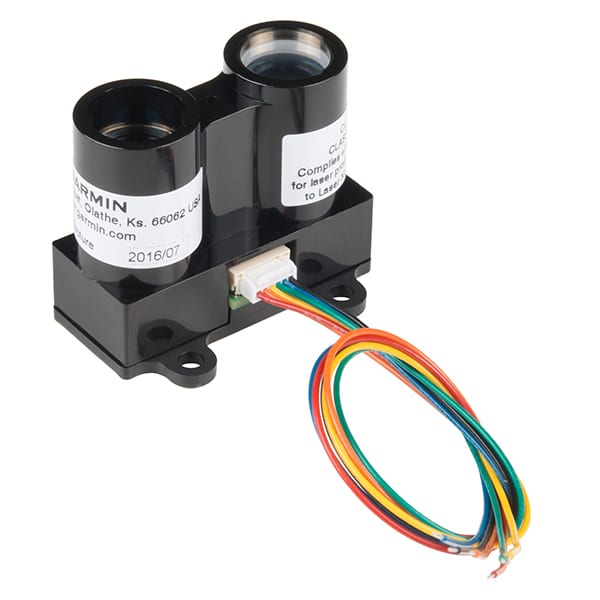

LIDAR Lite V3 Laser Distance Ranging Sensor

It’s back! This is the LIDAR Lite V3 Laser Distance Ranging Sensor is a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.

This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.

Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I²C or PWM with the included 200mm accessory cable.

Features:

• Range: 0-40m Laser Emitter
• Accuracy: +/- 2.5cm at distances greater than 1m
• Power: 4.75–5V DC; 6V Max
• Current Consumption: 105mA idle; 130mA continuous
• Rep Rate: 1–500Hz
• Laser Wave Length/Peak Power: 905nm/1.3 watts
• Beam Divergence: 4m Radian x 2m Radian
• Optical Aperture: 12.5mm
• Interface: I²C or PWM
