LiitoKala Lii-L2/Lii-L4 Battery Charger 26650 21700 18650 18350 14500

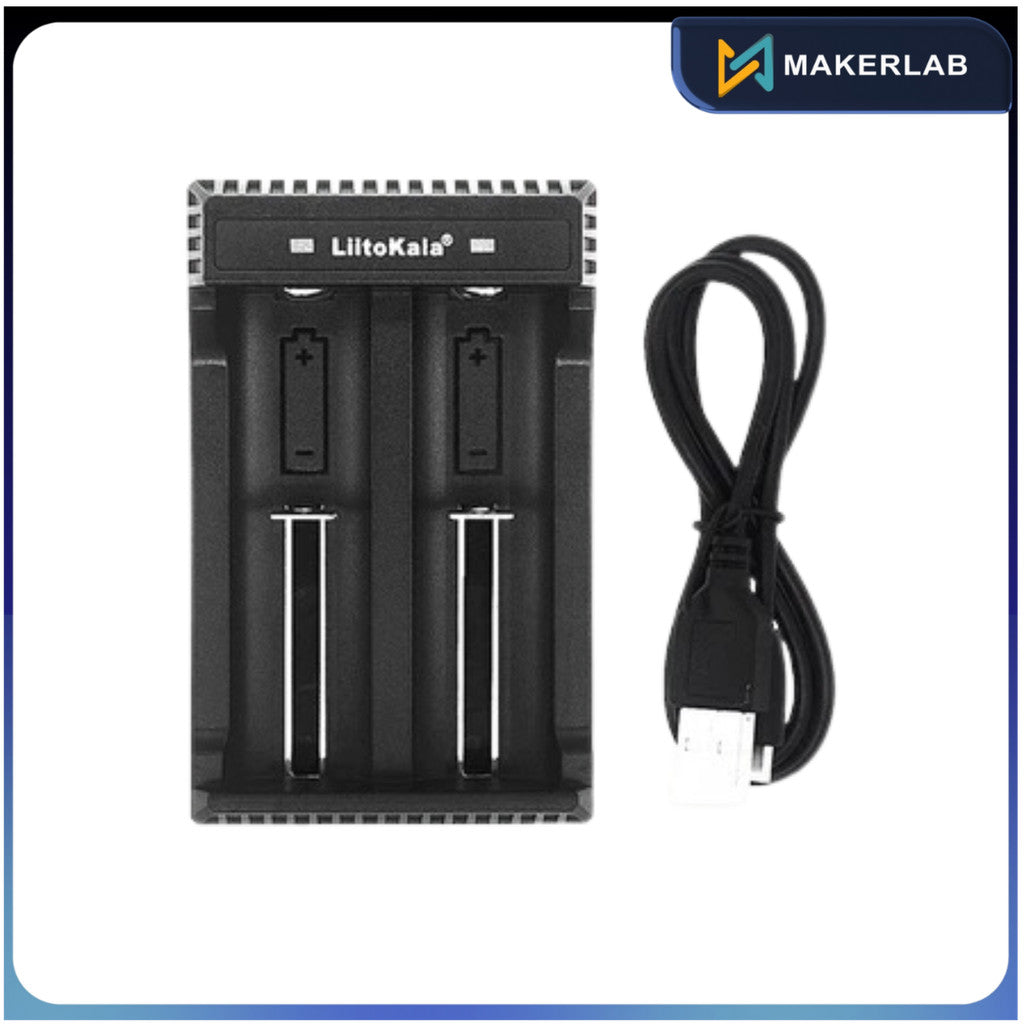

Lii-L2
Lii-L2 is specially designed by LiitoKala Power Co., LTD. taking into account the wishes of the market and customer requirements. Lithium-ion battery charger (4.20V) is simple and practical. The main part of the product is a highly efficient integrated chip that converts the power supply voltage to battery charging voltage. The product has two independent charger slots for charging any type and capacity of lithium-ion batteries in DC mode.

ELECTROTECHNICAL PARAMETERS:

1. Input voltage: DC 5V / 1A.
2. Output voltage without load: 4.20V.
3. Charging current: 500 mA (2 slots for lithium-ion batteries).
4. Protection method: protection against short circuit, overcurrent, protection against battery re-installation.
5. Case material: ABS + PC + fire retardant material.
6. Working temperature: 0-40 degrees Celsius.

INDICATOR:

• Green light indicates that the device is in standby mode or the battery is full.
• Red light - the device is in the process of charging.

Lii-L4
Lii-L4 is specially designed by LiitoKala Power Co., LTD. taking into account the wishes of the market and customer requirements. Lithium-ion battery charger (4.20V) is simple and practical. The main part of the product is a highly efficient integrated chip that converts the power supply voltage to battery charging voltage. The product has four independent charger slots for charging any type and capacity of lithium-ion batteries in DC mode.

ELECTROTECHNICAL PARAMETERS:

1. Input voltage: DC 5V/2A.
2. Output voltage without load: 4.20V.
3. Charging current: 500 mA (4 slots for lithium-ion batteries).
4. Protection method: protection against short circuit, overcurrent, protection against battery re-installation.
5. Case material: ABS + PC + fire retardant material.
6. Working temperature: 0-40 degrees Celsius.

INDICATOR:

• Green light indicates that the device is in standby mode or the battery is full.
• Red light - the device is in the process of charging.
