SKU:MLE03945

M5Stack 2- Channel SPST Relay Unit

₱500.00 PHP
₱500.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 8 units left

About the Product

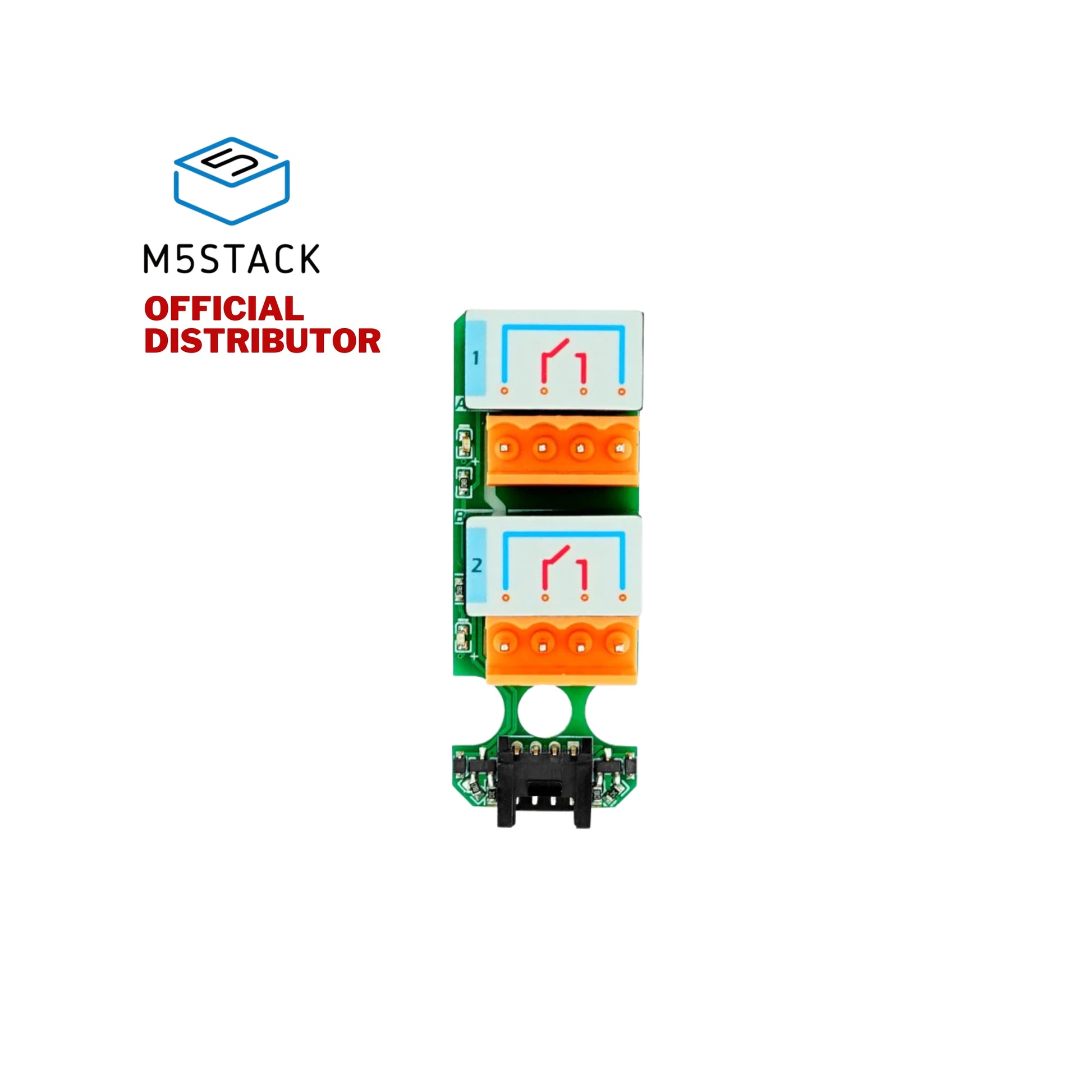

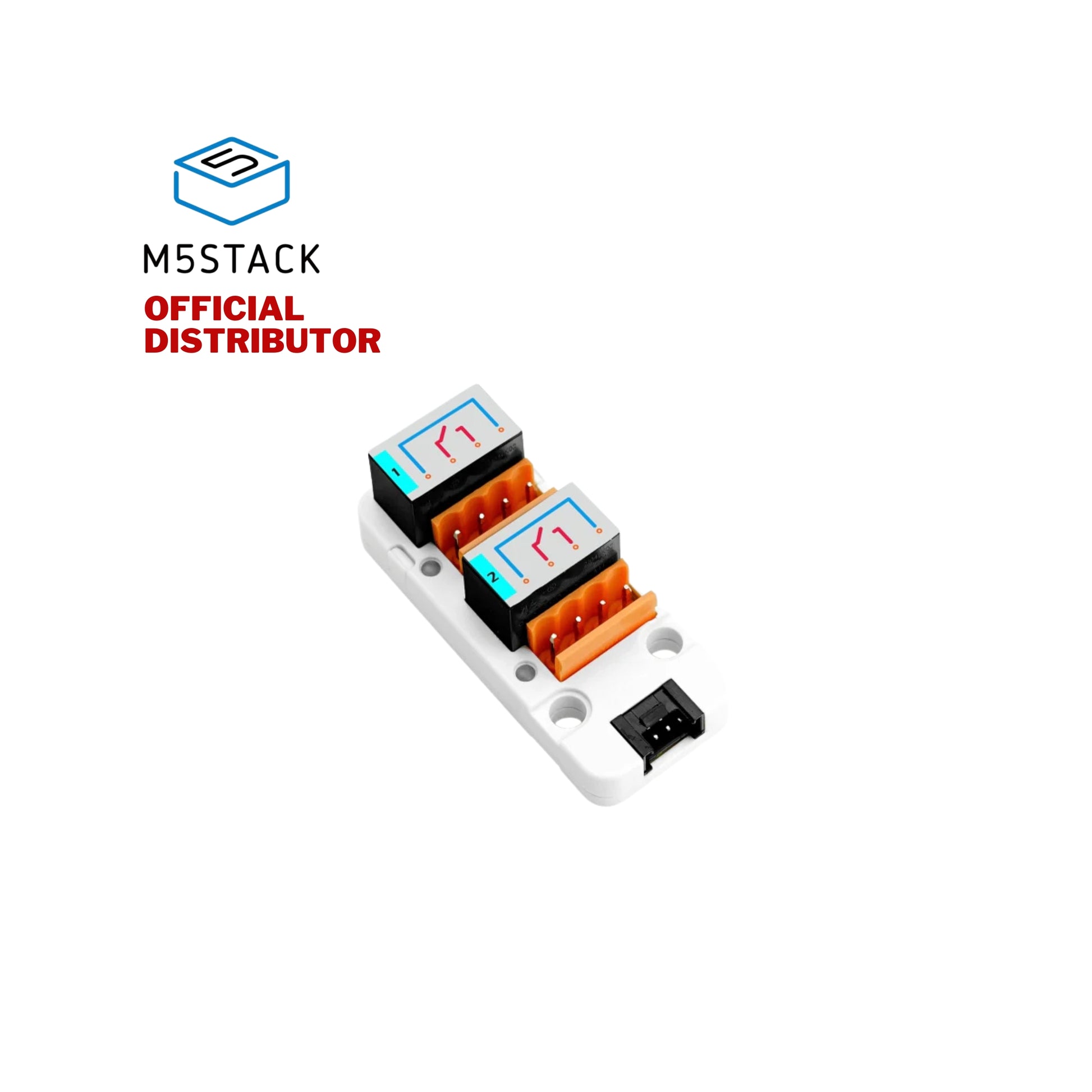

2-Channel SPST Relay Unit is a 2-channel SPST relay module, equipped with two high-current relays that work under AC250V 8A or DC28V 8A. Each relay adopts independent IO control, and status indicator LED. It is suitable for home appliance power control, or ON/OFF switch for industrial equipment.
The relay is driven by IO output high and low level signals, so before connecting to the main control, please make sure that the connected port IO supports configuration as output mode. (Note: G36 of ESP32 is not allowed to be configured as output mode, so Port B will not be able to drive normally)
Product Features
2-channel relay

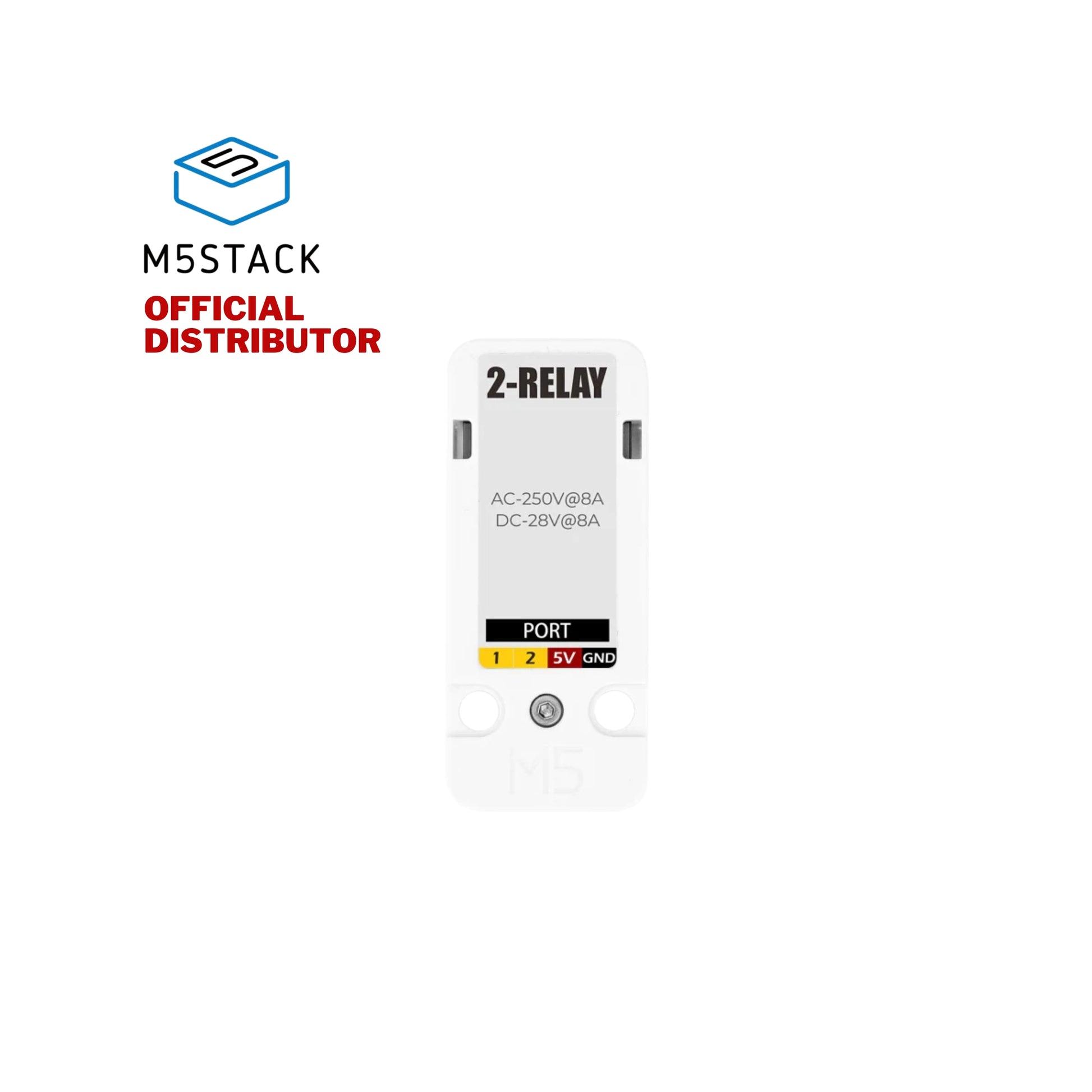

AC-250V/DC-28V @ 8A
Status Indicator LED

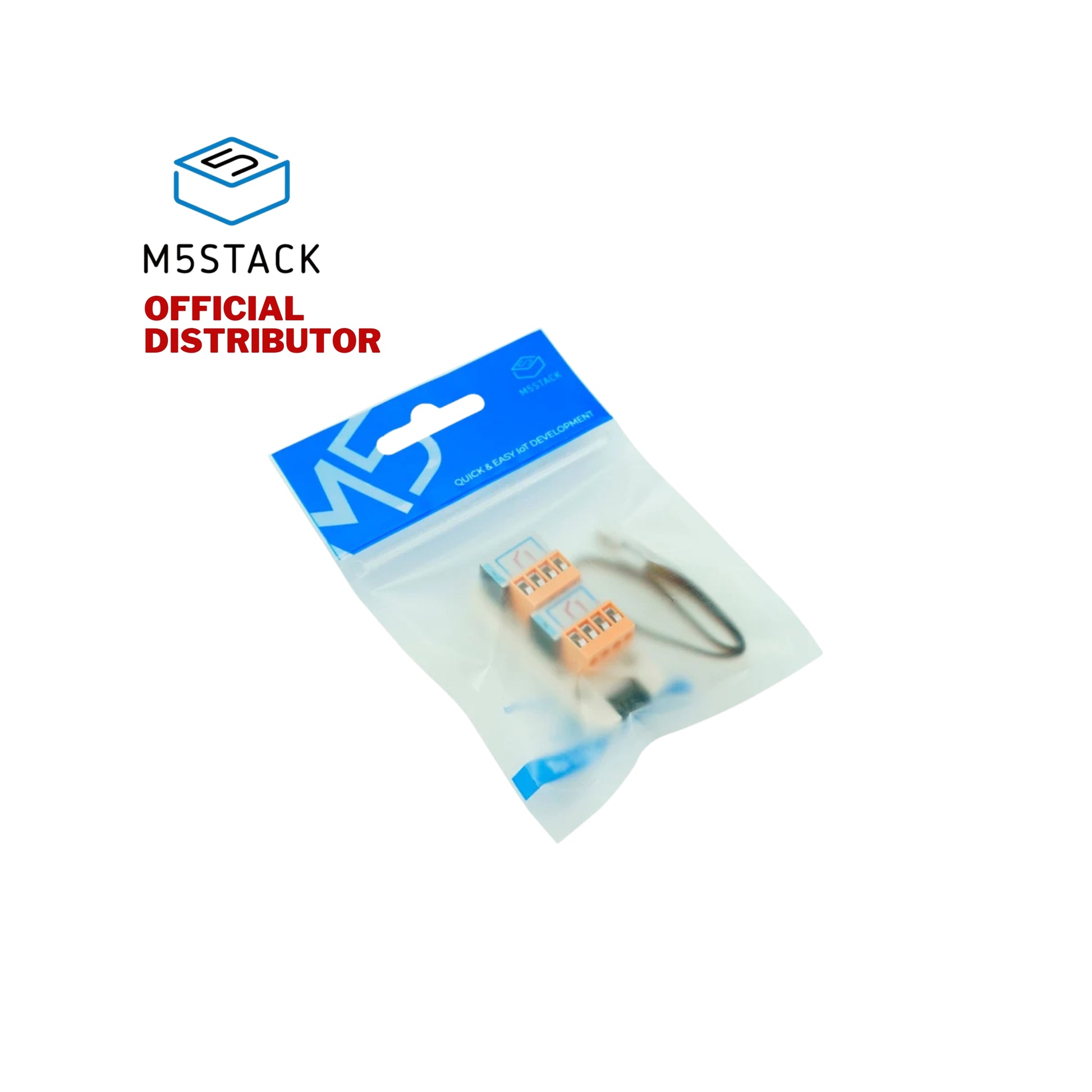

Include
1x 2RELAY Unit
1x HY2.0-4P cable (20cm)
2x VH3.96-4P Plug terminal
Applications
AC/DC signal switching
Digital equipment power on and off
Specification
Specifications Parameters
Maximum on-off voltage AC-250V/DC-28V
Rated current 8A
Coil control voltage DC5V
Coil power consumption 5V@154mA
Coil action time ? 8ms
Coil release time ? 5ms
Contact form A normally open type
Contact material AgSnO2
Relay indicator Blue x2
Net weight 20g
Gross weight 31g
Product size 56 * 24 * 19mm
Packing size 93 * 138mm
