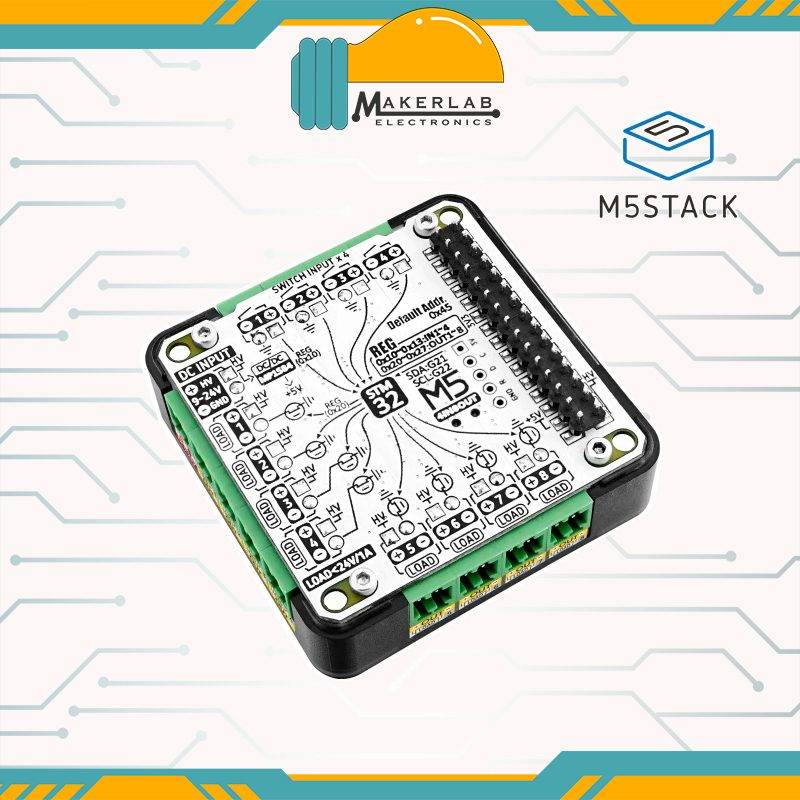

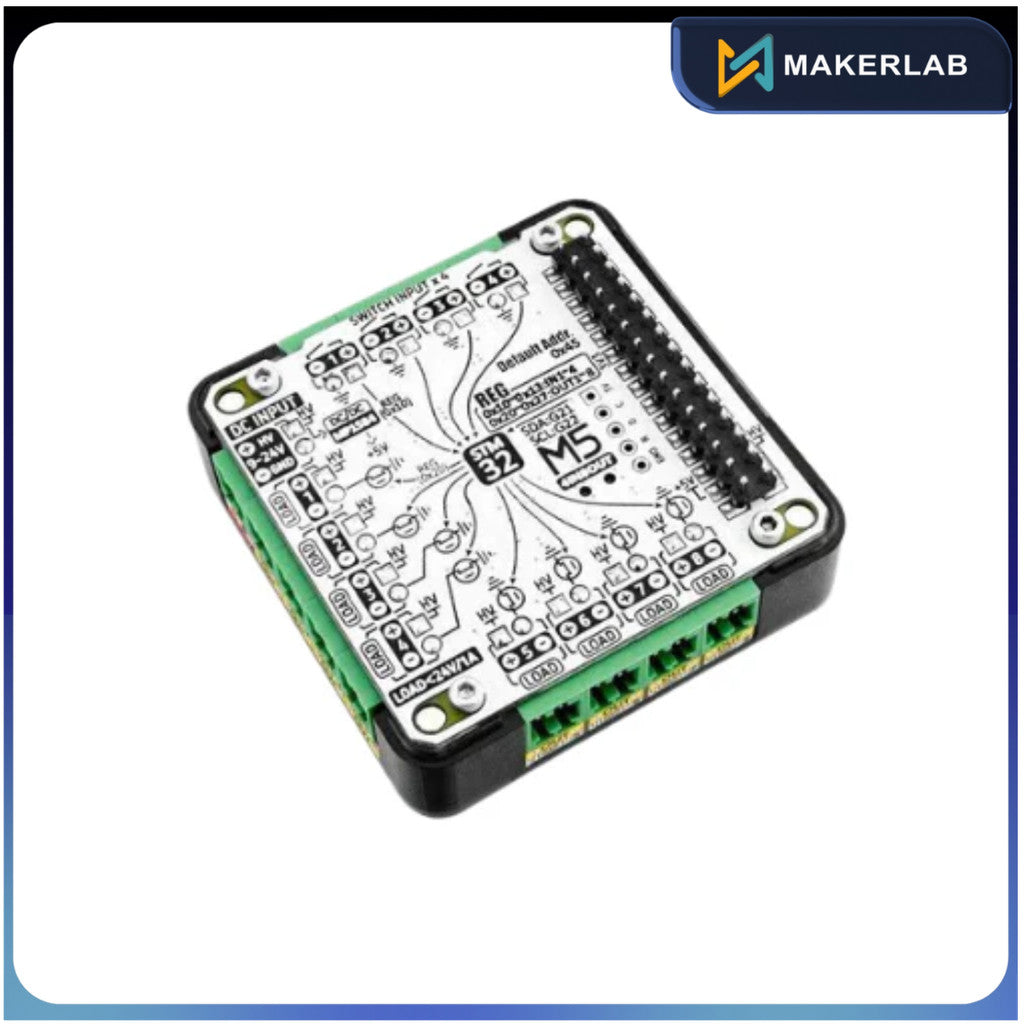

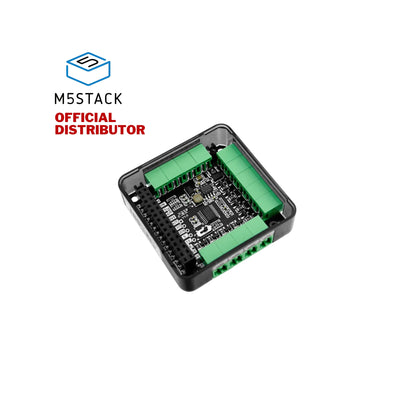

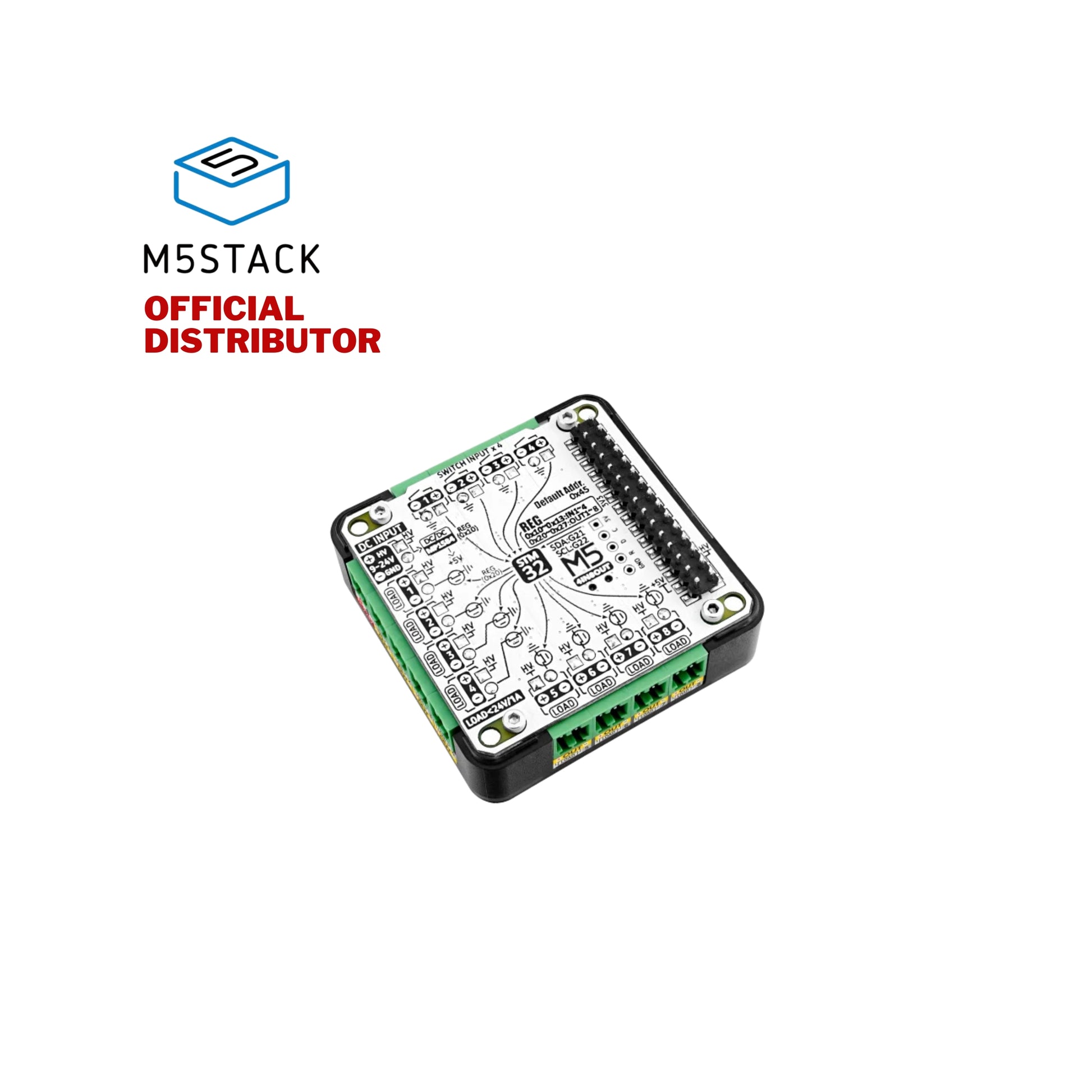

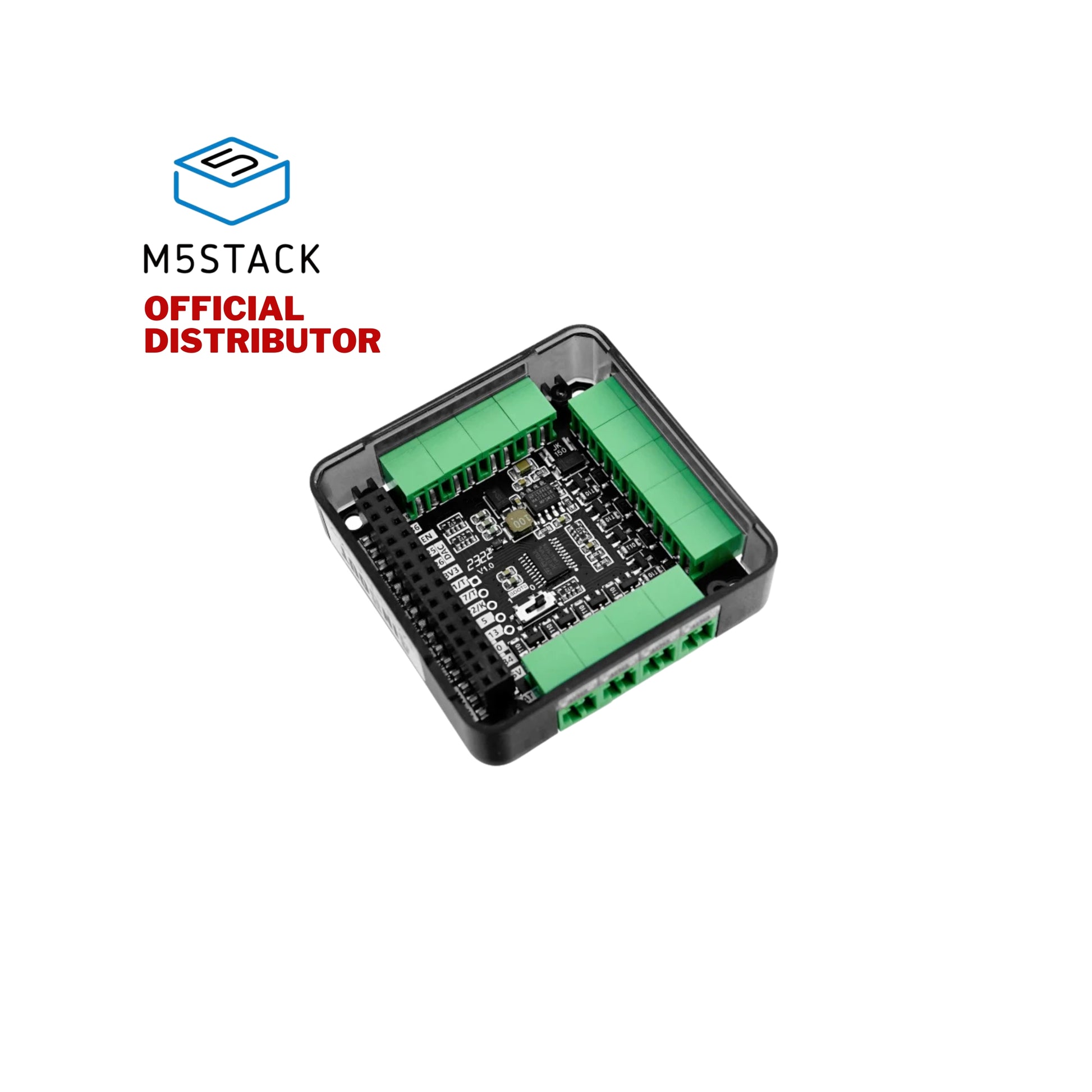

M5Stack 4IN8OUT Multi-channel DC Drive Module (STM32F030)

Description:

MODULE 13.2 4IN8OUT is a '4-Channel Passive Input/Switch + 8-Channel MOS Drive Output' drive module. Adopt STM32F030 as the I2C IO chip, support 9-24V DC input, with internal DC-DC circuitry to 5V.

Features:

• Compatible with Basic/Fire/Core2
• Adopt STM32F030 as the IO chip, I2C communication, I2C address is changeable by modifying the register
• 8-channel MOS Drive circuitry share the same VCC, channle load <1A
• 4-channel Passive Input share the same GND, no active signal or >5V signal allowed
• With internal MP1584, 9~24V -> 5V DC-DC converter

Specifications:

• Input Voltage: 9~24V
• Output Channel: 8
• Input Channel: 4
• Output Load: <1A each Channel
• Communication Interface: I2C
• I2C Address: Default 0x45, changeable by modifying the register 0xF0
• Net Weight: 21.9g
• Gross Weight: 52.5g
• Product Code: M122
• Product Size: 54*54*13mm
• Package Size: 125*68*23mm

Applications:

• Multi-channel load drive (Relay, Valva, Single-phase Motor, Singal LED)
• Limit Switch or Button test

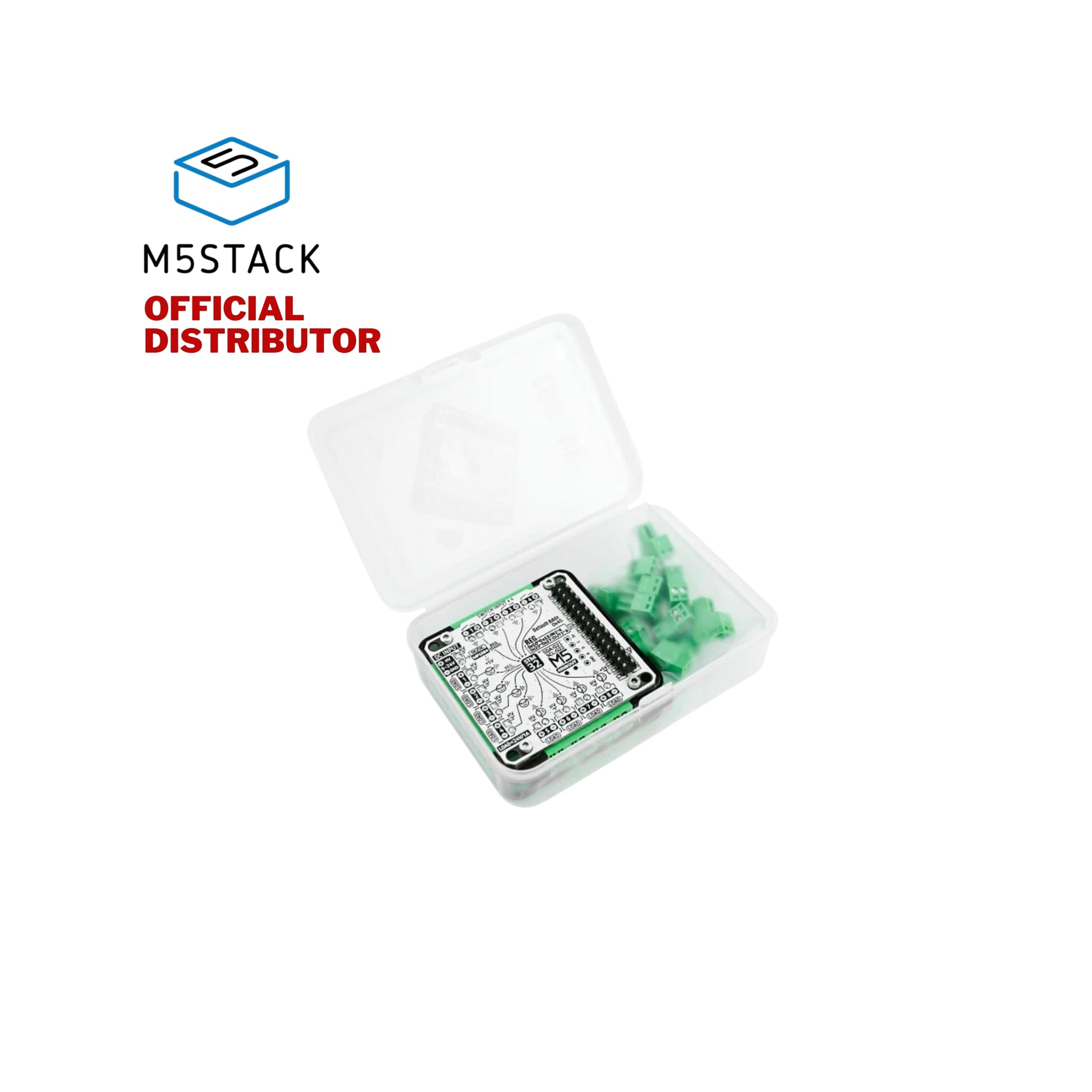

Part List:

• 1x MODULE 13.2 4IN8OUT
• 13x 2P Terminal
