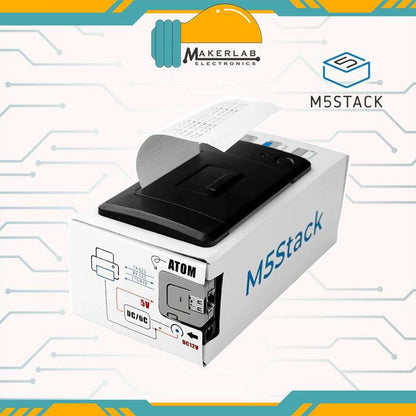

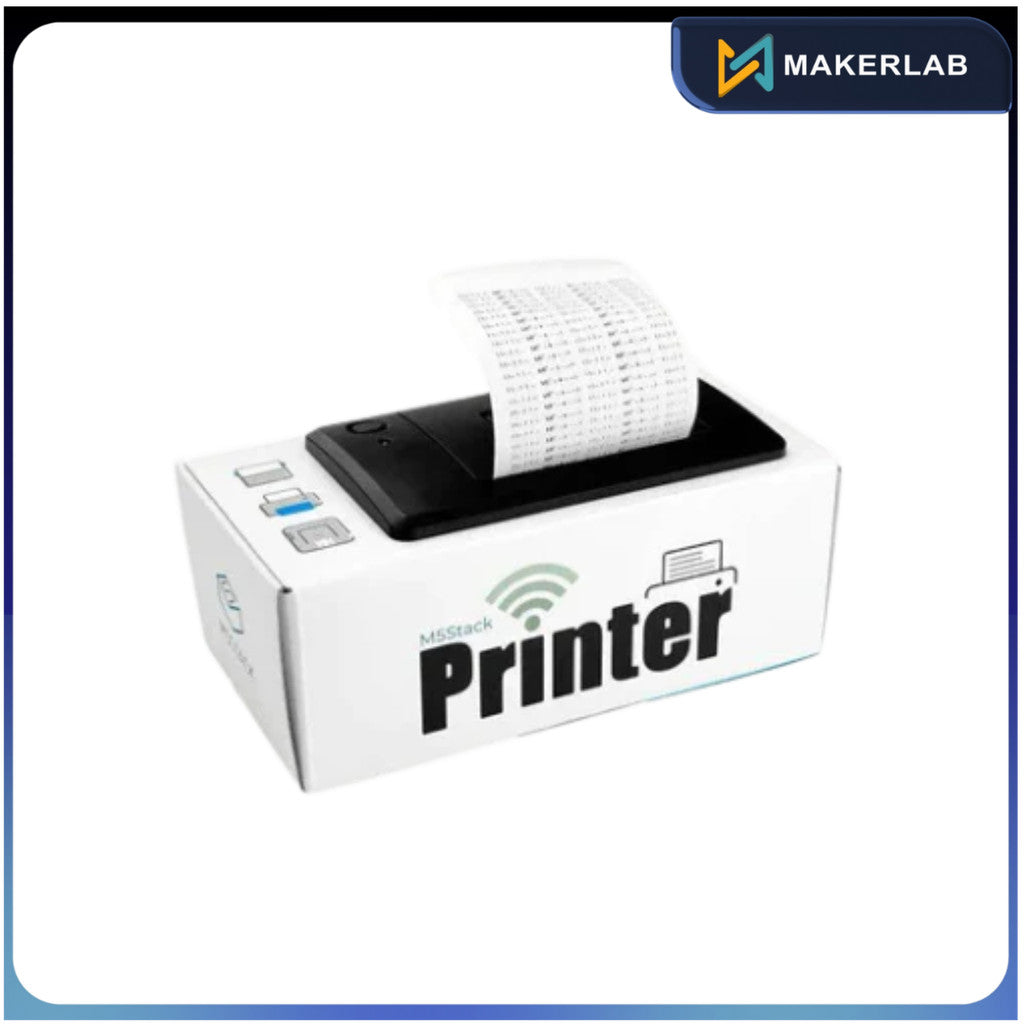

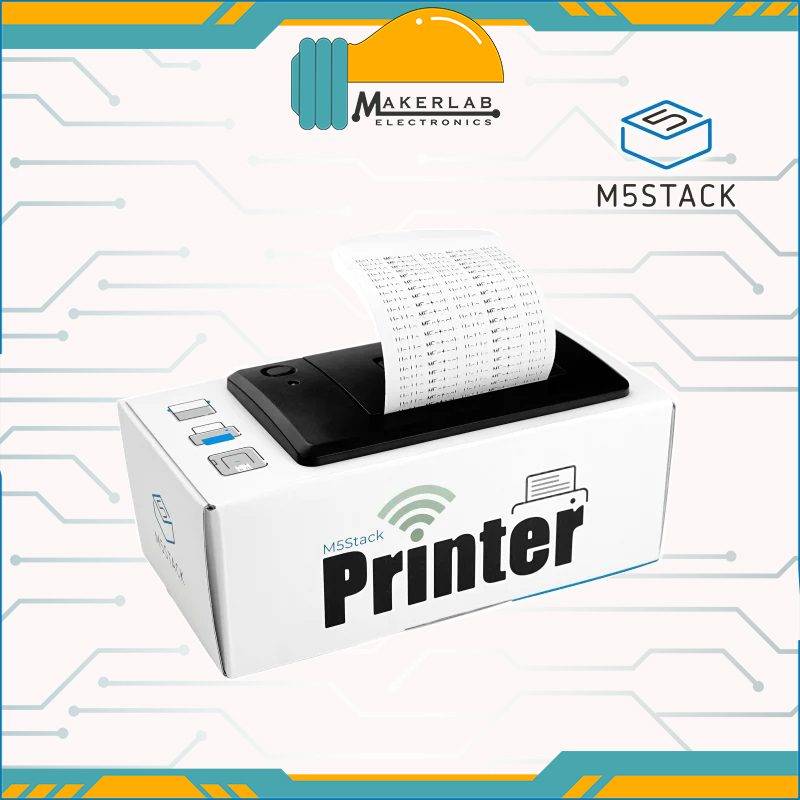

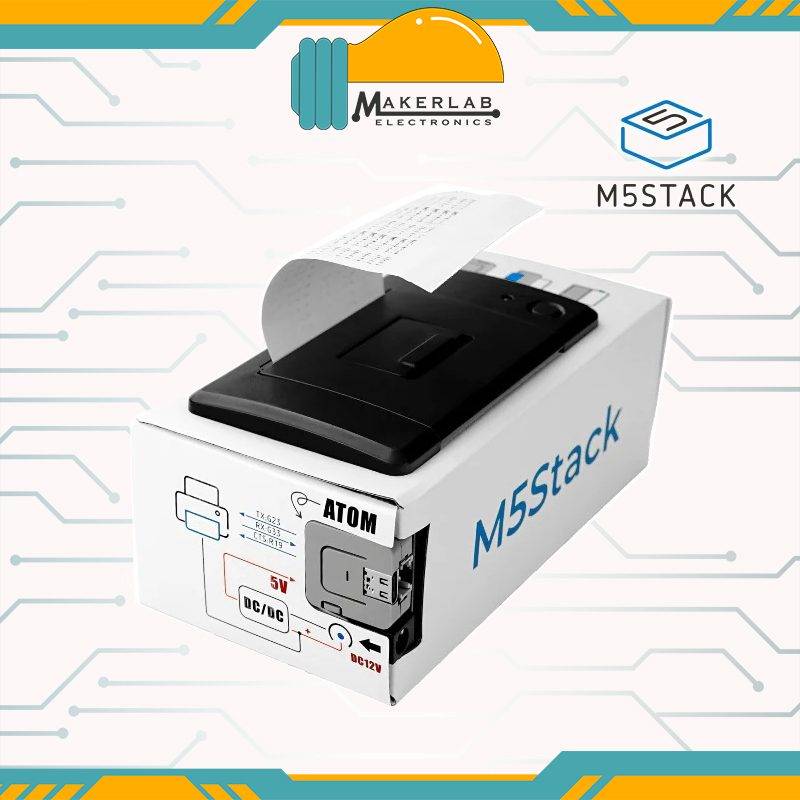

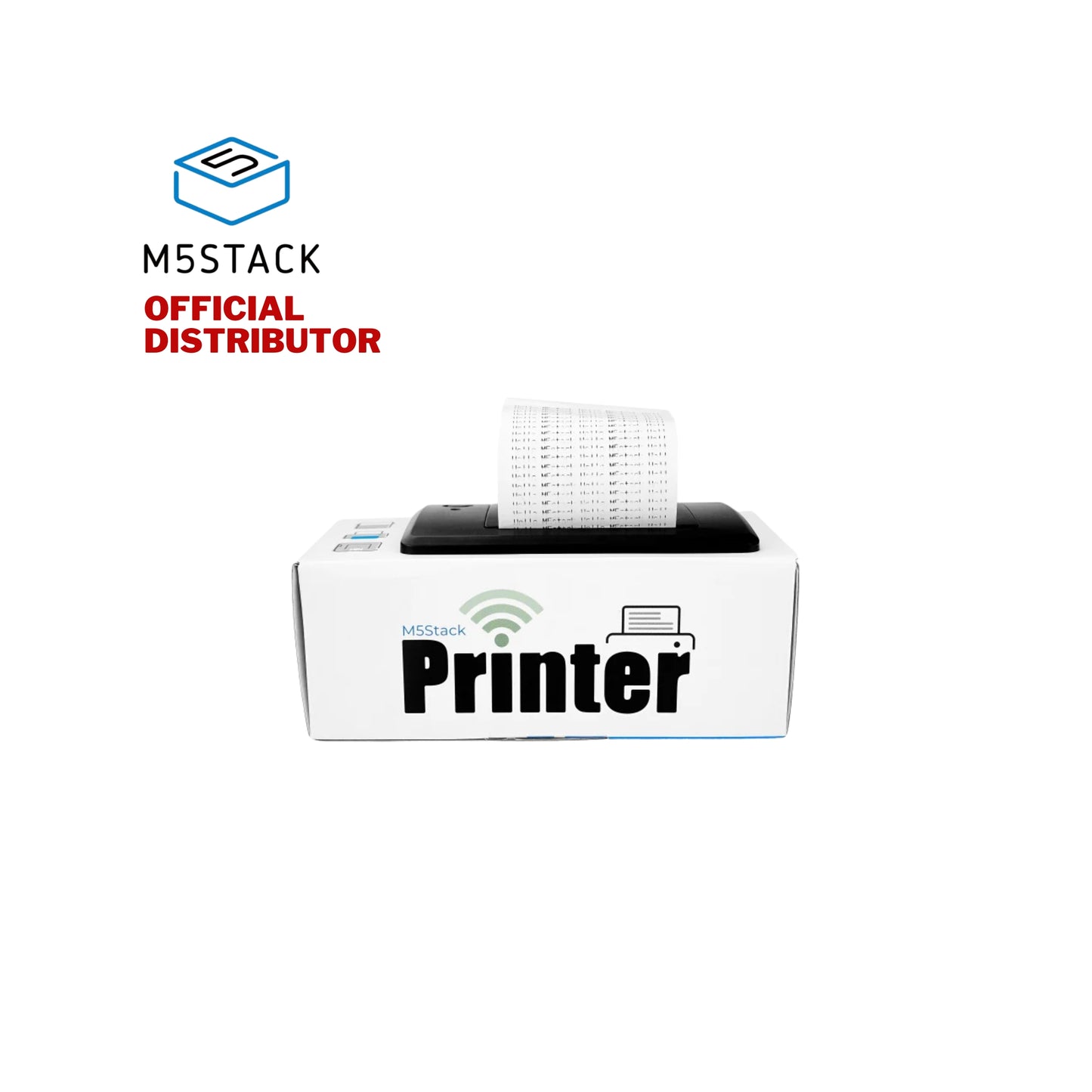

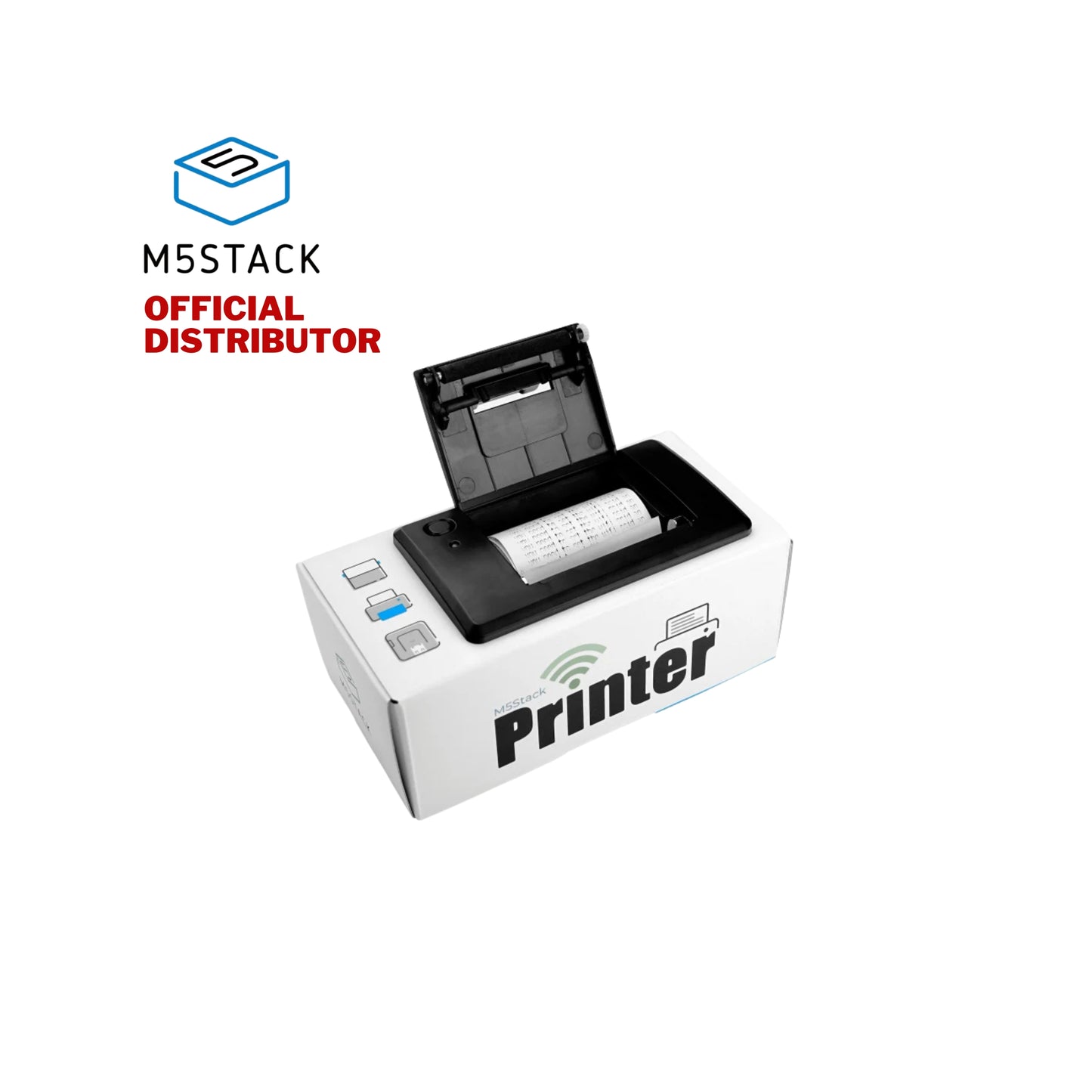

M5Stack Atom Thermal Printer Kit

Description

ATOM Printer offers the best value in a desktop DIY thermal printer, includes an ESP32-Pico based IoT controller ATOM Lite, and a 58mm thermal printer to meet your multiple printing requirements. Supports text, graphics, barcode, QR code printing. The ATOM Printer has geekery kraft packaging design, built-in firmware boasts two modes of AP Connect Print + MQTT Notifications Print . You can enrich your creation, fun and practical with ATOM Lite IoT controller.

Note: This kit excludes the power adapter. A DC 12V / 2.5A power adapter (5.5mm jack) is recommended.

Product Features

ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller

Sleek, Geekery kraft packaging design

Supports for text/graphics/BarCode/QRCode

Communication interface: UART

Fast printing, high resolution

How to use:

AP hotspot connection, web-controlled printing

Printing content sent via MQTT (Topic is device Mac address)

Serial command control (UART 9600bps 8N1)

Development platform: Arduino, UIFlow

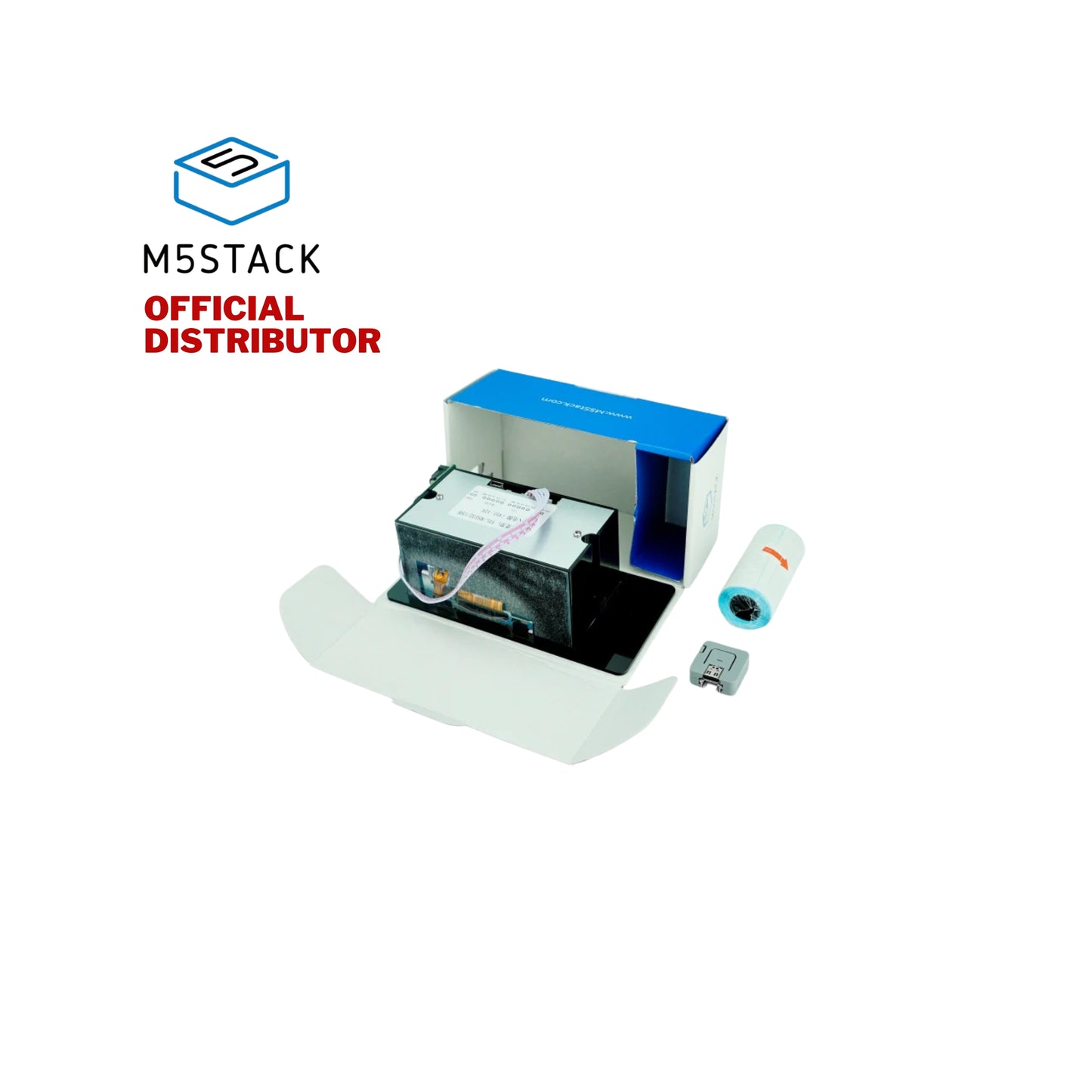

Includes

1x ATOM LITE

1x ATOM Printer

1x thermal paper roll

1x sticky thermal paper roll

Application

Can be widely used in printing taxi bill, parking bill, express delivery invoice, restaurant order and so on.

Specifications

Specifications Parameters

Printing method Thermal printing

Supported text and graphics Text, graphics, characters, BarCode(Codebar, code93, code39, code128, ENA13, ITF25, UPC-A, UPC-E), QRCode

Supply voltage DC 12V

Working current 2.5A

Print color Monochrome

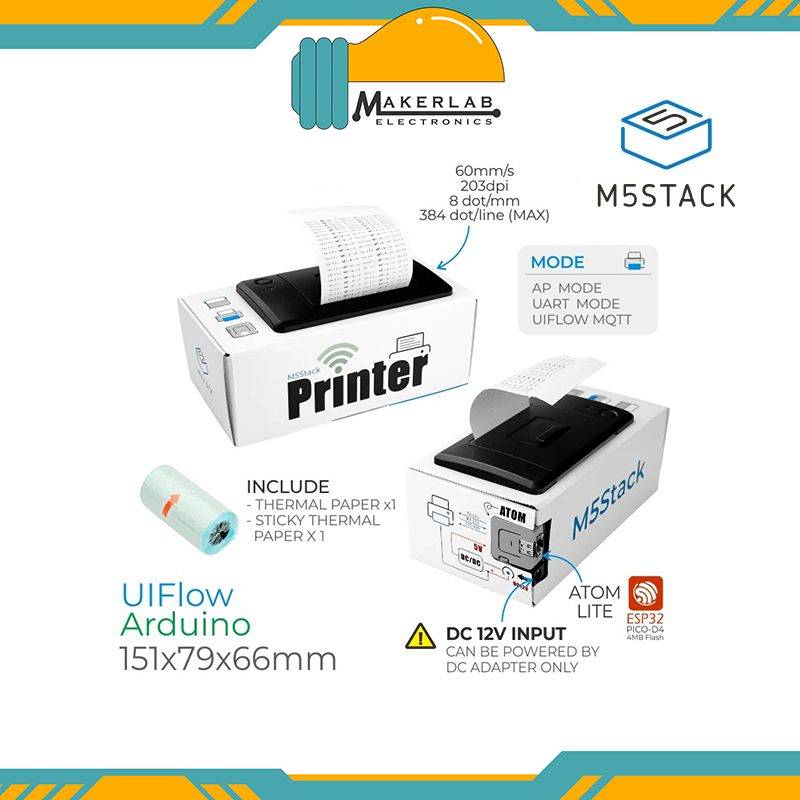

Print speed/resolution 60mm/s 203dpi 8 dots/mm up to 384 dots per line

Printing width 58mm

Service life Printing distance 50km

Paper Cut By Hands

Max. Diameter of Paper Roll 58mm±0.05mm (width) 0.05~0.1mm (thickness), maximum diameter ?40mm

Printing speed 60mm/s

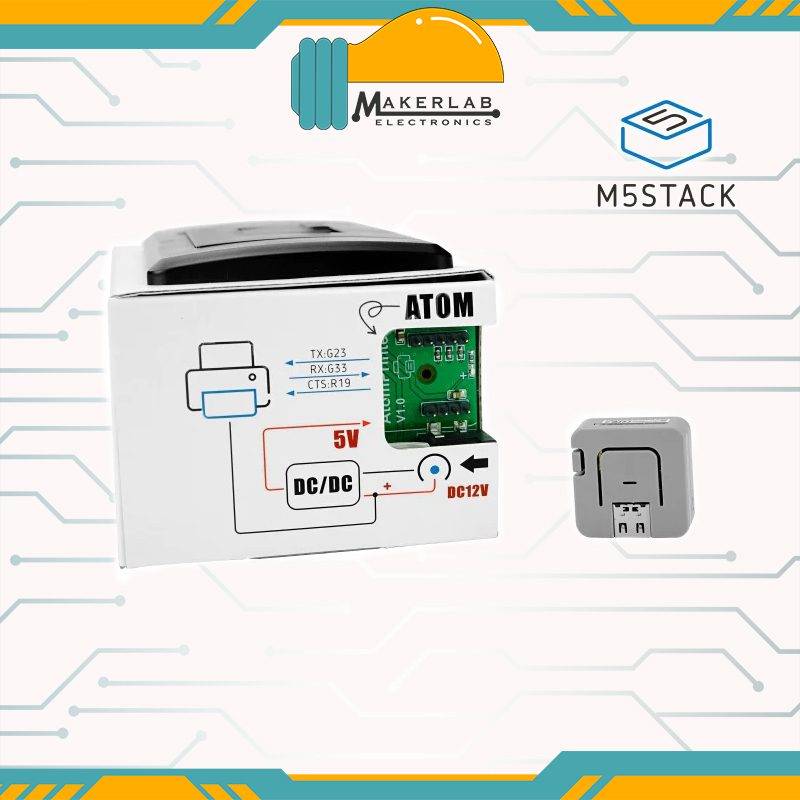

Connectivity Technology USB/RS232/TTL (ATOM is connected to TTL interface by default UART 9600bps 8N1)

Net weight 285g

Gross weight 321g

Product size 151 * 79 * 66mm

Package size 158 * 82 * 70mm
