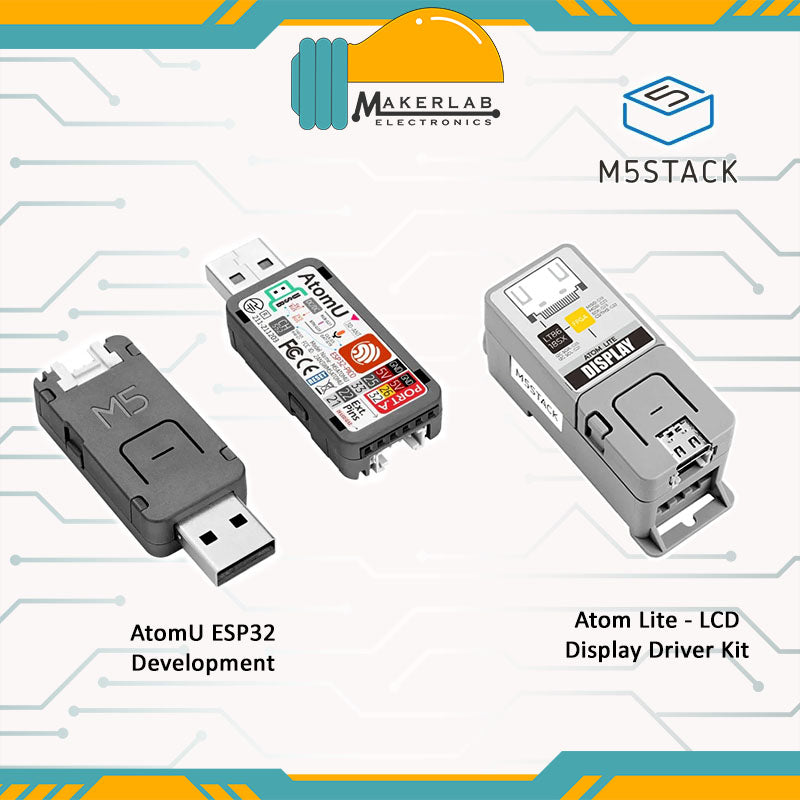

M5Stack AtomU ESP32 Development Kit with USB-A | Atom Lite LCD Display Kit

Specifications:

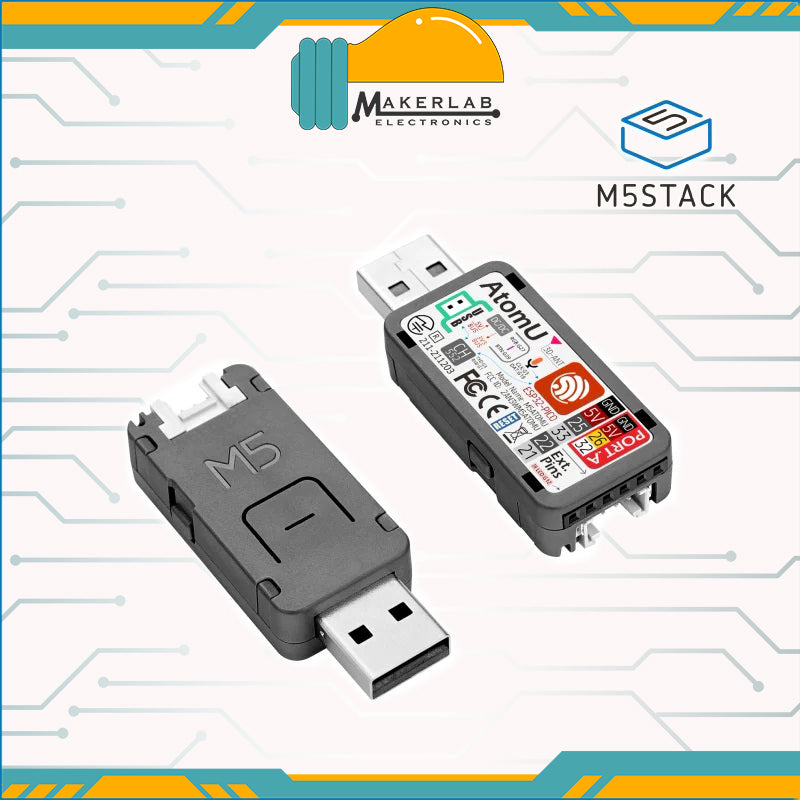

ATOM U is a compact and low-power consumption speech recognition IoT development kit. Powered by an ESP32 chipset, it features two low-power Xtensa 32-bit LX6 microprocessors with a main frequency of up to 240MHz. With its built-in USB-A interface, IR emitter, and programmable RGB LED, ATOM U offers a versatile and user-friendly development experience.

ATOM U is designed for plug-and-play convenience, making program uploading and downloading a breeze. It integrates Wi-Fi connectivity and a high-quality digital microphone (SPM1423, PDM) for clear sound recording. This makes it perfectly suited for Human-Machine Interaction (HMI) and Speech-to-Text (STT) applications.

With ATOM U, you can take advantage of the UIFlow graphical programming platform, enabling scripting-free development and seamless cloud integration. It is fully compatible with popular development platforms such as Arduino, MicroPython, and ESP32-IDF, allowing you to quickly build a wide range of applications.

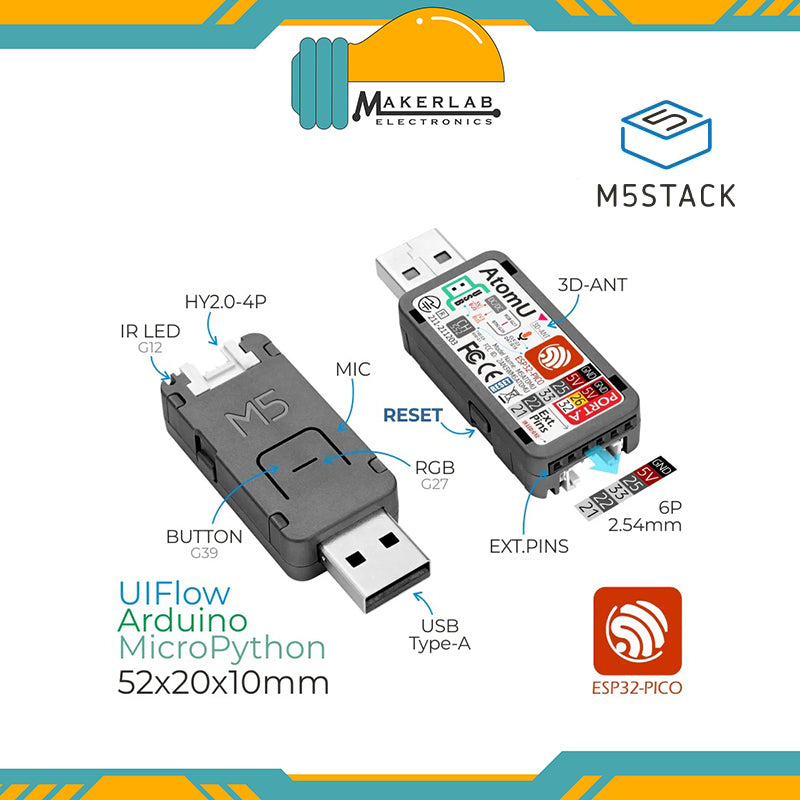

ATOM U offers high integration with various components, including a USB-A port for programming and power supply, an IR emitter, programmable RGB LED (x1), and a button (x1). Its finely tuned RF circuit ensures stable and reliable wireless communication. Furthermore, ATOM U provides strong expandability, giving you easy access to M5Stack's comprehensive hardware and software system. This opens up endless possibilities for building innovative IoT solutions and exploring new horizons in the world of embedded development.

Features:

• ESP32-PICO-D4 (2.4GHz Wi-Fi dual mode)
• Integrated programmable RGB LED and button
• Compact design
• Built-in IR emitter
• Expandable pinout and GROVE port
• Development platform:
  • UIFlow
  • MicroPython
  • Arduino

Specifications:

• ESP32-PICO-D4: 240MHz dual core, 600 DMIPS, 520KB SRAM, 2.4G Wi-Fi
• Microphone: SPM1423
• Microphone sensitivity: 94dB SPL@1KHz Typical value: -22dBFS
• Microphone signal-to-noise ratio: 94dB SPL@1KHz, A-weighted Typical value: 61.4dB
• Standby working current: 40.4mA
• Support input sound frequency: 100Hz ~ 10KHz
• Support PDM clock frequency: 1.0 ~ 3.25MHz
• Net weight: 8.4g
• Gross weight: 10.6g

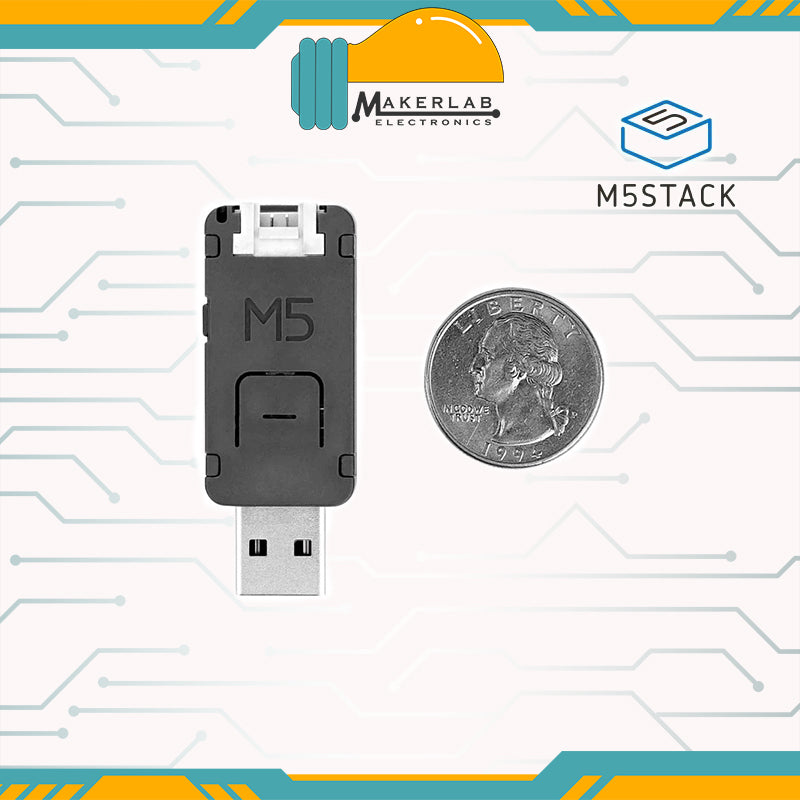

• Product size: 52 * 20 * 10mm
• Packing size: 68 * 21 * 11mm

Applications:

• IoT controller
• Voice recording, Speech-to-Text services

Part List:

• 1x ATOM U

Description:

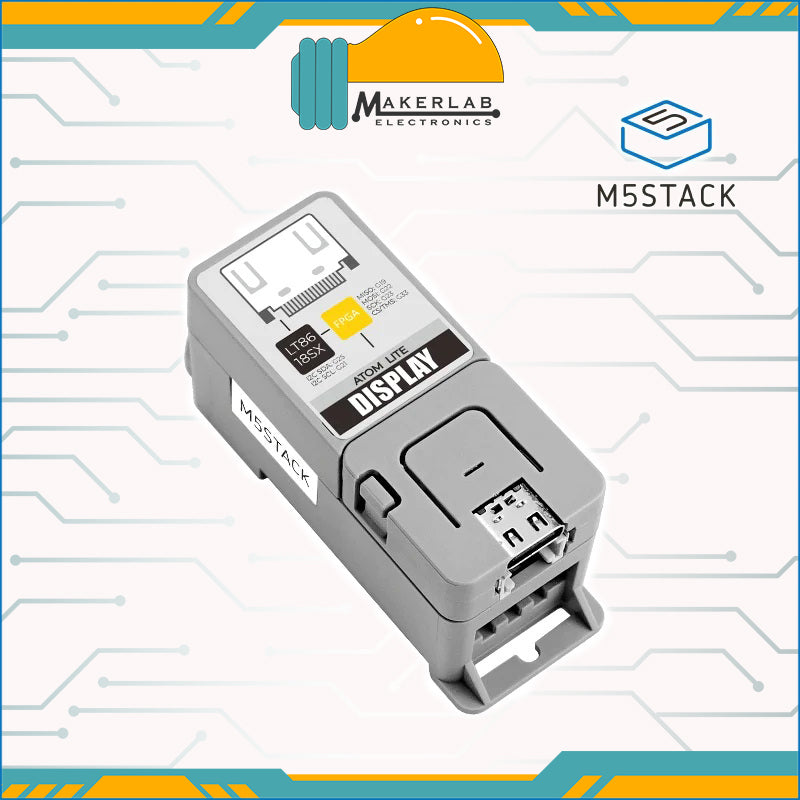

ATOM Display Lite is an all-in-one display driver kit that offers a compact and powerful solution for driving TFT-LCD displays. It utilizes an FPGA (Field-Programmable Gate Array) to simulate the traditional SPI TFT-LCD data output, providing a versatile display driving capability.

The kit supports images at a maximum resolution of 1280 x 720 pixels (720P), allowing for crisp and clear visuals on compatible displays. It features a built-in LT8618SX RGB to HDMI chip, which enables a wide range of HDMI signal output options. This integration simplifies the connectivity between the kit and other devices, enhancing compatibility and ease of use.

In addition to its display driving capabilities, ATOM Display Lite integrates 2.4G Wi-Fi functionality. This feature enables wireless connectivity, allowing for convenient communication and control of the display kit. The kit also includes 4M Flash memory and 520KB SRAM, providing ample storage for images, data, and program code.

Note: ATOM Display Lite needs to be paired with monitors with adaptive resolution scaling function.

Features:

• All codes of FPGA and driver library are open-source
• Use FPGA (Gowin GW1NR-9C) to simulate traditional SPI TFT-LCD Data output
• Built-in LT8618SX RGB to HDMI chip (supports 24bit color depth)
• SPI interface (FPGA) + I2C interface (LT8618SX)
• Maximum 720P (1280x720) image output
• Multiple output modes, optimized frame rate up to 12 ~ 16FPS
• Built-in ATOM Lite main controller (ESP32-PICO-D4, 4MB Flash + 520KB SRAM)
• Programmable RGB LED x1, reset button x1, button x1, Grove expansion port x1
• Development platform: Arduino (UIFlow support coming soon)

Specifications:

• ESP32-PICO-D4: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
• FPGA: Gowin GW1NR-9C
• LT8618SX: RGB to HDMI chip, support 24bit color depth
• Max. image output: 720P(1280x720)
• Output frame rate: 1280x720 60Hz
• Net weight: 21g
• Gross weight: 34g
• Product Dimensions: 64 * 24 * 29mm
• Packaging size: 76 * 46 * 29mm

Applications:

• Display input signal source
• HD Data Board

Part List:

• 1x ATOM Lite
• 1x ATOM Display
