M5Stack Base AAA Battery Holder

₱650.00 PHP
₱650.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 10 units left

About the Product

Description

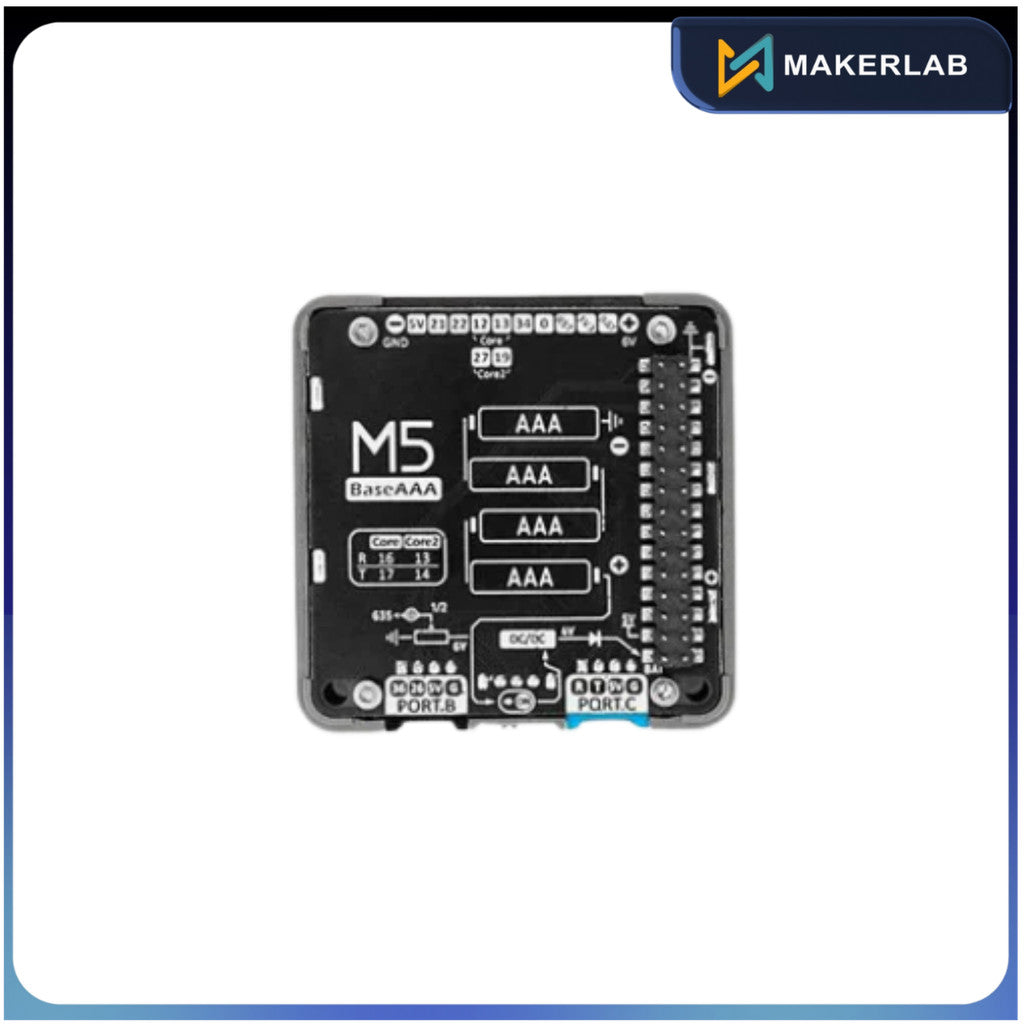

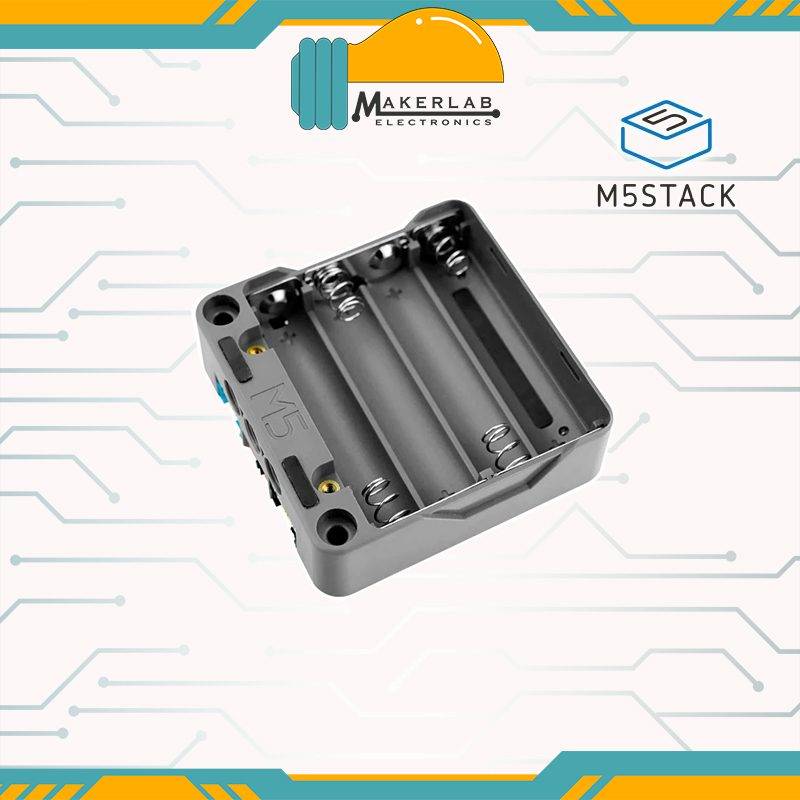

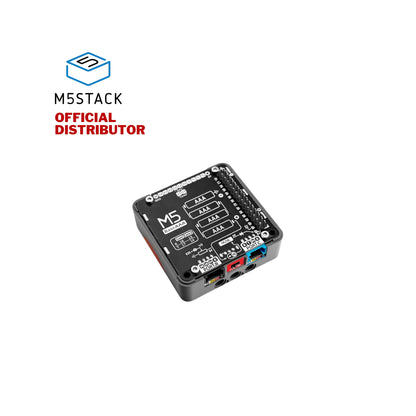

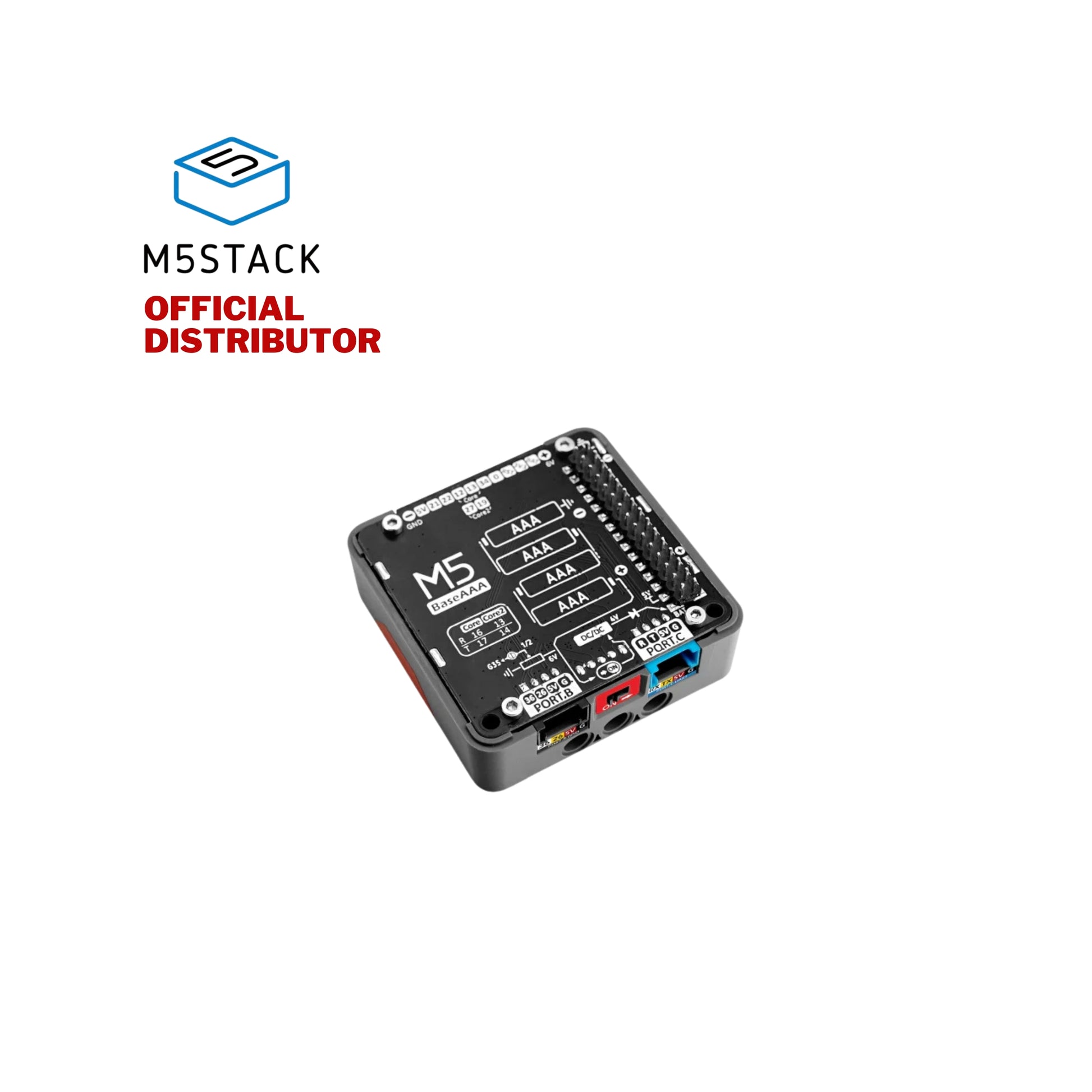

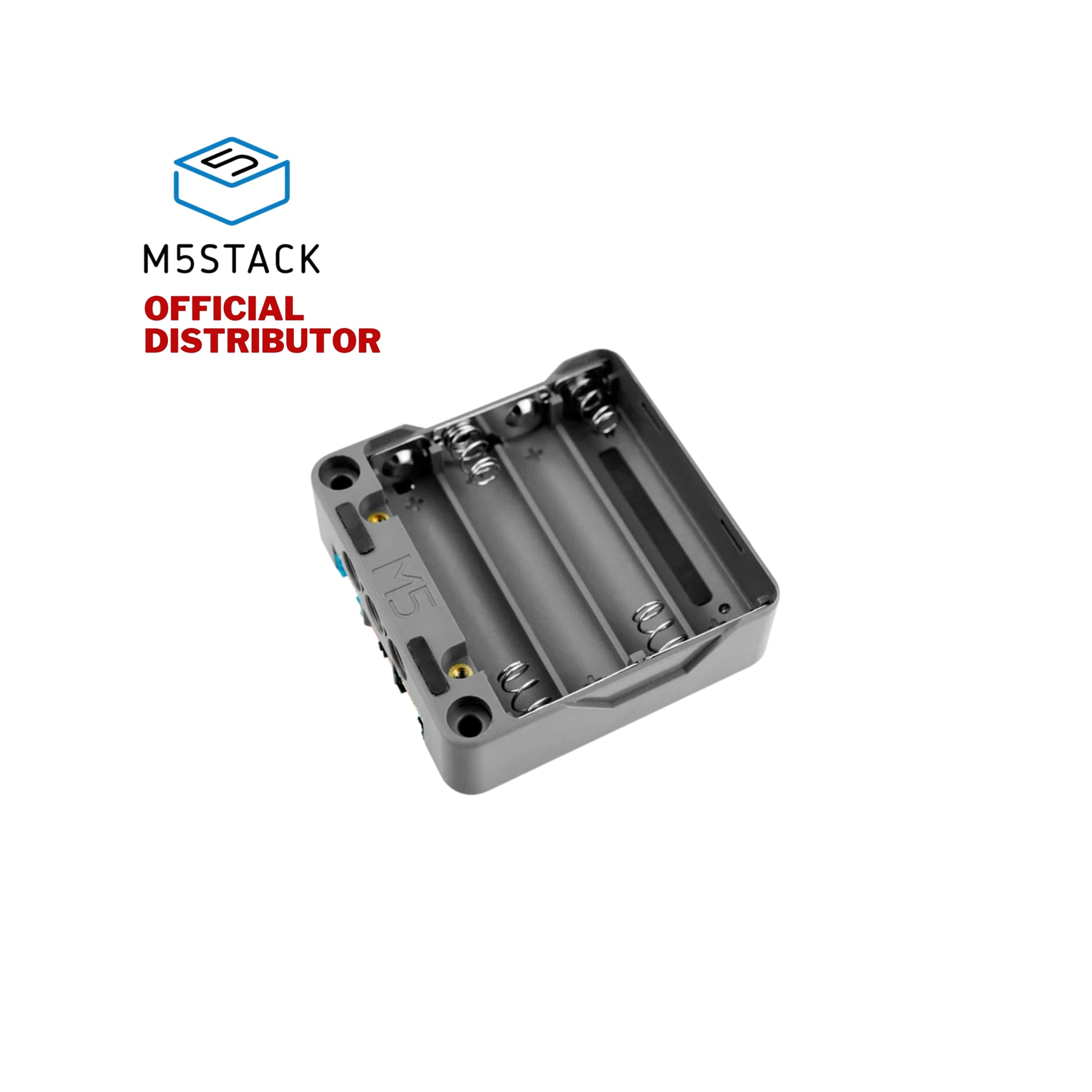

Base AAA is a '5x5cm' series base with 4 x AAA Dry Batteries holder. Unlike other Lithium Battery Base, Base AAA is powered by safe and reliable dry batteries, and the onboard power switch allows for manual power shutdown, reducing battery drain. Port B and Port C are reserved for expansion, and 1X12-Pin 2.54 pitch female expansion connector is provided. There are mounting holes on the side for easy fixing and expansion. The bottom supports magnet and screw mounting.
Product Features
1X12-Pin 2.54 interface
Port B, Port C
Physical power switch
Support two types of power supply:
Power supply by four AAA Batteries, DC/DC buck 6V -> 4V, connect with BUS bus BAT pin
External power supply with Dupont cables, to BAT/GND of the 12-Pin 2.54 interface
Multiple fixing methods:

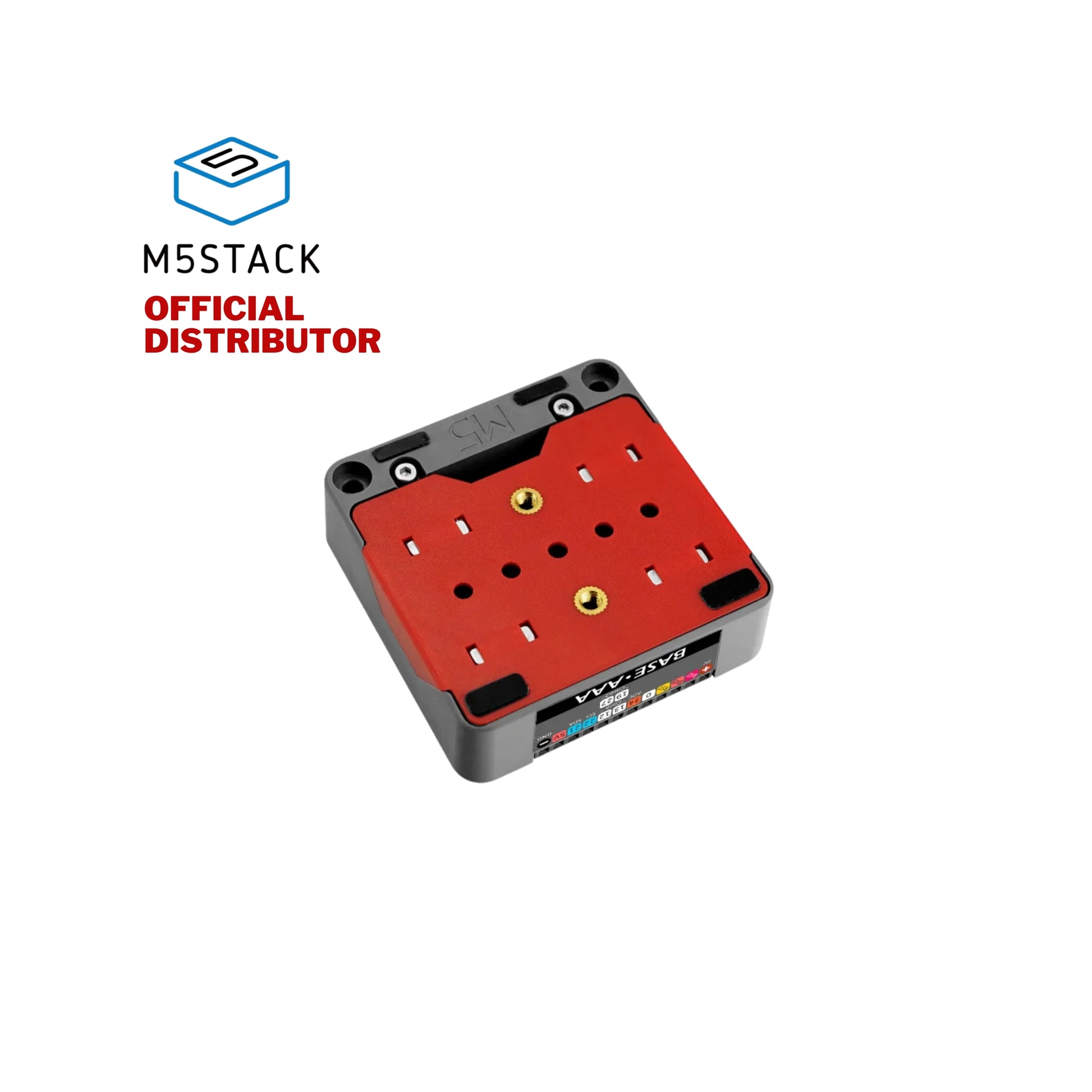

Magnet fixing on the bottom
Two nuts on the bottom for screws
Three fixing holes on the side
Include

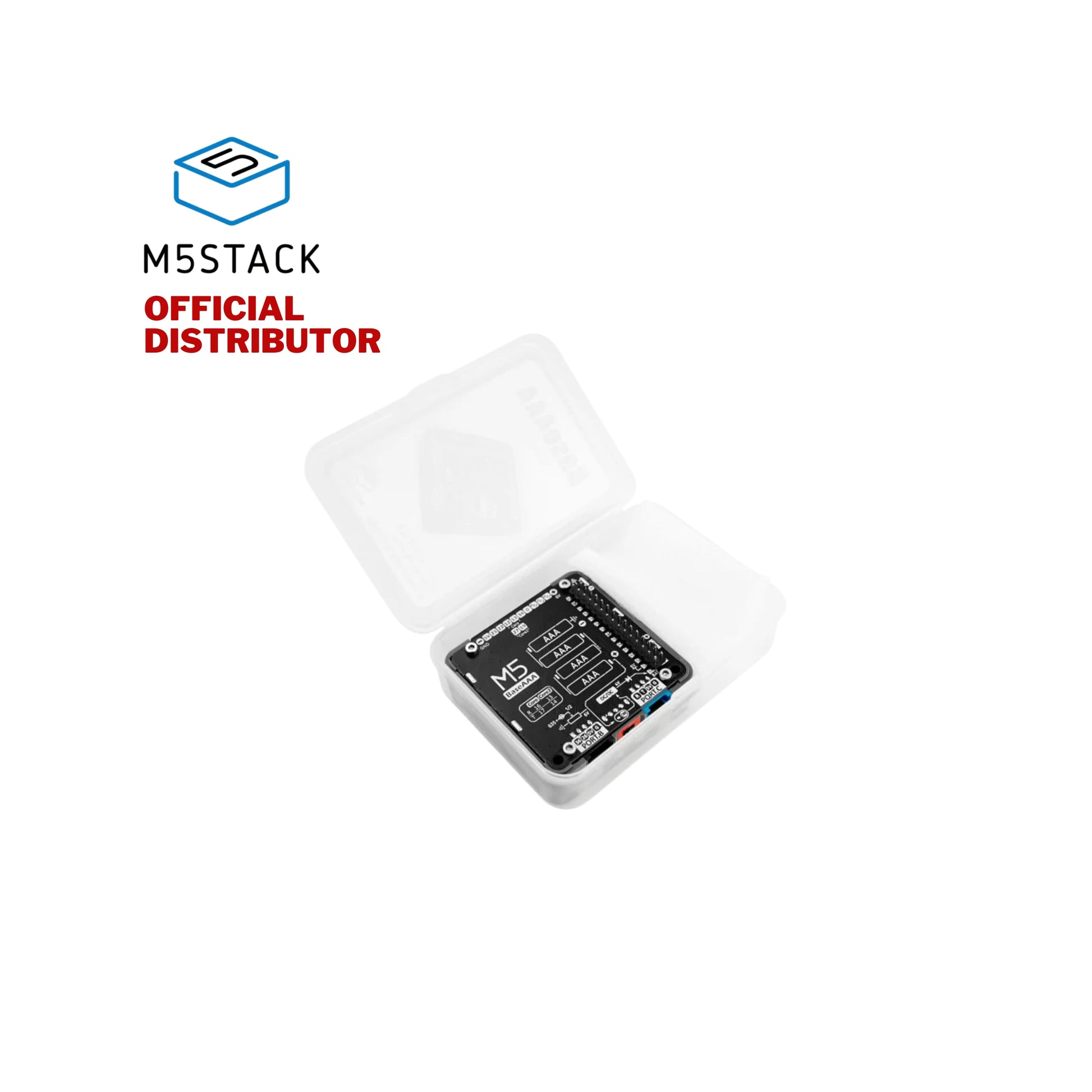

1x Base AAA
1x M2 Hex Key
Specification
Spec Parameter
Net weight 30g
Gross weight 51.2g
Product Size 54*54*21mm
Package Size 95 x 67 x 25mm
