PRODUCT DETAILS

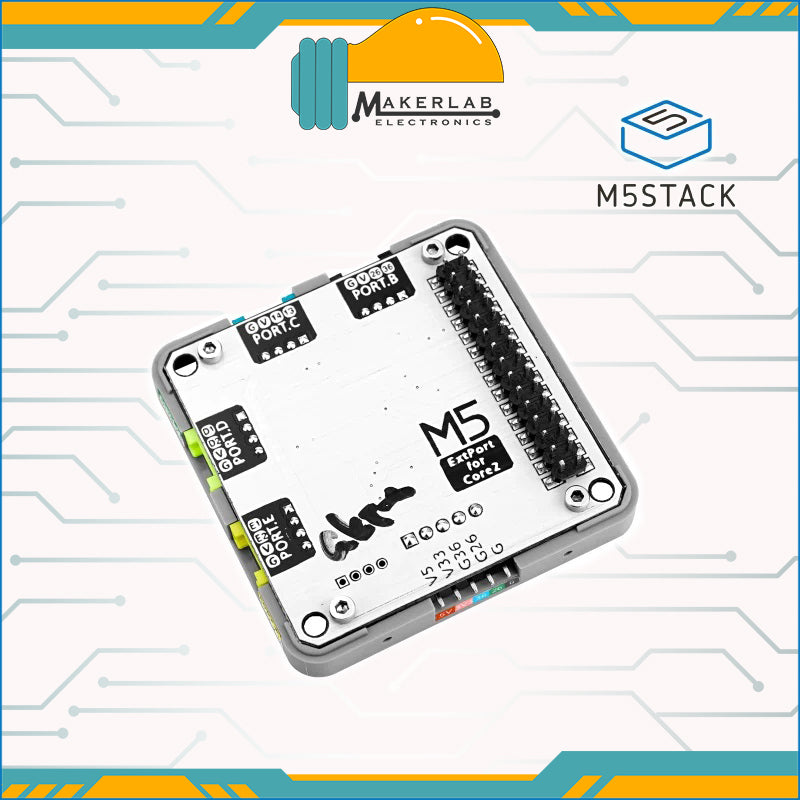

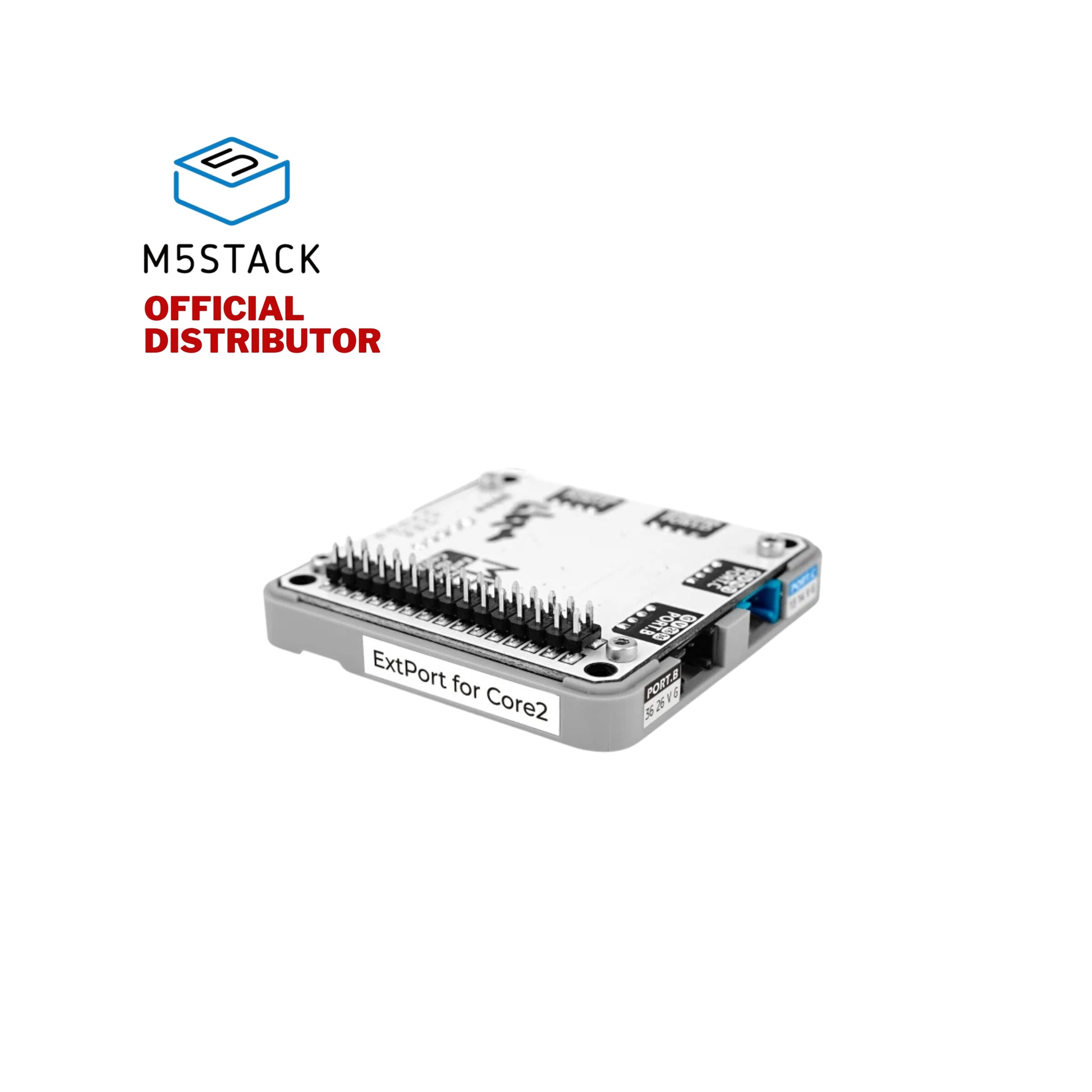

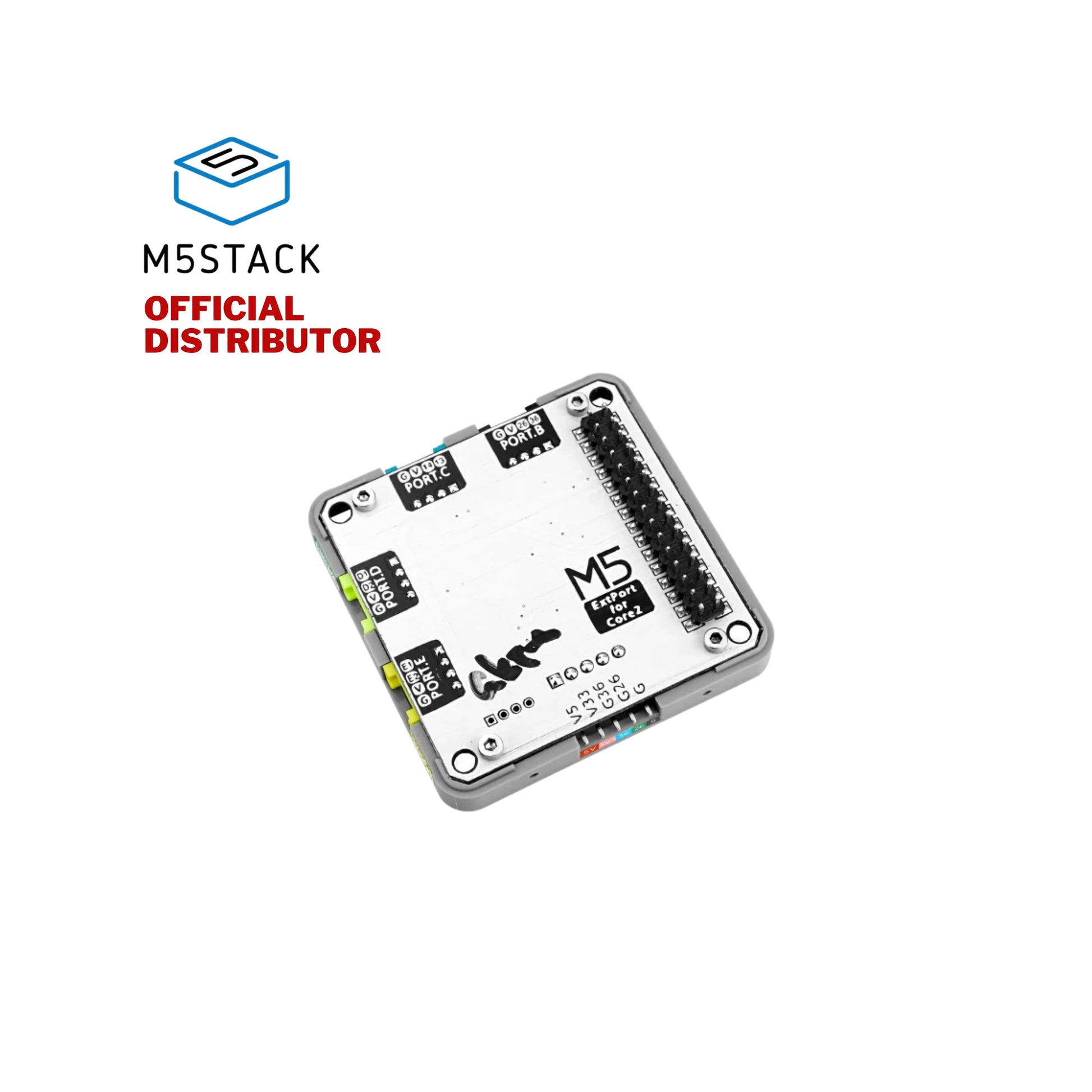

ExtPort For Core2 is an expansion module for M5Stack Core2 converting to Grove interface. It provides PortB/C/D/E 4 Grove interfaces, and PortD/E can be configured with different GPIOs via internal dip switches.
Product Features

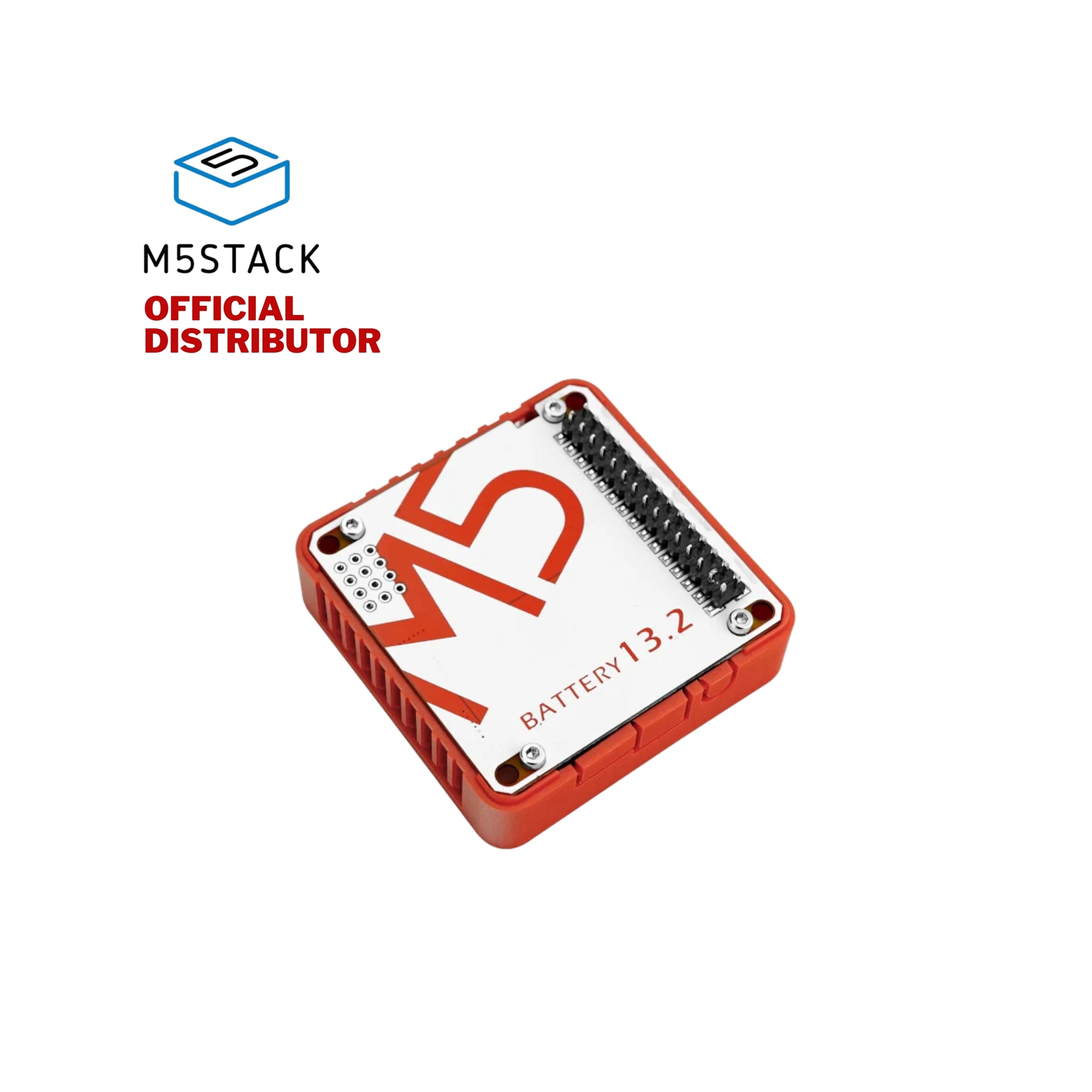

Battery 13.2 Module is a 1500mAh high-capacity lithium polymer battery expansion module in the M5Stack stacking module series. It's high-quality material guaranteed with a delicate protection board. With higher protection voltage to prevent overcharging/over-discharging failures and to ensure the safety of operation. Supports for multiple battery modules stacked. This module is the best solution for adding an autonomous and stable power supply to your devices that require long-lasting energy sources.
Product Features
ExtPort For Core2 is an expansion module for M5Stack Core2 converting to Grove interface. It provides PortB/C/D/E 4 Grove interfaces, and PortD/E can be configured with different GPIOs via internal dip switches.
Product Features

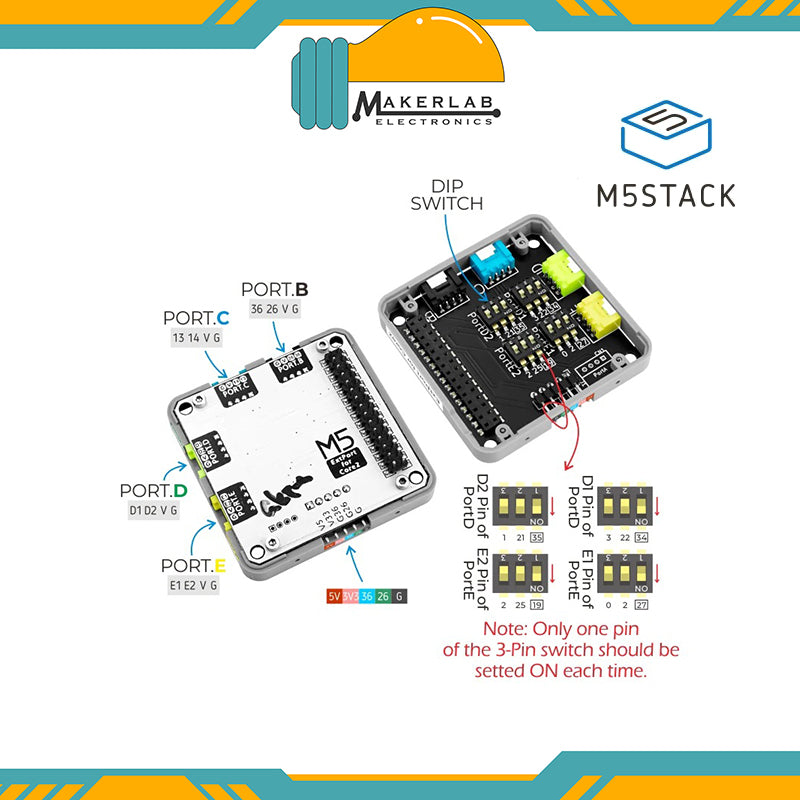

- 4x Grove interface (PortB/C/D/E)

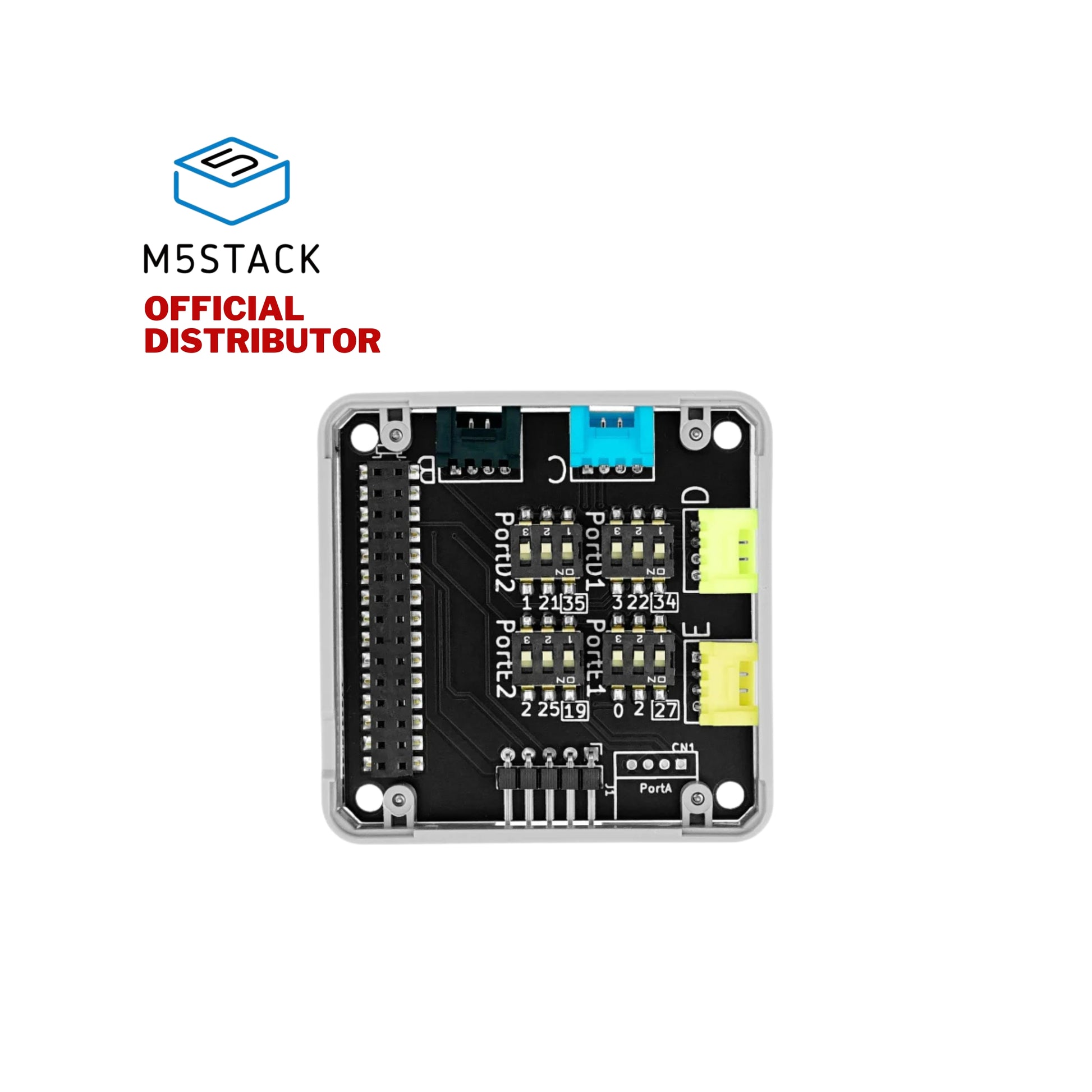

- 4x 3-pin dip switches (PortD/E)
- 1x 5Pin@2.54mm pin head
- Included
- 1x ExtPort For Core2
- Application Scenarios
- Multi-sensor, multi-actuator extensions
- DIY project
- Expansion ports PortB, PortC, PortD, PortE
- Net Weight 24g
- Gross Weight 58g
- Product Dimensions 54x54x13mm
- Package Size 62x58x17mm

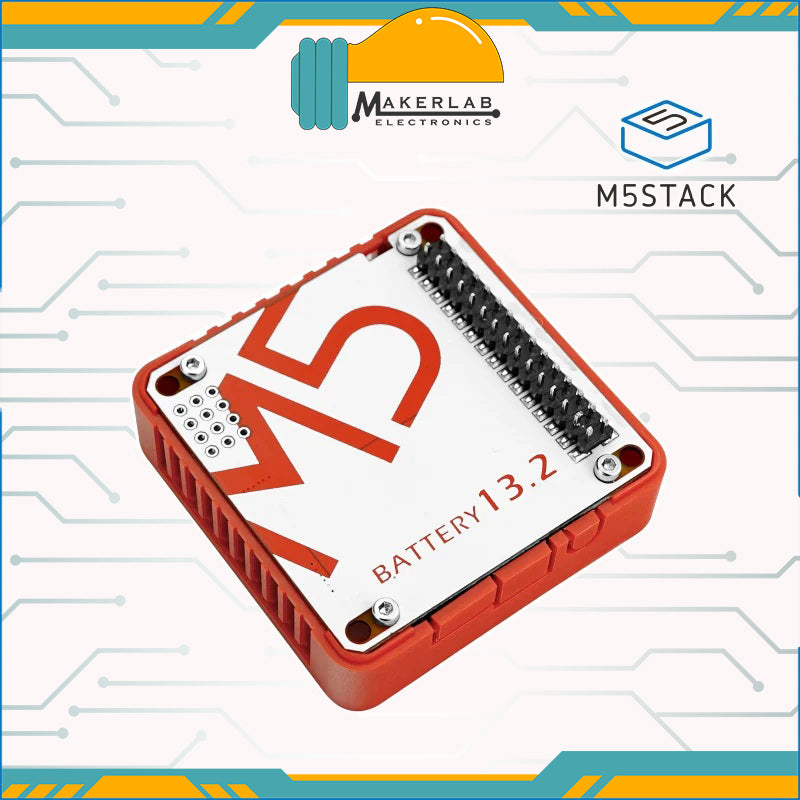

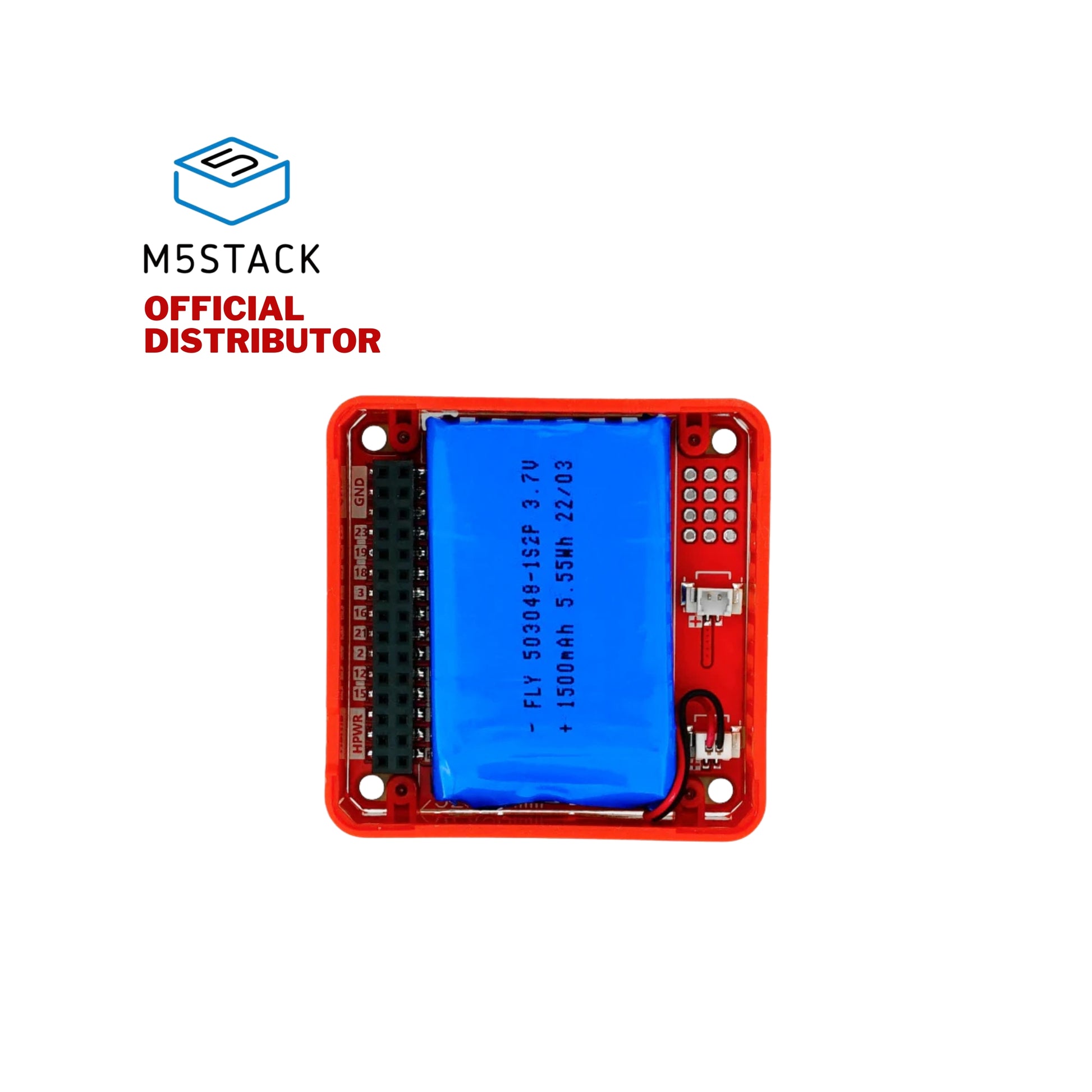

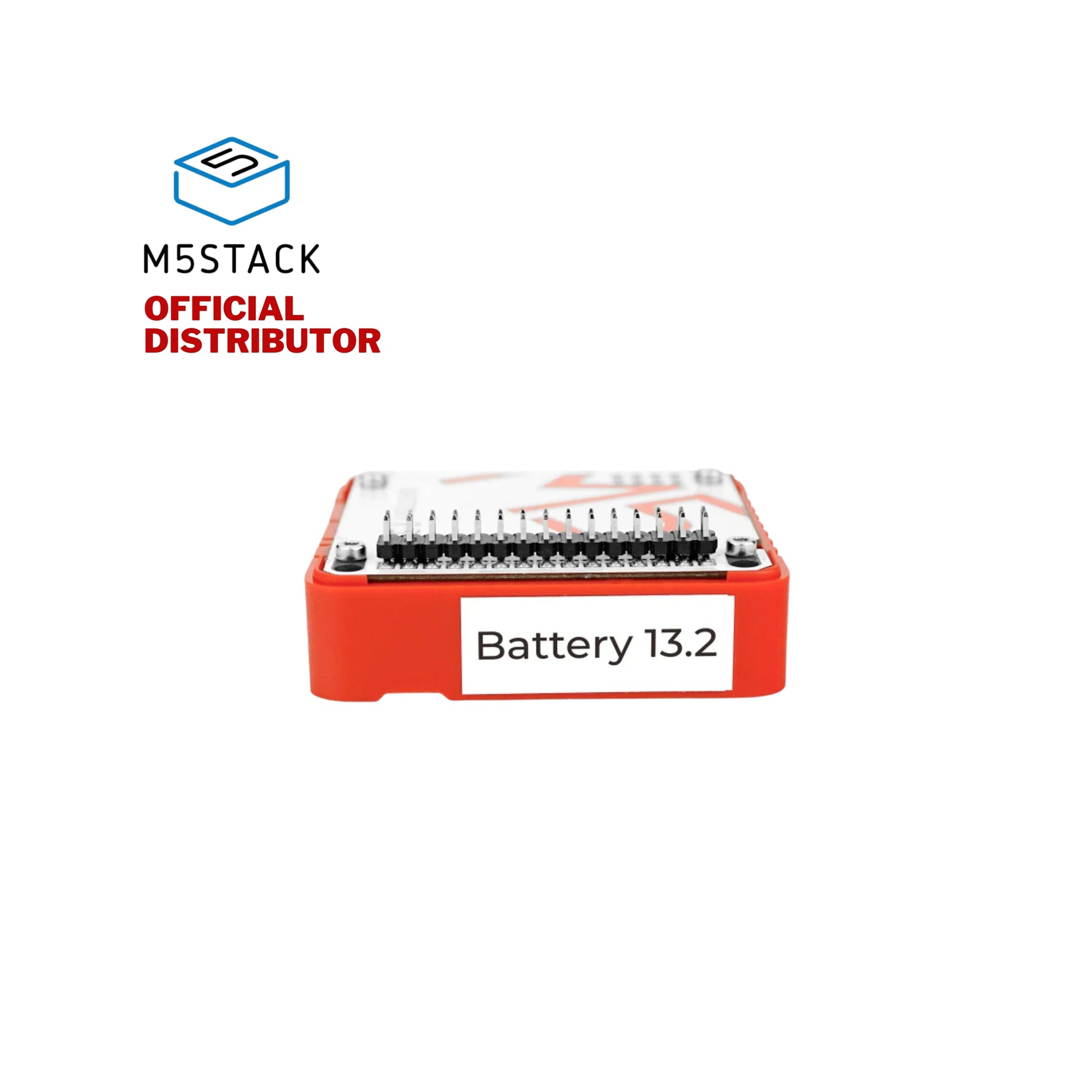

Battery 13.2 Module is a 1500mAh high-capacity lithium polymer battery expansion module in the M5Stack stacking module series. It's high-quality material guaranteed with a delicate protection board. With higher protection voltage to prevent overcharging/over-discharging failures and to ensure the safety of operation. Supports for multiple battery modules stacked. This module is the best solution for adding an autonomous and stable power supply to your devices that require long-lasting energy sources.
Product Features
- Nominal capacity: 1500mAh (0.2C)
- Delicate protection board with higher protection voltage to prevent overcharging/over-discharging failures
- Support multiple battery modules stacking for advanced endurance
- Battery passes multiple tests for greater safety
- Lab test data.
- Charging current 791mA, full time 110 minutes (test hardware: CORE1 + Battery 13.2 Module)
- Discharge current 330mA, discharge time 265 minutes (test hardware: CORE1 + Battery 13.2 Module + M5GO BOTTOM: remove battery, light up RGB LEDx10, maximum brightness)
- Included
- 1x Battery 13.2 Module
- Nominal Capacity 1500mAh（0.2C）
- Nominal Voltage 3.7V
- Charging Voltage 4.2V
- Discharge voltage 3.0V
- Charge Current Standard Charge: 0.2C (300mA)
- Fast Charge 0.8C (1200mA)
- Max. charge/discharge current 0.8C(1200mA)
- Internal resistance of electric core ≤150mΩ
- Cycle Life ≥300
- Operating temperature： Charging：5℃ - 45℃
- Discharging：-10℃ - 55℃
- Net Weight 43.3g
- Gross Weight 63.7g
- Product Size 54.2*54.2*13.2mm
- Package Size 95*65*25mm
