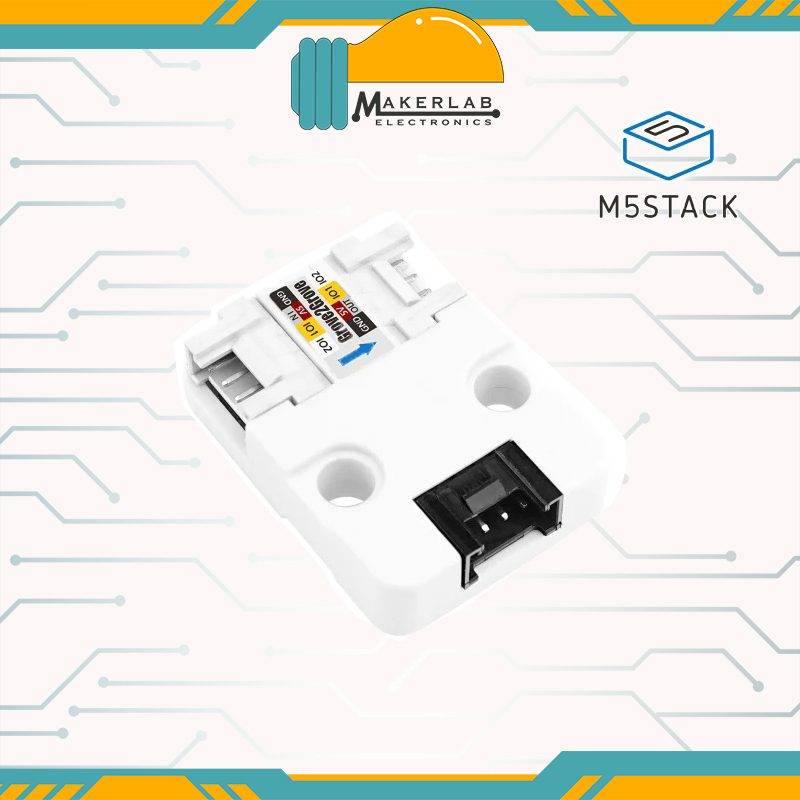

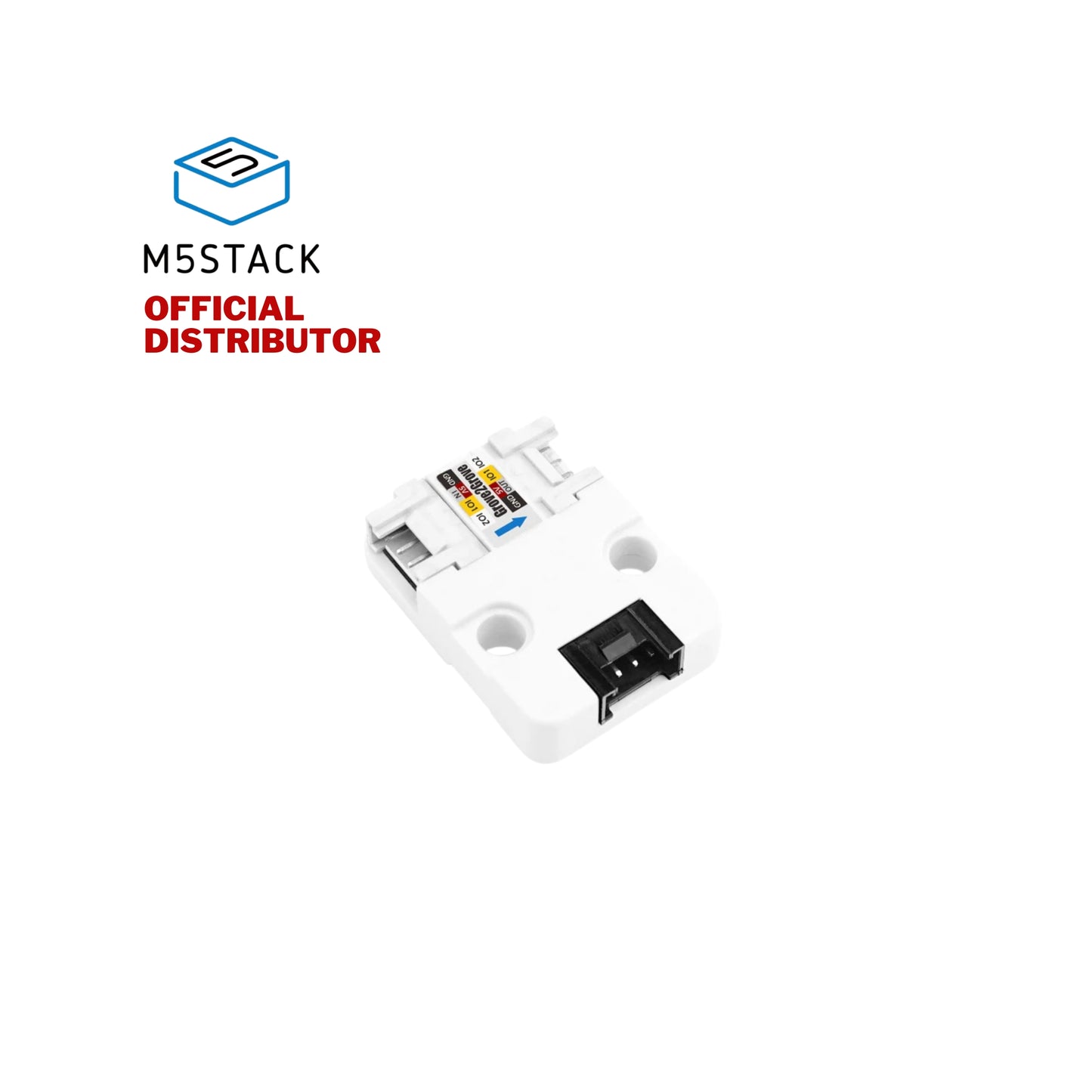

M5Stack Grove2Grove Expansion Unit

Description:

GROVE2GROVE unit is a versatile Grove expansion unit that offers both On/Off control and Current Meter functions. The On/Off control feature utilizes a switch value to control the connected devices or components. With this functionality, users can easily turn on or off the connected Grove modules or peripherals as needed.

Additionally, GROVE2GROVE unit includes a Current Meter function that provides a 0 - 3.3V analog signal to measure the current flowing through the connected Grove modules. This allows users to monitor and analyze the current consumption of their devices or circuits.

By combining the convenience of On/Off control and the ability to measure current, GROVE2GROVE unit offers an efficient and integrated solution for managing and monitoring Grove modules. Whether used in prototyping, IoT projects, or other applications, this expansion unit simplifies the control and measurement processes, enhancing the overall functionality and usability of the connected Grove ecosystem.

Features:

• On/Off control: 5V/1A
• Current meter: 0~1000mA

Specifications:

• Net Weight 5.0g
• Gross Weight 10.5g
• Voltage 5V
• Switch Current 1000mA
• Circuit Voltage 5V
• Current Meter Range 0~1000mA
• Product Code: U148
• Product Size 32.04*24.01*8.05 mm
• Package Size 90*135mm

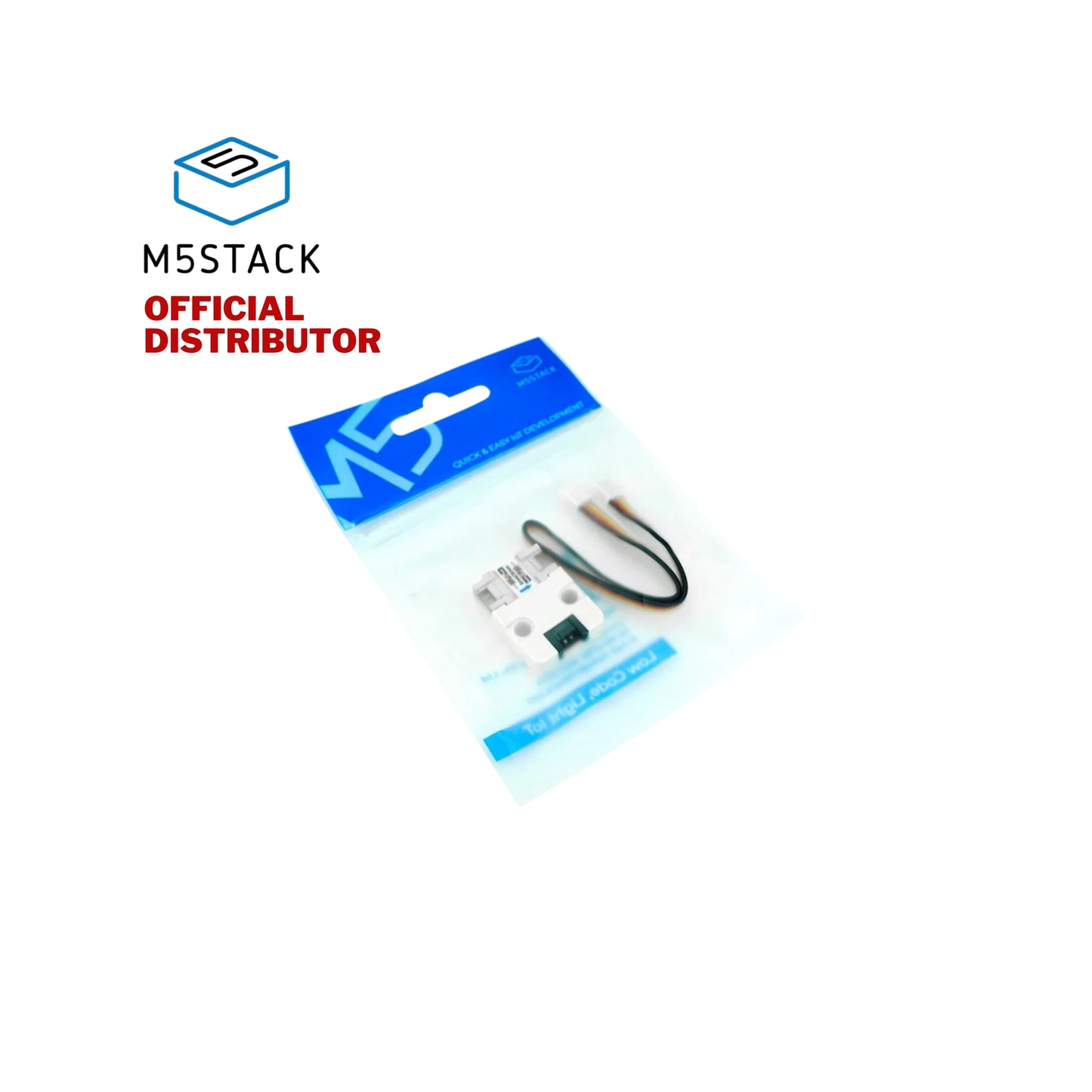

Part List:

• 1x UNIT-GROVE2GROVE
• 1x HY2.0-4P cable (20cm)
