SKU:MLE07008
M5Stack PoE Camera w/o Wi-Fi (OV2640)
₱2,790.00
₱2,790.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:
M5PoECAM-W V1.1 is a programmable PoE camera based on the "ESP32+W5500" solution, featuring a 3-megapixel OV3660 image sensor with a 65° field of view. It integrates PoE (power over Ethernet, max power consumption 6W) and Wi-Fi functionality. Equipped with 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface. This camera offers a variety of interfaces and functional modules, including a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins. It also comes with a camera mounting clip and LEGO-compatible clip. Suitable for image monitoring, remote acquisition, smart home, industrial automation, and scenarios requiring devices powered through PoE cabling.
Features:
- Built-in ESP32-D0WDQ6-V3（Support 2.4G Wi-Fi）
- 3 million pixel camera OV3660
- Ethernet chip W5500
- LAN speeds up to 10M or 100M (depending on the line provided)
- PoE IEEE802.3 AF specification (Maximum power 6W）
- Built-in prompt LED light
- Ethernet standard interface RJ45
- Standard LEGO interface and camera mount
- Development platform:Arduino、ESP-IDF
Specifications:
- SoC: ESP32-D0WDQ6-V3
- Camera Module: OV3660 @3 Megapixel
- DFOV: 65.5°
- Ethernet Chip: W5500
- FLASH: 16MB
- PSRAM: 8MB
- Wi-Fi: 802.11 b/g/n
- Pixel Size: 1.75µm x 1.75µm
-
Output Format:
- RAW
- RGB565/555/444
- YUV422/420
- YCbCr422
- JPEG
-
Automatic image control functions:
- Automatic Exposure Control (AEC)
- Automatic Gain Control (AGC)
- Automatic White Balance (AWB)
- Automatic Band Filter (ABF)
- Automatic Black-Level Calibration (ABLC)
- FOV: 65°
- Supports Hardwired TCP/IP Protocols: TCP、UDP、ICMP、IPv4、ARP、IGMP PPPoE
- Ethernet interface specifications: RJ45
- PoE: PoE IEEE802.3AF specification (Max power 6w)
- Product Size: 64*24*18mm
- Package Size: 80*37*32mm
- Product Weight: 38g
- Package Weight: 45g
Applications:
- Warehouse monitoring
- Timed photograph
- Machine vision
- Smart home monitoring
Part List:
- 1x M5PoECAM-W V1.1

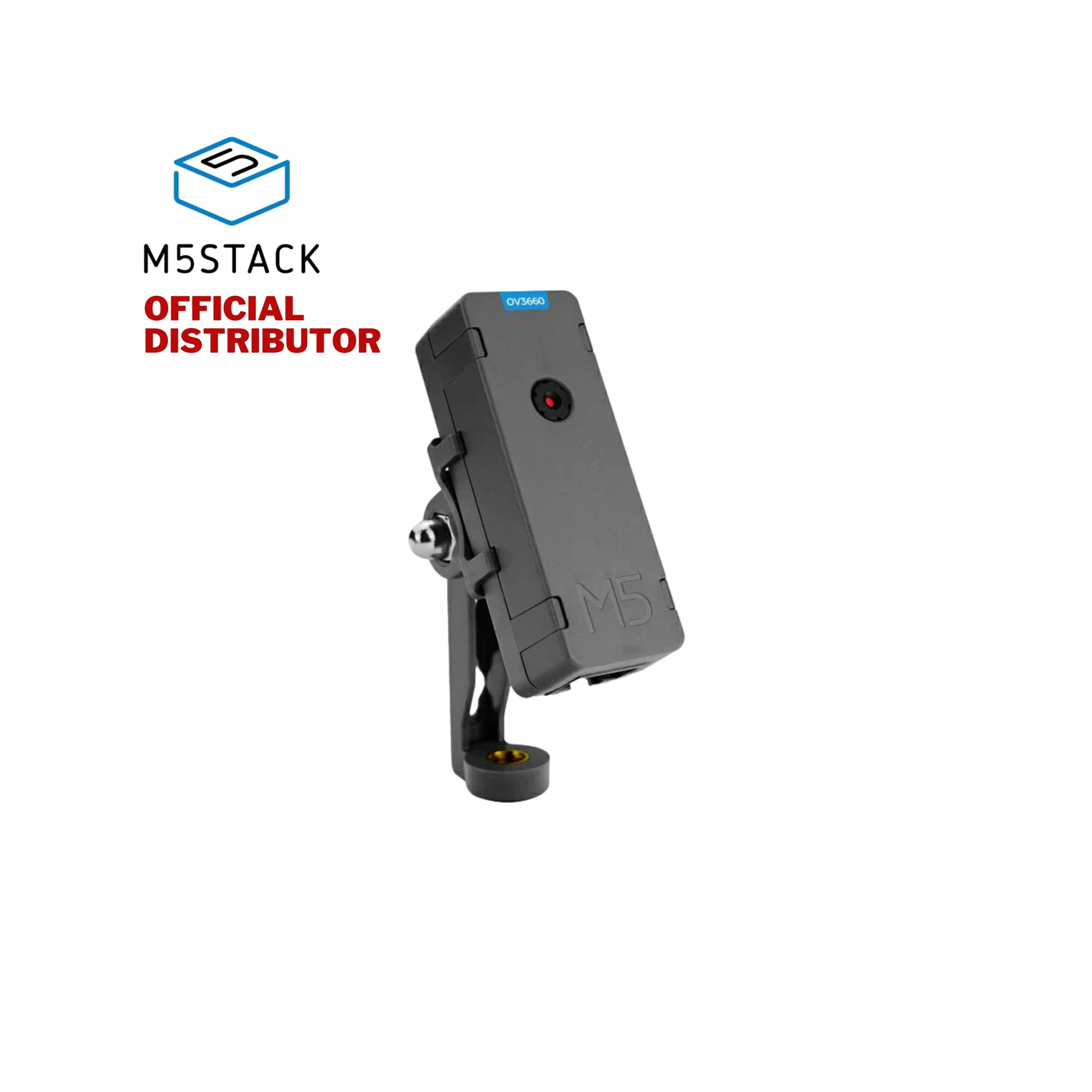

- 1x Camera mount clip
- 1x Brick compatible clip
