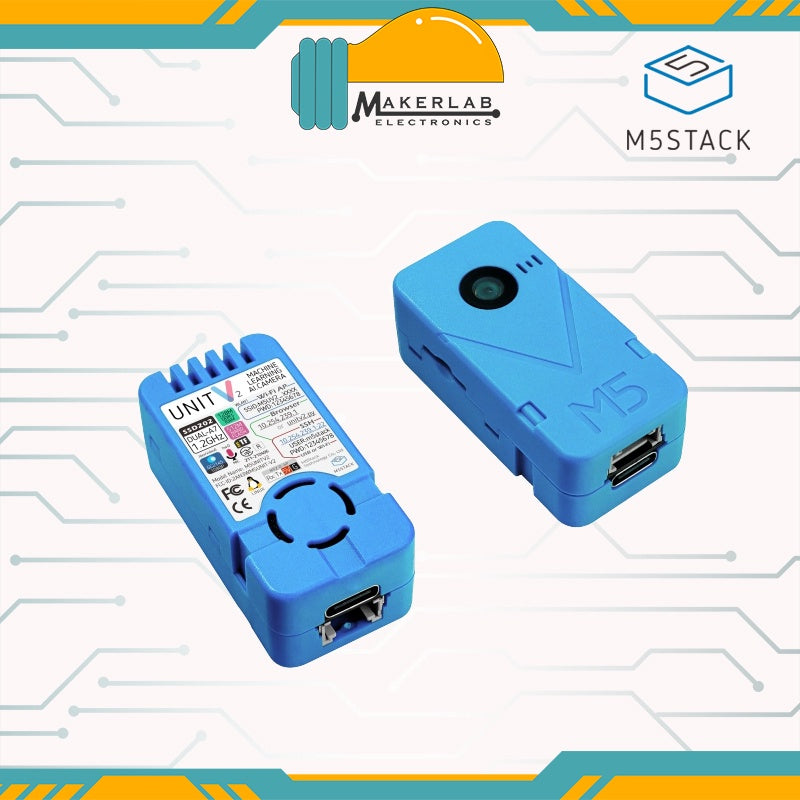

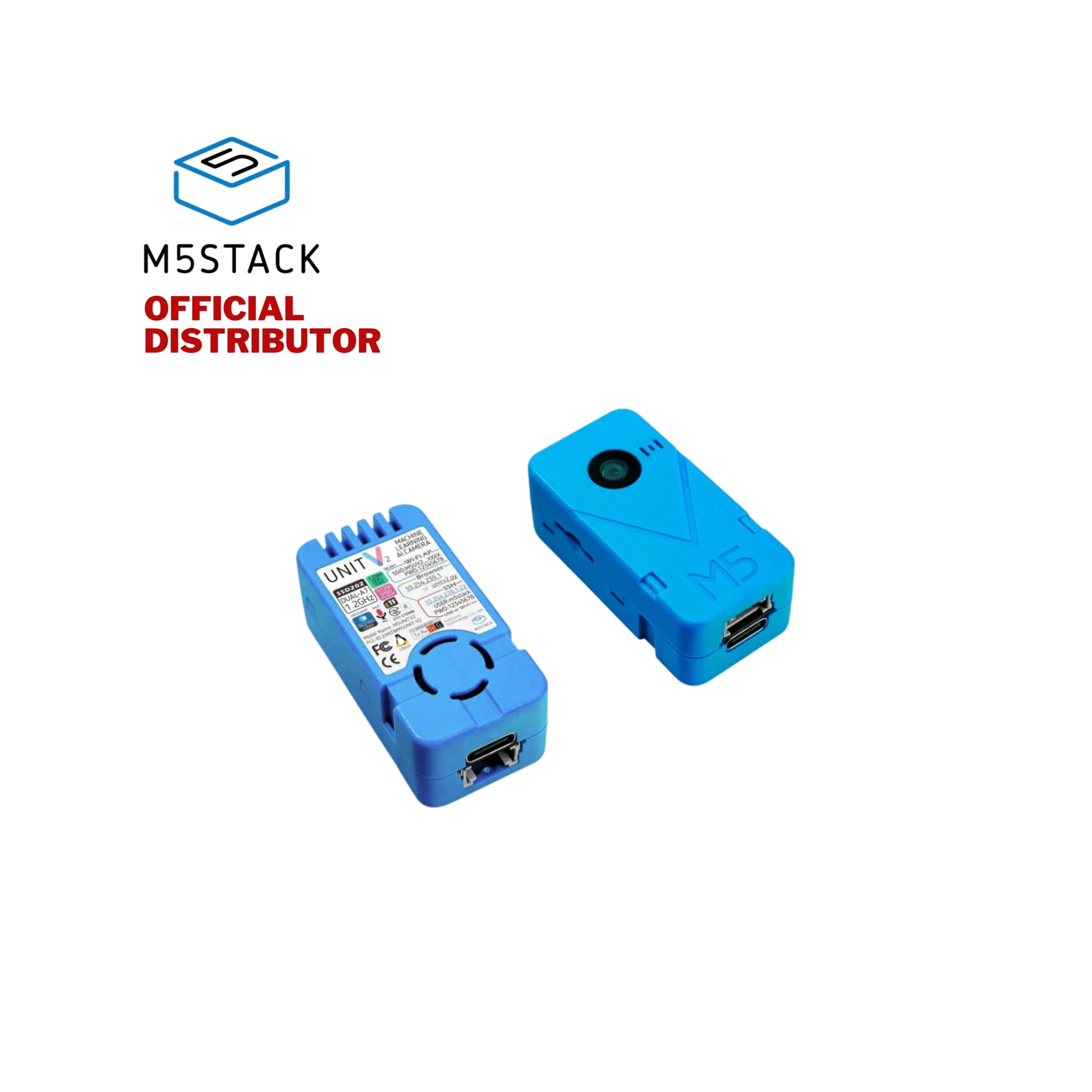

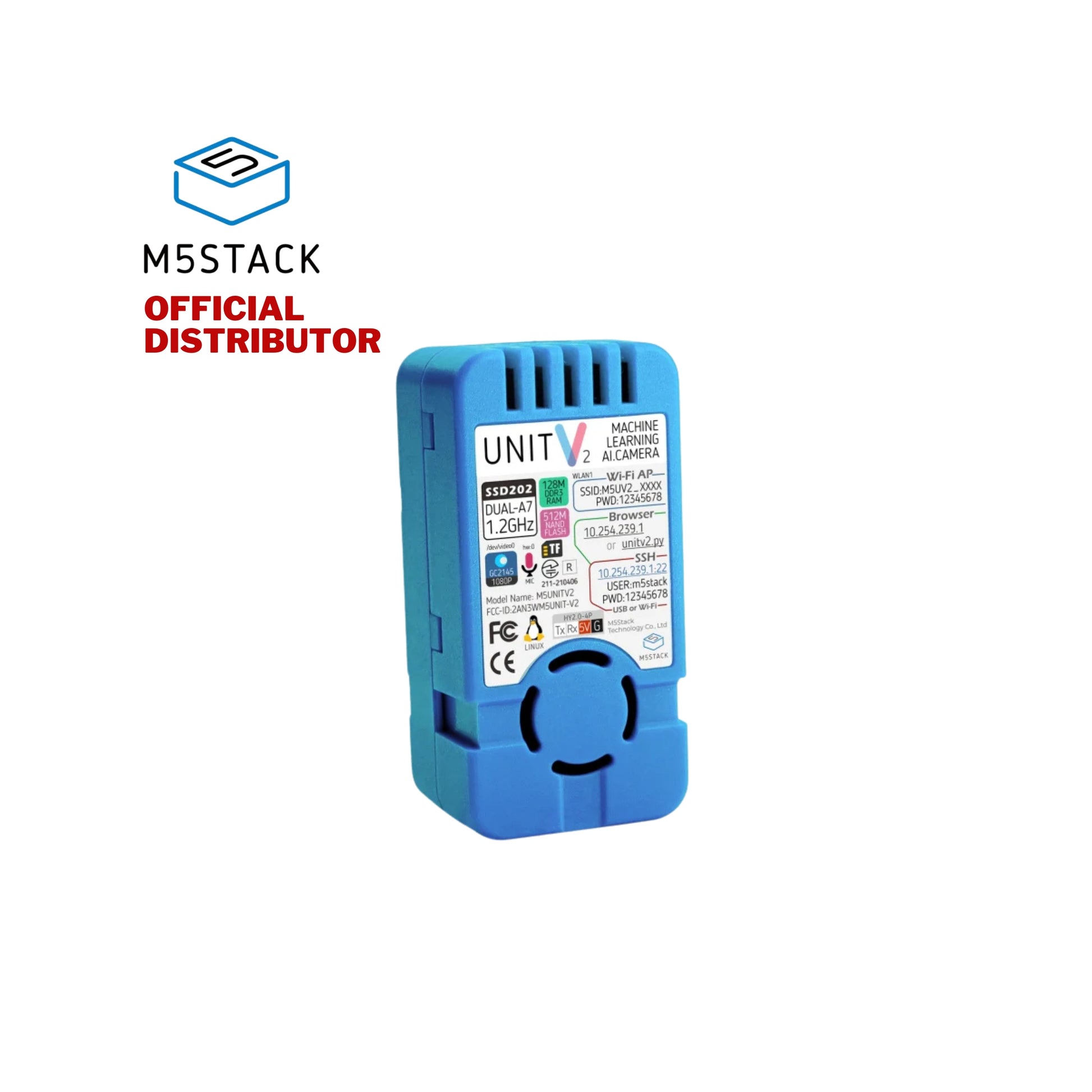

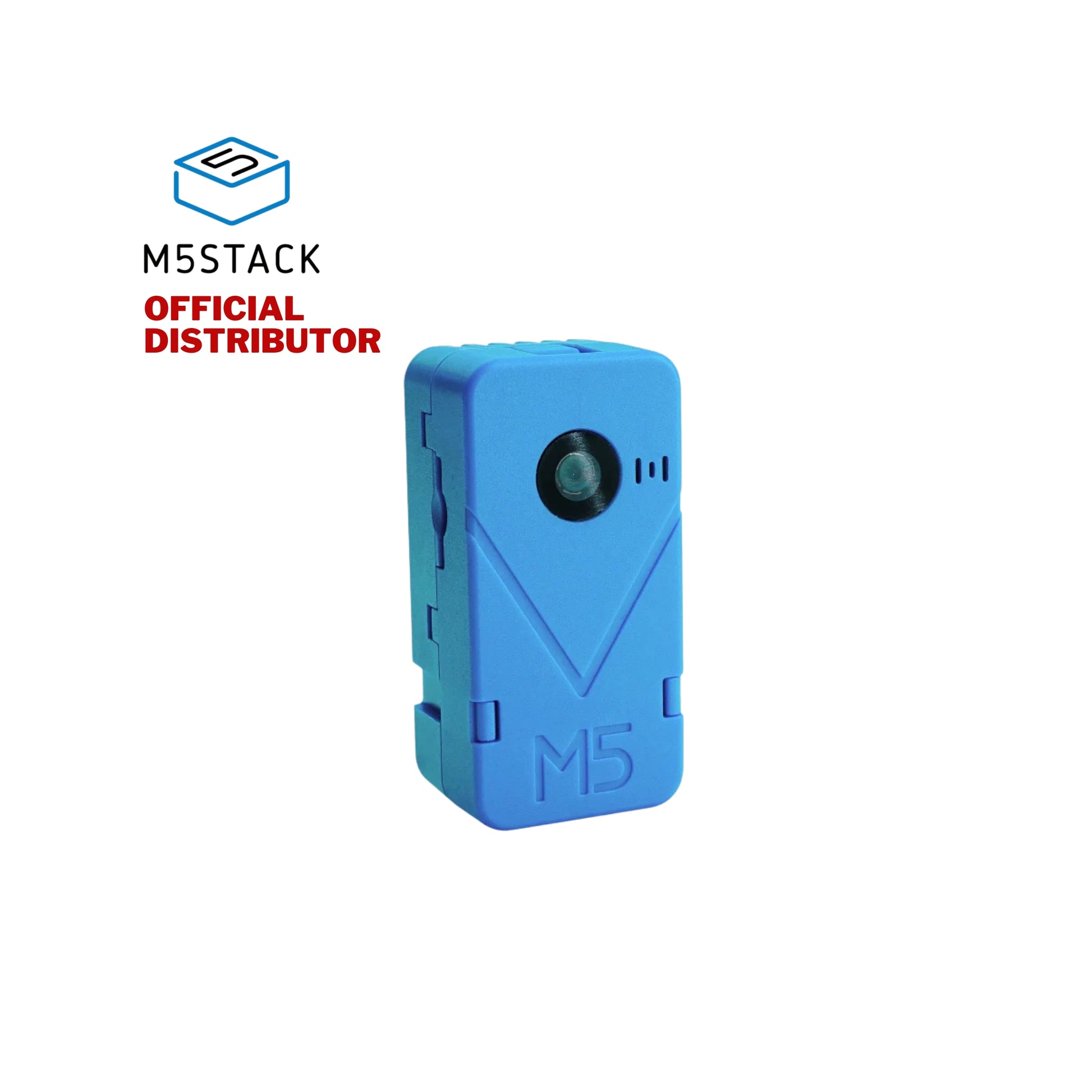

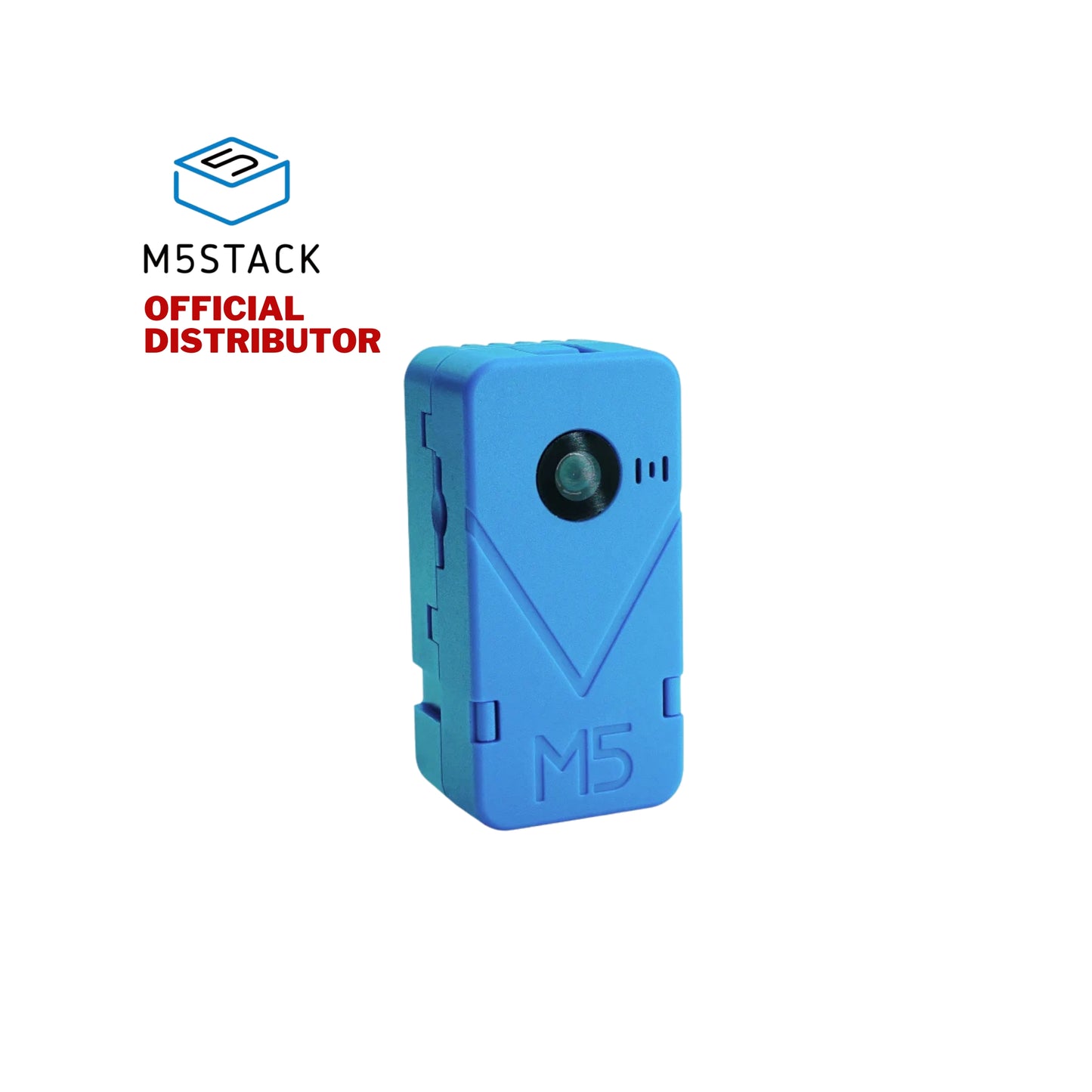

M5Stack UnitV2 AI Camera

Description:

UnitV2 is a high-efficiency AI recognition module launched by M5Stack, using Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2Ghz processor) control core, integrated 128MB-DDR3 memory, 512MB NAND Flash, and 1080P camera. With embedded Linux operating system and rich software and hardware resources and development tools integrated, UnitV2 is committed to bringing users a simple and efficient AI development experience out of the box.

Features:

• Sigmstar SSD202D
• Dual Cortex-A7 1.2Ghz Processor
• 128MB DDR3
• 512MB NAND Flash
• GC2145 1080P Colored Sensor
• Microphone
• WiFi 2.4GHz

Specifications:

• Product code: U078-D
• Sigmstar SSD202D: Dual Cortex-A7 1.2GHz Processor
• Flash: 512MB NAND
• RAM: 128MB-DDR3
• Camera: GC2145 1080P Colored Sensor
• Lens: FOV 68° , DOF= 60cm- ∞
• Power Input: 5V @ 500mA
• Peripherals: TypeC x1, UART x1, TFCard x1, Button x1, Microphone x1, Fan x1
• Indicator light: Red, White
• Wi-Fi: 150Mbps 2.4GHz 802.11 b/g/n
• Operating Temperature: 0°C to 60°C
• Net weight: 18g
• Product Size: 48*18.5*24mm
• Package Size: 157*38*38mm
• Case Material: Plastic ( PC )

Applications:

• AI recognition function development
• Industrial visual identification sorting
• Machine vision learning

Part List:

• 1 x M5Stack UnitV2
• 1 x 16g TF Card
• 1 x USB-C Cabel (50cm)

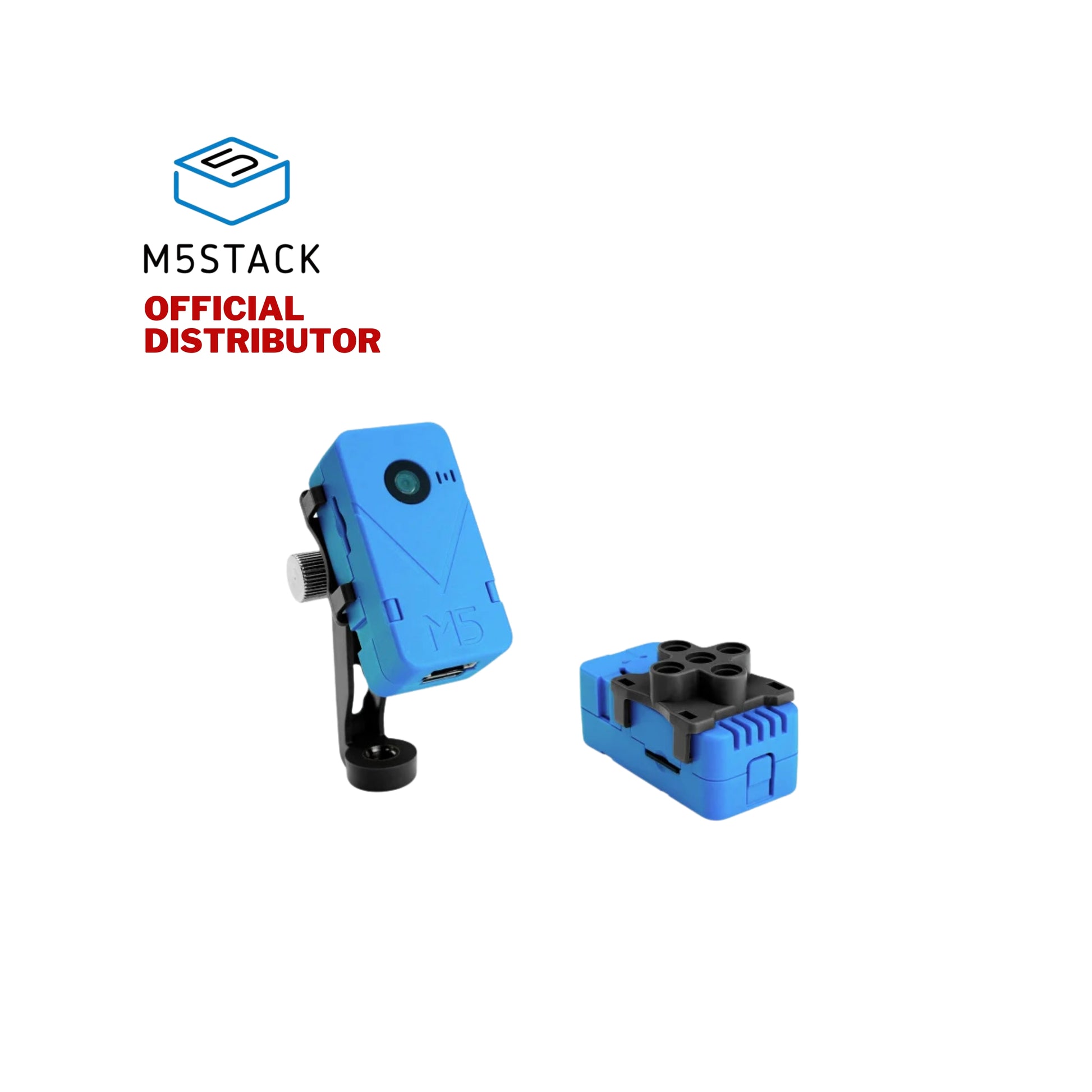

• 1 x Stand
• 1 x Back Brick
