M5Stack M5Stamp C3 Mate with Pin Header
Couldn't load pickup availability
Product Description
Description:
M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3 RISC-V
MCU with Wi-Fi
connectivity for IoT edge devices such as home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, while also make it optimal for industrial IoT equipment collecting sensor data within a factory or a building.
The Stamp-C3 is based on 32-bit RISC-V
micro controller and operates at a maximum clock frequency of 160 MHz
. With 400 KB of internal RAM and 4 MB Flash

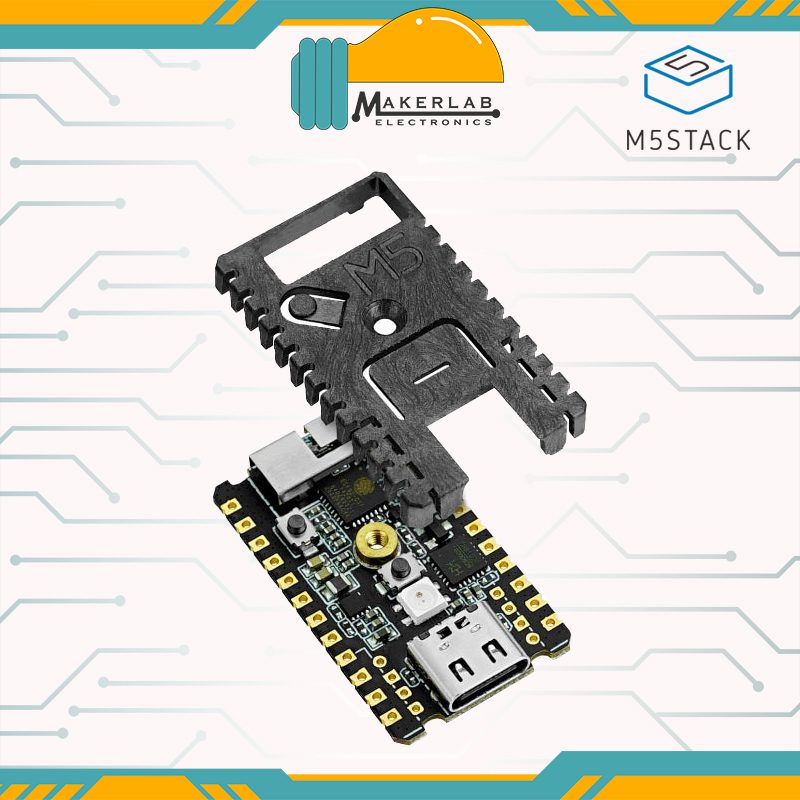

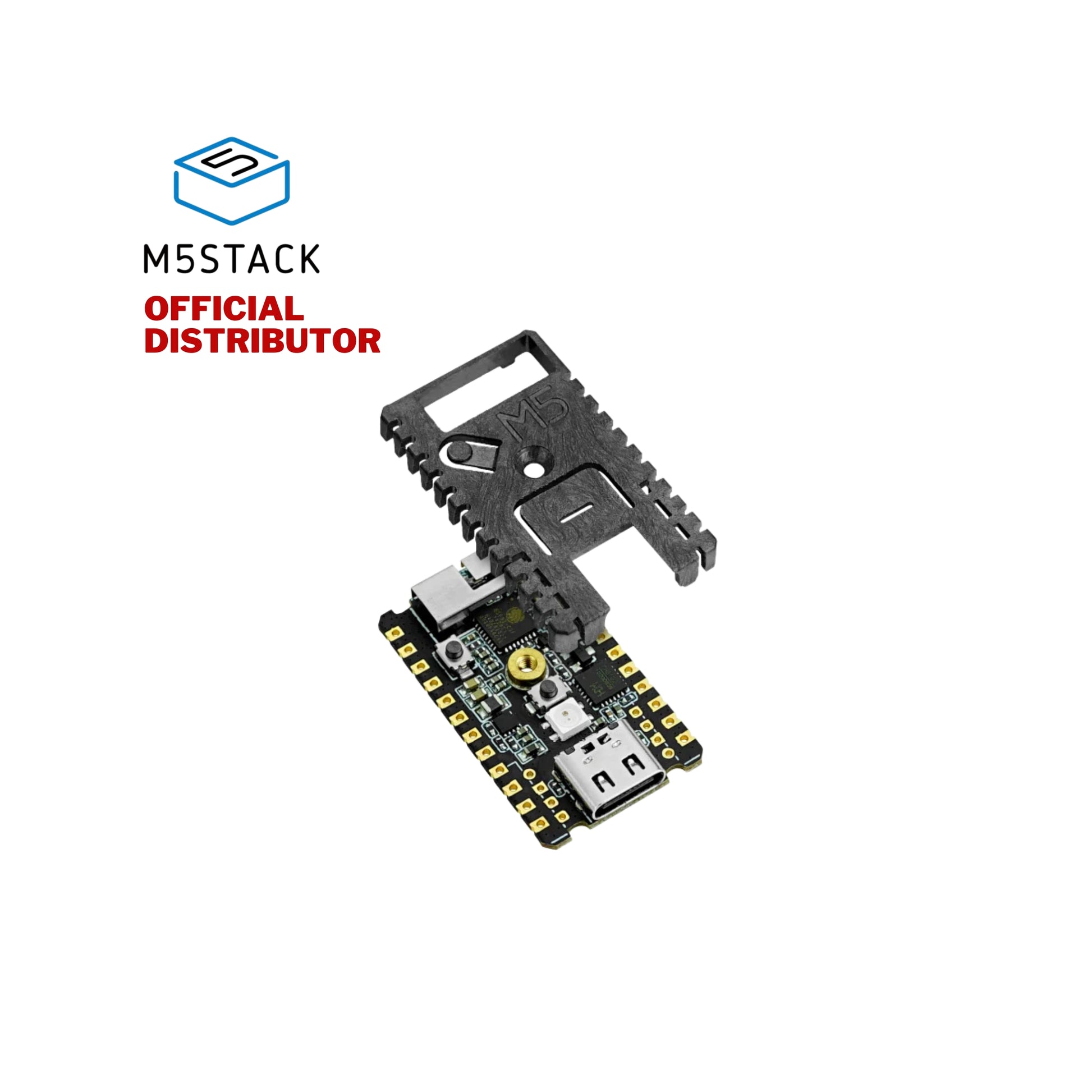

, it can facilitate many different use-cases involving connected devices. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.
Note: Note: If you need to use SPIFFS filesystem in Arduino IDE. Please install a patch package first.
Features:
-
MULTIPLE STYLE:

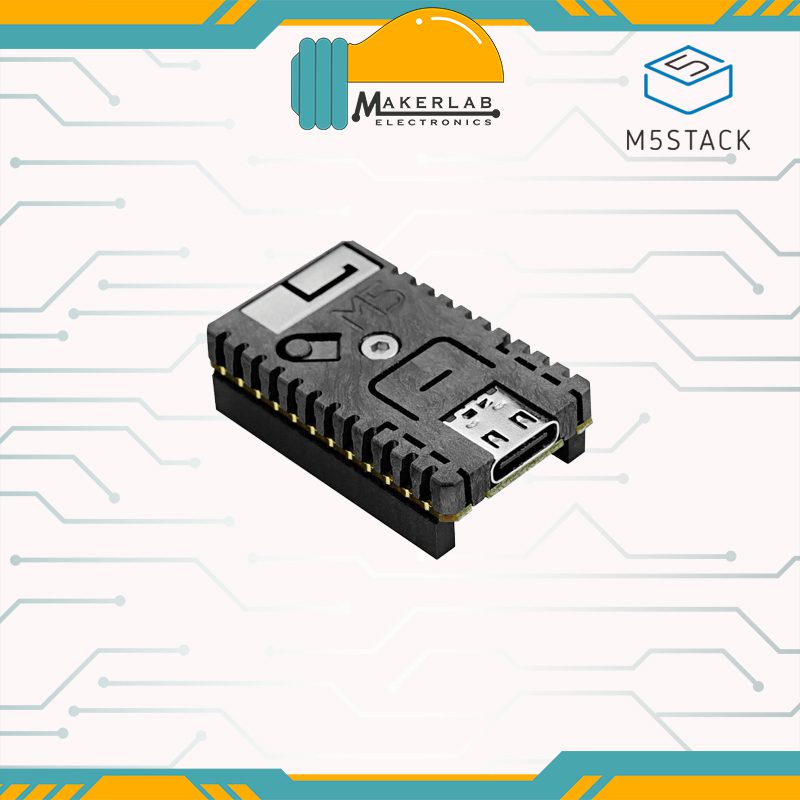

- Three types soldering options are available (SMT, DIP, flywire), with a high-temperature resistant plastic enclosure, Peak temperature = 230?
-
HIGH INTEGRATION:

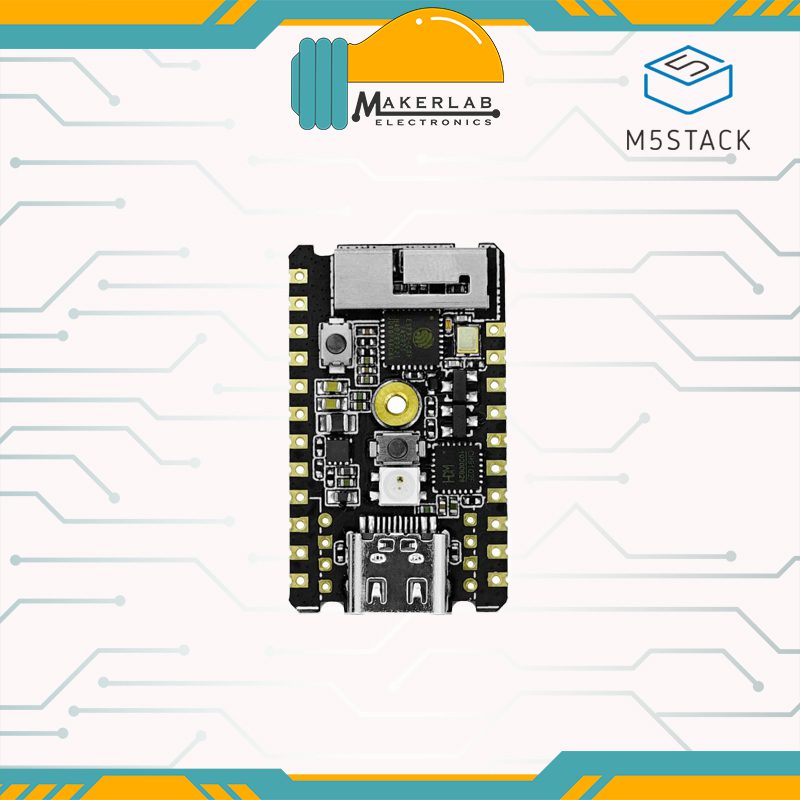

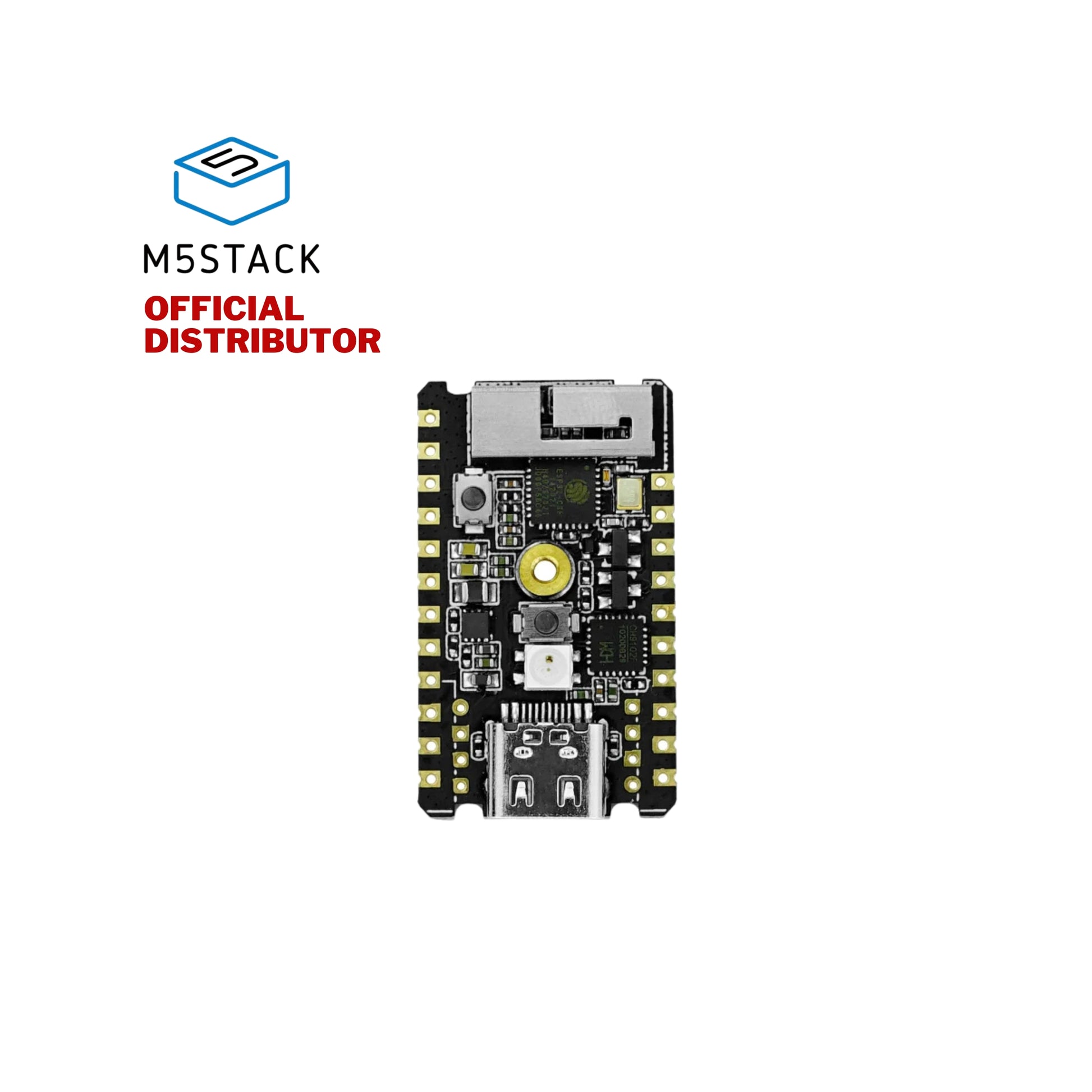

- Stamp-C3 contains 5V->3.3V DC/DC design, GPIOx13, programmable RGB LED x1, Reset button x1, button x1, 3D antenna, providing stable and reliable wireless communication.
-
LOW-CODE DEVELOPMENT:
- Stamp-C3 fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms to quickly build various applications. (UIFlow support coming soon)
Specifications:
- Product Code: K056
- ESP32-C3: 32bit RISC-V single-core processor, clocked at 160 MHz
- Storage: 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH
- Wi-Fi: 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps
- Input voltage: 5V @ 500mA
- HMI: Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1
- USB interface: TypeC x1
- Antenna Type: 2.4G 3D Antenna
- Module peripheral interface resources: ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
- IO interface x13: G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
- IO interface spacing: 2.54mm
- Fixing screw specifications: M2*4 countersunk head hexagon socket mechanical teeth
- Net weight: 3.8g
- Product size: 34 * 20 * 4.6mm
- Packing size: 85*55mm sealing bag (translucent)
Applications:
- DIY Prototyping
- Home Appliances
- Industrial Automation

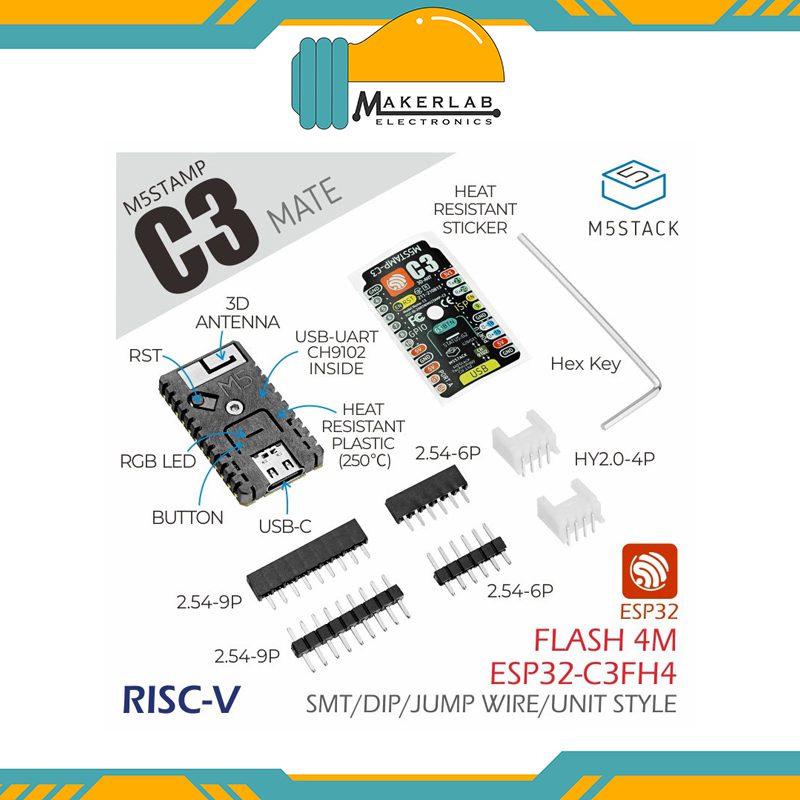

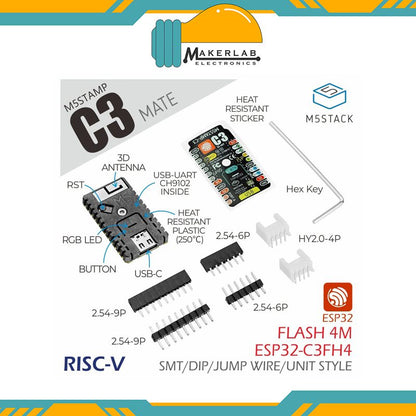

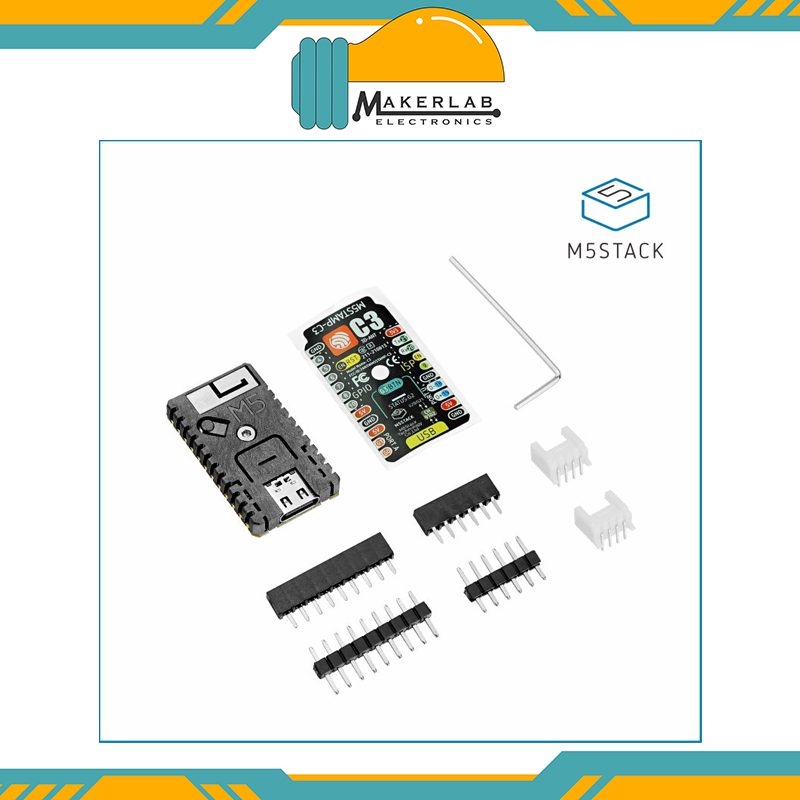

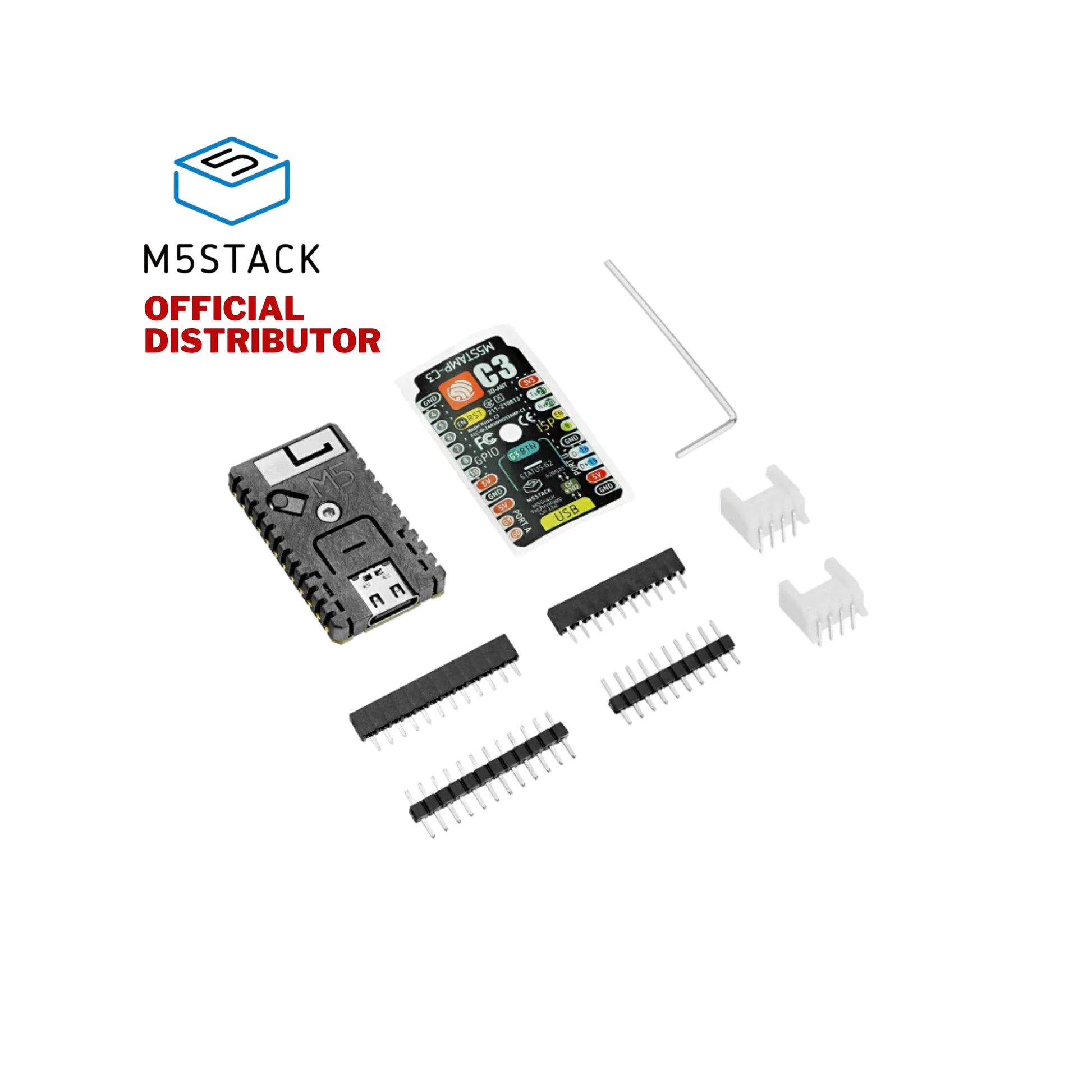

Part List:
- M5Stamp C3 Mate:
- 1 x M5Stamp C3
- 1 x Heat Resistant Sticker
- 2 x 2.54-9P Pin
- 2 x 2.54-6P Pin
- 2 x 90° Grove Connector
- 1 x M2 Hex Key
