SKU:MLE03925

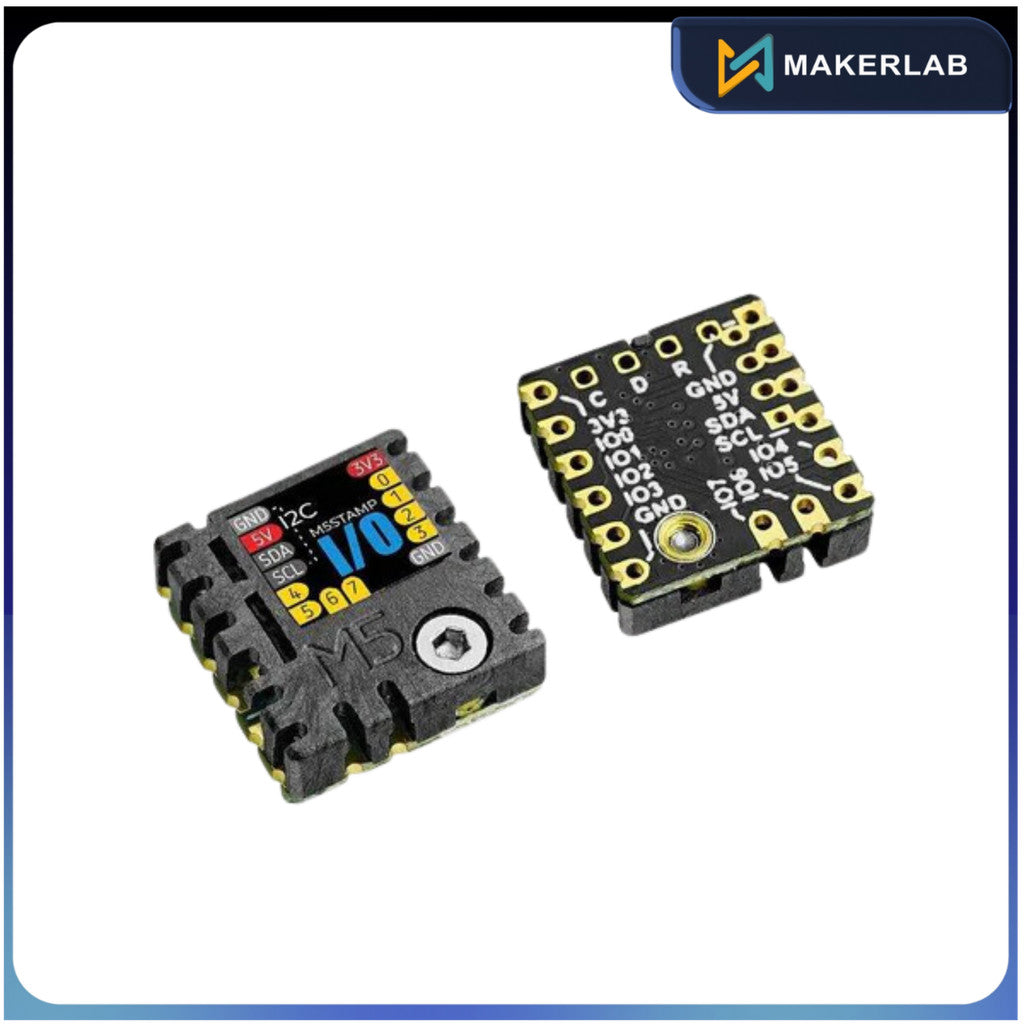

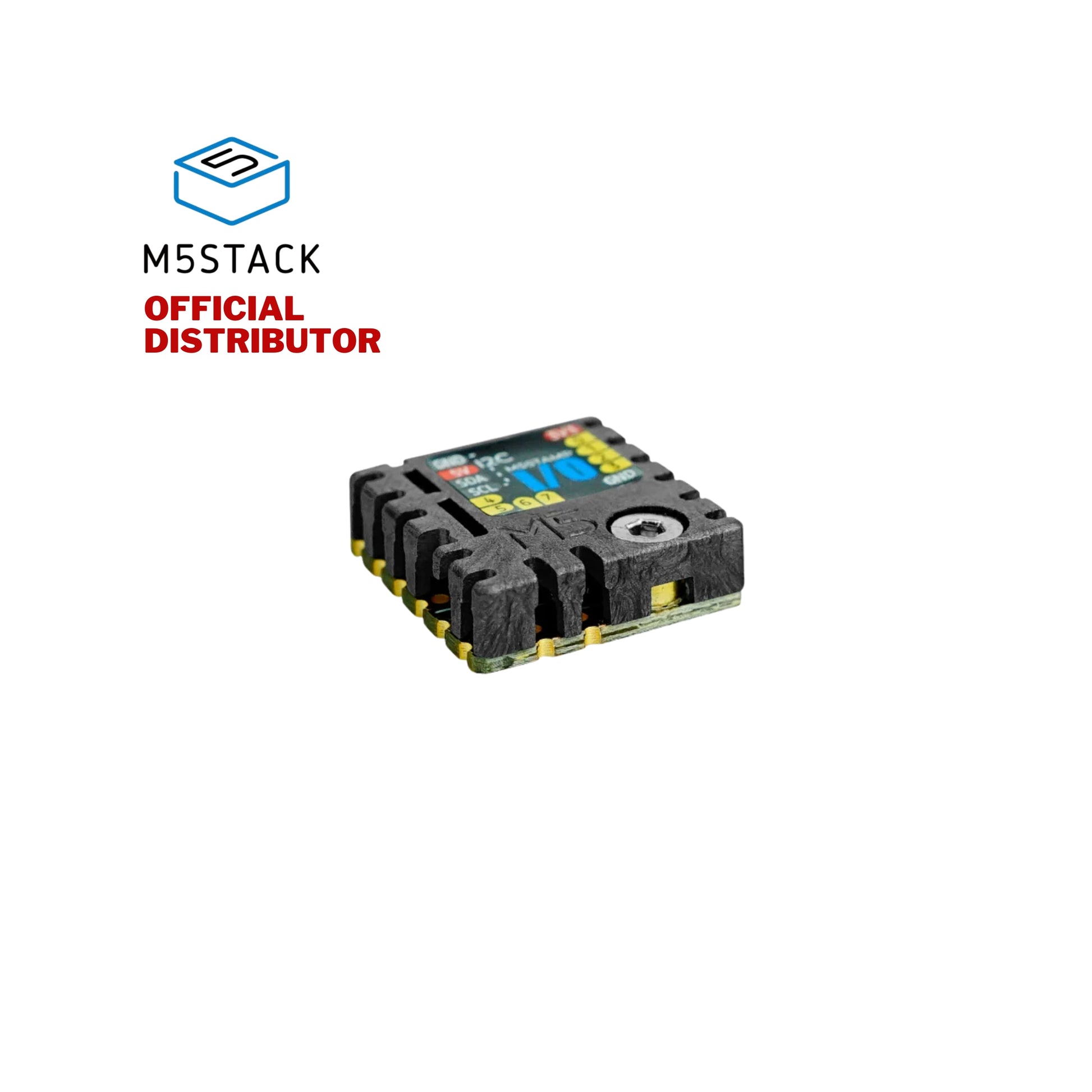

M5Stack M5Stamp Extend I/O Module (STM32F0)
₱500.00
₱500.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...

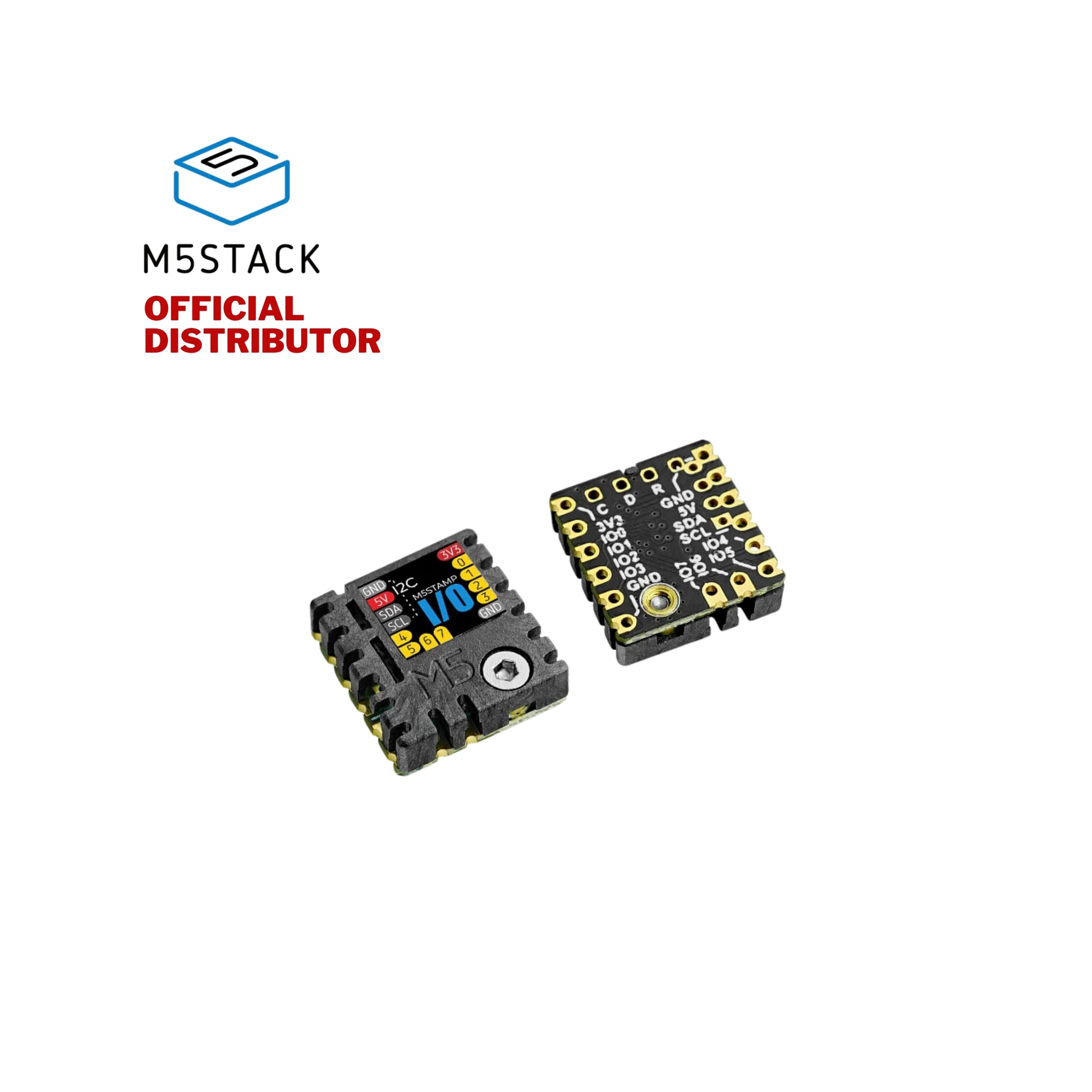

files/MLE03925_2.jpg
08:52 AM
Couldn't load pickup availability
Product Description
Description:
STAMP IO is an IO expansion board based on STM32F030 main controller, using I2C communication interface, providing 8 IO expansion. Each IO supports independent configuration of digital input/output, ADC, SERVO control, RGB LED control modes. Suitable for multi-channel digital/analog signal acquisition, and lighting/servo control applications.
Features:
- 8-channel input and output expansion.
- Digital input/output
- ADC input
- SERVO control (PWM)
- RGB LED control
- I2C communication interface:
- Supports configuration of I2C address
- Multiple soldering options
- Three types soldering options are available (SMT, DIP, Jumper wire),
- With high-temperature resistant plastic enclosure, Peak temperature = 230℃
Specifications:
- Product Code: S002
- MCU: STM32F030
- I2C Address: 0x45(default)
- Number of IO expansions: 8
- IO Support Mode: Digital I/O, ADC, SERVO control, RGB LED control
- IO Support: Input/Output Levels: 3.3V
- Net Weight: 2.5g
- Gross Weight: 4.3g
- Product Size: 15*4.7*16mm
- Package Size: 93*138mm
Applications:
- IO Expansion
- Servo control
- Multiple lighting control
- Multiple analog signal acquisition

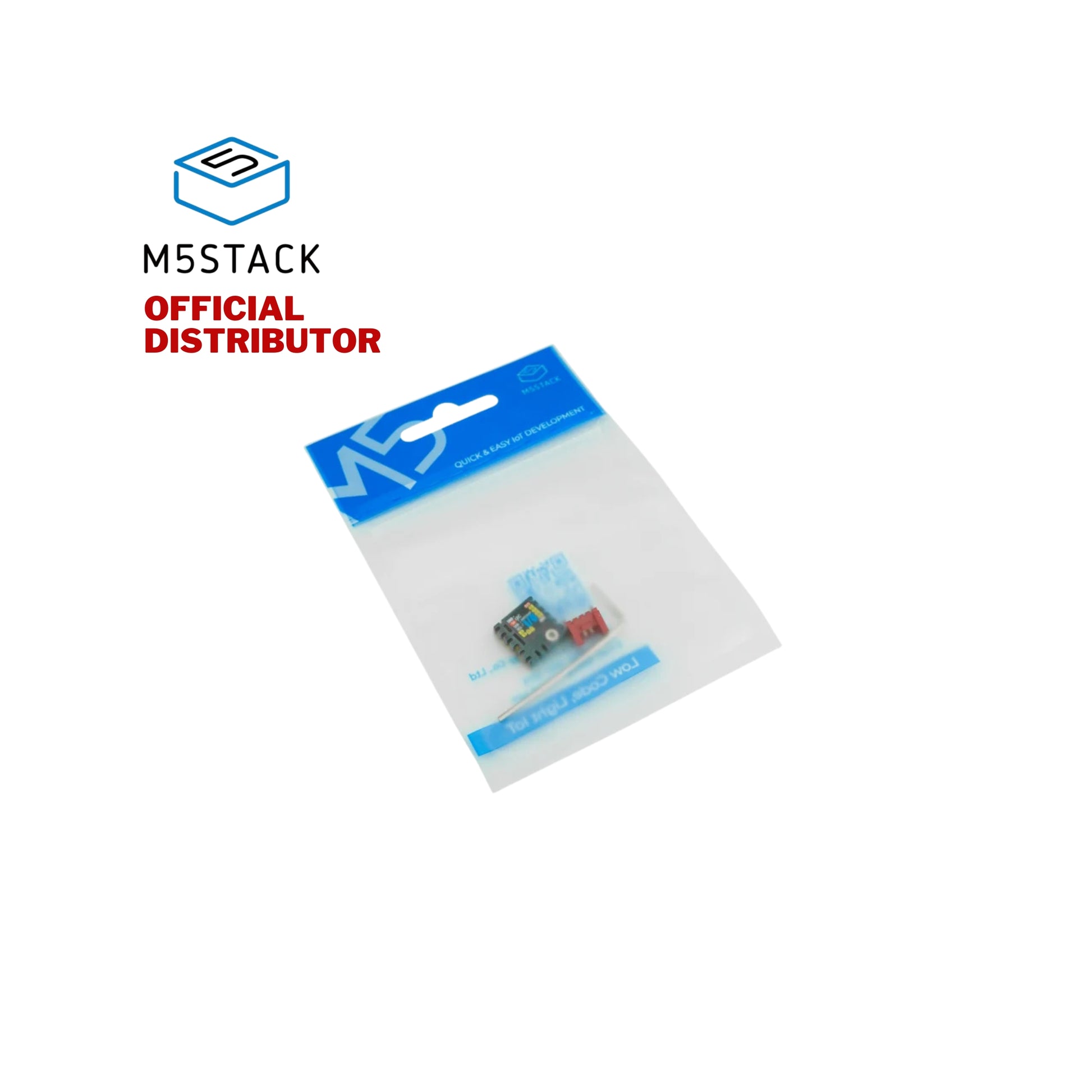

Part List:
- 1x STAMP IO
- 1x HY2.0-4P female connector (red)
- 1x Hex key 1.5mm
