SKU:MLE03341

M5Stack M5Stamp Pico DIY Kit

₱1,200.00
₱1,200.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

STAMP-PICO features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

1. MULTIFORM: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.

2. LOW-CODE DEVELOPMENT: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

3. HIGH INTEGRATION: STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.

4. STRONG EXPANDABILITY: Easy access to M5Stack's hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.

Features:

  • Chip-set: ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
  • Support UIFlow graphical programming
  • Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
  • Integrated programmable RGB LEDs and buttons
  • Miniature module

Specifications:

  • Product Code: K051-B
  • Master Control Resource: ESP32-PICO-D4
  • Flash: 4MB
  • Input Voltage: 5V @ 500mA
  • Power consumption:
    • Normal standby:5V@29mA
    • WIFI STA mode: 5V@60mA
    • BT mode data sending status: 5V@84mA
    • Deep-sleep mode: 5V@0.35mA
  • Wireless communication distance: AP Mode: 16m
  • UI: Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
  • Antenna Type: 2.4G 3D Antenna
  • Wi-Fi:
    • 802.11 b/g/n (up to 150 Mbps for 802.11n)
    • Spectrum range: 2.4 GHz ~ 2.5 GHz
  • Module Resource Interface: ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter
  • IO interface x12: G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
  • IO interface spacing: 2.54mm
  • Operating temperature: 0°C to 60°C
  • Net weight: 2.6g
  • M5Stamp Pico (5pcs) Gross weight: 18g
  • M5Stamp Pico Mate Gross weight: 6g
  • M5Stamp Pico DIY Kit Gross weight: 12g
  • Product Dimensions: 18 * 24 * 4.6mm
  • Package Size: 85*55mm sealing bag (translucent)

Applications:

  • Instrumentation
  • Wi-Fi Remote Monitoring/Control
  • Smart Home
  • Color LED Control
  • Fire/security intelligent integrated management
  • Smart Card Terminal
  • Wireless POS

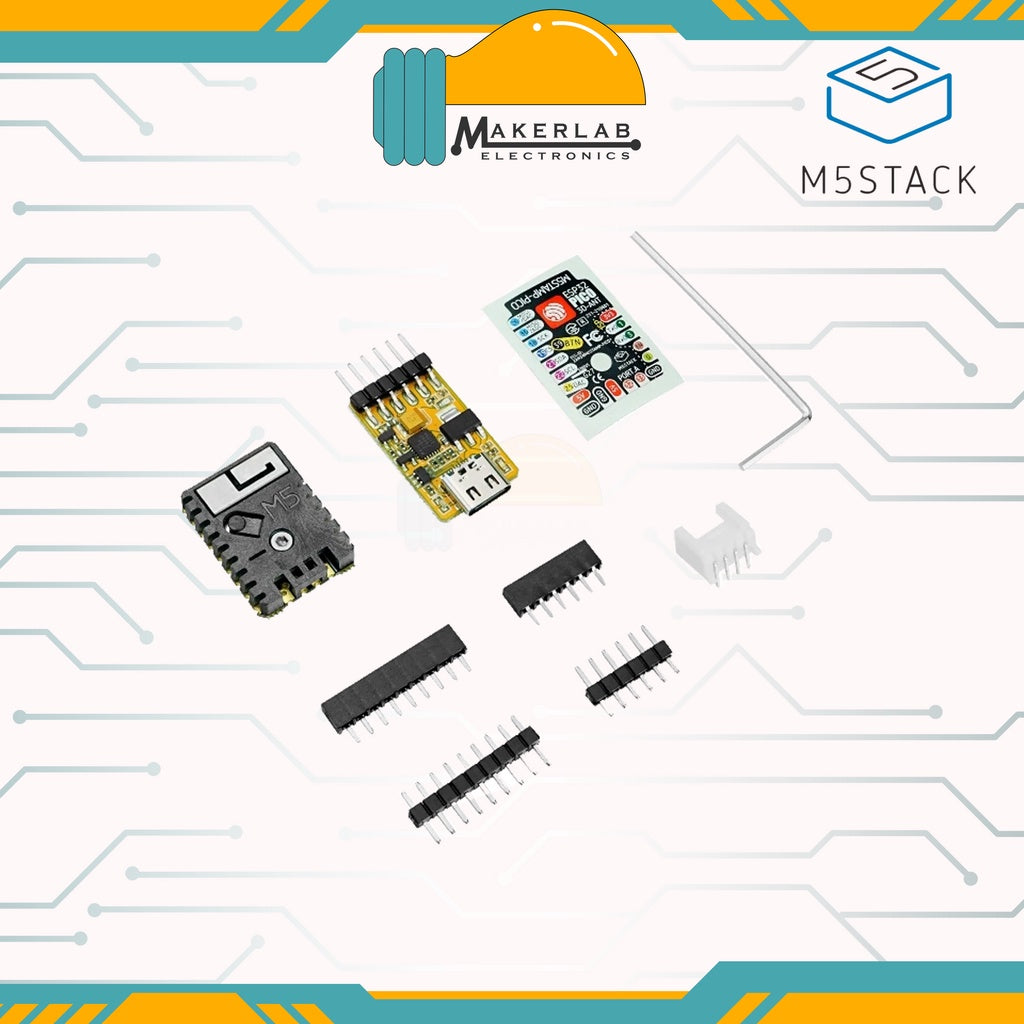

Part List:

  • M5Stamp Pico DIY Kit:
    • 1 x M5Stamp Pico
    • 1 x Sticker
    • 4 x Pin Headers
    • 1 x 90° Grove Connector
    • 1 x Hex Key
    • 1 x ESP32 Downloade
