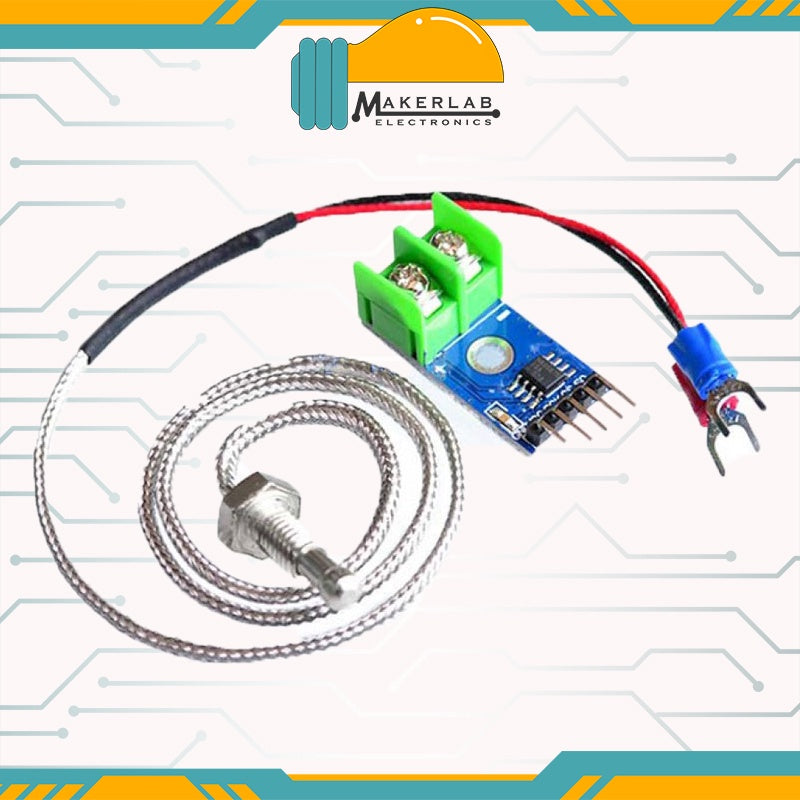

MAX6675 Module + K Type Thermocouple Sensor

The MAX6675 performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI™-compatible, read-only format. This converter resolves temperatures to 0.25°C, allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8LSBs for temperatures ranging from 0°C to +700°C.

Features:

• Direct Digital Conversion of Type -K Thermocouple Output
• Cold-Junction Compensation
• Simple SPI-Compatible Serial Interface
• 12-Bit, 0.25°C Resolution
• Open Thermocouple Detection

Specification:

• Application: For Arduino, Raspberry Pi etc.
• Working Voltage: 3~5V
• Dimension: 56cm x 1.8 cm 1.8cm
• Weight: 17g

Packing List:

• 1x MAX6675 Module
• 1x K Type Thermocouple Sensor
