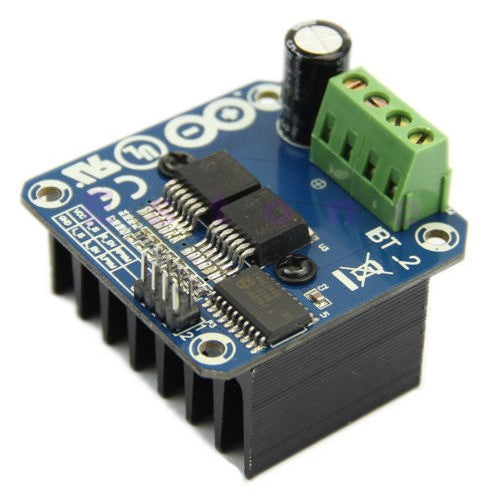

Motor Driver 43A BTS7960

Motor Driver 43A BTS7960

In stock

SKU:MLE00429

Regular price ₱305.00
Regular price Sale price ₱305.00
Sale Sold out
View full details

Motor Driver 43A BTS7960

The Motor Driver 43A BTS7960 uses an H-bridge driver module that composed by Infineon power drive chip, with overheating and overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, uses 74HC244 chip to effectively isolate the microcontroller and the motor driver. It can operate at high current up to 43A.

Applications

  • Current diagnostic
  • Slope adjustment
  • Dead Time generation
  • Overtemperature, overvoltage, undervoltage, overcurrent protection
  • Short circuit protection

Specifications

  • Input voltage: 6V-27V
  • Model: IBT-2
  • Maximum current: 43A
  • Input level: 3.3-5V
  • Control mode: PWM or level
  • Duty cycle: 0-100%

Package list

  • BTS7960 module x 1
