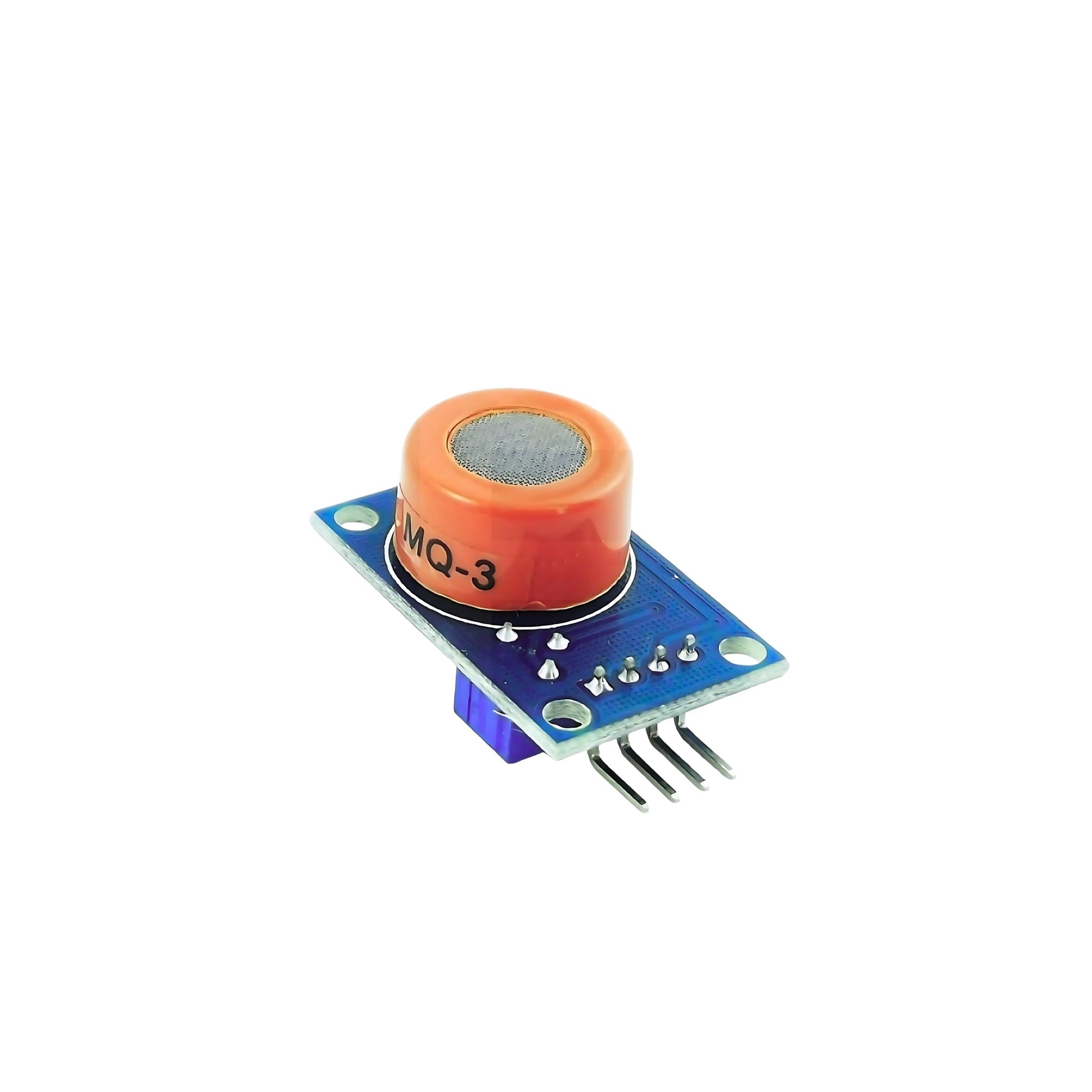

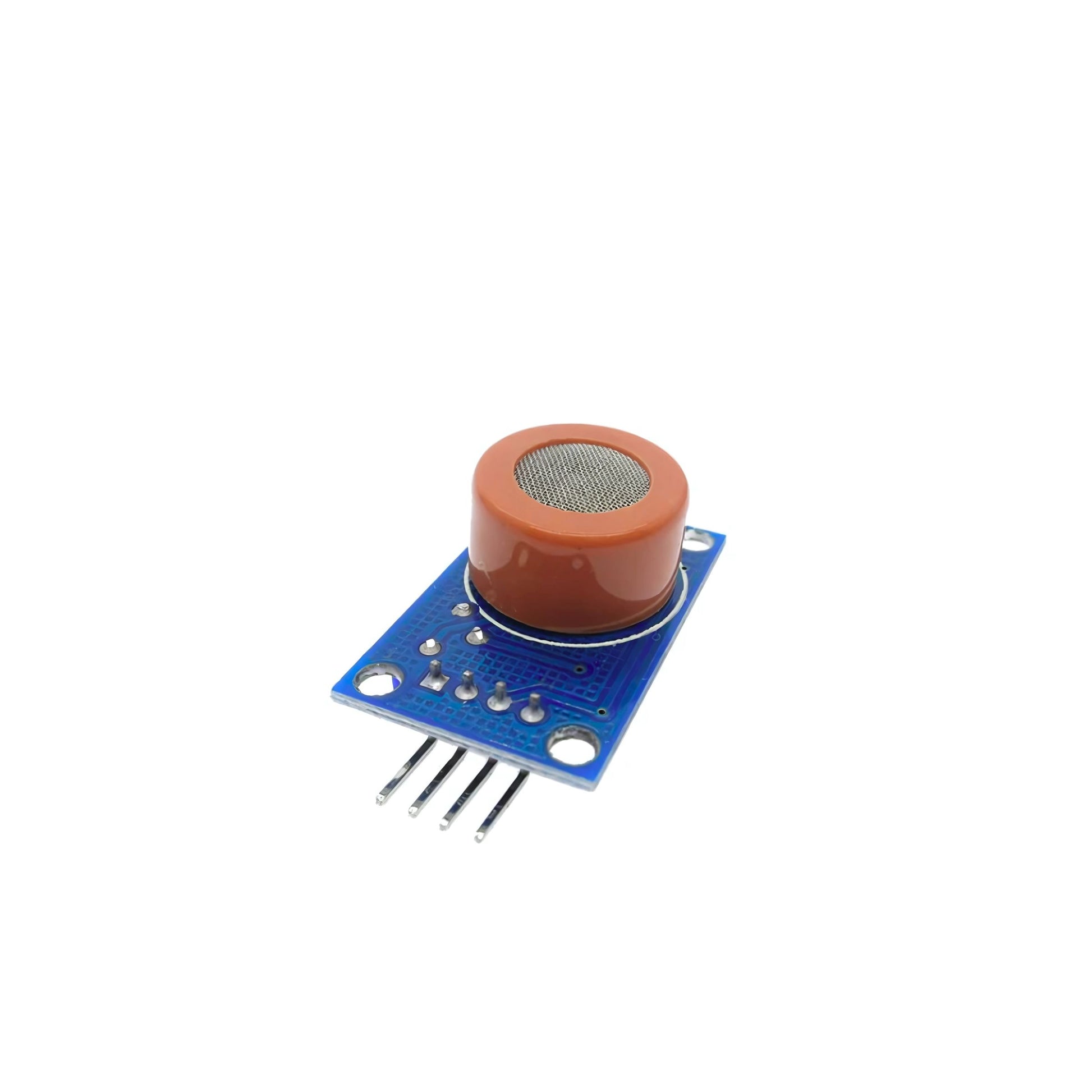

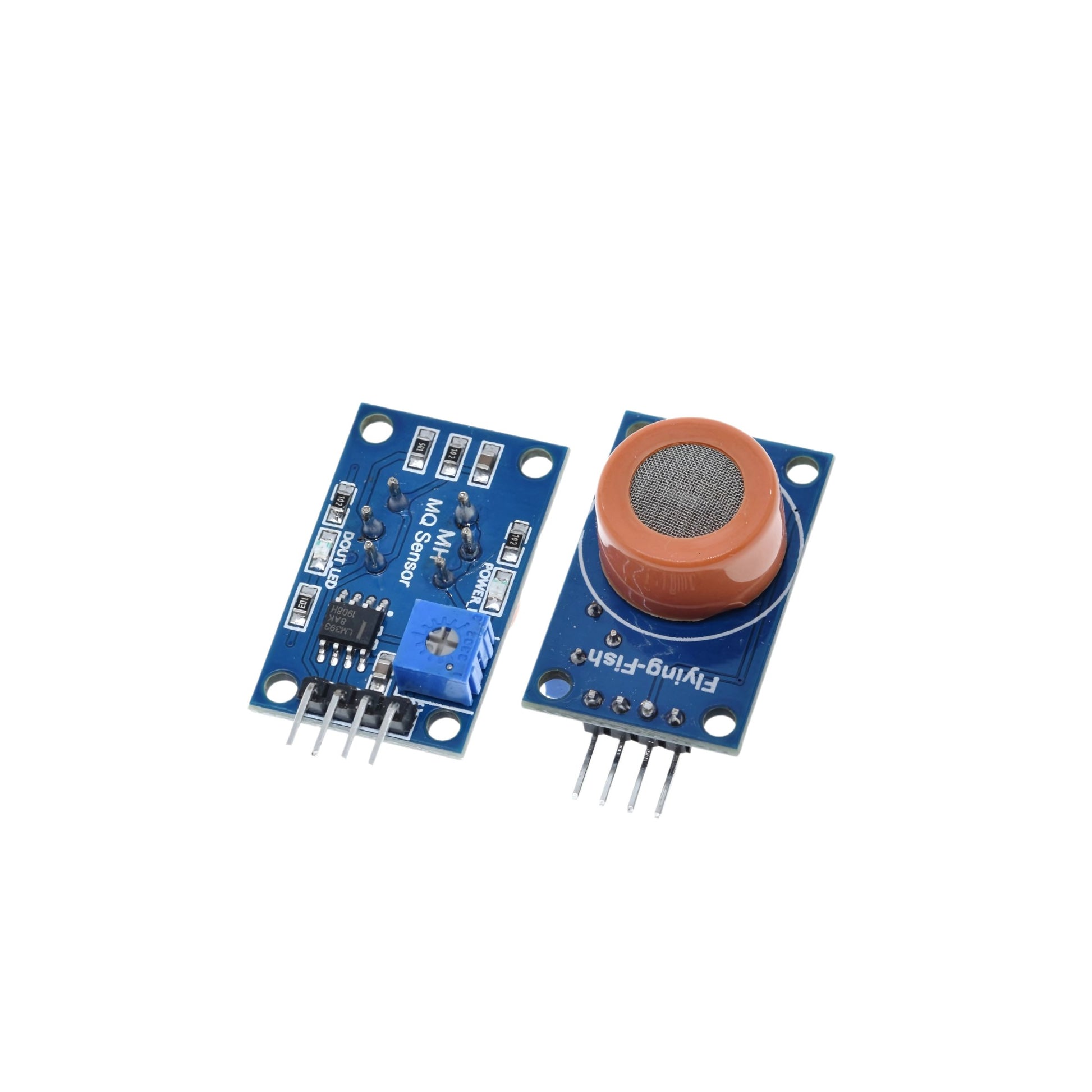

MQ-3 Alcohol Gas Sensor
₱75.00
₱75.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:
The MQ-3 Alcohol Gas Sensor is specifically designed for the detection of alcohol vapor concentration in the air. It utilizes a tin dioxide (SnO2) semiconductor material as its sensitive layer. When alcohol vapor is present, it gets absorbed onto the sensor's surface, causing a decrease in the sensor's electrical resistance. The change in resistance is then translated into an analog voltage output, which is proportional to the concentration of alcohol vapor. This sensor is particularly useful in applications where monitoring alcohol levels is important, such as breathalyzers and industrial safety monitoring in environments where alcohol solvents might be present.
Features:
- High Sensitivity to Alcohol
- Fast Response and Recovery
- Good Selectivity to Alcohol
- Stable and Long Lifespan
- Low Cost
- Simple Drive Circuit
Specifications:
Target Gas: Alcohol Vapor (Ethanol)
Detection Concentration Range: 0.05 mg/L - 10 mg/L
Operating Voltage: 5V ± 0.1V DC
Heater Voltage: 5V ± 0.1V AC/DC
Load Resistance: 200KΩ
Heater Resistance: 33Ω ± 5% (Room Temperature)
Heater Consumption: ≤ 750 mW
Preheat Time: Over 24 hours
Operating Temperature: -10°C - 50°C
Storing Temperature: -10°C - 50°C
Operating Humidity: < 95% RH
Standard Condition: Temperature: 20°C ± 2°C; Humidity: 65% ± 5% RH
Application:
Breathalyzers
Automotive Safety Systems
Industrial Safety Monitoring
Home Brewing and Wine Production
Hospitality Industry
Portable Alcohol Detectors
Educational and Hobbyist Projects
