SKU:MLE03835

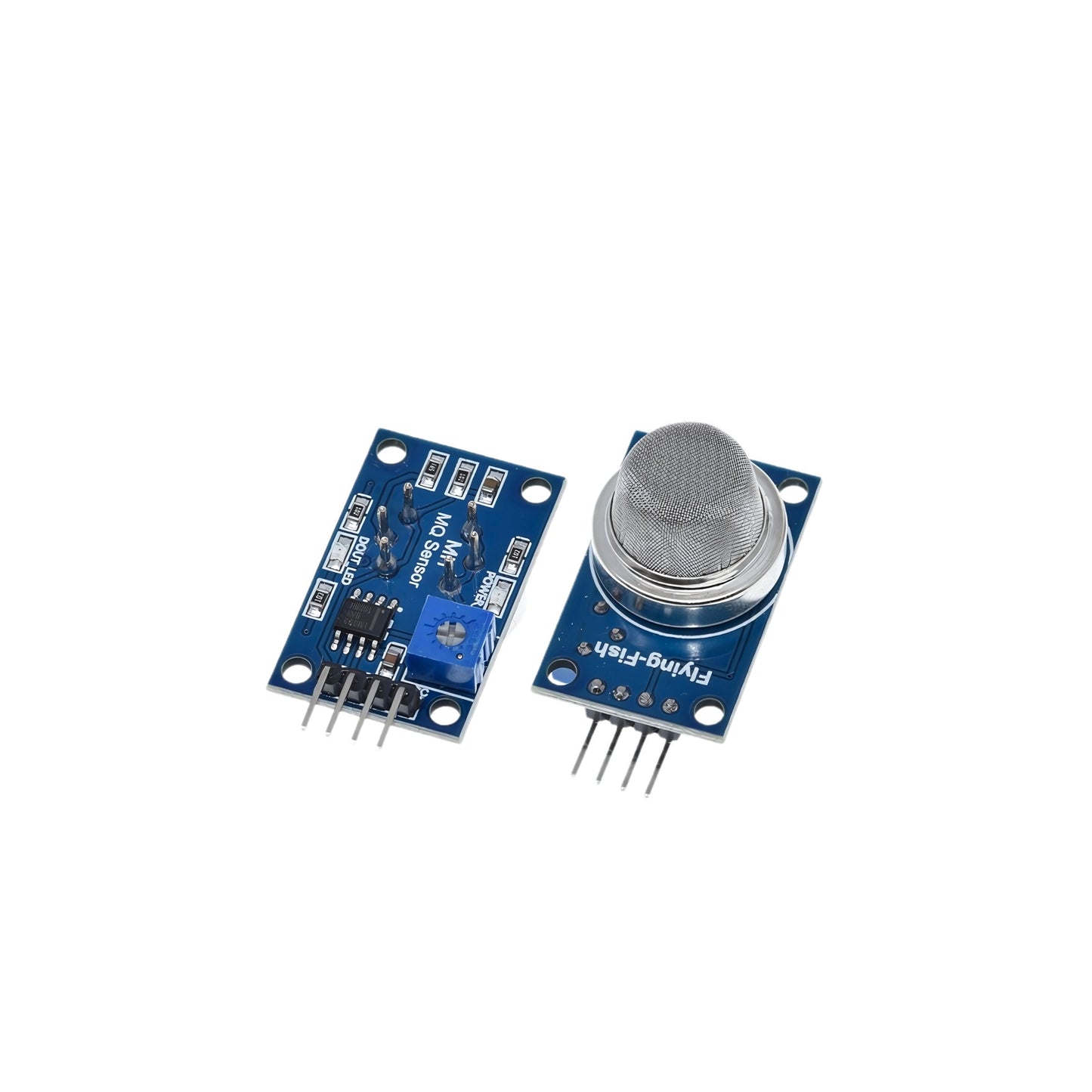

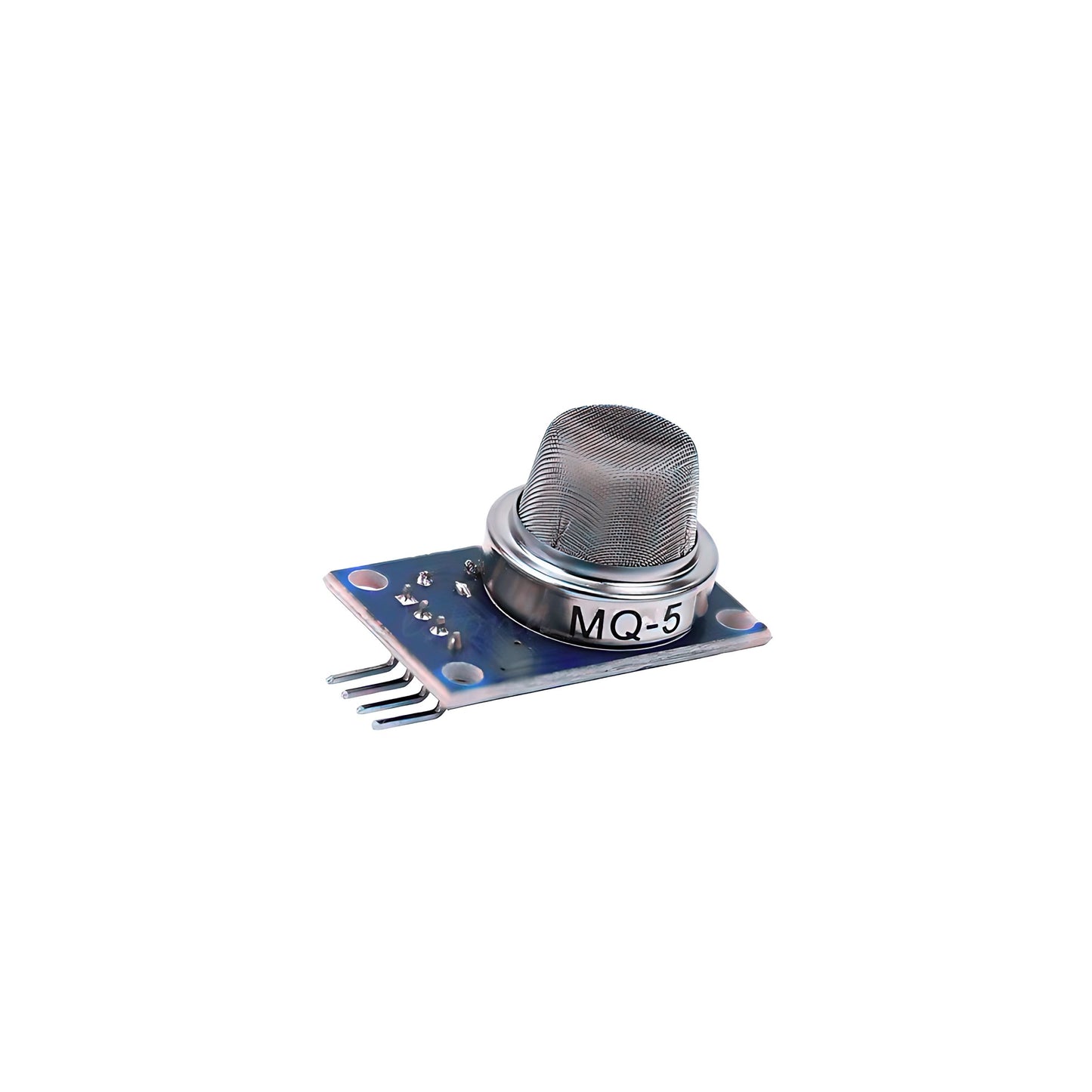

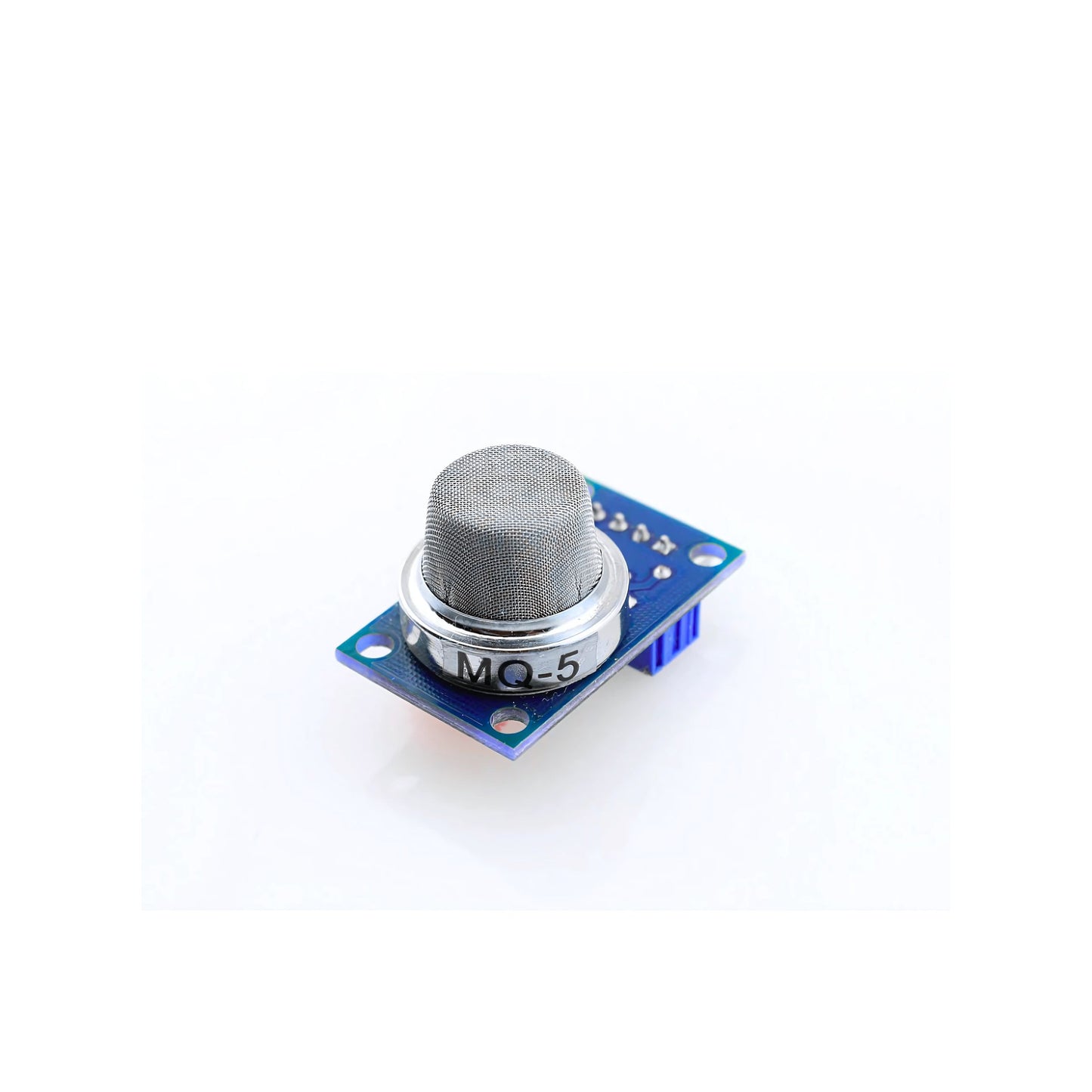

MQ-5 Gas Sensor
₱100.00
₱100.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:
The MQ-5 Gas Sensor is designed to detect a variety of flammable gases, with high sensitivity to Liquefied Petroleum Gas (LPG), natural gas (primarily methane), and coal gas (a mixture of flammable gases). It utilizes a tin dioxide (SnO2) semiconductor material. In clean air, the sensor has low conductivity, but when flammable gas is present, the gas is absorbed on the sensor's surface, causing conductivity to increase proportionally to the gas concentration. This change in conductivity is converted into an analog voltage output, providing a measure of the gas level.
Features:
- High Sensitivity to LPG, Natural Gas, and Coal Gas
- Small Sensitivity to Alcohol and Smoke
- Fast Response and Recovery
- Stable and Long Lifespan
- Low Cost
- Simple Drive Circuit
Specifications:
Target Gases: LPG, Natural Gas (Methane), Coal Gas, Iso-butane, Propane
Detection Range: 200 ppm - 10000 ppm
Operating Voltage: 5V ± 0.1V AC/DC
Heating Voltage: 5V ± 0.1V AC/DC
Load Resistance: 20KΩ
Heater Resistance: 31Ω ± 10% (Room Temperature)
Heating Consumption: < 800 mW
Preheat Time: Over 24 hours
Operating Temperature: -10°C - 50°C
Storing Temperature: -20°C - 70°C
Operating Humidity: < 95% RH
Standard Condition: Temperature: 20°C ± 2°C; Humidity: 65% ± 5% RH
Application:
Domestic Gas Leakage Detection
Industrial Combustible Gas Detectors
Portable Gas Detectors
Gas Leak Alarms
Safety Systems
Educational and Hobbyist Projects
