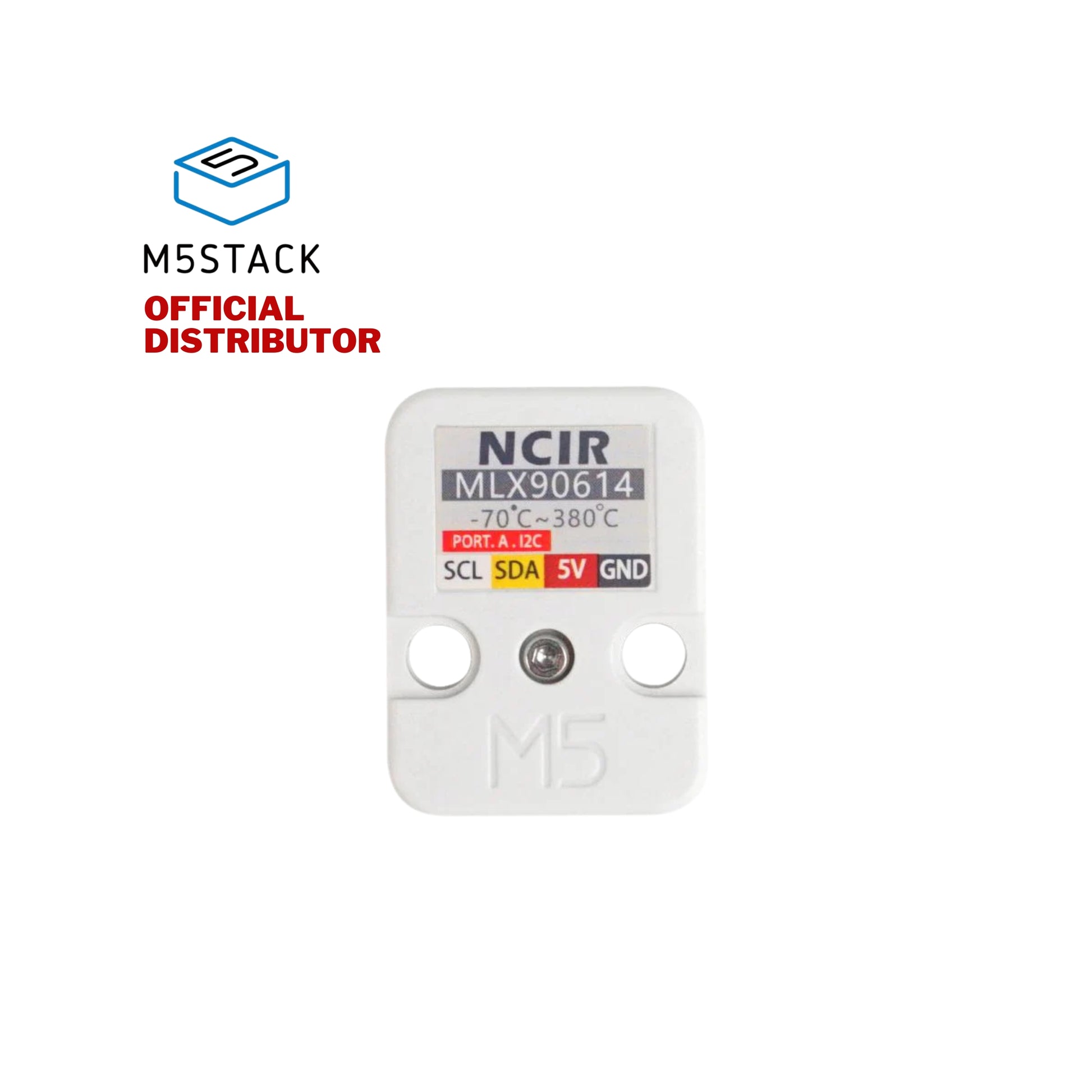

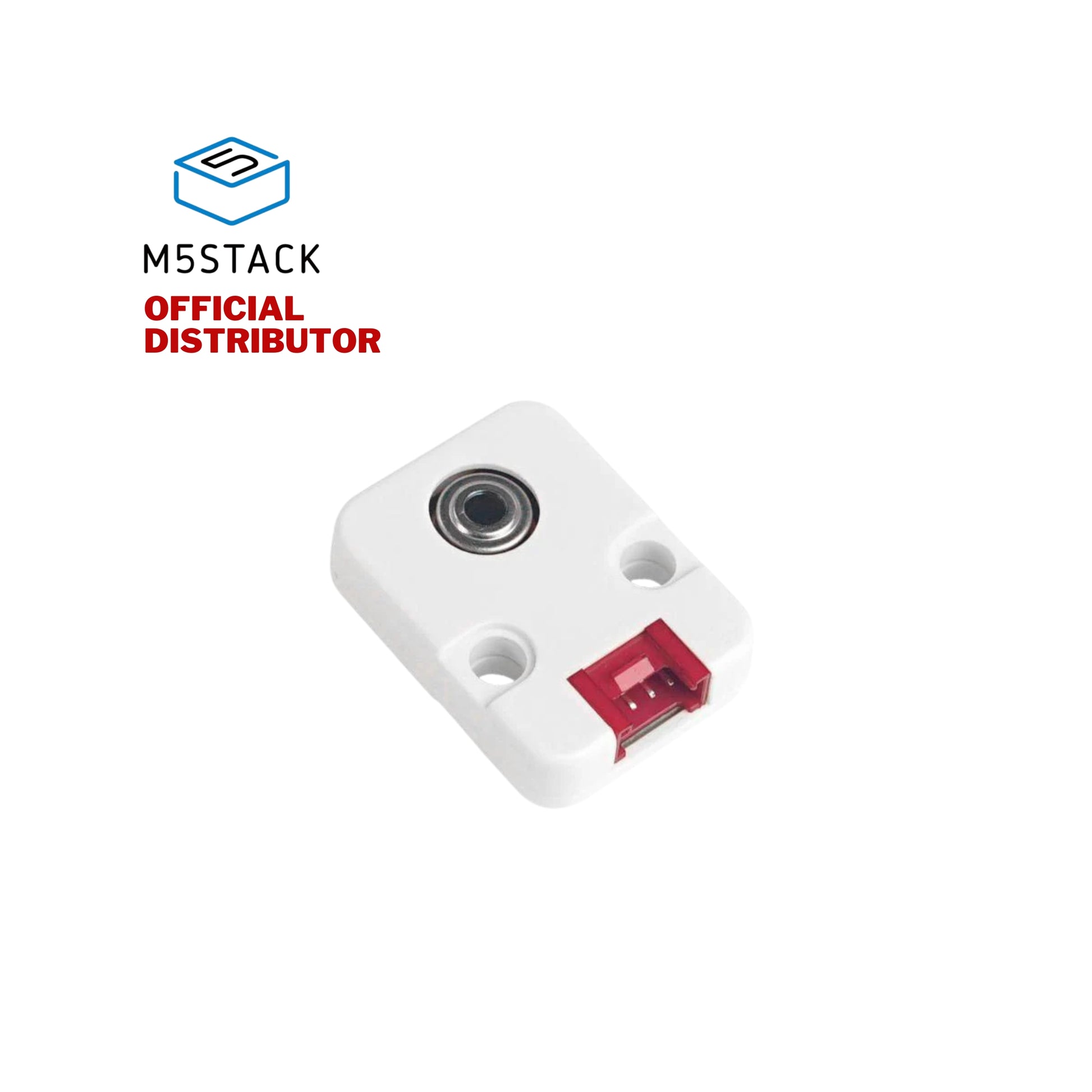

M5Stack NCIR Temperature Sensor Unit (MLX90614)

Description:

NCIR featured with built-in infrared MLX90614 sensor, It can be used to measure the surface temperature of a human body or other object.

NCIR is a single-point infrared temperature sensor. It incorporates the MLX90614 infrared sensor, capable of measuring the surface temperature of human bodies or other objects.

Unlike most contact-based sensors, this sensor detects temperature by measuring the infrared radiation emitted by distant objects. It does not require physical contact, allowing for a wider temperature measurement range of -70°C to +380°C. With a 90° field of view, it can conveniently and quickly measure the average temperature at a specific location.

This unit is connected to the M5Core through PORT A I2C (address 0x5A).

Features:

• Operating voltage: 4.5 to 5.5V
• Measuring object temperature range: -70°C ~ 380°C
• Measuring ambient temperature range: -40 to 125 ?C
• Measurement accuracy at room temperature: ±0.5°C
• Field of view: 90°
• Software Development Platform: Arduino, UIFlow (Blockly, Python)
• Two Lego-compatible holes

Specifications:

• Product Code: U028
• Communication protocol: I2C:0x5A
• Net weight: 4g
• Gross weight: 16g
• Product Size: 32*24*8mm
• Package Size: 67*53*12mm

Applications:

• Body Temperature Measurement
• Object (biological) Motion Detection

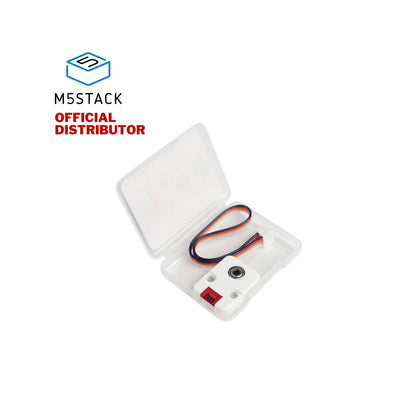

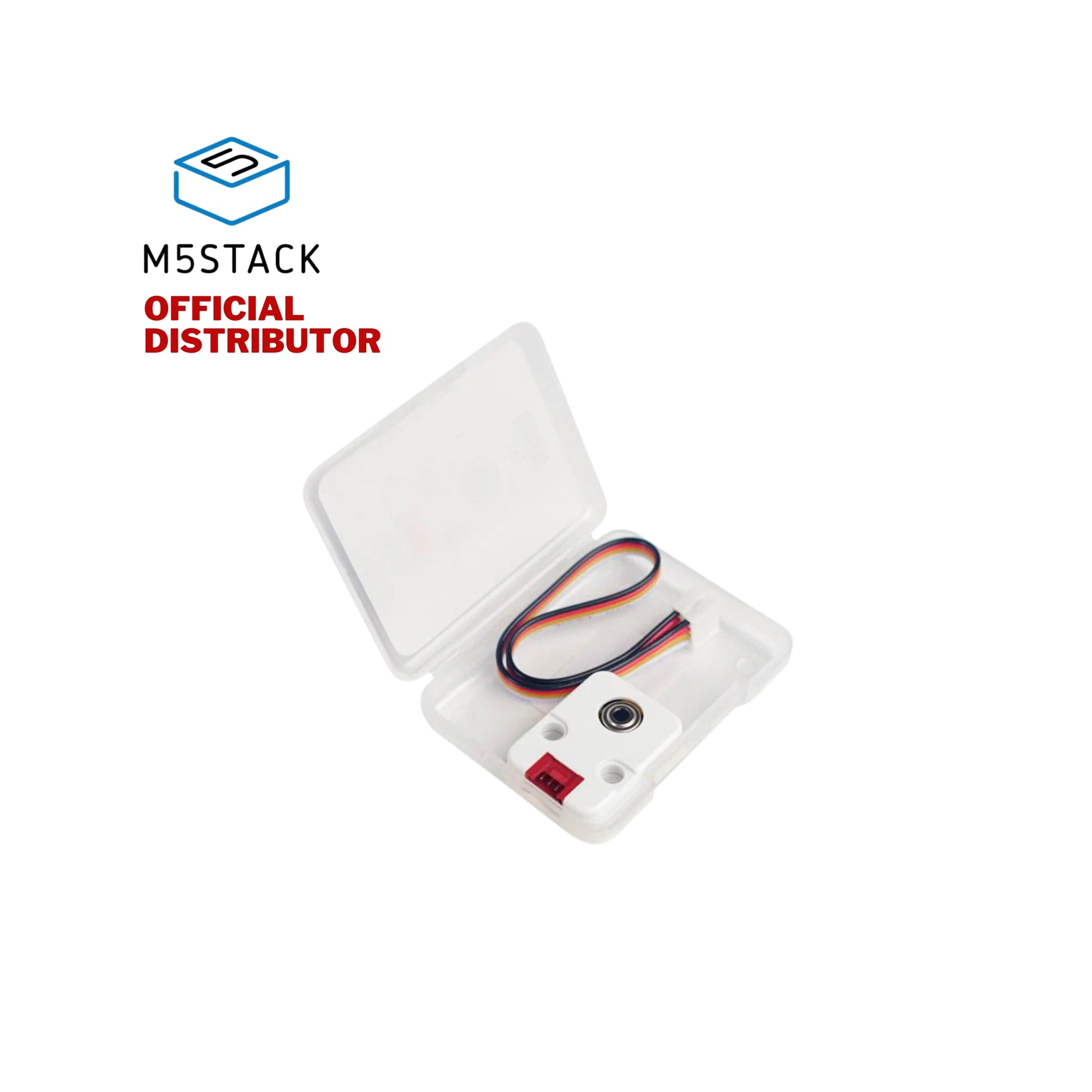

Part List:

• 1x NCIR Unit
• 1x Grove Cable
