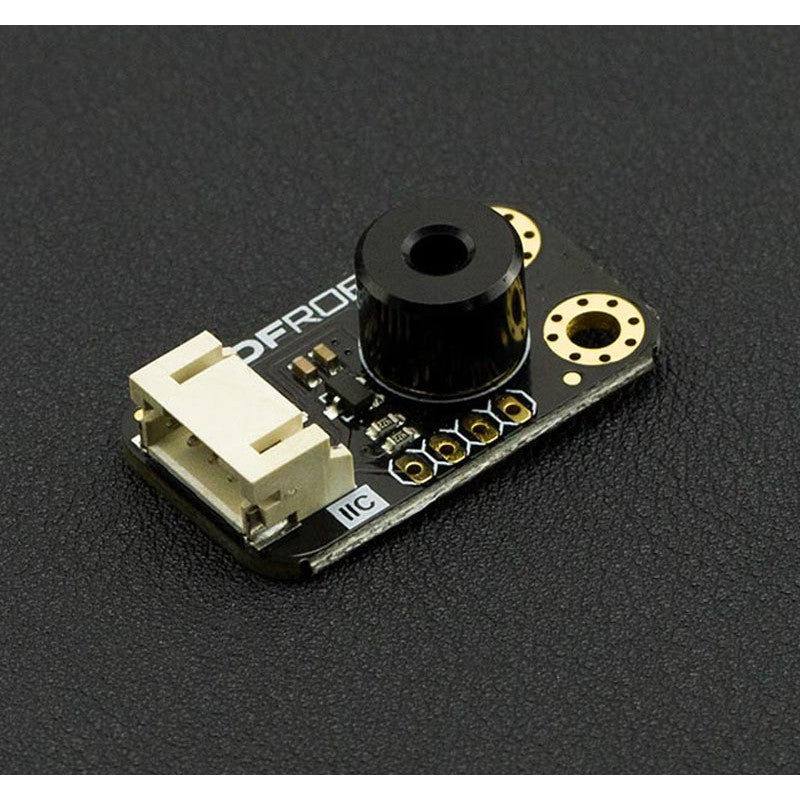

Non-contact IR Temperature Sensor MLX90614

This Non-contact IR Temperature Sensor measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module.

The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted in to corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted in to a temperature value. The MLX90614 is self calibrating and has a low noise amplifier integrated in to the signal processing chip. The chip itself is a 17 bit ADC and DSP device, giving accurate and reliable results.

Specifications:

• Operating Voltage: 3.3V - 5V
• Operating Current: 1.2mA
• Temperature: -70.01? to +382.19?, (0.01 ? resolution)
• Interface Type: I2C
• Interface Line Sequence: VCC, GND, SCL, SDA
• Dimensions: 31.5*18 mm/1.24 x 0.7 inches
• Weight: 15g

Documents:

• Product Wiki
