Non-invasive AC Current Sensor-100A

₱350.00 PHP
₱350.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

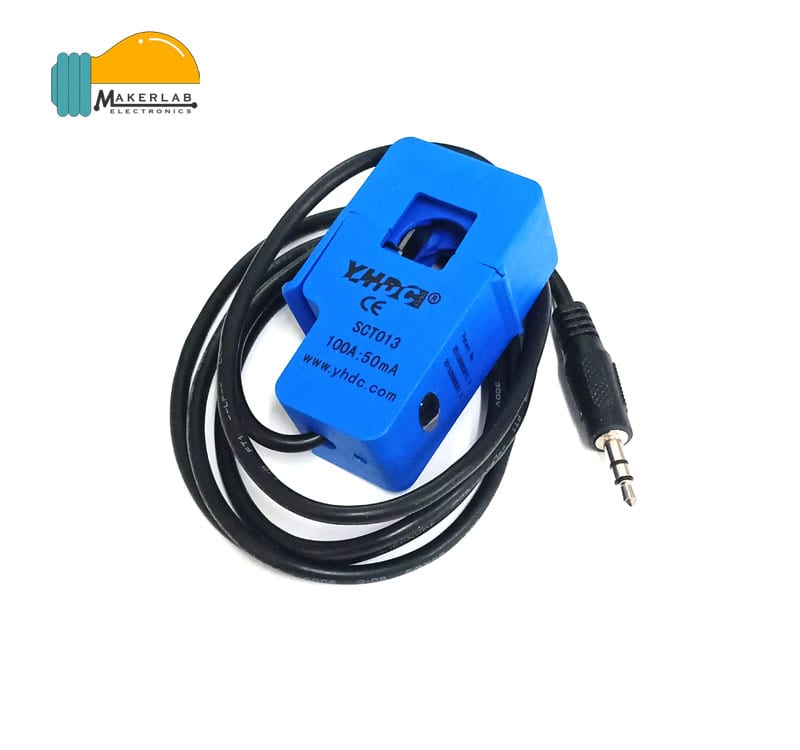

Non-invasive AC Current Sensor-100A

This non-invasive current sensor (also known as a “split core current transformer”) can be clamped around the supply line of an electrical load to tell you how much current is passing through it. It does this by acting as an inductor and responding to the magnetic field around a current-carrying conductor. By reading the amount of current being produced by the coil, you can calculate how much current is passing through the conductor.
This particular current sensor will measure a load up to 30 Amps which makes it great for building your own energy monitor to keep your power usage down, or even building an over-current protection device for an AC load. This sensor does not have a load resistor built in, so in most cases it will be necessary to place a resistor across the output to convert the coil’s induced current to a very small measurable voltage.
  • Input Current: 0~100A AC
  • Output Mode: 0~50mA
  • Non-linearity: ±3%
  • Turn Ratio: 100A: 0.05A
  • Resistance Grade: Grade B
  • Work Temperature: -25? ~ ?70?
  • Dielectric Strength(between shell and output): 1000V AC/1min 5mA
  • Leading Wire in Length: 1m
  • Open Size: 13mm x 13mm

Technical Details

Dimensions 79mm x 63mm x 27mm
Weight G.W 73.5g
Battery Exclude


  • Used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor etc

Package List:

  • 1 x Non-invasive AC Current Sensor-100A
