Non-invasive AC Current Sensor-100A
₱350.00
₱350.00
Sale
Sold out
Or 3 months for only ₱1,000 with . Learn More.
Only 9 units left
Share
About the Product

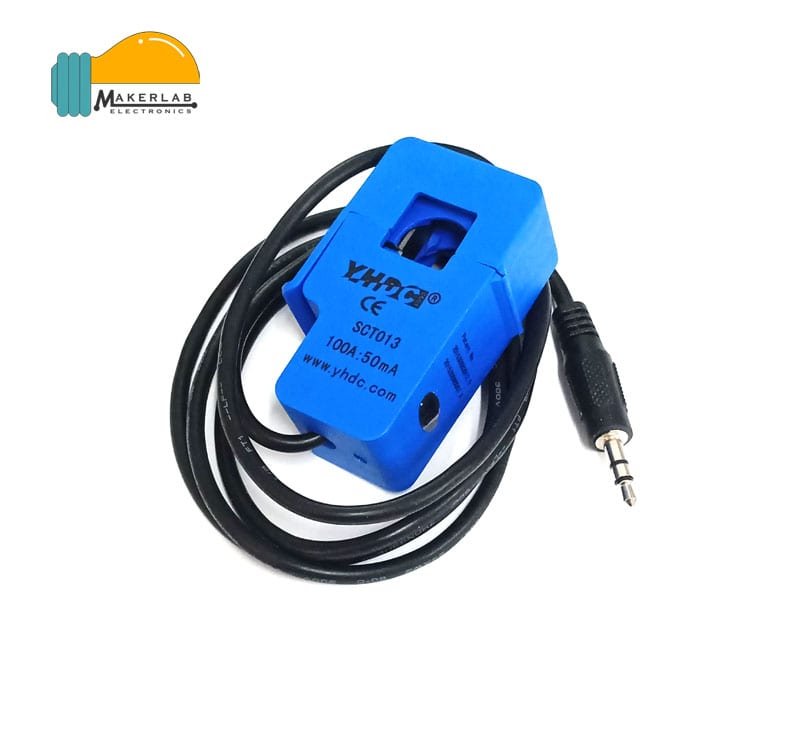

Non-invasive AC Current Sensor-100A
This non-invasive current sensor (also known as a “split core current transformer”) can be clamped around the supply line of an electrical load to tell you how much current is passing through it. It does this by acting as an inductor and responding to the magnetic field around a current-carrying conductor. By reading the amount of current being produced by the coil, you can calculate how much current is passing through the conductor.
This particular current sensor will measure a load up to 30 Amps which makes it great for building your own energy monitor to keep your power usage down, or even building an over-current protection device for an AC load. This sensor does not have a load resistor built in, so in most cases it will be necessary to place a resistor across the output to convert the coil’s induced current to a very small measurable voltage.
This particular current sensor will measure a load up to 30 Amps which makes it great for building your own energy monitor to keep your power usage down, or even building an over-current protection device for an AC load. This sensor does not have a load resistor built in, so in most cases it will be necessary to place a resistor across the output to convert the coil’s induced current to a very small measurable voltage.
Specifications
- Input Current: 0~100A AC
- Output Mode: 0~50mA
- Non-linerity: ±3%(10%—120% of rated input current)
- Build-in sampling resistance (RL): 62Ω
- Turn Ratio: 100A:0.05A
- Resistance Grade: Grade B
- Mechanical strength: The number of switching is not less than 1000 times(test at 25℃)
- Dielectric Strength(between shell and output): 1000V AC/1min 5mA
- 1m leading wire
- Standard Φ3.5 three core plug output
- Opening Size: 13mm x 13mm
- Fire resistance property: In accordance with UL94-Vo
- Work Temperature: -25°C ~ +70°C
Technical Details
Dimensions | 79mm x 63mm x 27mm |
Weight | G.W 73.5g |
Battery | Exclude |
Application
- Used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor etc
Package List:
- 1 x Non-invasive AC Current Sensor-100A
