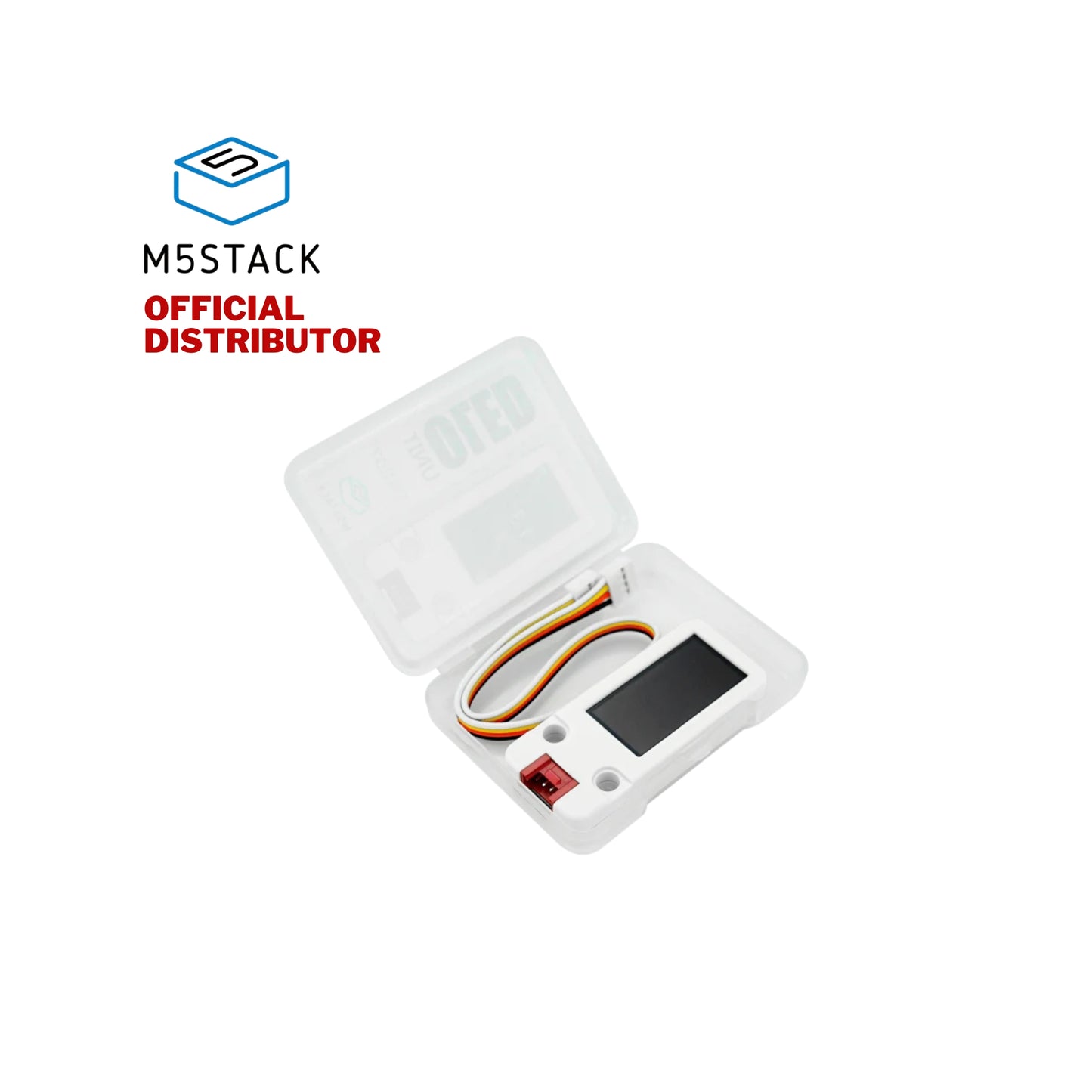

M5Stack OLED Unit 1.3" 128 × 64 Display

M5Stack OLED Unit 1.3" 128 × 64 Display

In stock


Regular price ₱750.00
Regular price Sale price ₱750.00
-Liquid error (snippets/price line 90): divided by 0% OFF Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

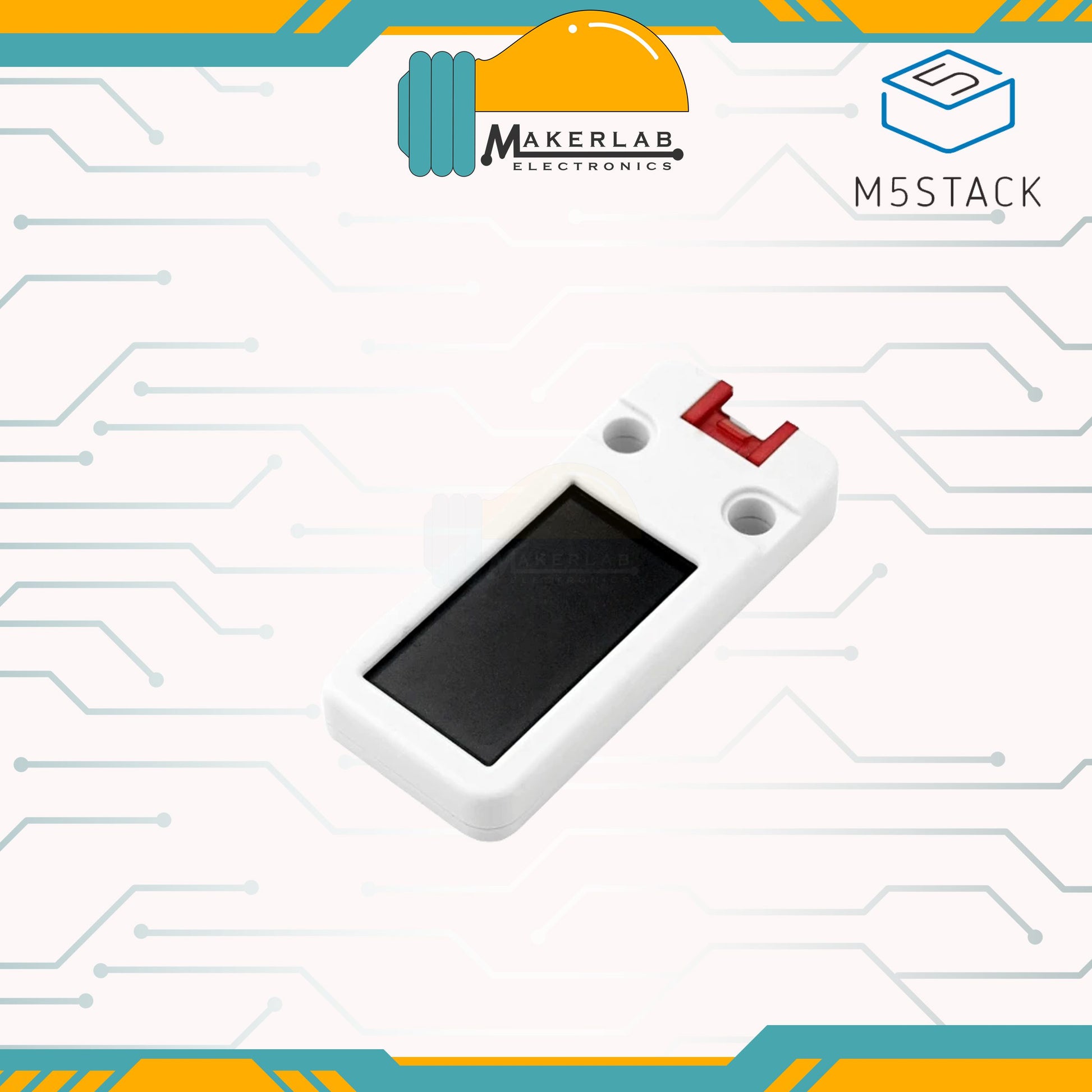

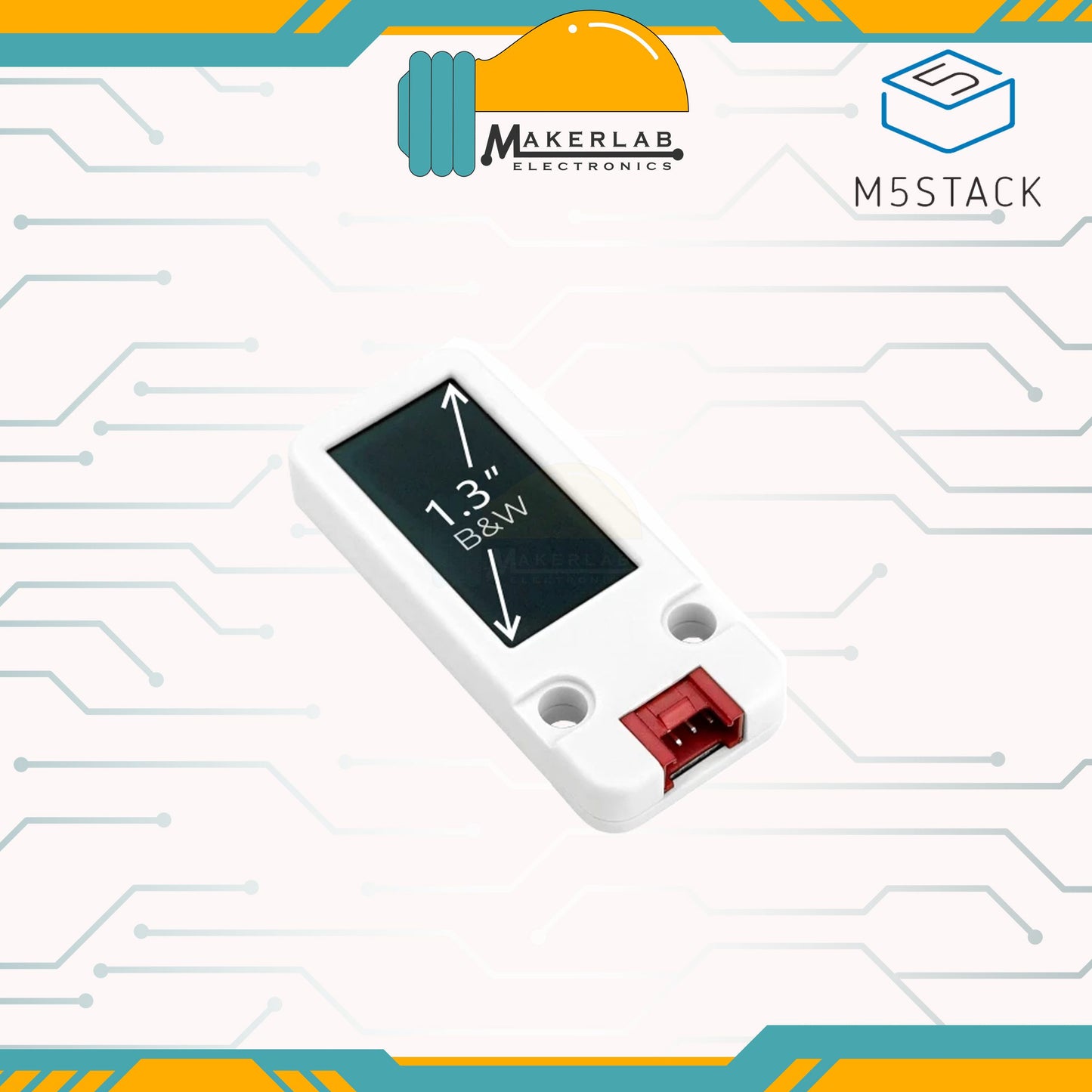

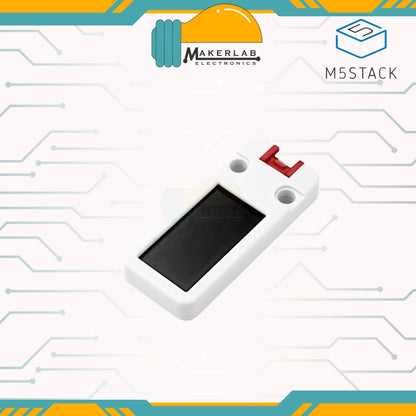

Unit OLED is a 1.3-inch OLED expansion screen unit. It adopts SH1107 drive scheme, supports black/white display, and the resolution is 128*64. The driver chip selects the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on the metal surface by adsorption. The OLED screen extension is suitable for being embedded in various instruments or control devices that need to display simple content as a display panel.

Product Features

  • OLED display panel
  • SH1107 drive scheme
  • Display color: black/white
  • I2C communication interface
  • 128*64 resolution
  • Viewing angle: full viewing angle
  • Magnetic back design

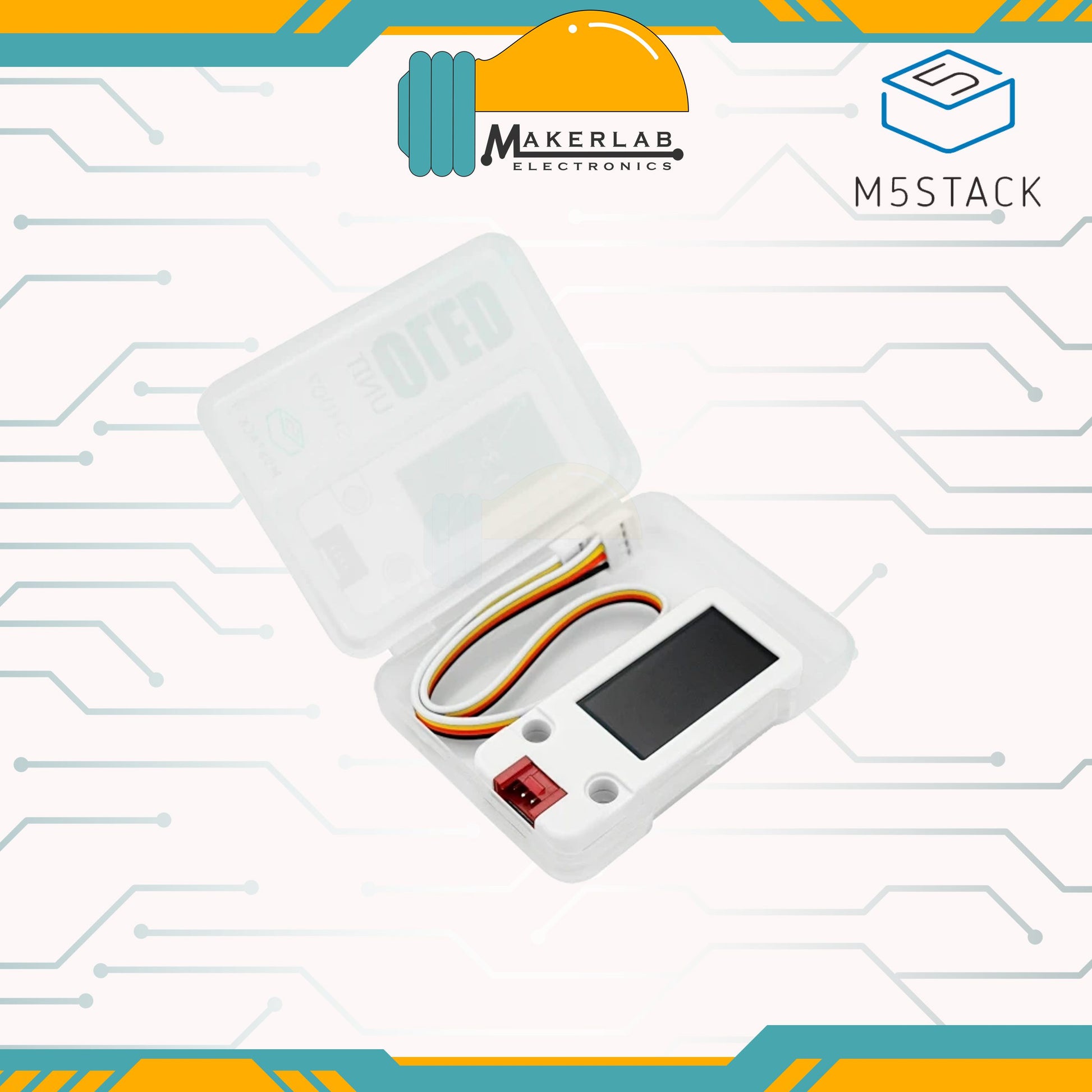

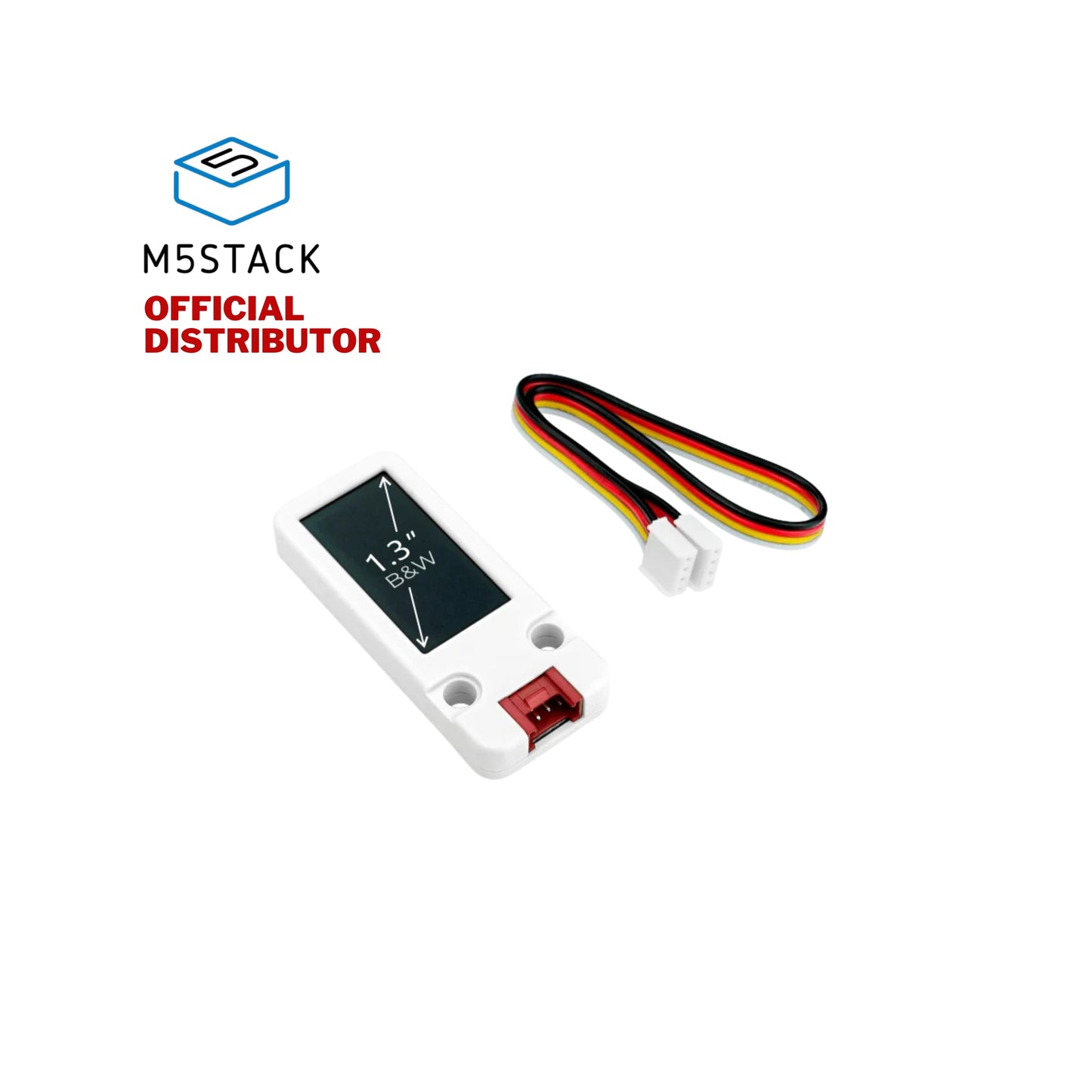

  • 1x Unit OLED
  • 1x HY2.0-4P Cable


  • Information display


Specification Parameter
Working current 58mA

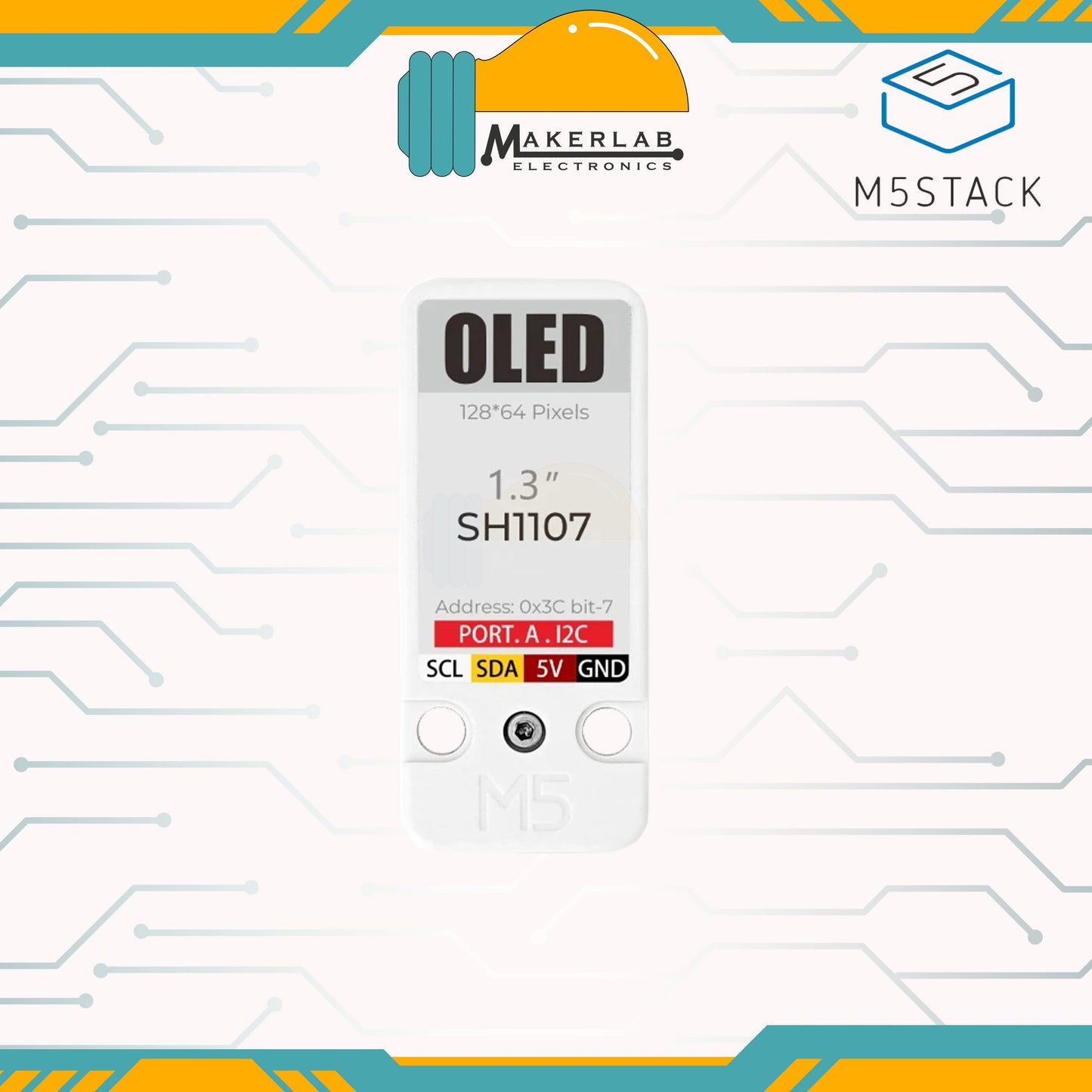

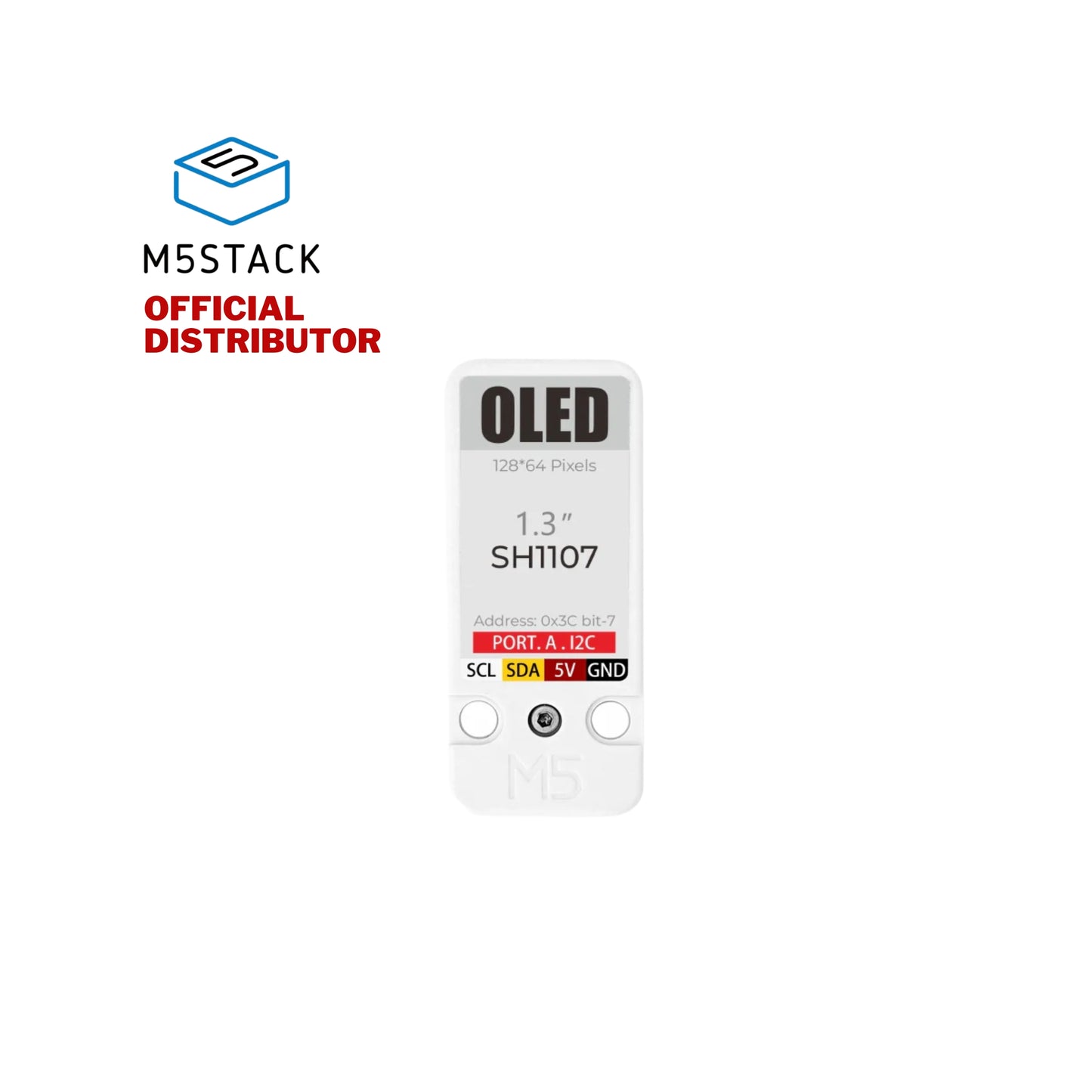

Communication protocol I2C address: 0x3C
Display size 14.7 × 29.42?mm?
Pixel pitch 0.17×0.17?mm?
Pixel size 0.15×0.15?mm?
Viewable Full view
Operating temperature 0°C to 60°C
Net weight 9.3g
Gross weight 20g
Product Size 24*56*8mm
Package Size 67*53*12mm
Case material Plastic ( PC )
