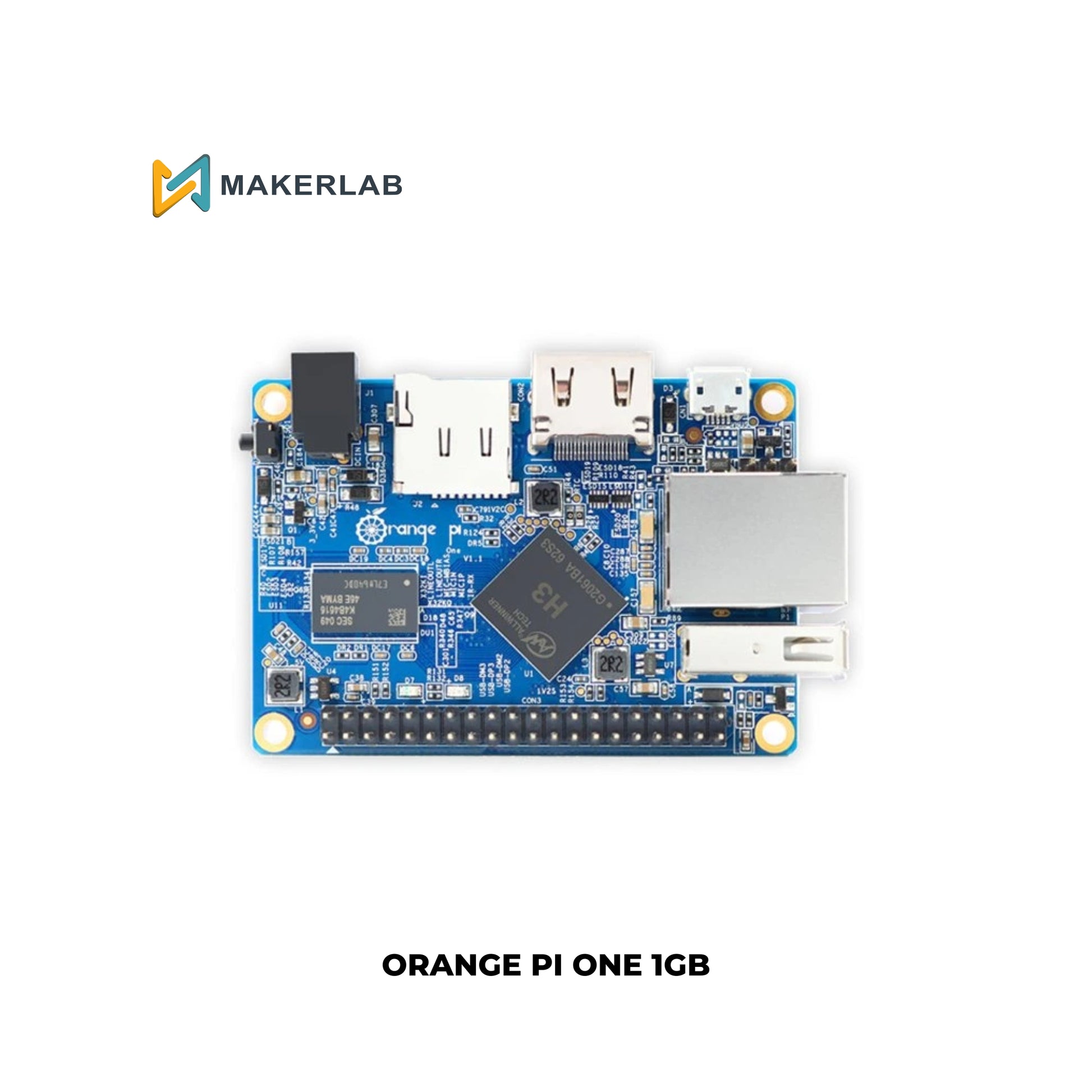

Orange Pi One 1GB

Hardware specification

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU Mali400MP2 GPU @600MHz

Supports OpenGL ES 2.0

Memory (SDRAM)

512MB / 1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 32GB) / MMC card slot

Onboard Network

10/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Supports simultaneous output of HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Only One USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4)

Low-level peripherals

40 Pins Header

LED

Power led & Status led

Key

POWER

Supported OS

Android Ubuntu, Debian Image

Interface definition

Product size 69 mm × 48mm

Weight 36g
