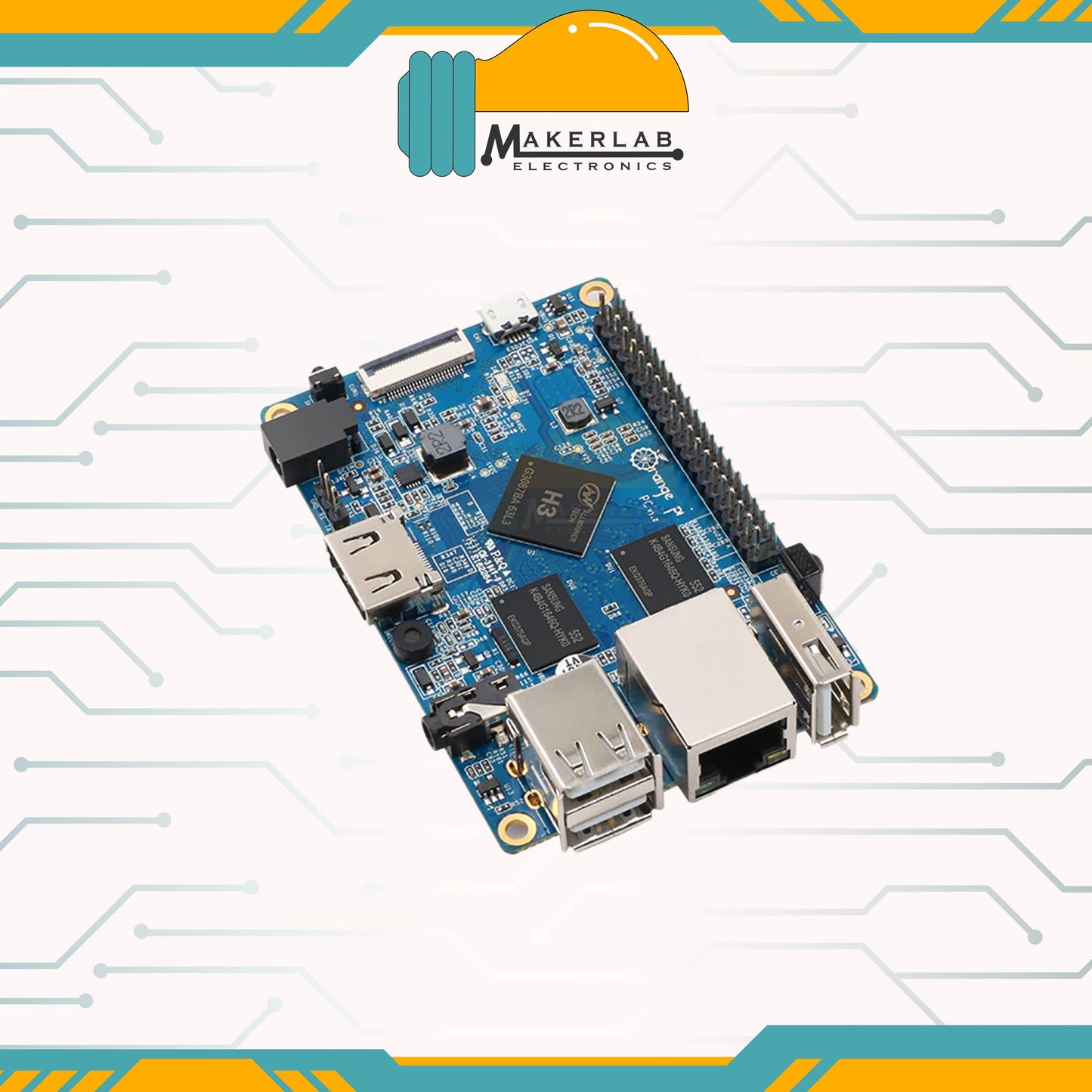

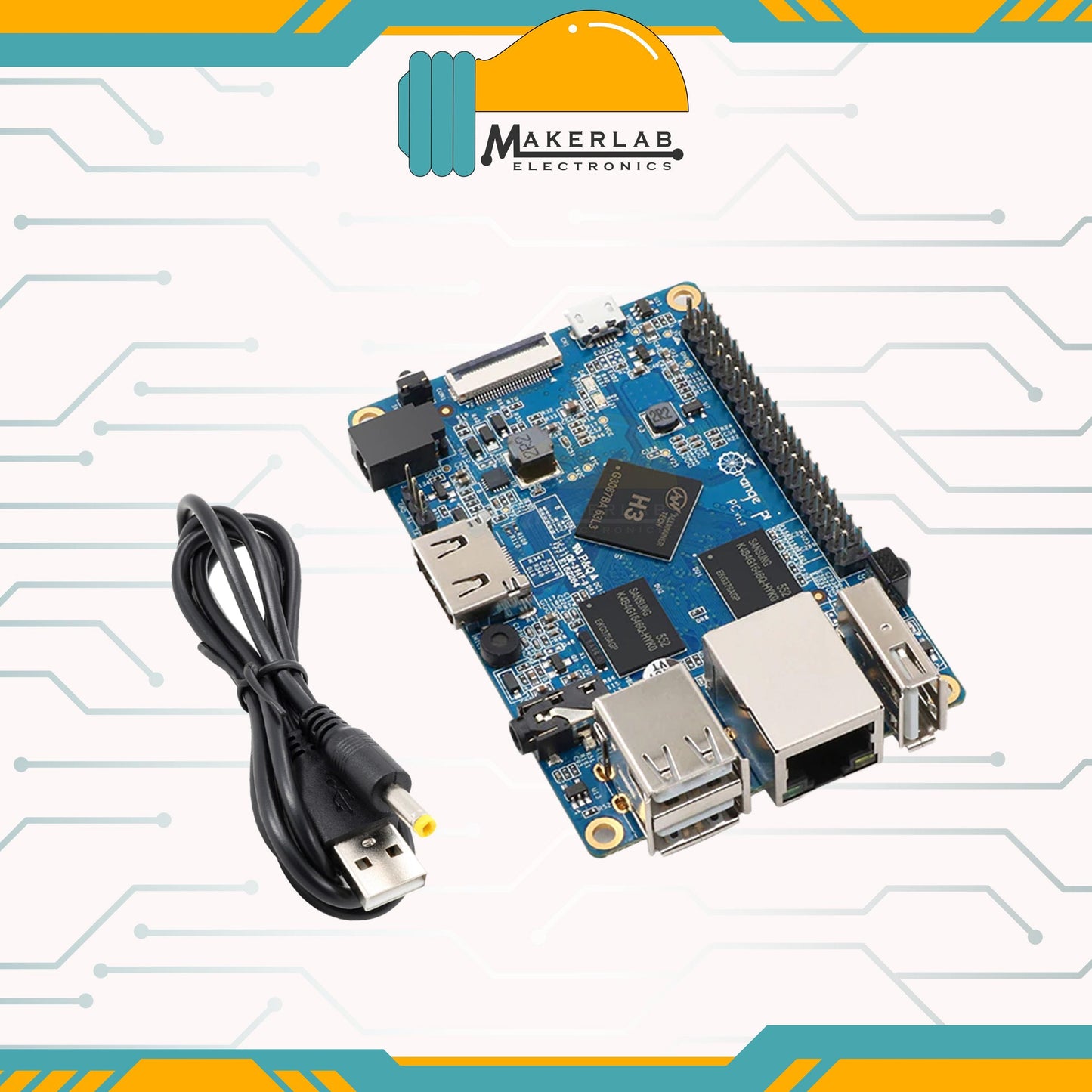

Orange Pi PC H3 Quad Core 1GB with USB to DC 4.0MM - 1.7MM Power Cable

Orange Pi PC H3 Quad Core 1GB with USB to DC 4.0MM - 1.7MM Power Cable

In stock

SKU:MLE01015

Regular price ₱1,599.00
Regular price Sale price ₱1,599.00
-Liquid error (snippets/price line 90): divided by 0% OFF Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.

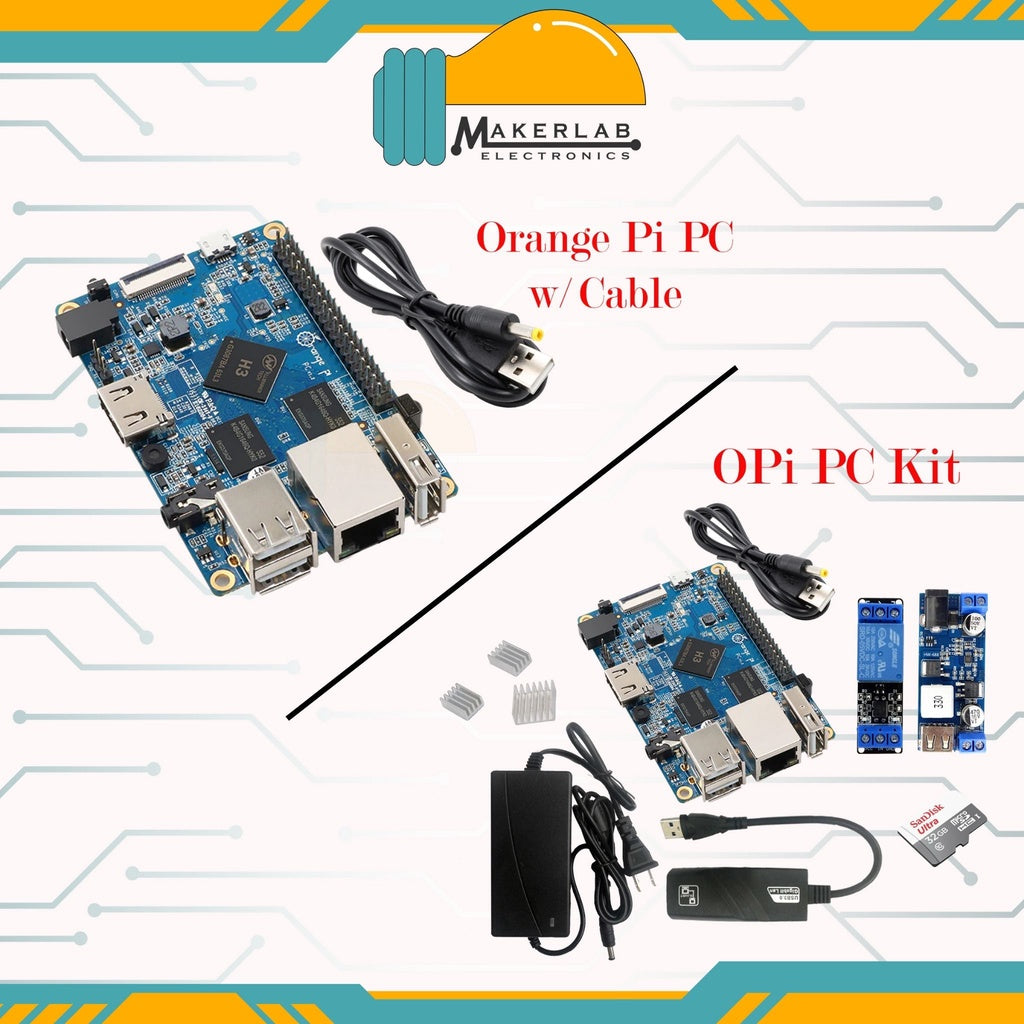

Orange PC Set
View full details

Orange Pi PC H3 Quad Core 1GB with USB to DC 4.0MM - 1.7MM Power Cable

Product Description
Note: Overheating, Pin Damage, Physical Damage are not covered by warranty.
List of problems covered by warranty.
No Power
SD Card slot problem
No Internet (RJ45)
USB port not working
HDMI not working
What’s Orange Pi PC?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
What can I do with Orange Pi PC?
Build…
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi PC is open source
Who’s it for?
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input: A CSI input connector Camera:
  • Supports 8-bit YUV422 CMOS sensor interface
  • Supports CCIR656 protocol for NTSC and PAL
  • Supports SM pixel camera sensor
  • Supports video capture solution up to 1080p@30fps

Audio Input: MIC

Video Outputs:

  • Supports HDMI output with HDCP Supports HDMI CEC
  • Supports HDMI 30 function
  • Integrated CVBS
  • Supports simultaneous output of HDMI and CVBS

Audio Output: 3.5 mm Jack and HDMI

Power Source: DC input can supply power, but

USB OTG input don’t supply power USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG

Buttons: Power Button(SW4)

Low-level peripherals: 40 Pins Header

GPIO(1x3) pin: UART, ground.

LED: Power led & Status led

Key: IR input, POWER

Supported OS: Android Ubuntu, Debian Image

Interface definition

Product size: 85 mm × 55mm

Weight: 38g

Package Included: 1xOrange Pi PC Board

1xUSB to DC 4.0MM - 1.7MM Power Cable
