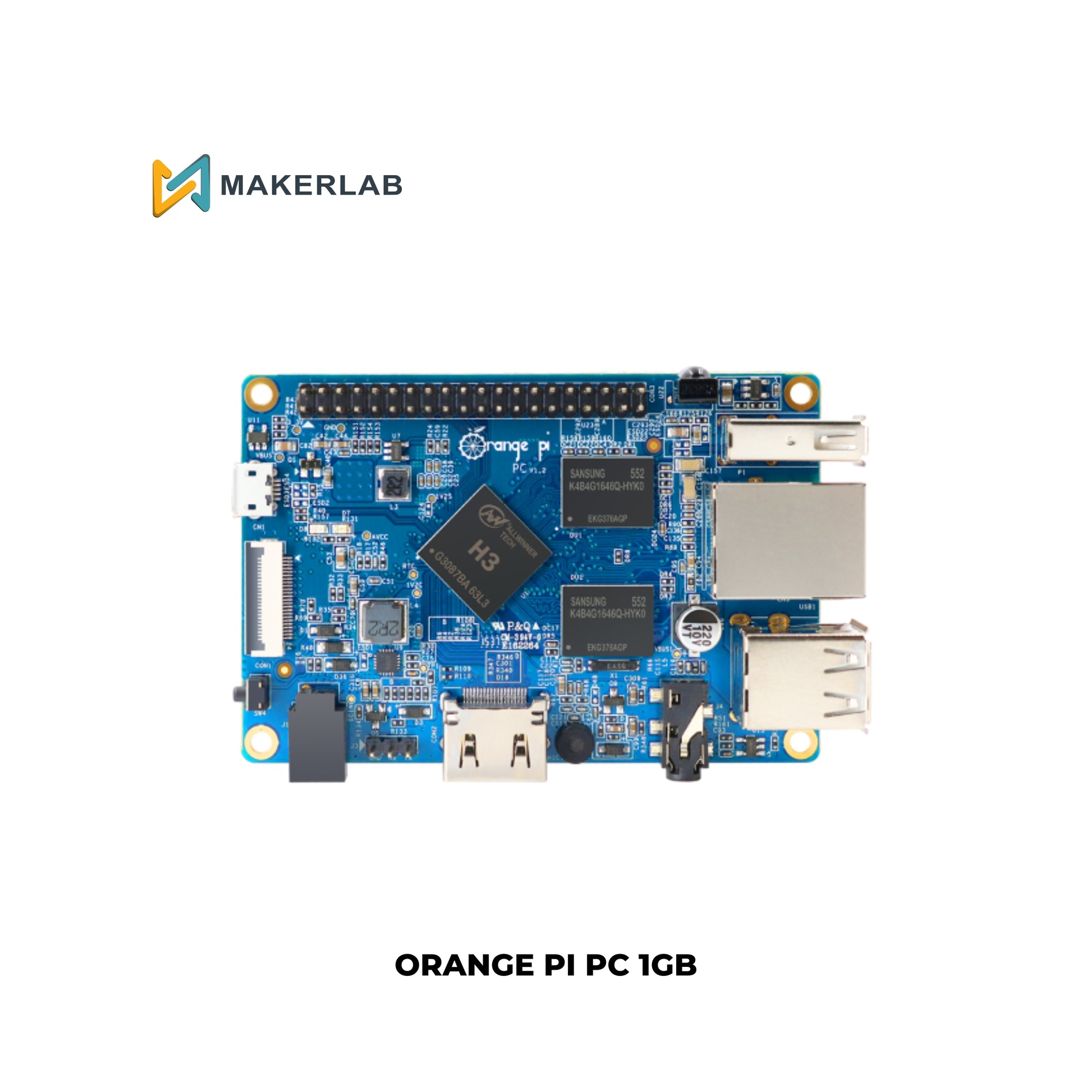

Orange Pi PC H3 Quad Core 1GB

Note: Overheating, Pin Damage, Physical Damage are not covered by warranty.

List of problems covered by warranty.
No Power
SD Card slot problem
No Internet (RJ45)
USB port not working
HDMI not working

Description:

What’s Orange Pi PC?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM

What can I do with Orange Pi PC?
Build…
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi PC is open source

Who’s it for?
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

Specifications:

CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0
Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input: A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input: MIC
Video Outputs:
Supports HDMI output with HDCP Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output: 3.5 mm Jack and HDMI
Power Source: DC input can supply power, but
USB OTG input don’t supply power USB 2.0 Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button(SW4)
Low-level peripherals: 40 Pins Header
GPIO(1x3) pin: UART, ground.
LED: Power led & Status led
Key: IR input, POWER
Supported OS: Android Ubuntu, Debian Image
Interface definition
Product size: 85 mm × 55mm
Weight: 38g
