SKU:MLE06284

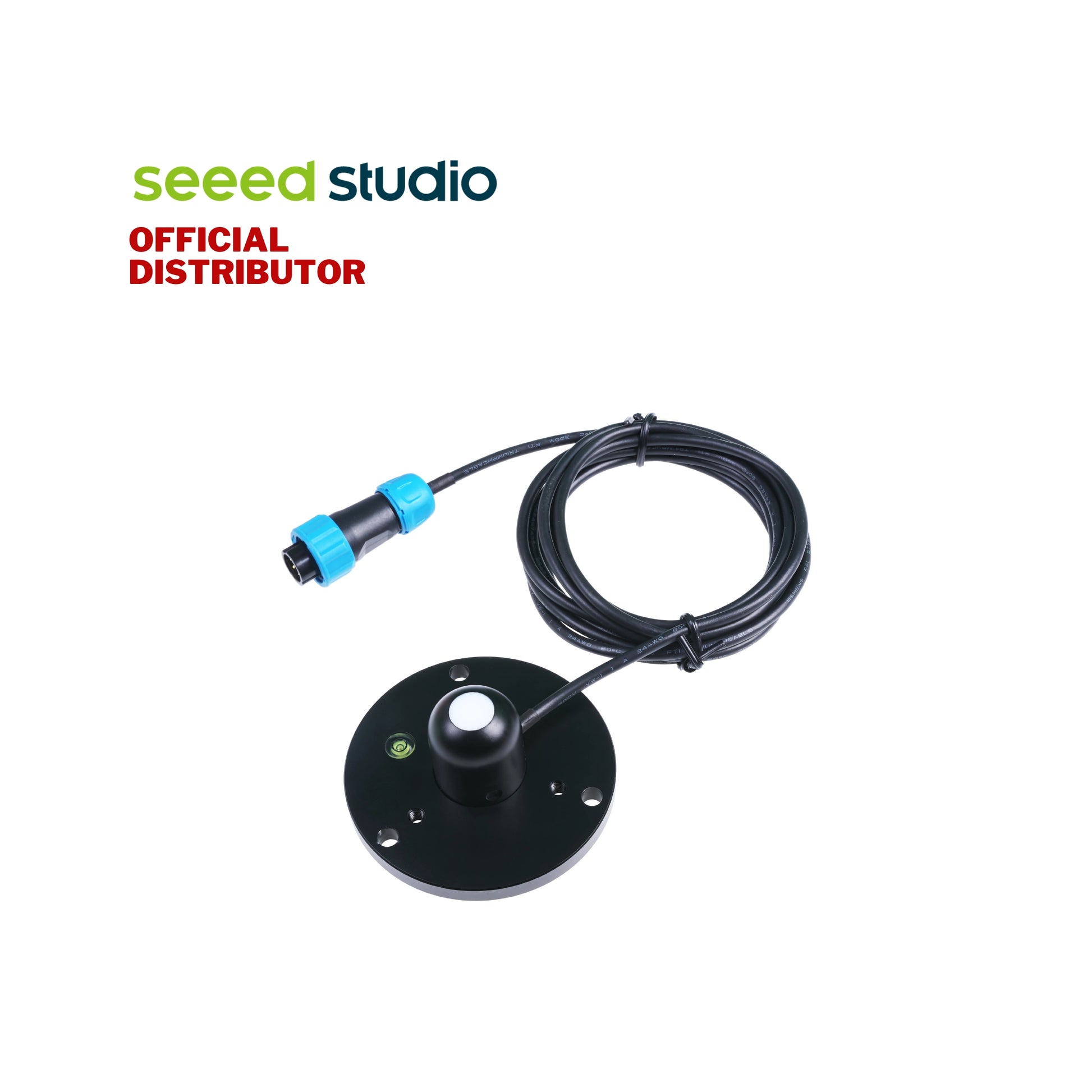

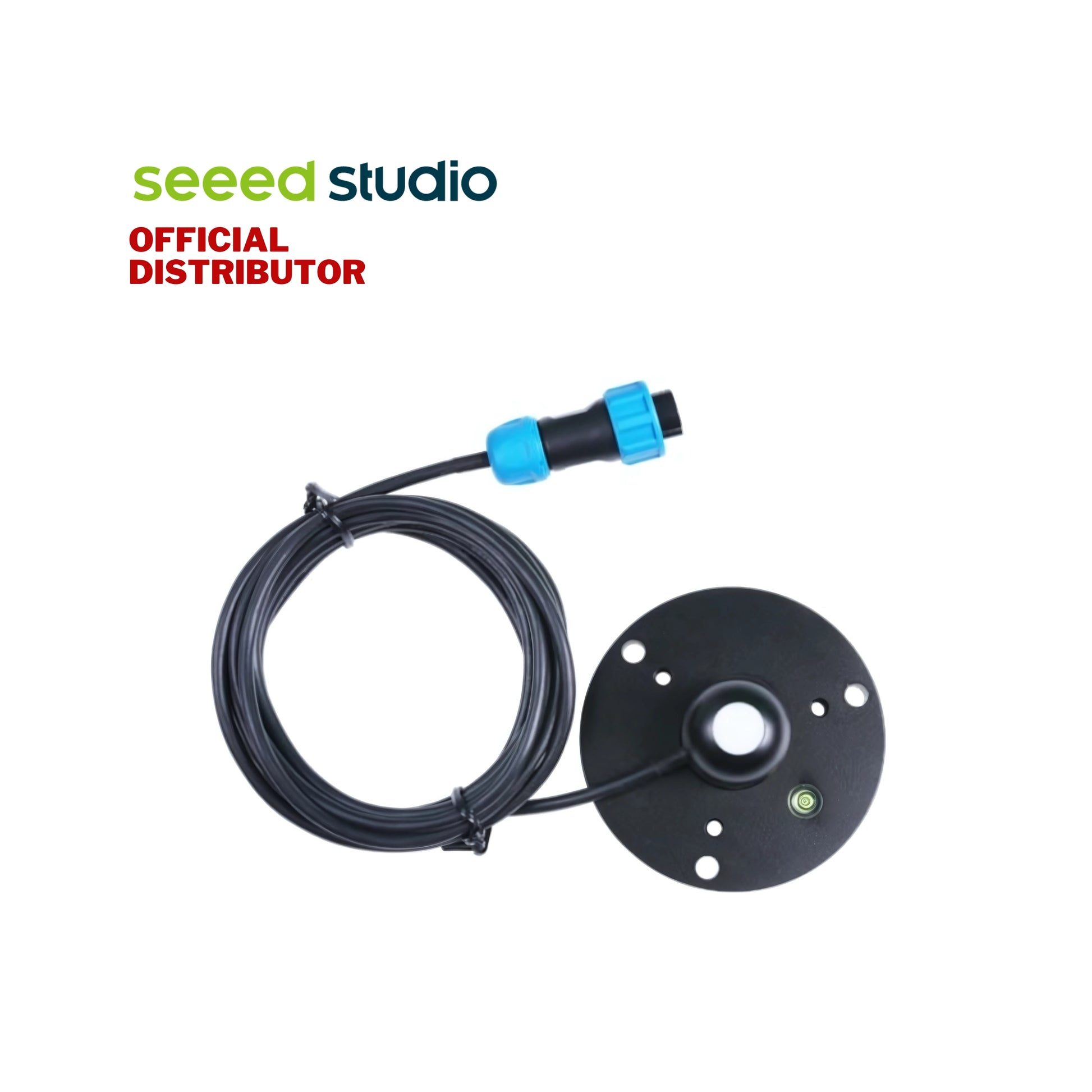

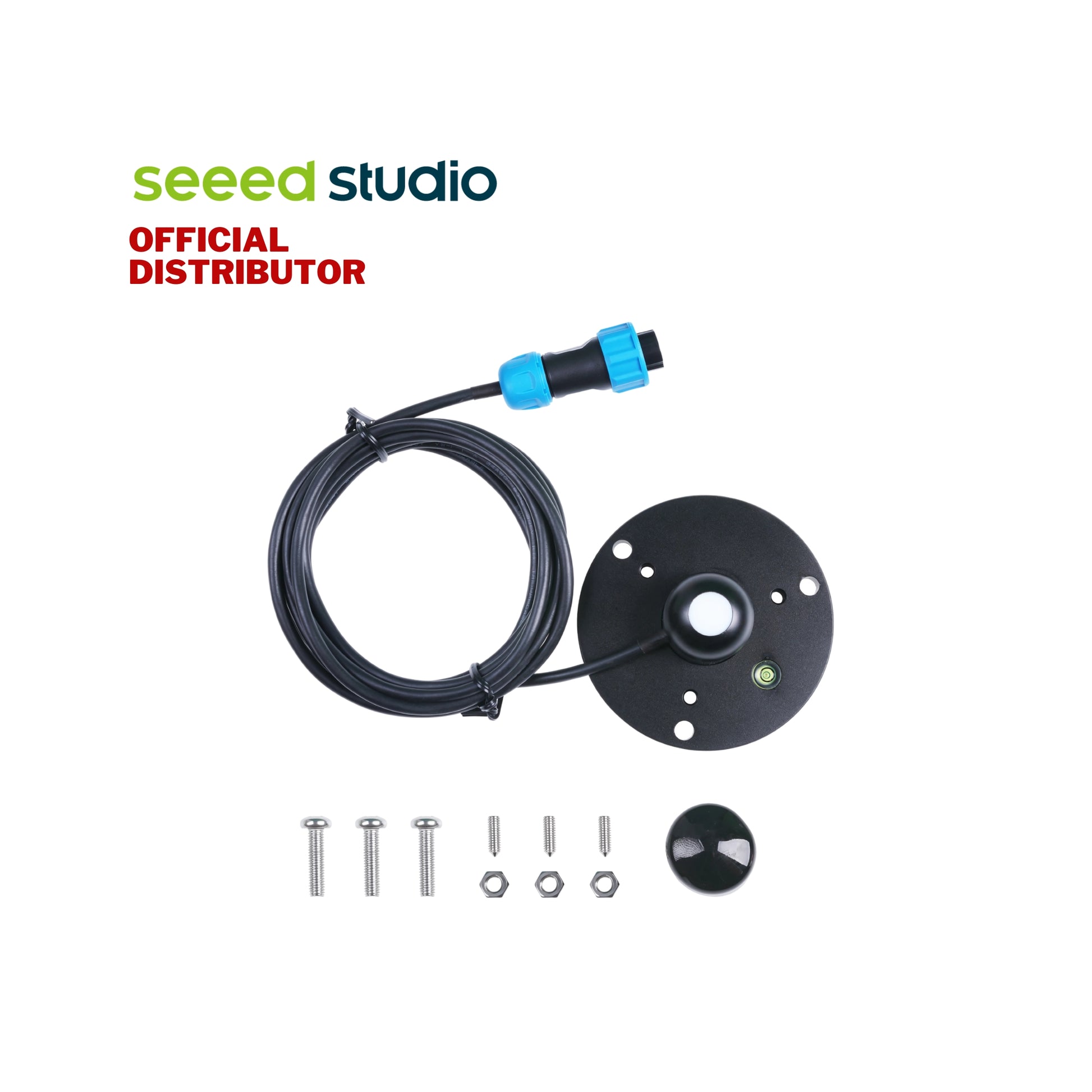

PAR Sensor (S-PAR-02B)
₱14,999.00
₱14,999.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Or 3 months for only ₱1,000 with
. Learn More.
Couldn't load pickup availability
Share
About the Product
Description:
Sunlight has a tremendous impact on the life cycles of almost all creatures on this planet. For plants, as an example, light is a key factor in the photosynthesis reaction that matters to their survival. Different species of plants and even different growth stages of the same species require different degrees of light duration, exposure, strength, and radiation range. Sensors are thus a useful tool to help effectively control essential parameters, like photosynthetically active radiation (PAR), contributing to the success of research or agricultural activities.
The industrial-grade PAR sensor with waterproof aviation connector monitors the PAR in environments with natural light sources across a radiation range from 400 to 700 nm and provides important parameters for researchers and farmers. When there's light in, the sensor generates a voltage signal directly proportional to the PAR under the light source. You can obtain the measurement value in a unit of μmol/m2•s. The instrument supports the MODBUS-RTU RS485 protocol. You can also directly connect this PAR sensor with RS485 data loggers or digital voltmeters to create monitoring systems that meet your own demands.
This PAR sensor is robust with an IP66 enclosure and can withstand a wide range of temperatures from -30°C to 75°C, unlocking applications in harsh outdoor environments to support photosynthesis, solar, and ecological research, as well as sensing in smart agriculture, greenhouse farming, tourism, meteorology, etc.
Features:
Easy to Use: Compact size, simple installation, quick integration
High Performance: High accuracy, fast response, and superior stability
Strong Robustness: It's watertight and dustproof with IP66 Enclosure, and can operate under a wide range of temperatures from -30°C to 75°C.
Supports Universal MODBUS RS485 Protocol: It can be easily connected to MODBUS-RTU RS485 data loggers.
Wide-Range Power Supply: Can be powered with supply voltage within 5~24V DC
Dimension:
Wiring:
Specifications:
Product Number: S-PAR-02
Supply Voltage: 5V ~ 24V
Interface: RS-485
Protocol: MODBUS-RTU RS485 (0 - 2.5V voltage output can be customized)
Measurement Interval: 1s
Linearity: Maximum deviation 1%
Stability: Year offset <2%
Response Time: 10 μs
Operating Temperature: -30 ~ +75 ℃
Humidity: 0 ~ 100% (no condensation)
Cable Length: 2m
Equipment Net Weight: 300g
Measurement Accuracy: ±2%
Measuring Range: 0 ~ 2500 μmol/m²·s
Response Spectrum: 400 ~ 700nm
Resolution: 1 μmol/m²·s
Application:
Environmental monitoring
Agricultural research
Solar energy research
Optical Research
Other sensor applications
Documents:
