PC817 4 Channels Optocoupler Isolation Module

PC817 4 Channels Optocoupler Isolation Module

In stock

SKU:MLE03469

Regular price ₱100.00
Regular price Sale price ₱100.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

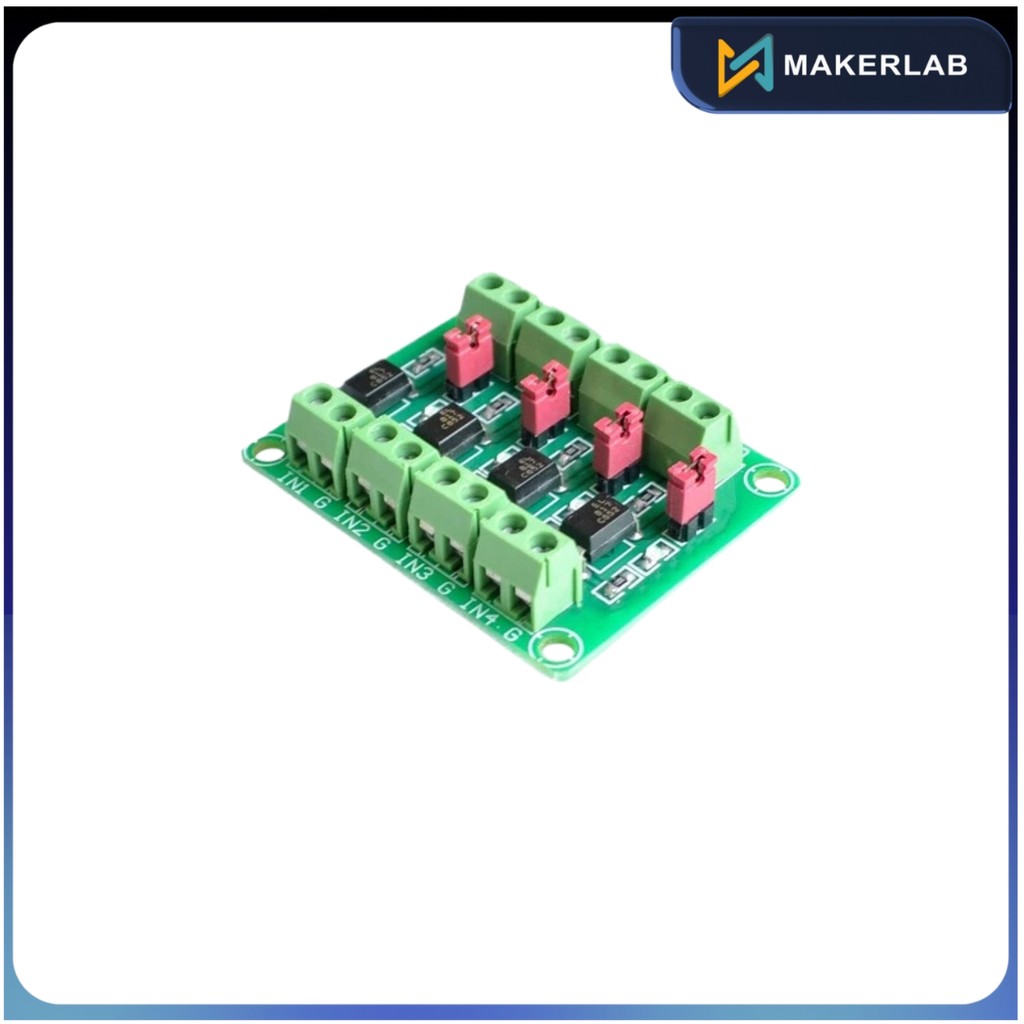

This is a PC817 4 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Applications:
I/O Isolation for MCUs (Micro Controller Units)
Noise Suppression in Switching Circuits
Signal Transmission Between Circuits of Different Potentials and Impedances
Features:
Driving Port Signal Voltage: 3.6-24V
Output Port Voltage Port: 3.6-30V
Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
Specification:
No. of Channels 4
Input Voltage (V) 3.6-24DC
Output Voltage (VDC) 3.6-30
Length (mm) 47.3
Width (mm) 37.7
Height (mm) 10
Weight (gm) 15
Shipment Weight 0.018 kg
Shipment Dimensions 5 × 4 × 1 cm
Package Includes:
1 x PC817 4 CH Optocoupler Isolation Module
