SKU:MLE06277
pH Sensor (S-pH-01A) V2.0
₱9,499.00
₱9,499.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:
This industrial pH Sensor measures pH levels in soil and water applications ranging from 0 to 14 pH, making it widely applicable in industrial environmental sensing scenarios (e.g. gardening, swimming pools, etc.). Use the sensor with SenseCAP Data Logger for seamless data collection and management.

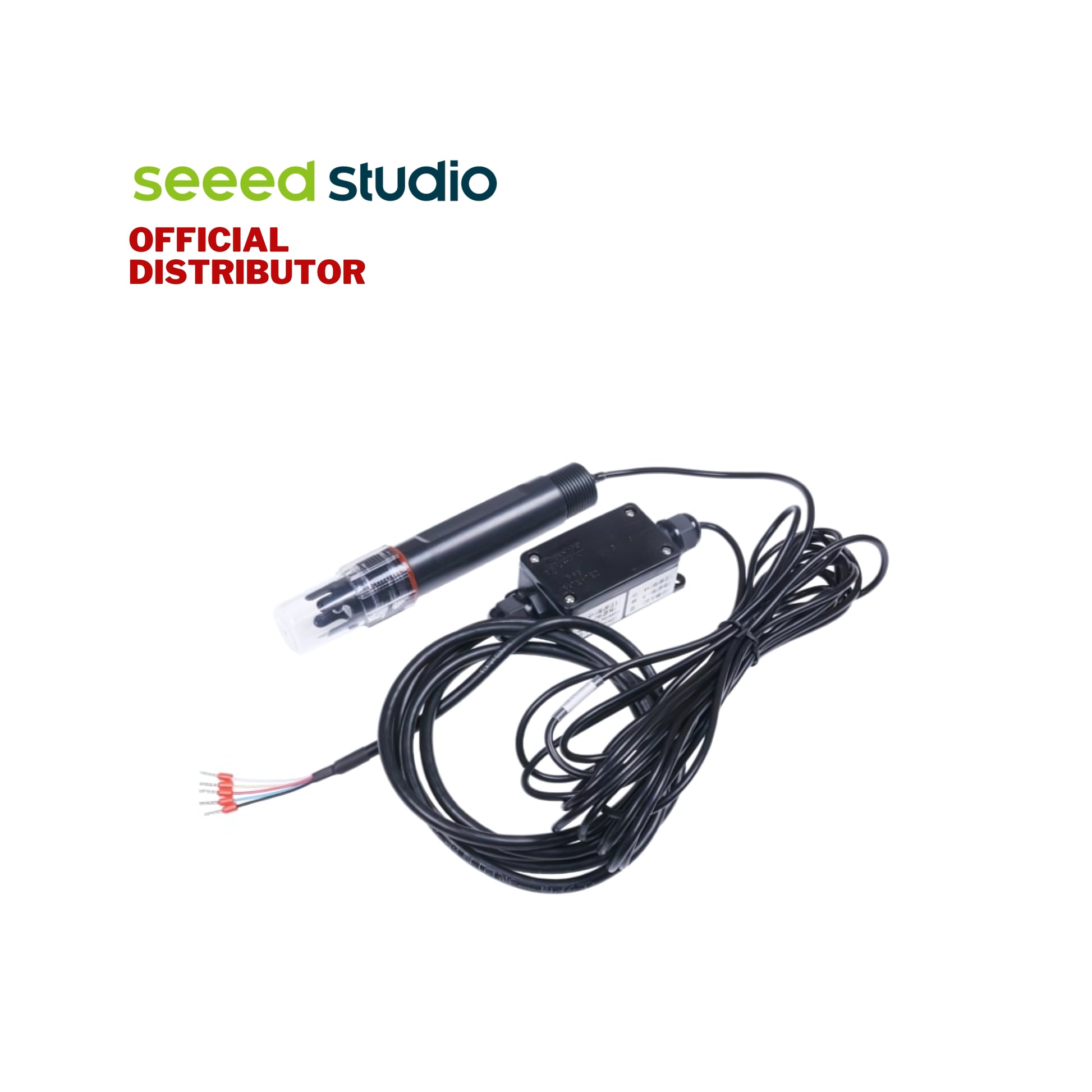

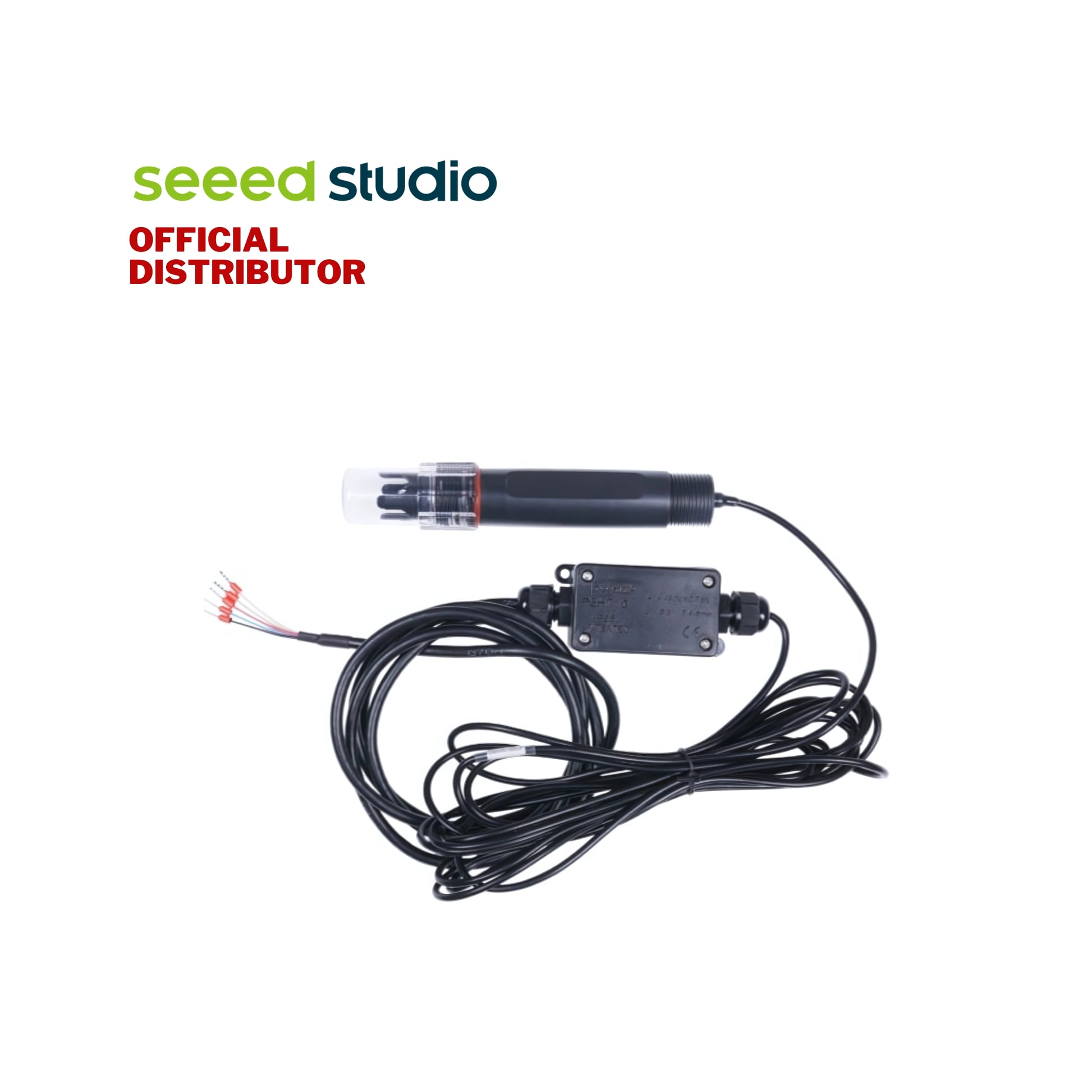

This pH Sensor with hook-up wires measures the hydrogen-ion activity in water-based solutions, indicating its acidity or basicity expressed as pH. pH level is an important indicator in many scenarios, especially in monitoring soil conditions and water quality.
This pH Sensor is designed with industry standards. It adopts an international advanced solid dielectric and large-area polytetrafluoroethylene liquid junction, which is not easy to block and convenient for maintenance. Its electrode is IP68, the transmitter is IP65 rated, waterproof in a tight seal, and capable of withstanding long-term constant use in professional scenarios. This pH Sensor comes with a MODBUS-RTU RS485 serial communications protocol and 0~2V Analog Voltage output. It can be easily connected and integrated with other devices such as data loggers, converters, displays, etc. This cost-effective pH sensor features low-power consumption, compact size, portability, and high integration.
Features:
High Performance: High accuracy, fast response, good repeatability
Universal Protocol: MODBUS-RTU RS485 and 0~2V Analog Voltage
Wide-range Power Supply: Can be powered with supply voltage within 3.6V ~ 30V
Strong Robustness: Suitable to be immersed in soil or water for a long time, anti-corrosion
Maintainance-Free: A unique junction efficiently improves the problem of junction clogging
Specifications:
Product Model: S-pH-01A
Output Interface: RS-485 MODBUS-RTU
Analog Voltage: 0 - 2V
Power Supply: 3.9 - 30 V/DC
Power Consumption: 35mA @ 24V DC
Start-up Time: < 2 seconds
pH Measurement
- High impedance and isolated input
-
Range: 0 ~ 14 pH
-
Resolution: 0.01 pH
-
Accuracy: ± 0.1 pH
- Can be used for a solution or semi-solid substrate
Temperature Measurement
-
Range: -40 ~ 80°C
-
Resolution: 0.1°C
- Accuracy: +/-0.5°C
IP Rating
-
Electrode: IP68
- Transmitter: IP65
Operating Temperature: -40℃ ~ 85℃
Installation
-

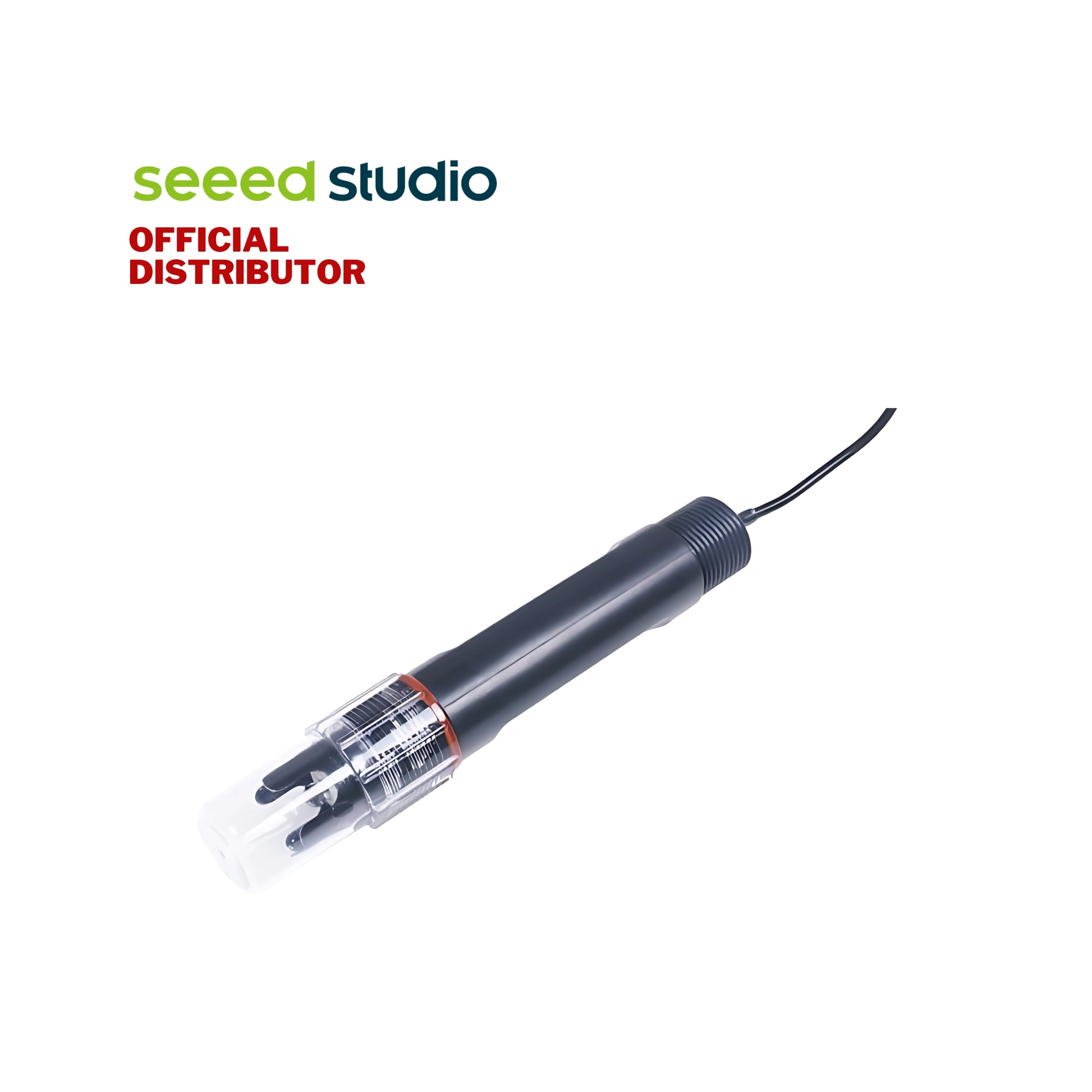

Electrode: 3/4"NPT screw threads
- Transmitter: Mounting hole
Cable Length
-
Power and Signal Cable: 2 meters (Customizable)
- Electrode Cable: 5 meters
Dimension
-
Electrode: Width*Diameter 160*30mm
- Transmitter: 140mm*65mm*50mm
Hardware Overview:
Wiring Diagram
Note: Version 1 of this pH Meter/Sensor supports RS485 protocol and 4~20mA current, which is now retired, and replaced by this current one: Version 2, supporting RS485 protocol and 0~2V analog voltage.
Probe Dimension:
Application:
Agriculture
Animal Husbandry
Forestry and Horticulture
Sewage Treatment
Swimming Pools and Spas
Scientific Experiments
Educational Projects
Other environmental monitoring scenarios
Documents:
Part List:
1x Industrial pH Sensor with hook-up wires
FAQ:
Q: Is it factory calibrated? How to calibrate?
A: Yes, the device is fully calibrated prior to shipment from the factory.
About calibration, please refer to the document: raw.githubusercontent.com
Q: Why is the temperature output from the sensor inaccurate?
A: PH electrode itself has no temperature sensor, the temperature is the plate temperature sensor; If necessary, you can access the NTC (10K, 3950) thermistor temperature sensor.
Q: Can the sensor be used in soil? How to install?
A: Yes, Yes, the principle is still to measure the pH in the soil moisture, so it will be affected by the soil moisture, and the drier the soil, the greater the error.
Installation method: Dig out a pit, fill the pit with some water, stir the soil into a slurry, and then place the sensor glass probe. Be careful not to overexert yourself and avoid hard objects such as stones, otherwise the probe will be damaged.
