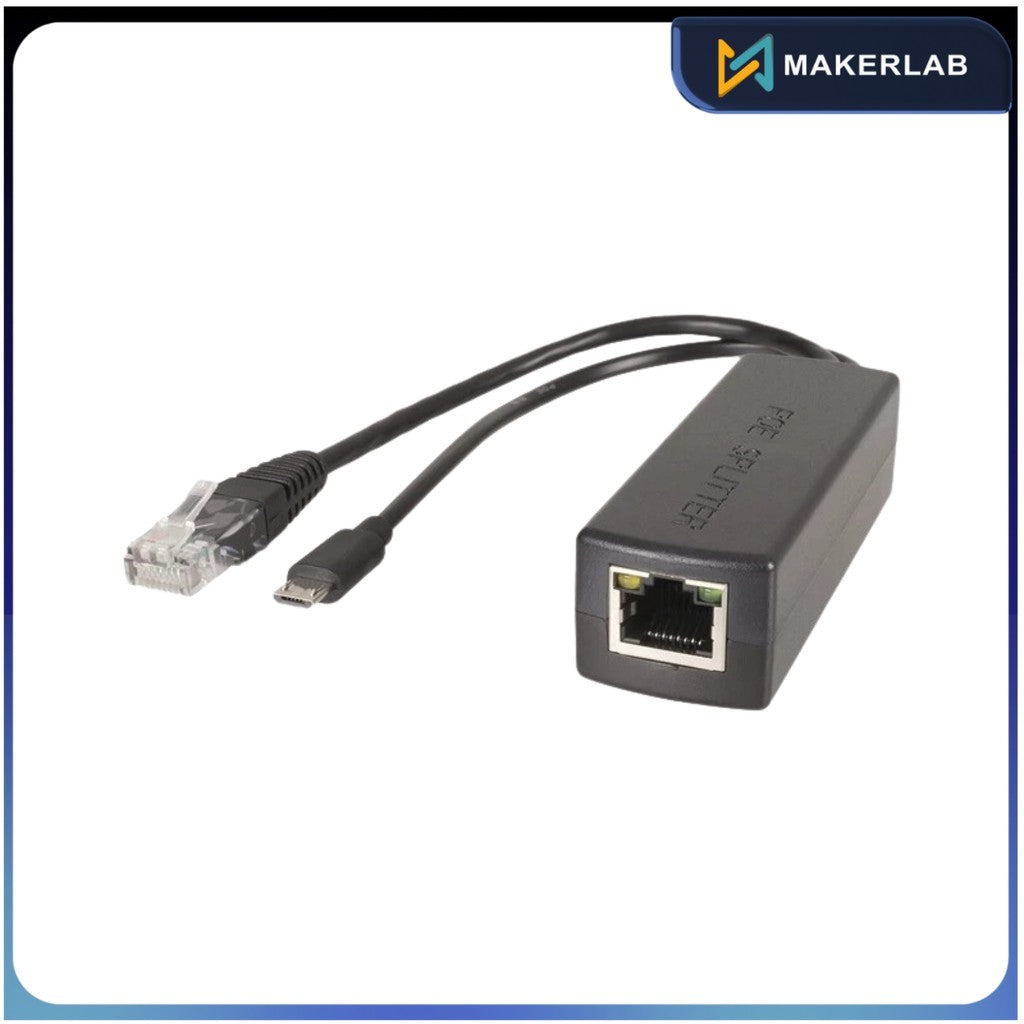

This is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi ,Android, Tablet etc. It can be transmitted power and data signals through the cable transmission.
This support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on. The LNK-SP5V-USB is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.
· Compliant with IEEE 802.3af
· Isolation: 2.5kV
· Power Input: DC48V
· Power Output: DC5V 2.4A
· Data Output Port: RJ45 Male
· Power Output Port: Micro USB Power Plug
· Data Transfer Rate: 10/100Mbps
· Devices will be detected before poe input
· Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
