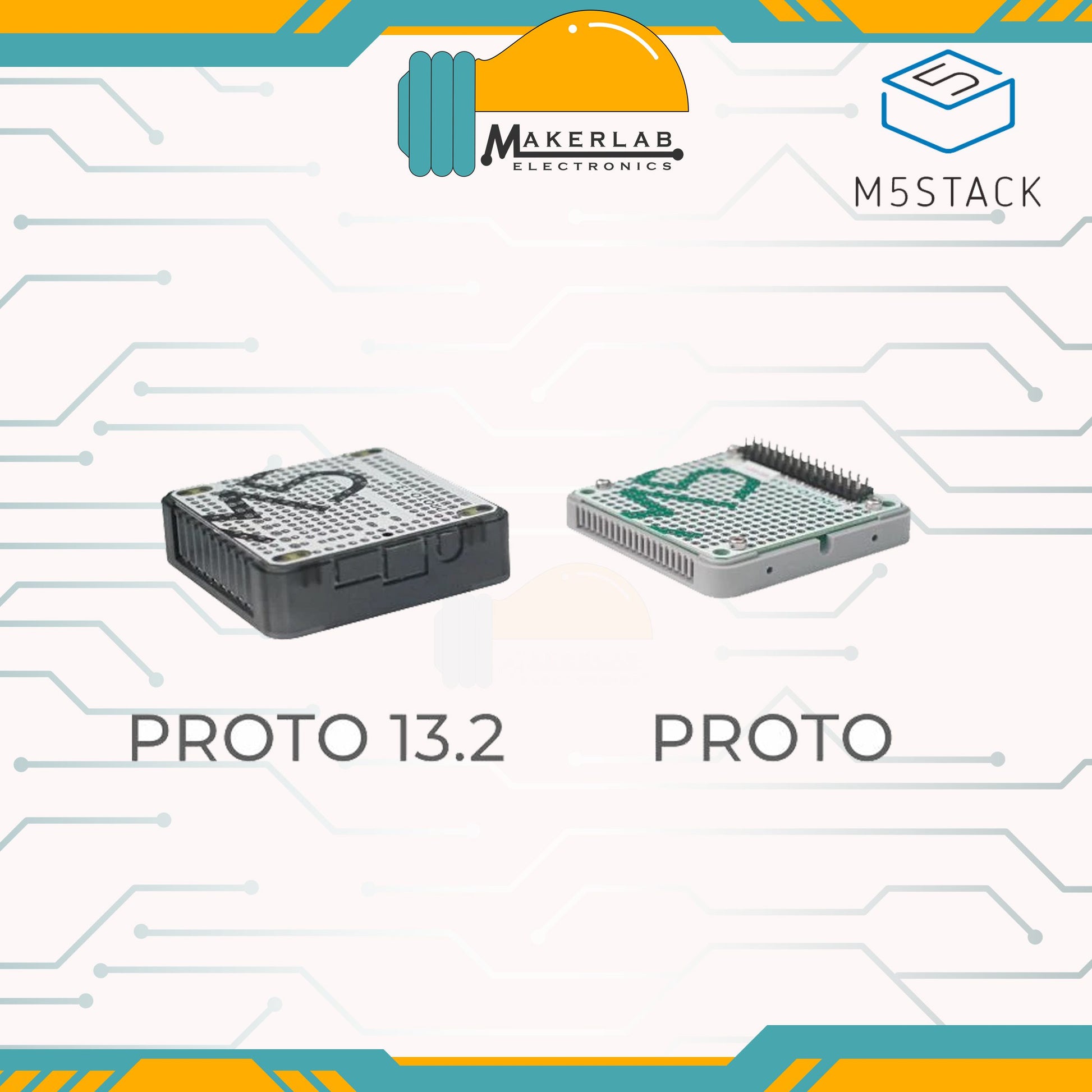

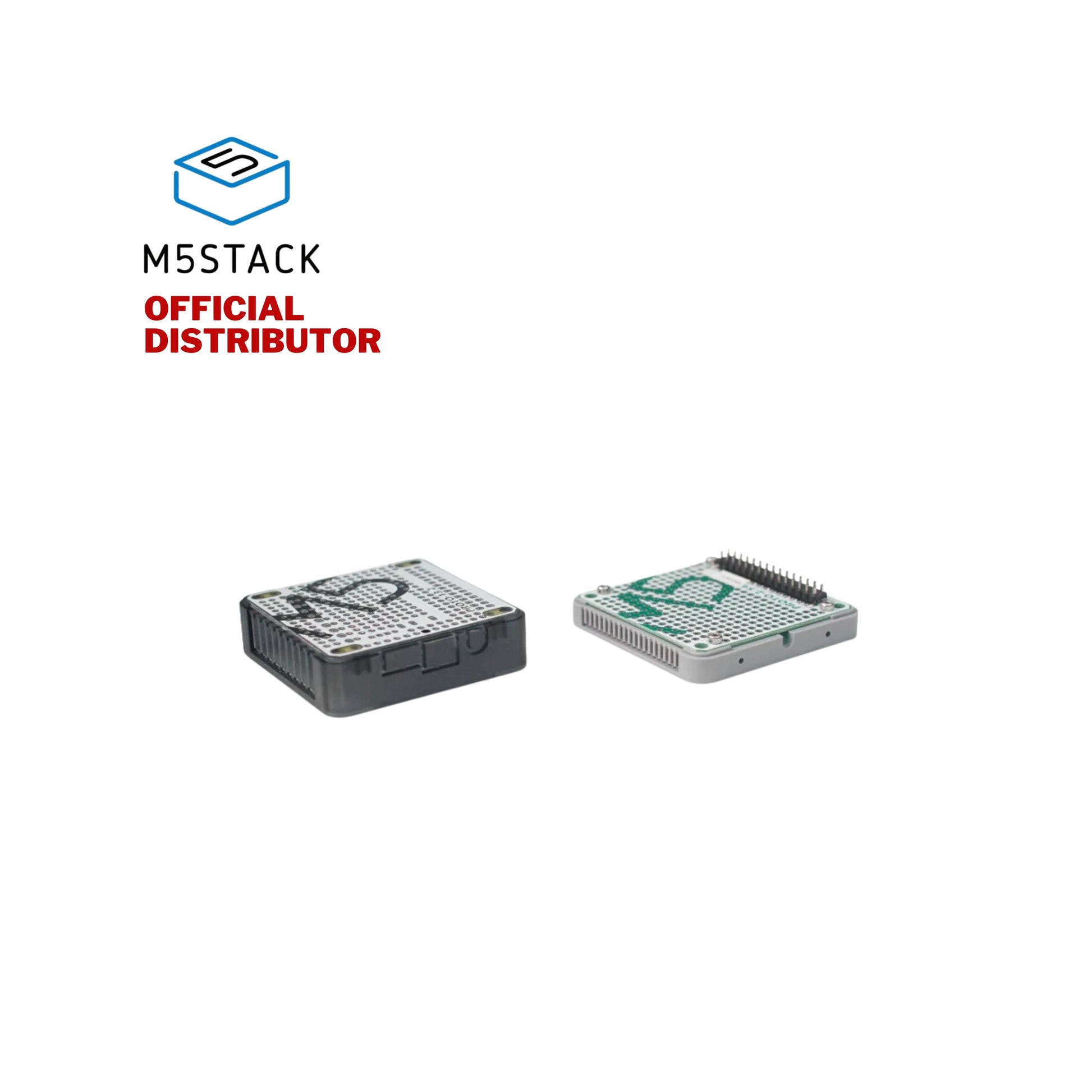

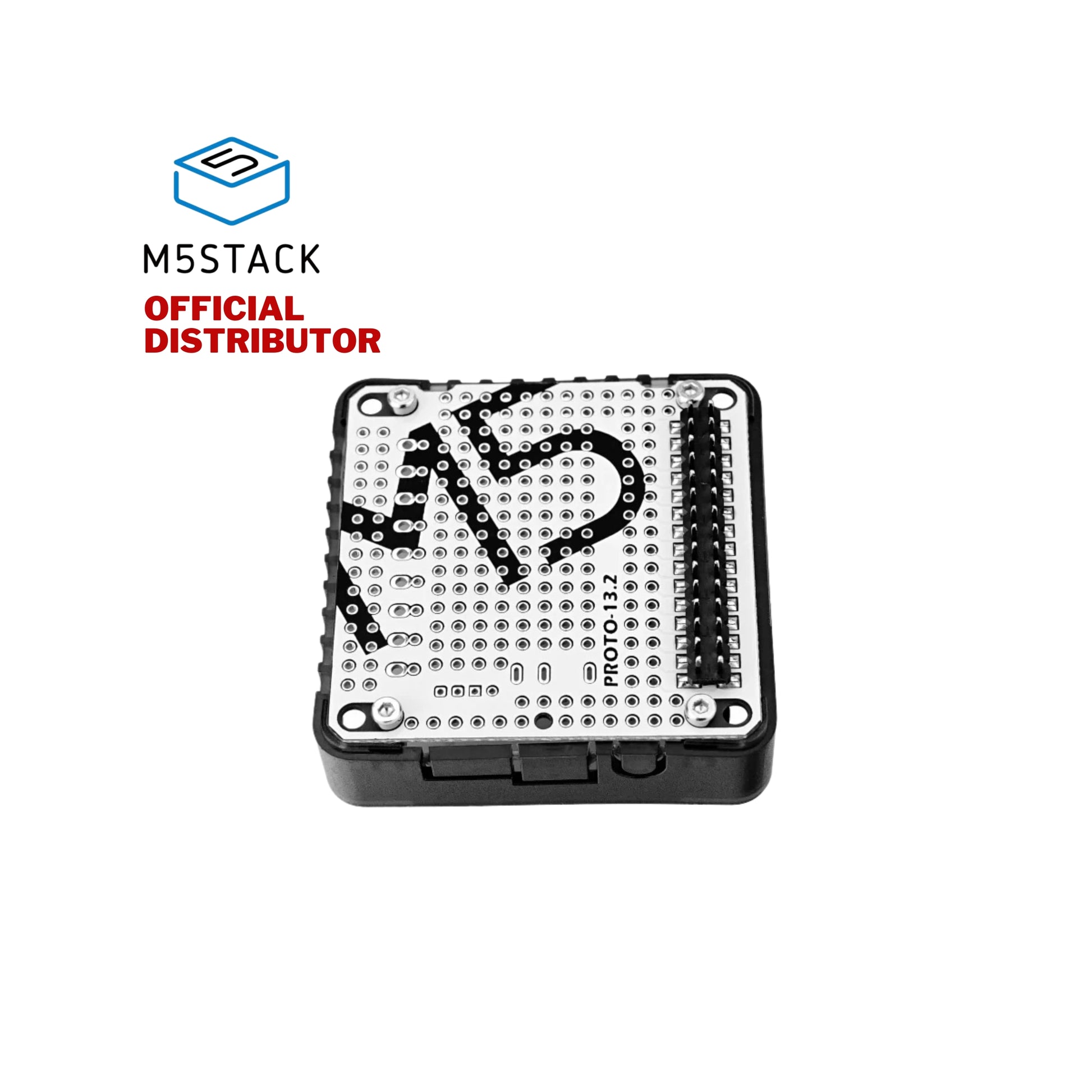

M5Stack Proto Pegboard Module - 13.2

M5Stack Proto Pegboard Module - 13.2

Out of stock

SKU:MLE03343

Regular price ₱300.00
Regular price Sale price ₱300.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

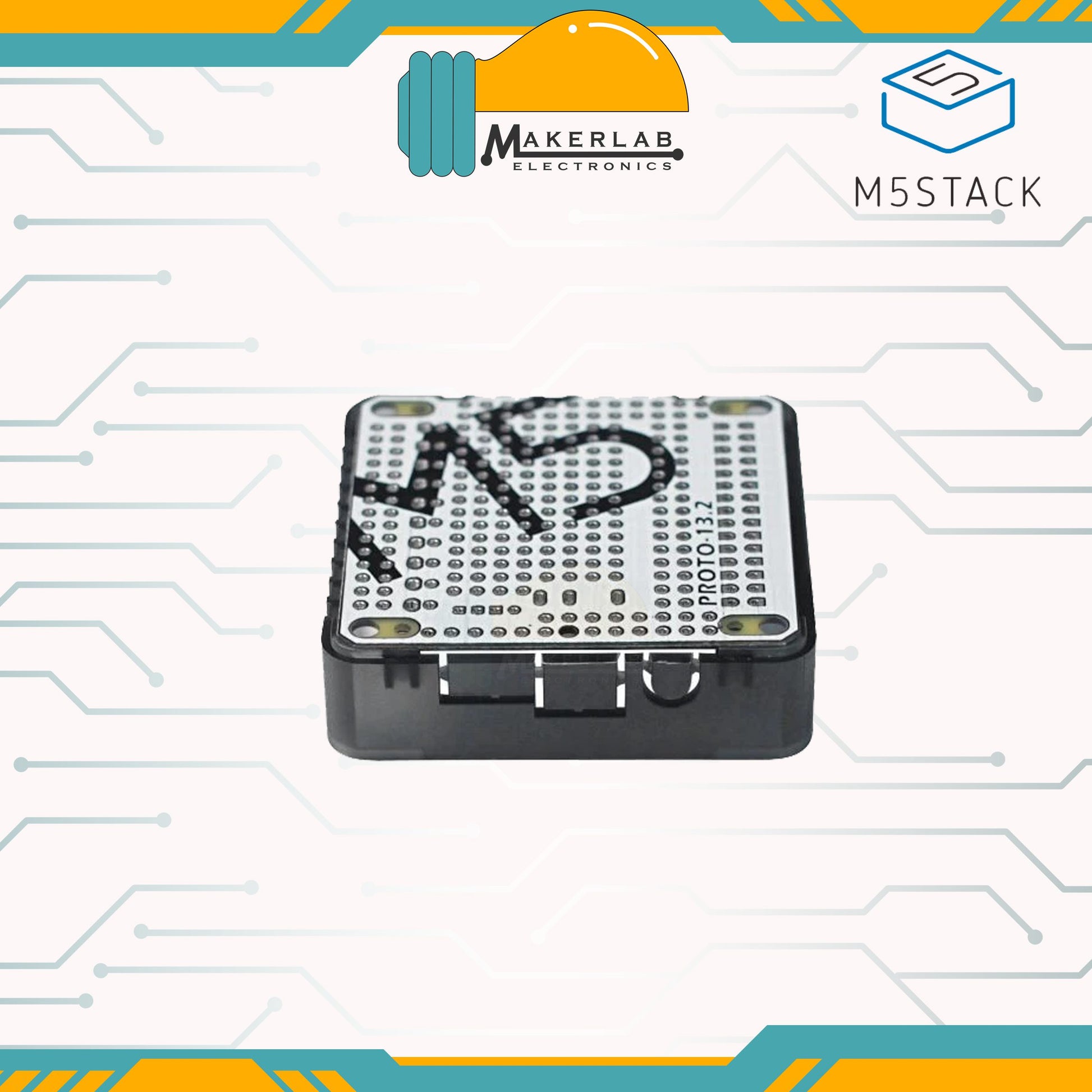

PROTO 13.2 is a universal DIY proto module in the m5stack stack module series, with a height of 13.2mm. You can easily build your own custom circuits by using this module. You can design and build the prototype circuit according to your own needs, and interact with the M5 Core on the top layer through M-BUS. There are HY2.0 4P, DC power socket, VH3.96 and other common openings on the board, so it is very simple to use.

Product Features

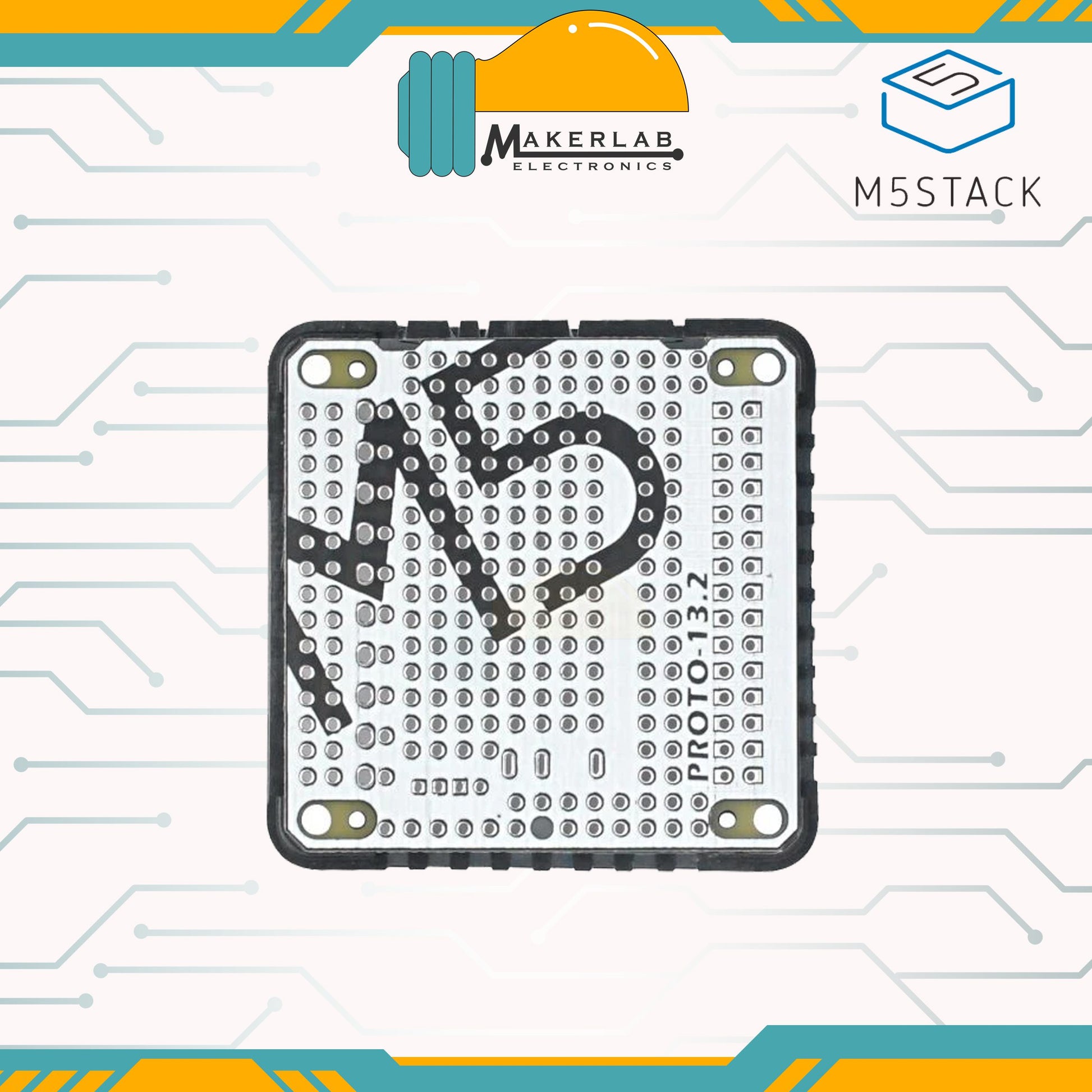

  • Main Hole Size: 0.039" 1mm (CNC Drilled)
  • Hole Pitch: 0.1" - (2.54 mm)
  • Entire Hole Quantity: 169 Holes

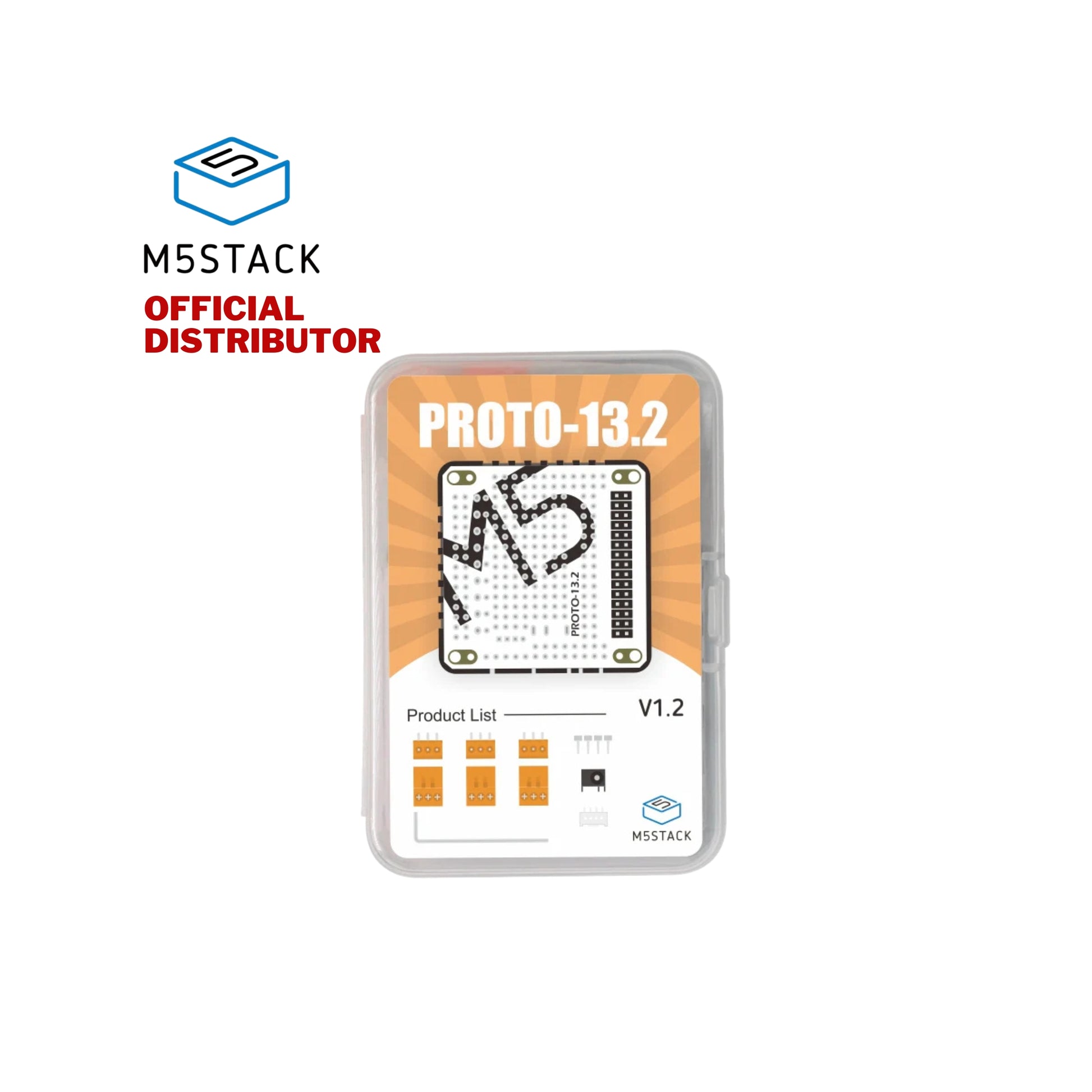

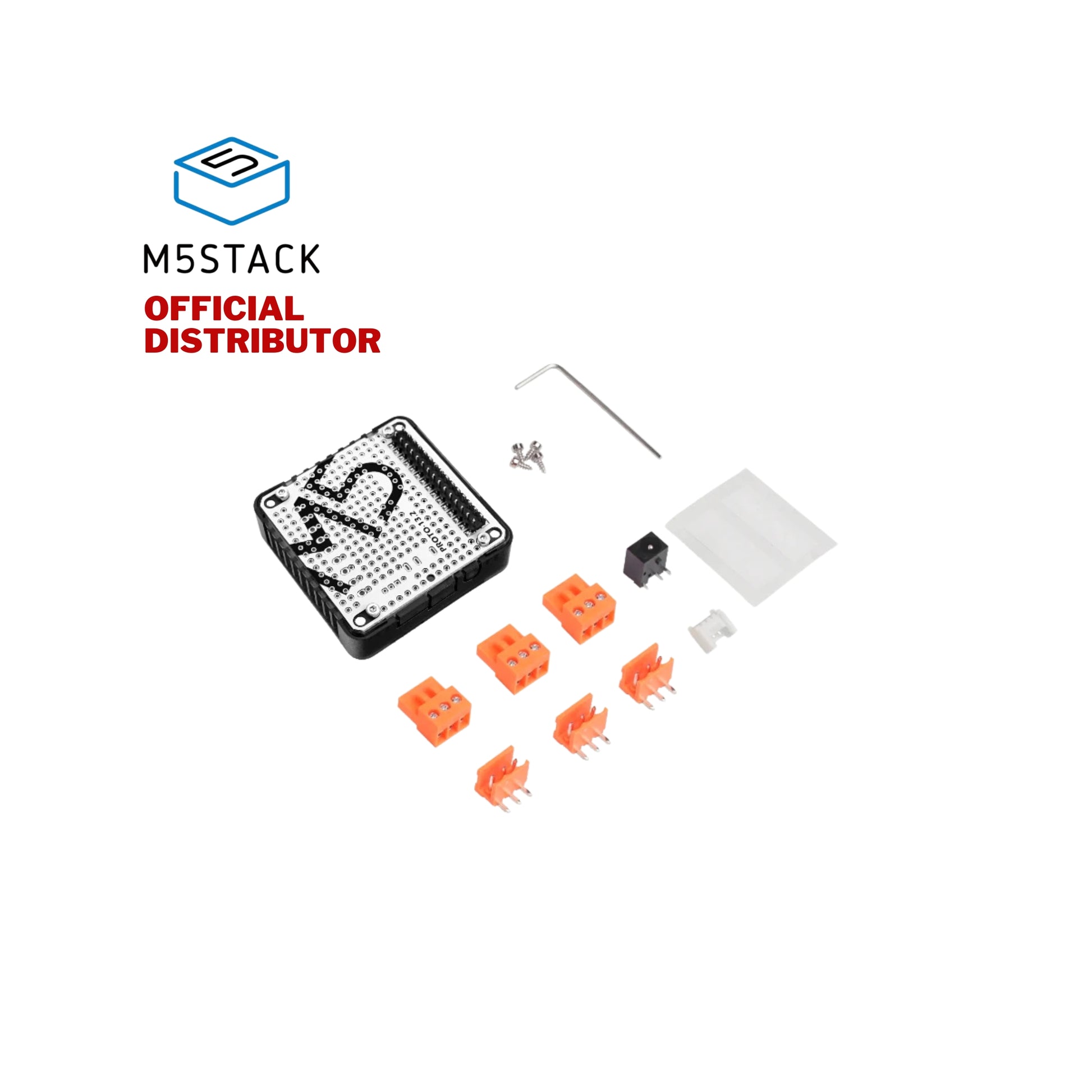

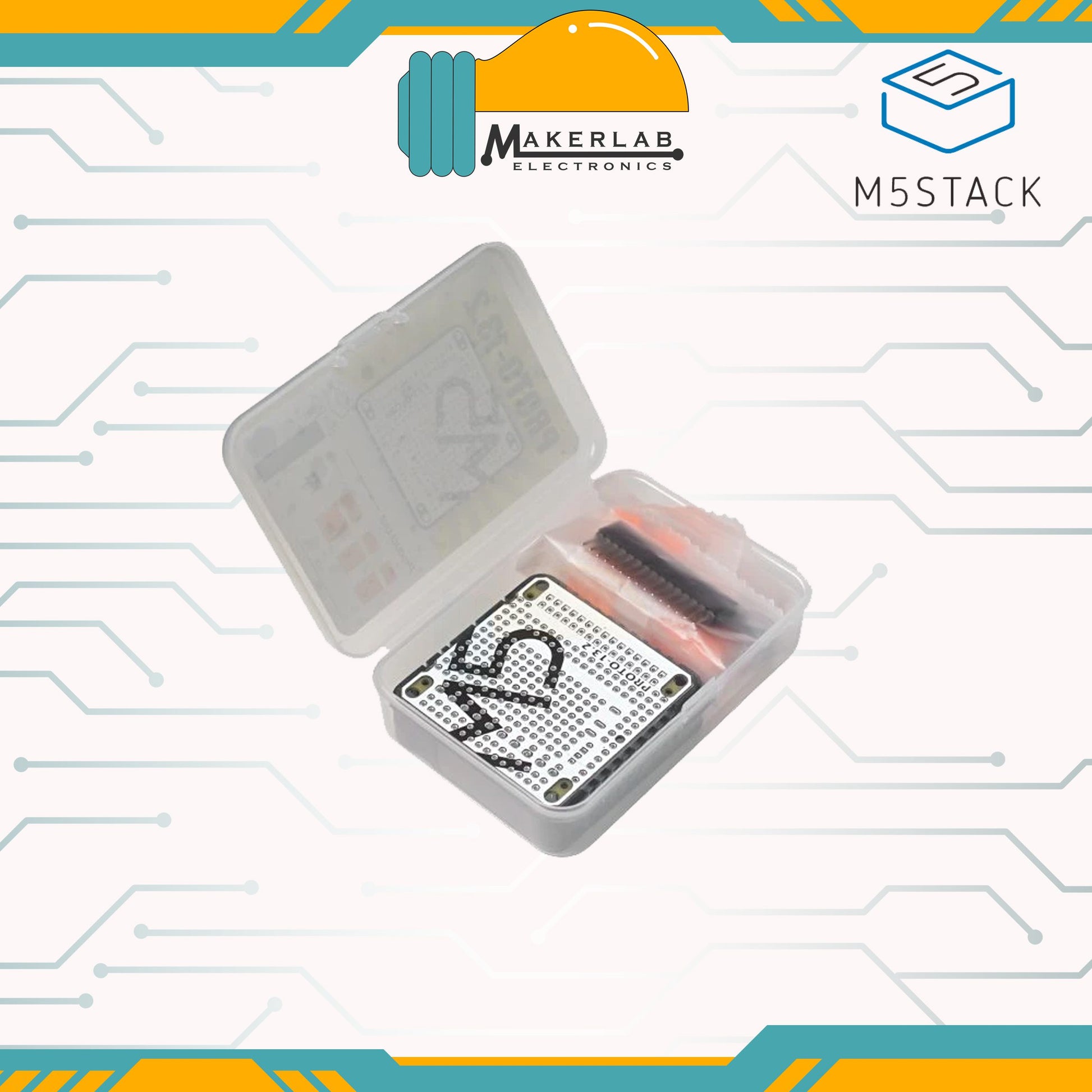

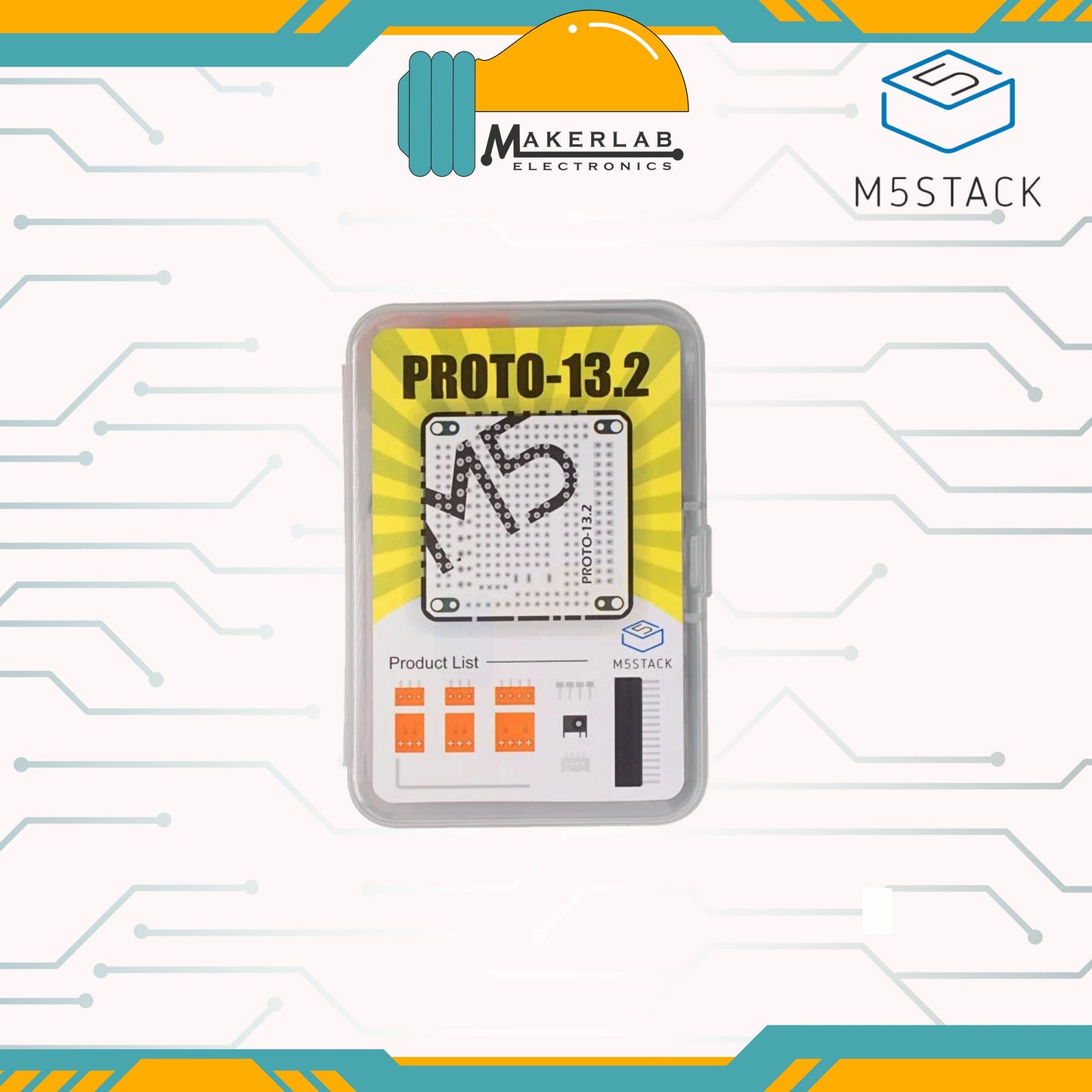

Include

  • 1x PROTO 13.2 board
  • 1x M-bus
  • 3x VH-3.96 3P Plug & Plug Base
  • 1x HY-2.0 4P Plug Base
  • 1x DC 5V Power outlet
  • 4x M2*5mm Hexagon self tapping screw
  • 1x M2 Hex Key
  • 1x sticker

Specification

Resources Parameter
Net weight 24g
Gross weight 49g
Product Size 54.2*54.2*13.2mm
Package Size 93*64*20mm
