Raspberry Pi Zero 2W

Description:

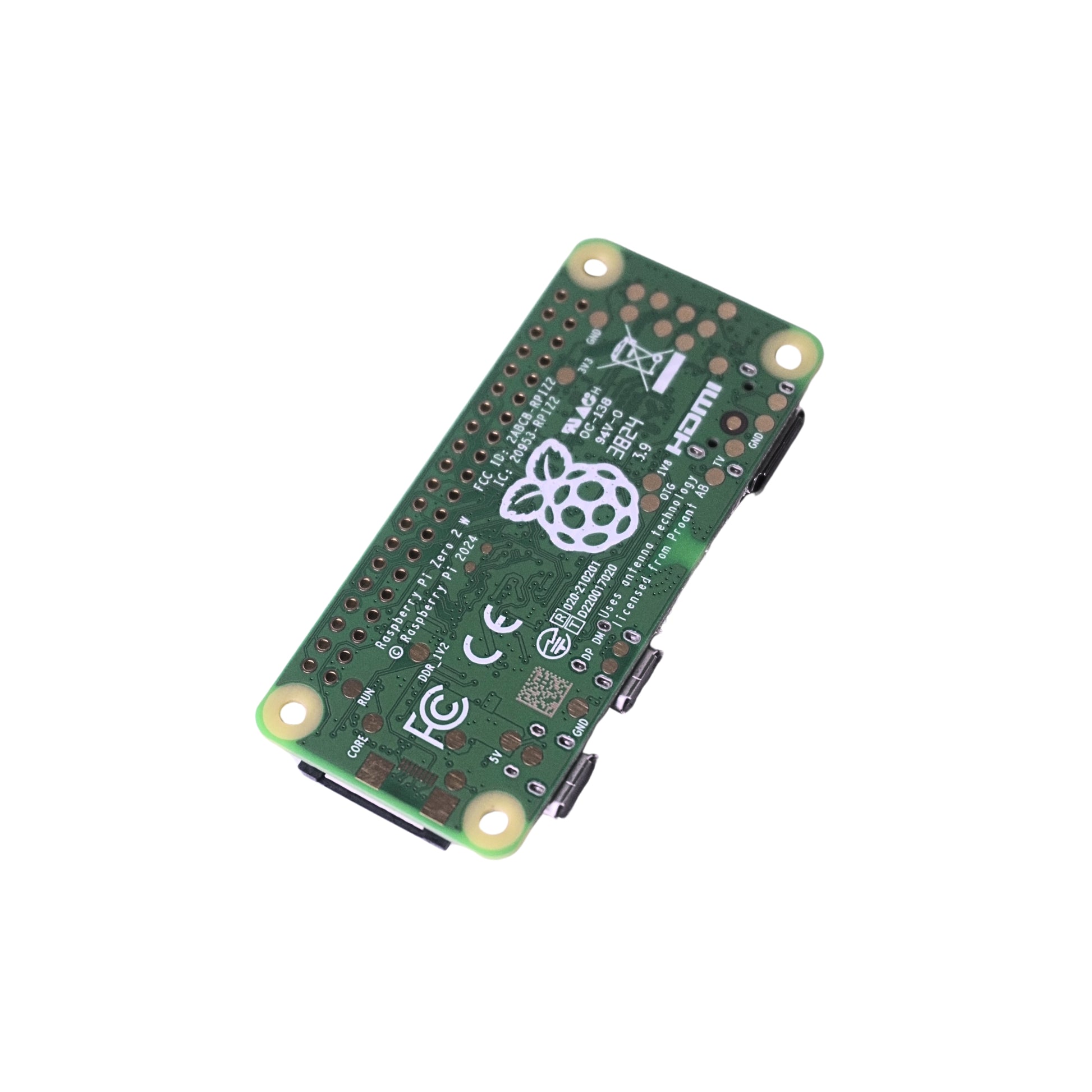

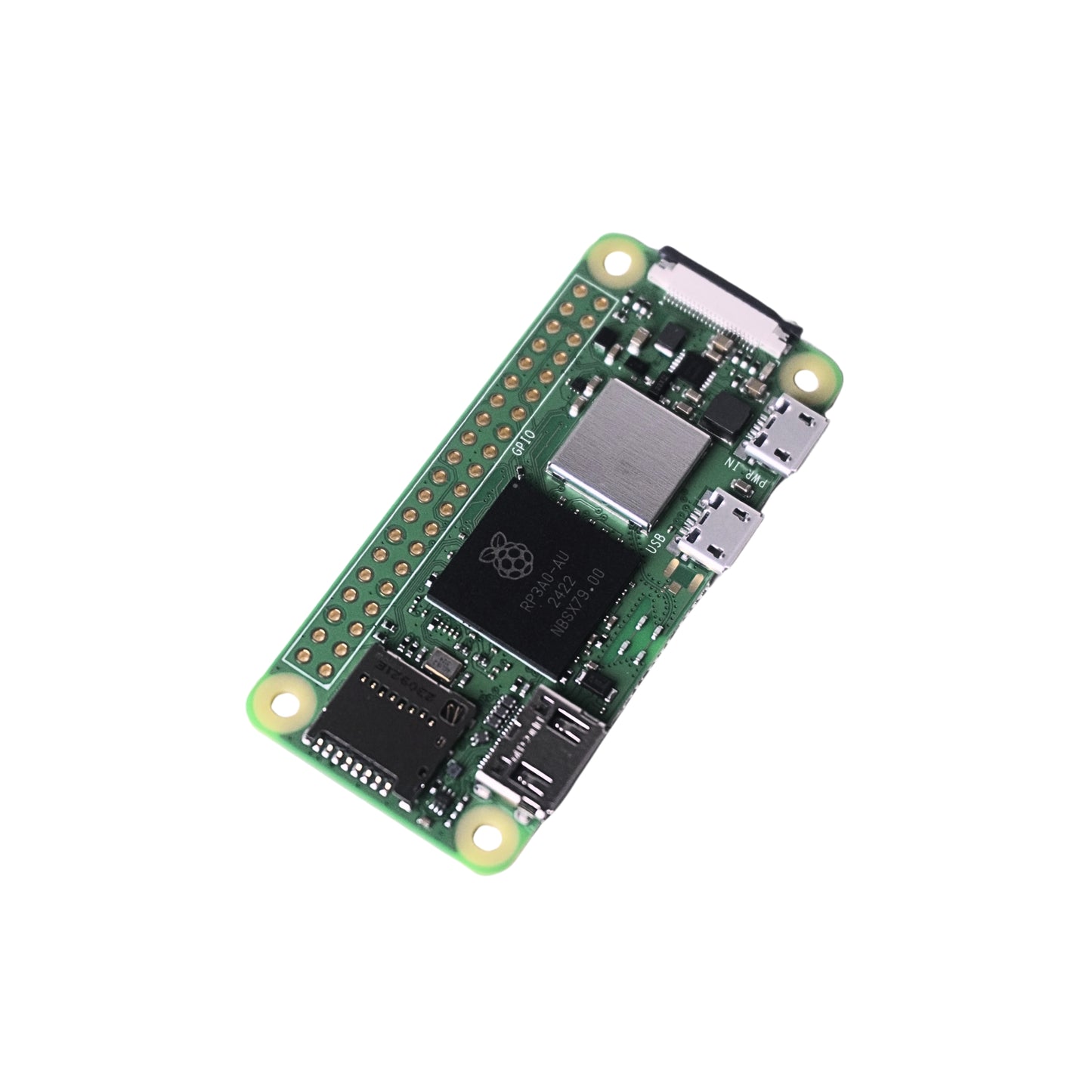

The Raspberry Pi Zero 2 W is the latest board in the Raspberry Pi Zero family, with a quad-core processor offering a 40% increase in single-threaded performance and 5x times more multi-threaded performance than the previous single-core Raspberry Pi Zero W!

The successor to the breakthrough Zero W, Raspberry Pi Zero 2 W is a drop-in replacement for the original board, with the same form factor, connectors and mounting holes. Perfect for a project upgrade!

The Raspberry Pi Zero 2 W incorporates a quad-core 64-bit Arm Cortex-A53 CPU clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. This upgraded package provides the Raspberry Pi Zero 2 W with its generous increase in performance.

Raspberry Pi Zero 2 W continues to offer 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth (now 4.2), along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

The new Raspberry Pi Zero 2 has a MicroSD card slot for the Raspberry Pi Operating System, a CSI-2 camera connector, a USB On-The-Go (OTG) port and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Video output is via a mini HDMI port; composite video output is available via the board's test points if needed.

The Zero 2 is powered via a micro-USB socket and requires a 5V 2.5A power supply just like previous generations.

Specifications:

Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
Memory: 512MB LPDDR2
Connectivity:
2.4GHz IEEE 802.11b/g/n wireless LAN
Bluetooth 4.2
Bluetooth Low Energy (BLE)
Onboard antenna
1 × USB 2.0 interface with OTG
HAT-compatible 40-pin I/O header footprint
MicroSD card slot
Mini HDMI port
CSI-2 camera connector
Video:
HDMI interface
Composite video (via test points)
Multimedia:
H.264
MPEG-4 decode (1080p30)
H.264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics
Input power: 5V DC 2.5A
Dimensions: 65mm × 30mm
Operating temperature: -20°C to +70°C
