SKU:MLE04349
Red Mushroom Cap LAY37-11ZS 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock
₱75.00
₱75.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
Loading locations...
Couldn't load pickup availability
Share
About the Product

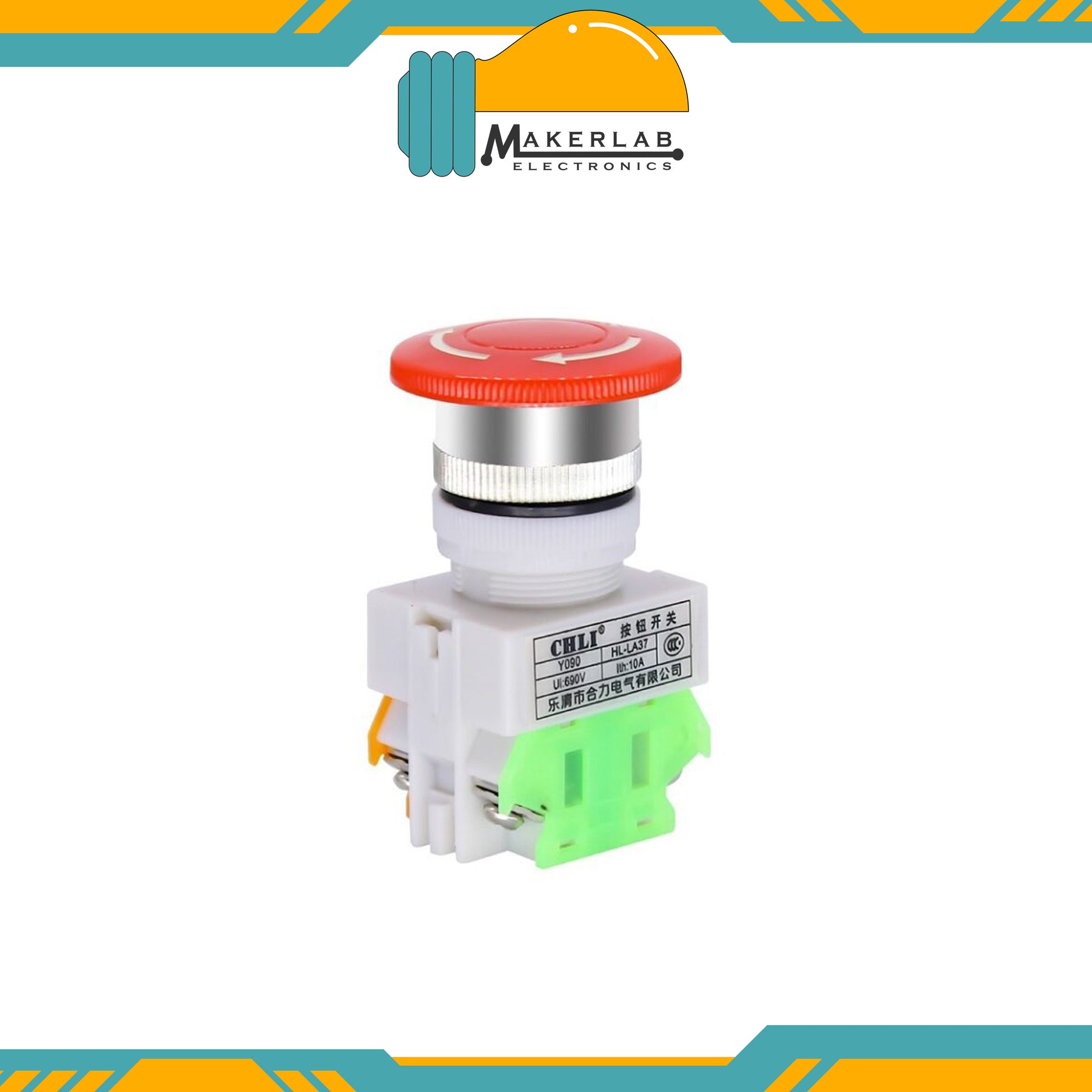

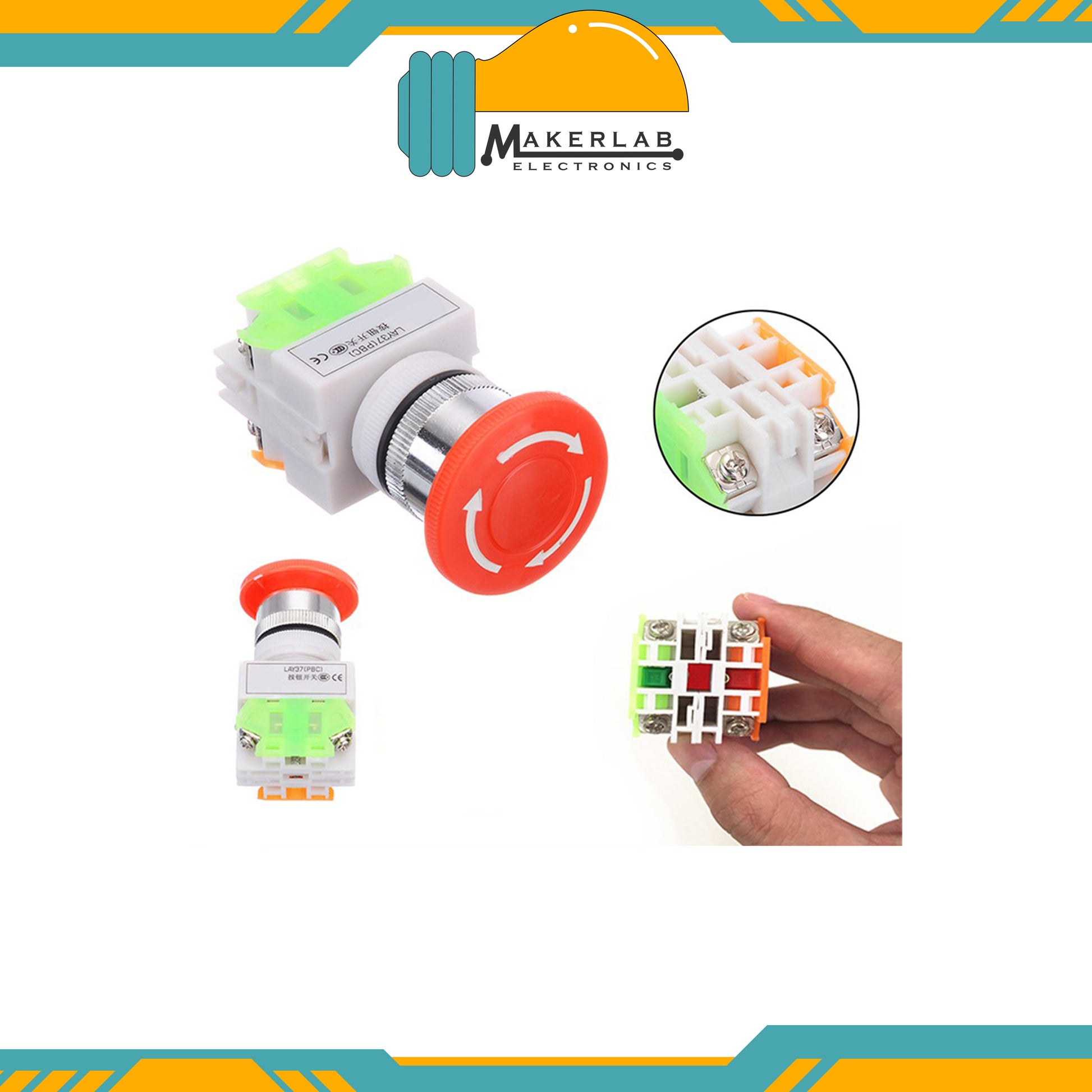

Product details of Red Mushroom Cap LAY37-11ZS 1NO 1NC DPST Emergency Stop Push Button Switch
Description
The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch push button is for Lift, Elevator Latching Self Lock and CNC machines emergency stop. It is made of high-quality material. It has long service life Built-in screw-type connecting cable. Reset by turning the button as the arrows show and don’t turn inversely.
Features and Specifications:
- Rated Insulation Voltage (Ui): 600V
- Agreed Thermal Current (Ith):10A

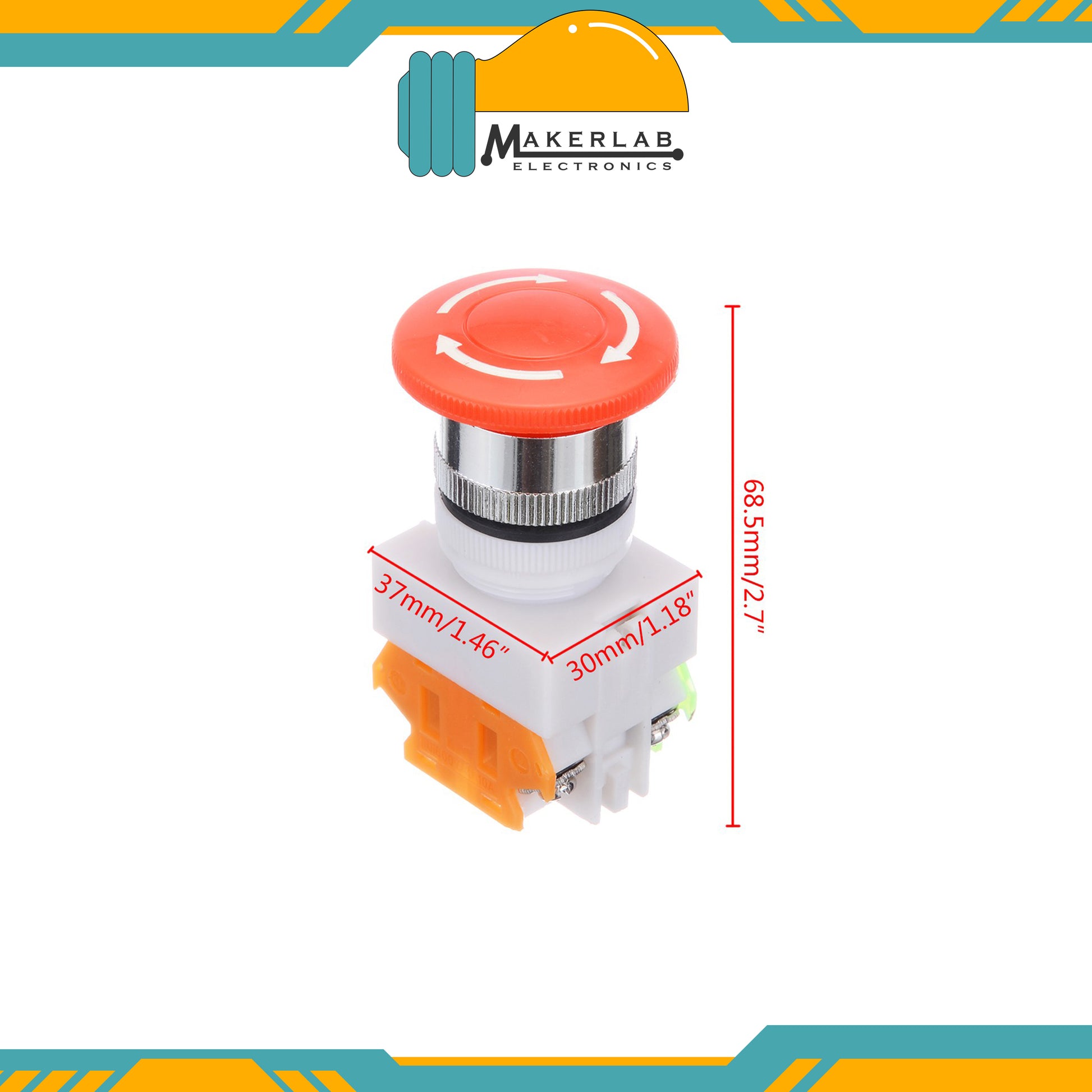

- Switch Top Diameter: 39 mm
- Switch Mount Neck Diameter: 23 mm
- Material: Plastic and metal
- Weight: 50 grams
Package Includes:
1 x AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch
