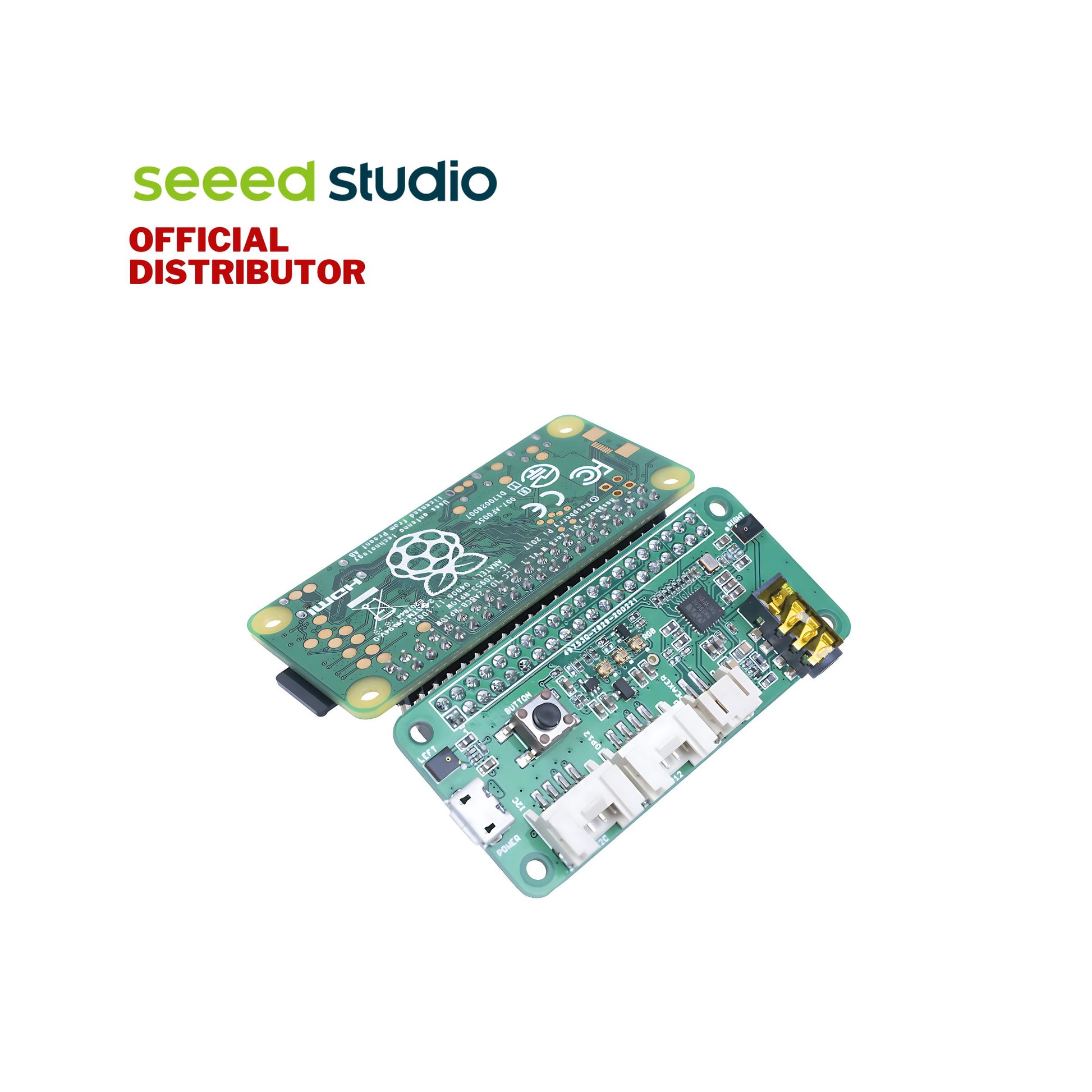

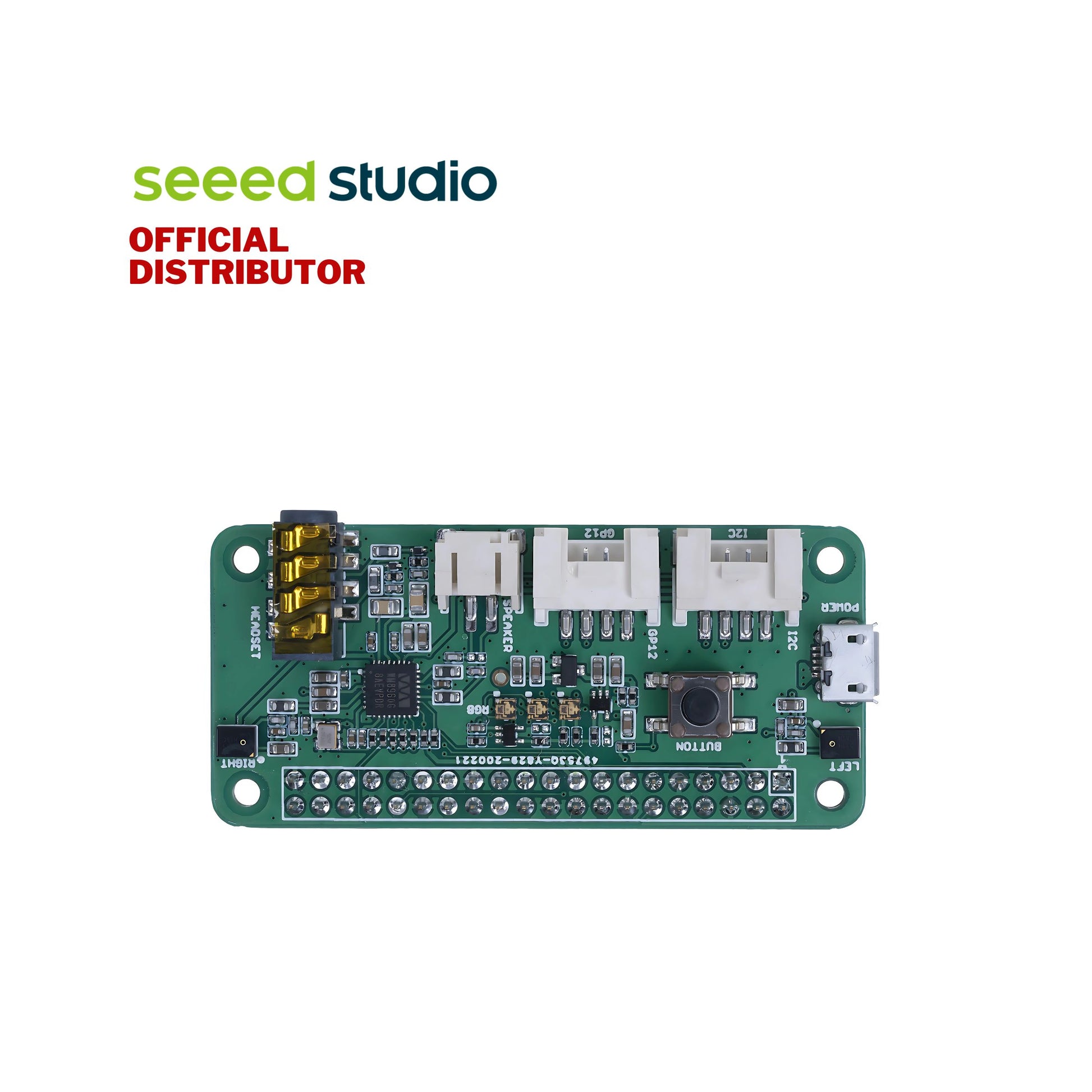

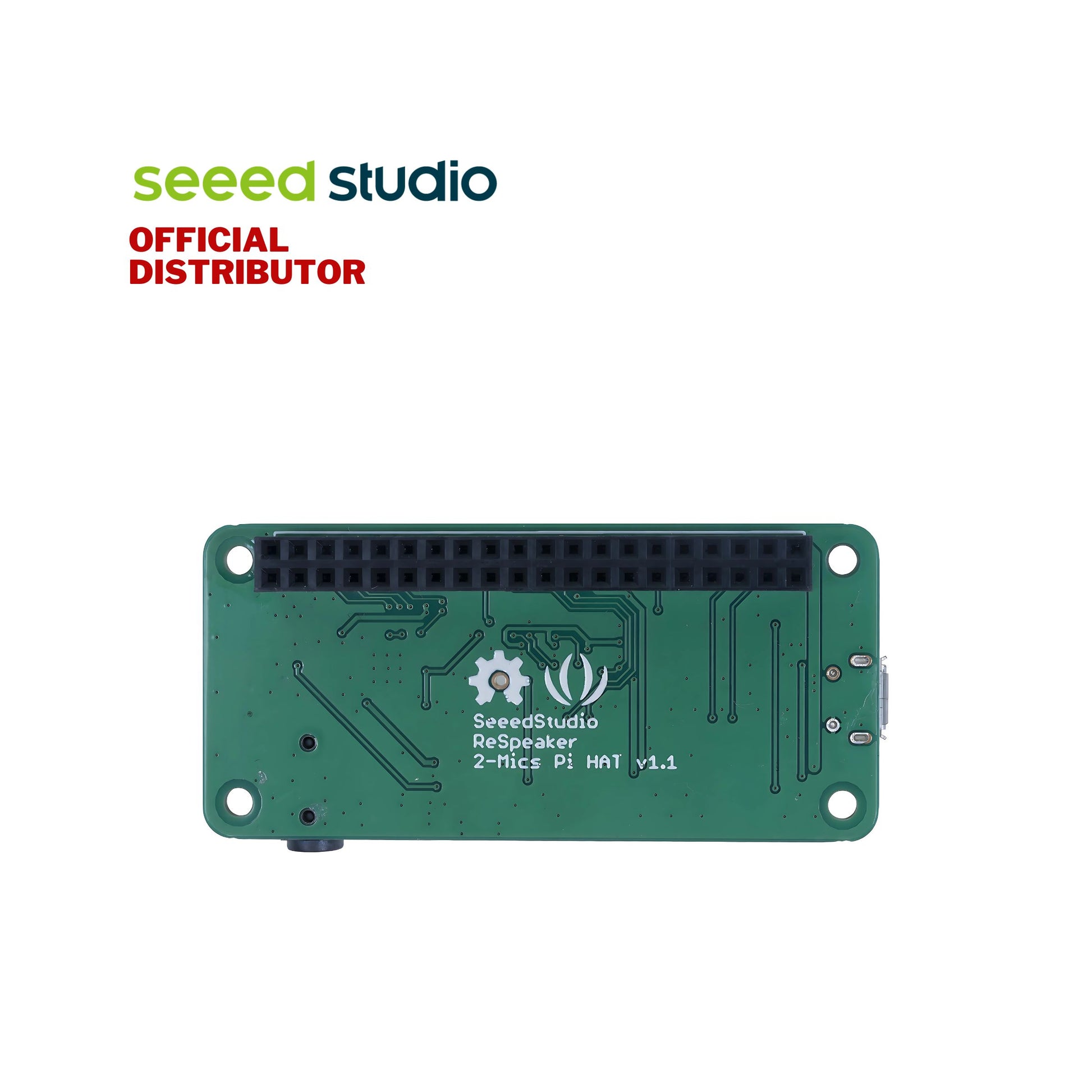

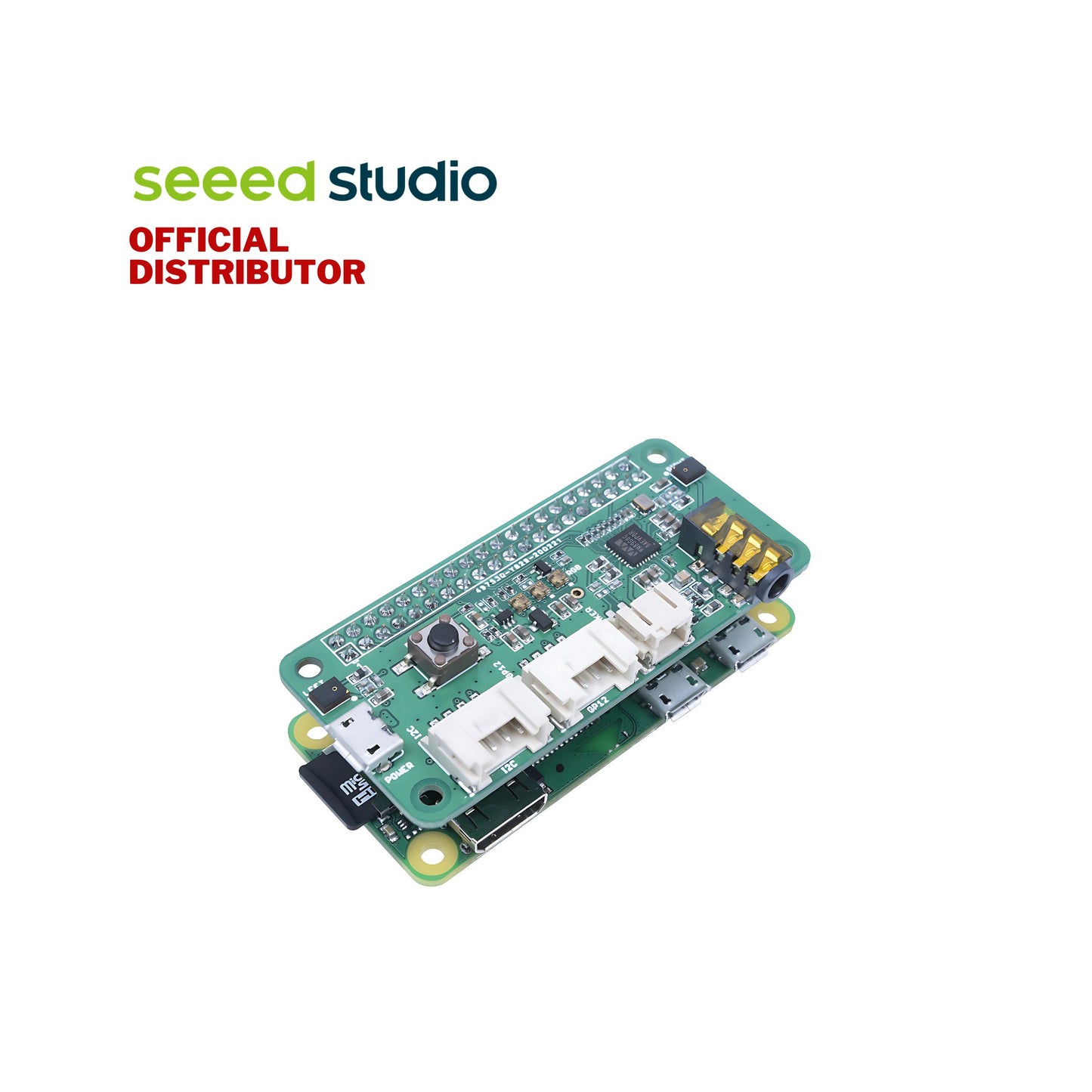

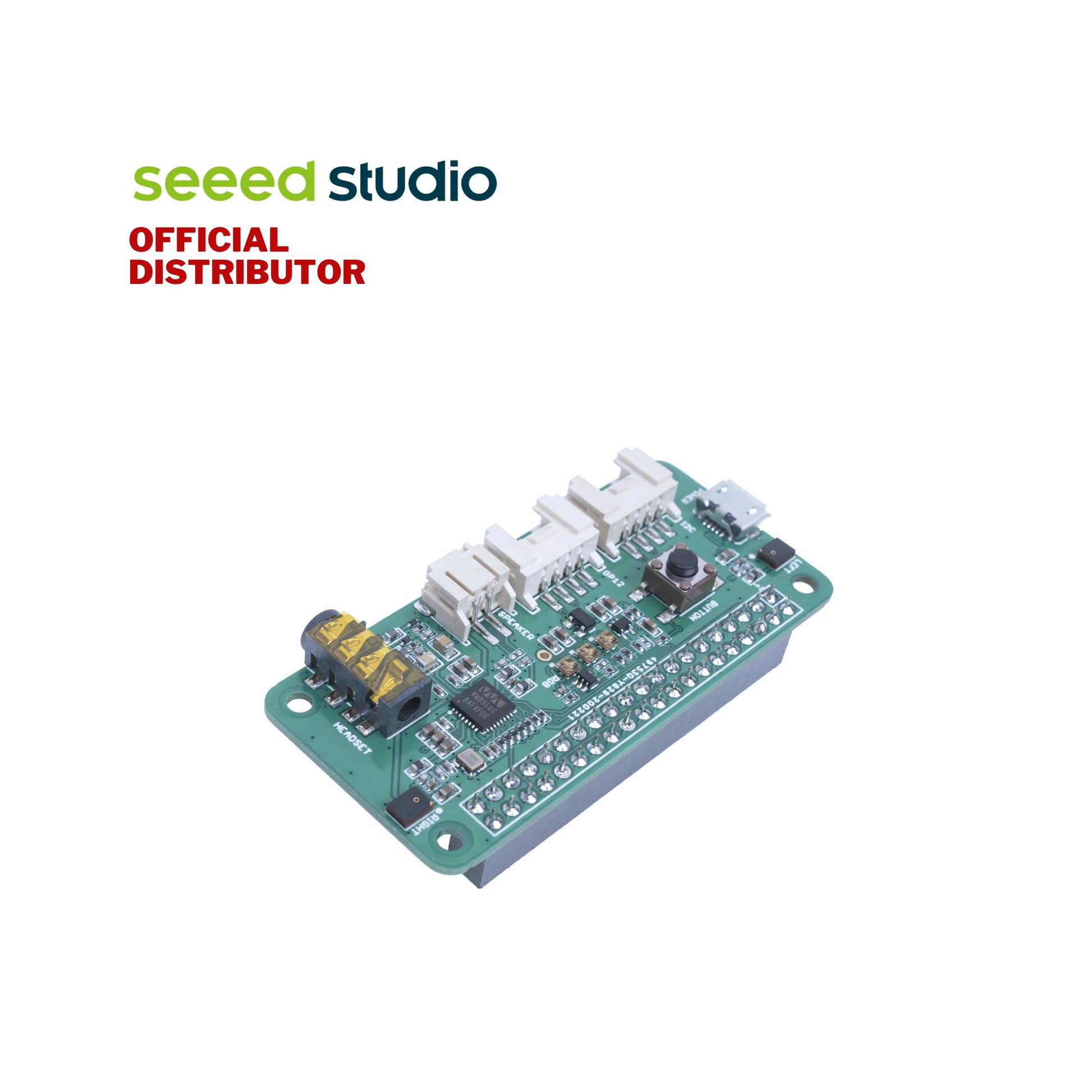

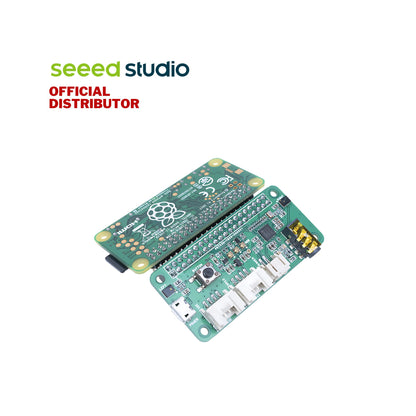

reSpeaker 2-Mics Pi HAT for Raspberry Pi

₱879.00
₱879.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

The reSpeaker 2-Mics Pi HAT is the voice user interface for Raspberry Pi Series, which has been equipped with 2 analogue microphones and TLV320AIC3104 Audio Codec for high-definition voice capture. Attached with NLU software algorithms and noise reduction algorithms, it has the abilities of Voice Activity Detection, Direction of Arrival, and Key Word Spotting, widely used in Voice Interaction applications. Using this dual-microphone expansion board designed for AI and voice applications, you can build a powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

There are analogue microphones mounted on each corner of the square reSpeaker to receive audio data around them and transmit it to the codec. The codec integrates synchronized ADCs with a mic boost amplifier to deliver valid channel data to the Raspberry Pi/Pi Zero, where it transits them over I2S ports in standard I2S or PCM format, along with a single port in TDM format. The NLU algorithms will be applied to the Raspberry Pi once the audio data has arrived. The main functions include Voice Activity Detection(VAD), Direction of Arrival(DOA), and Key Word Spotting(WKS), suitable for various Voice Interaction applications such as voice-based remote control cars, voice user interface, keyword wake up, and so on. Since the audio data transmitted may contain noise as well, the reSpeaker comes with the functions of Auto Echo Cancellation (AEC), Beamforming, WebRTC Noise Suppression (NS), and Automatic Gain Control (AGC) to reduce noise and provide better audio data to the Raspberry Pi.


Features:

Voice User Interface for Raspberry Pi Series: Placed by analogue microphones, which come with the Voice Interaction algorithms of VAD(Voice Activity Detection), DOA(Direction of Arrival), KWS(Key Word Spotting).
TLV320AIC3104 Audio Codec: Low power, high-quality stereo Codec designed for portable digital audio applications.
Controllable Peripherals: Provide 3 programmable APA102 RGB LEDs and 1 User Button for attached Speech Recognition usage.
Easy Assembly: Simply plug in the Raspberry Pi to use.


Specifications:

MIC: 2 analog microphones
LED: 3 APA102 RGB LEDs
Raspberry Pi 40-Pin Headers: Support Raspberry Pi5, Raspberry Pi Zero, Raspberry Pi 1B+/2B/3B/3B+/4B
TLV320AIC3104 Codec: Low power, high quality stereo Codec designed for portable digital audio applications
Software Algorithms: VAD(Voice Activity Detection), DOA(Direction of Arrival) and KWS(Keyword Search)
User Button: 1 programmable button
Voice Capture Distance: 3-meter radius voice capture

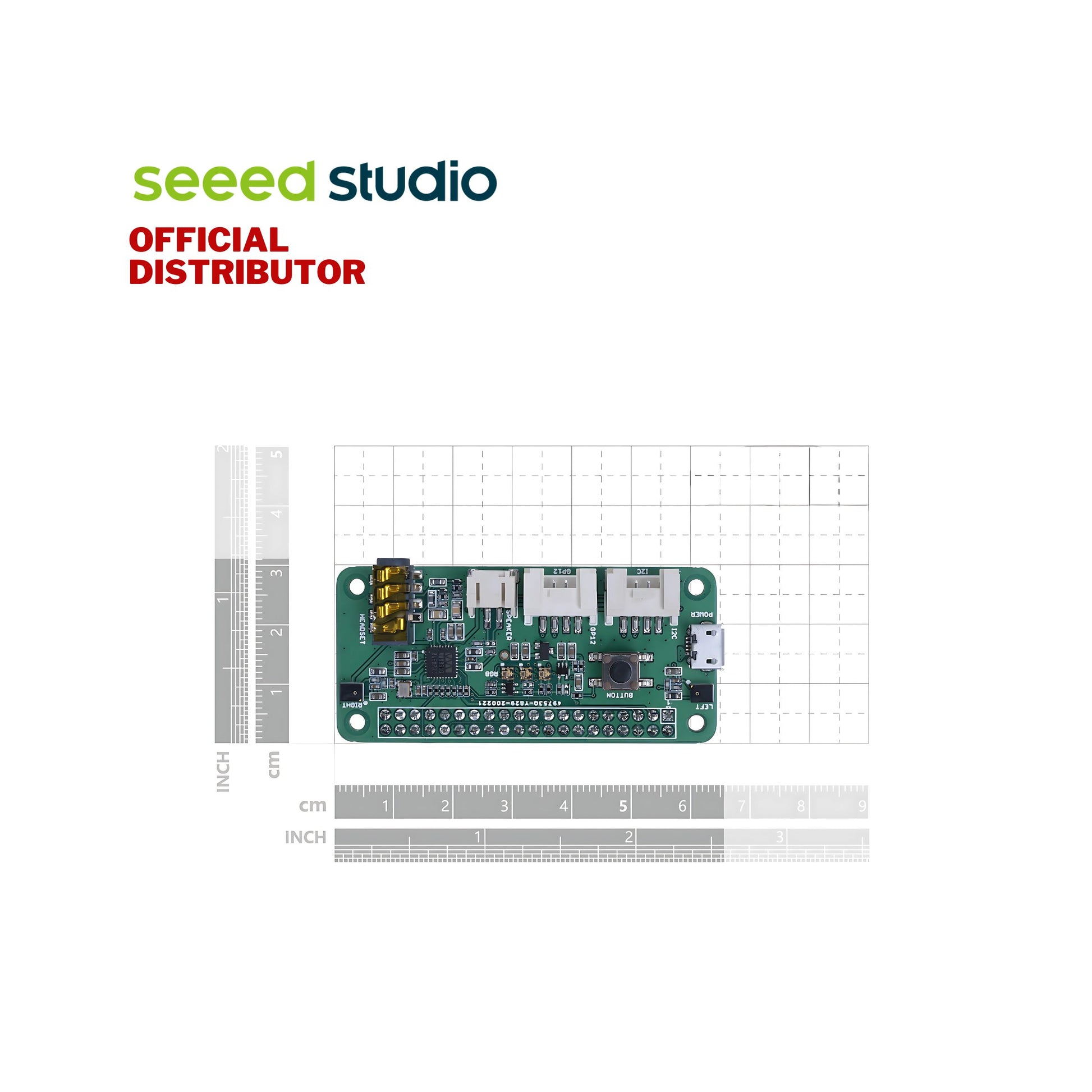

Dimensions: 65mm x 30mm x 15mm
Weight: G.W. 33g


Application:

  • Voice Interaction Learning
  • Secondary software Development
  • Voice-based remote control cars


Documents:


Part List:

1x reSpeaker 2-Mics Pi HAT V2.0
