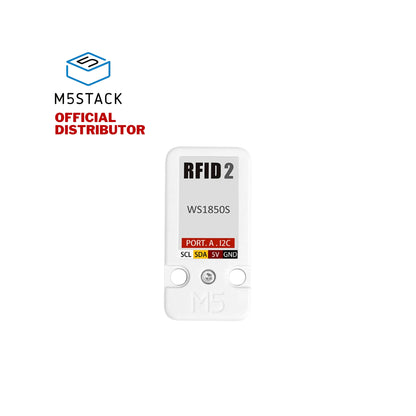

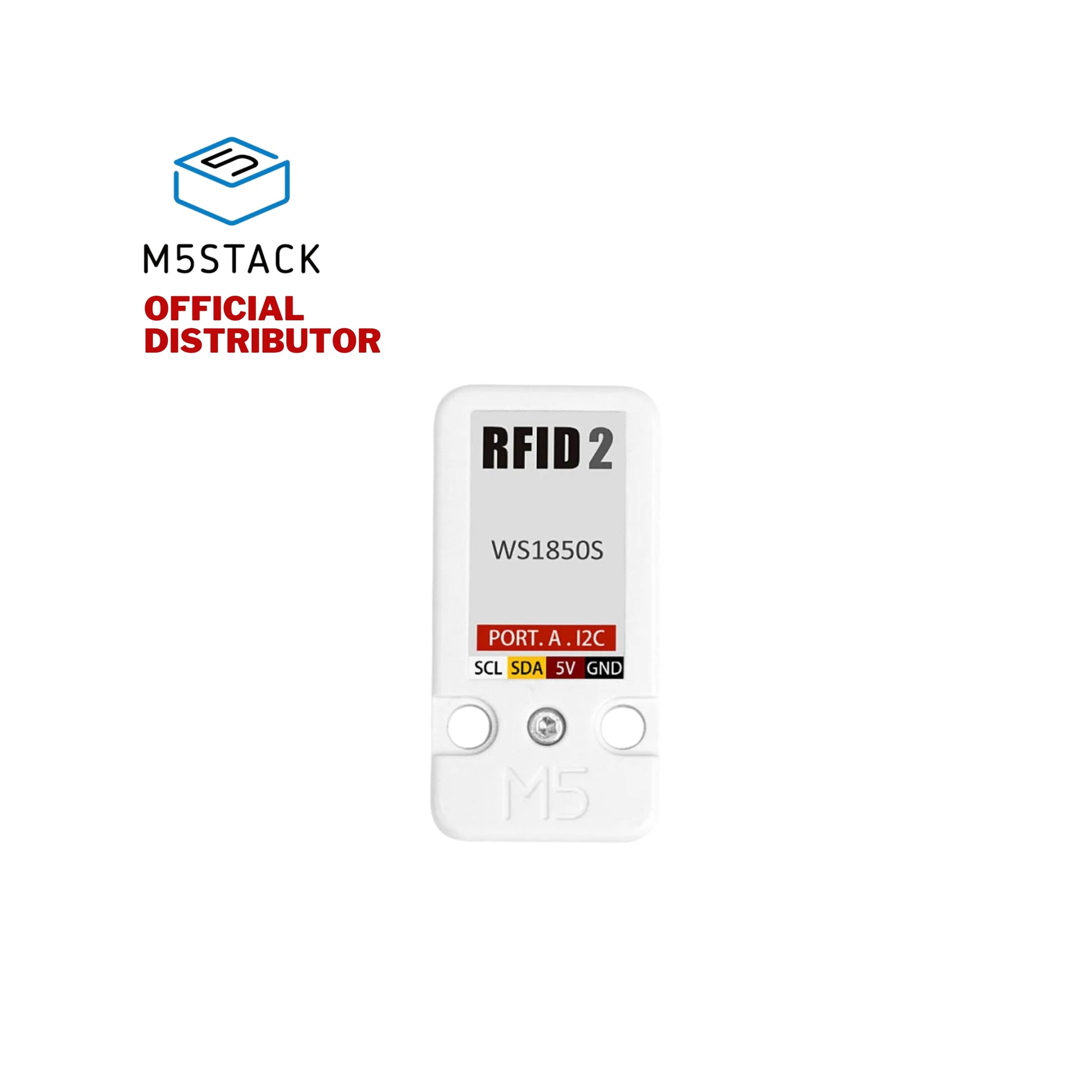

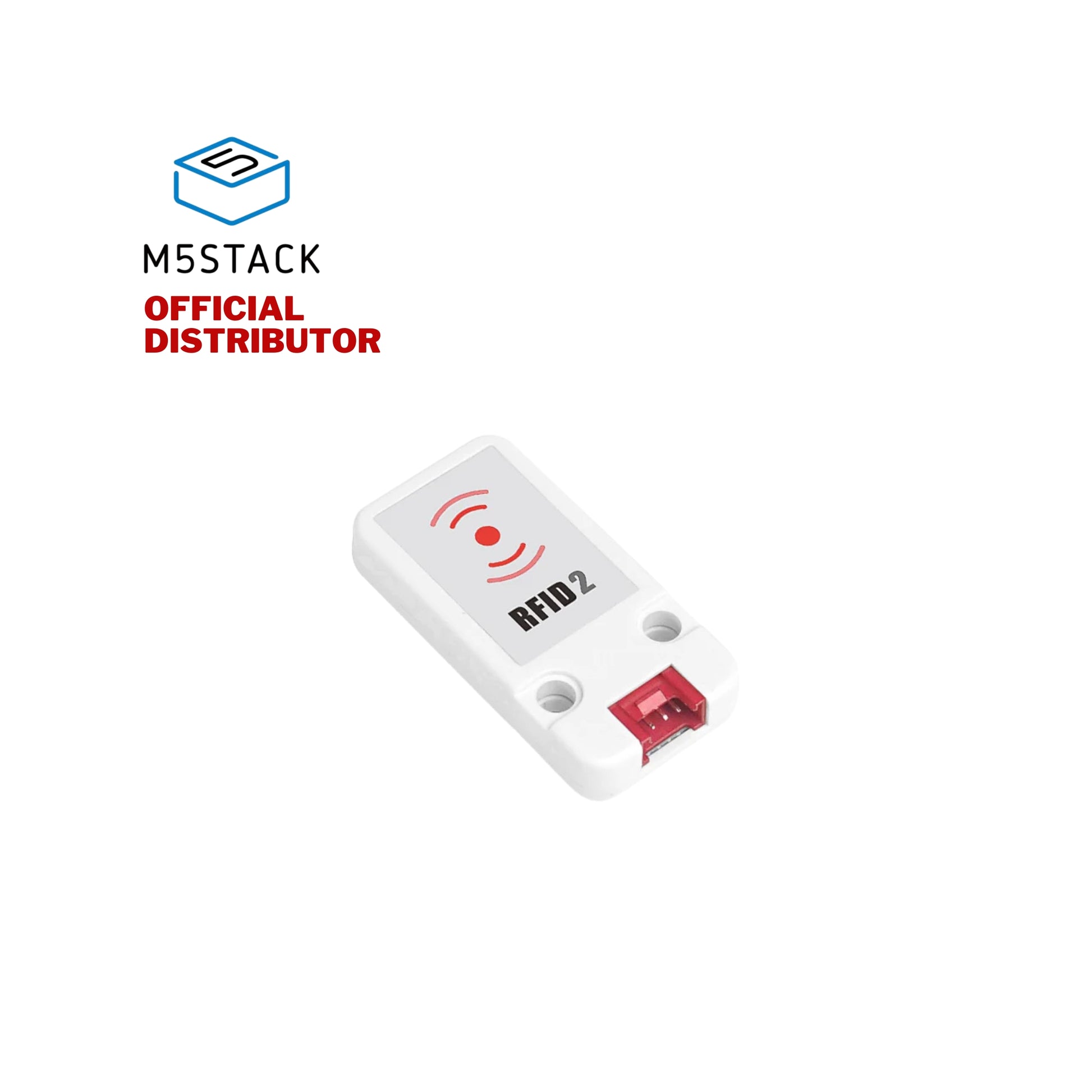

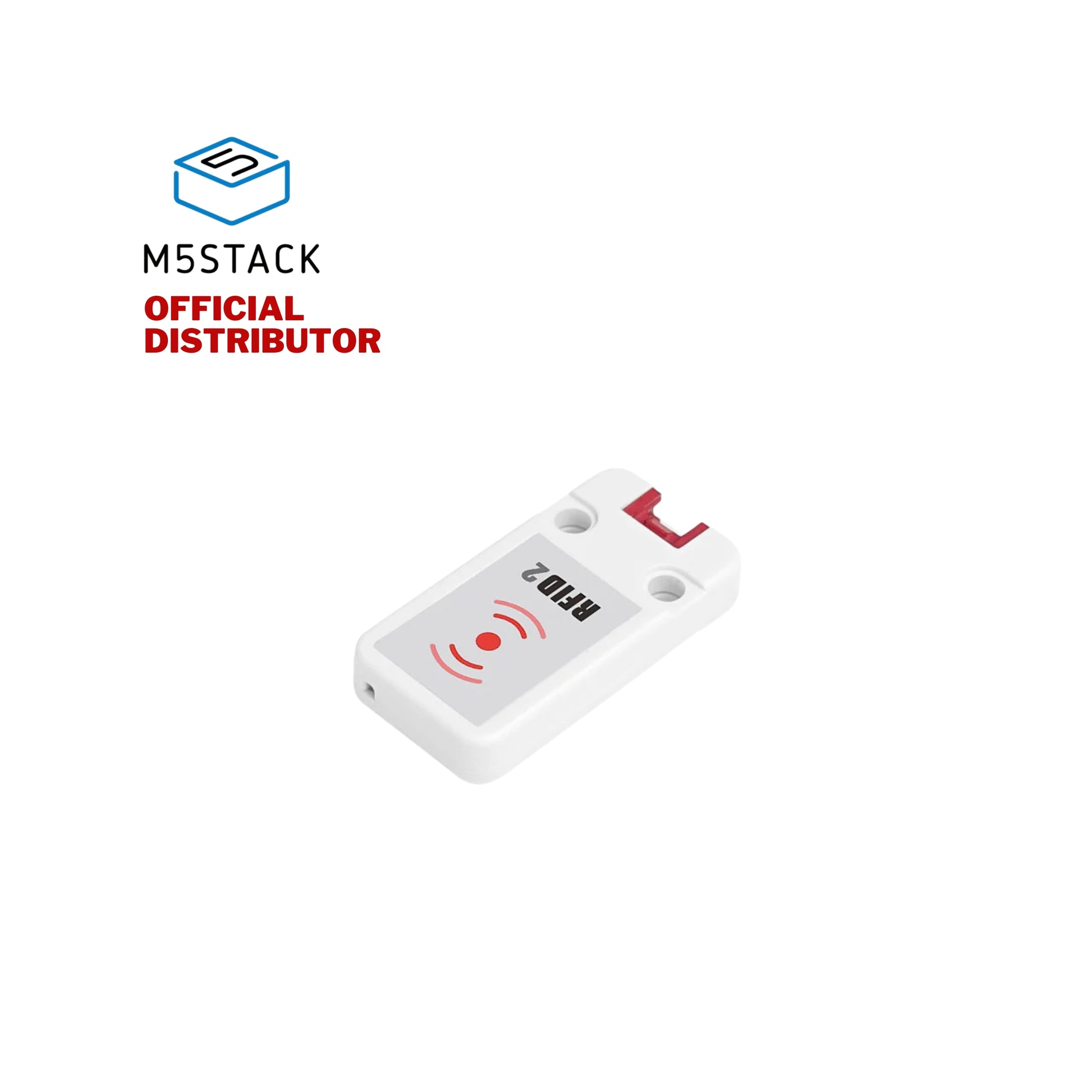

M5Stack RFID Unit 2 (WS1850S)

M5Stack RFID Unit 2 (WS1850S)

In stock

SKU:MLE03359

Regular price ₱350.00
Regular price Sale price ₱350.00
Sale Sold out
View full details

RFID2 is a radio frequency identification unit. Built-in WS1850S chip, working frequency is 13.56MHz. Supports reading card, writing card, recognition, recording, and encoding RF card Multiple functions such as authorization and authorization. Use magnetic field induction technology to realize non-contact two-way information interaction, read and verify the information of proximity cards. It can be used in access control systems, check-in systems, warehouse goods entry and storage, and community vehicle entry and exit registration needs Application scenarios for information verification.

RFID2 compared to the previous generation RFID UNIT only makes the replacement of read and write IC (RC522->WS1850S), there is no difference in function.

Product Features

  • Operating frequency: 13.56 MHz
  • I2C data rate: Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s
  • Transceiver buffer: 64 bytes
  • Supported protocols: ISO14443A, MIFARE and NTAG
  • Working temperature: -20?-85?
  • Data storage:> 10 years
  • Reading distance: <20 mm
  • Development platform: Arduino, UIFlow(Blockly, Python)
  • 2x LEGO compatible holes

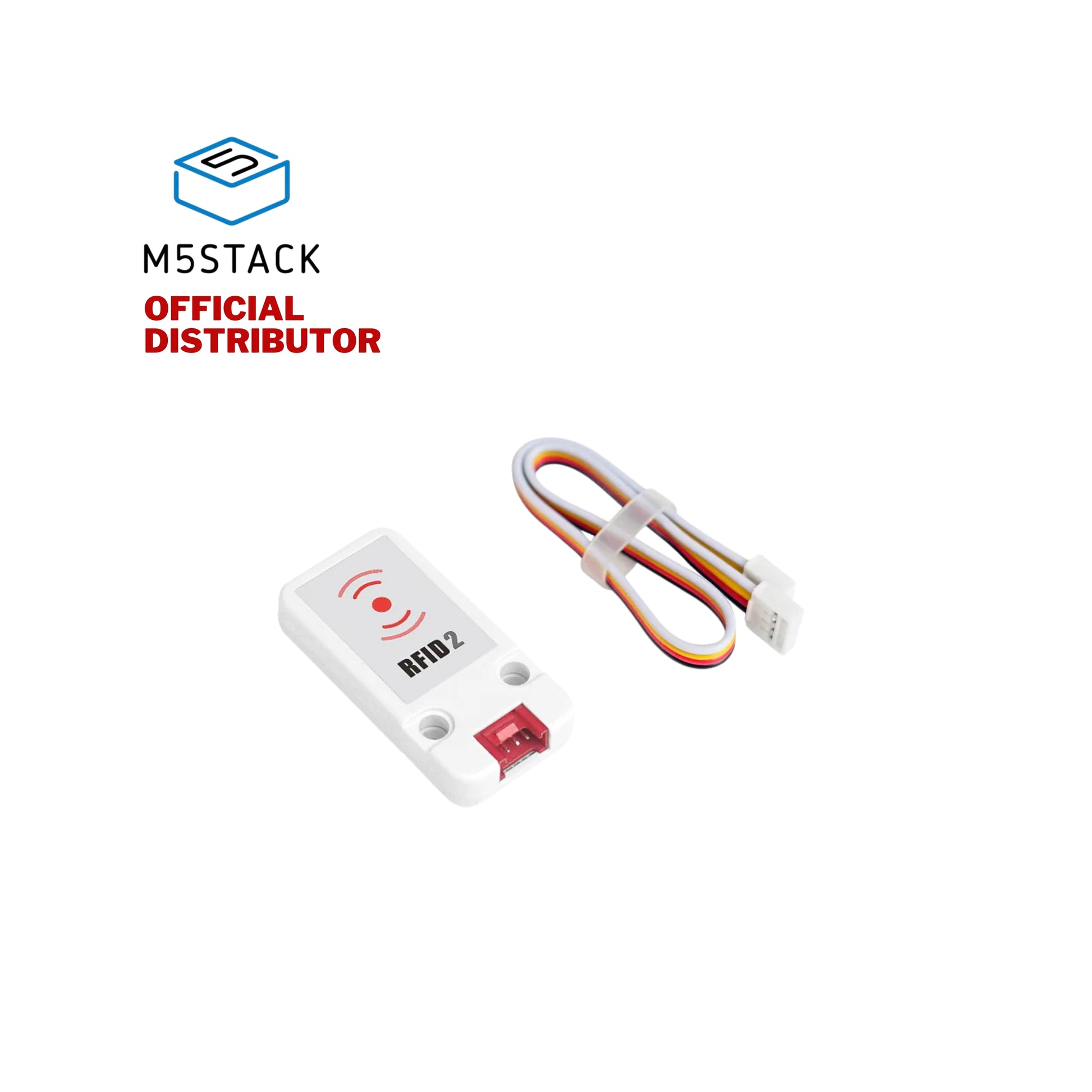

Include

  • 1x RFID Unit
  • 1x HY2.0-4P cable

Applications

  • Smart home access control system
  • Vehicle management
  • Smart transportation
  • Smart bookshelf

Specifications

Resources Parameter
Read and Write IC WS1850S
Operating frequency 13.56MHz
Communication protocol I2C: 0x28
Support protocol ISO/IEC 14443 Type A/Type B protocol
Net weight 6g
Gross weight 21g
Product size 48 * 24 * 8mm
Packing size 67 * 53 * 12mm
