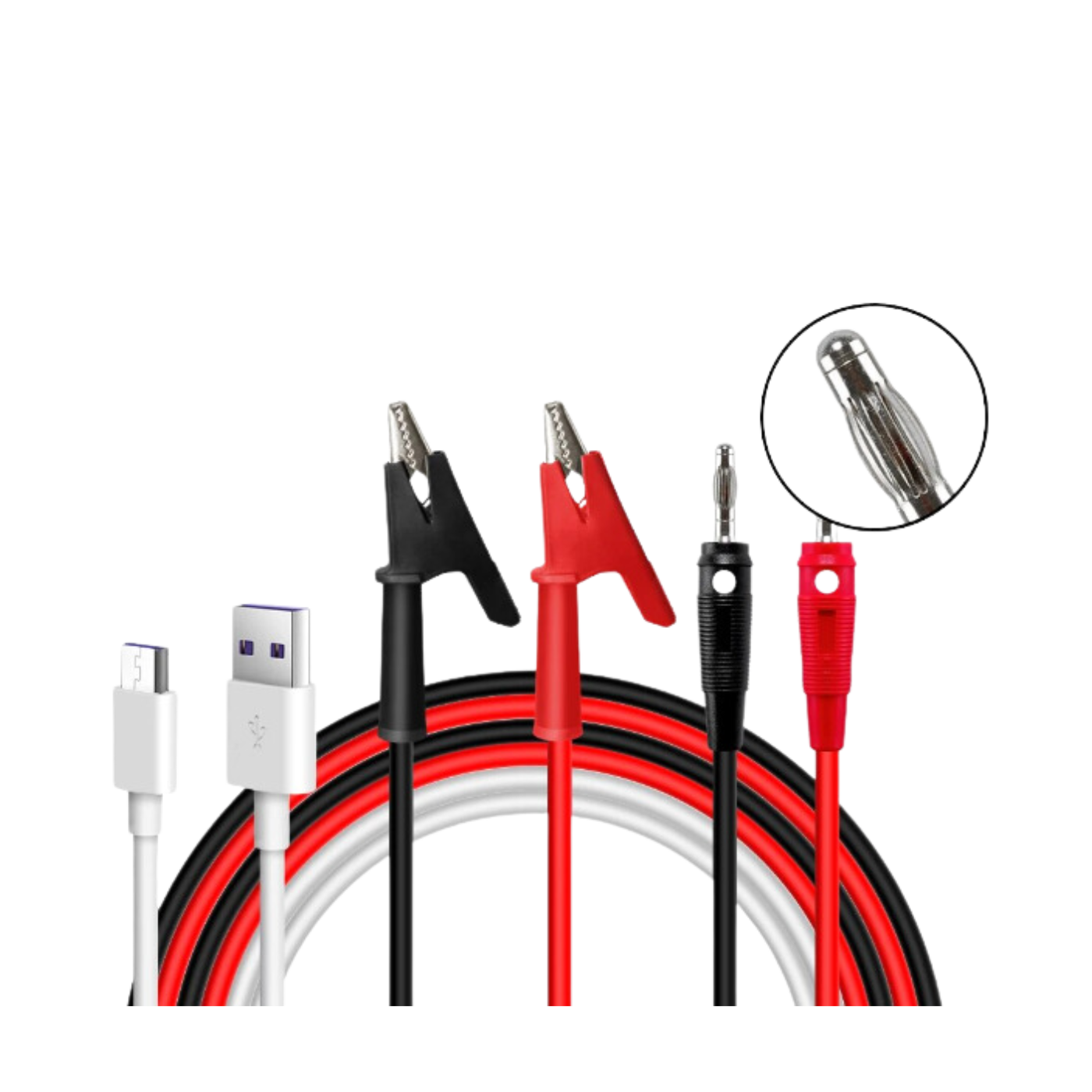

Riden Ruiden RD X15A X25A New Banana Plug to Alligator Clip Test Cable and Nicro Communication Cable

Product Description
NOTE:

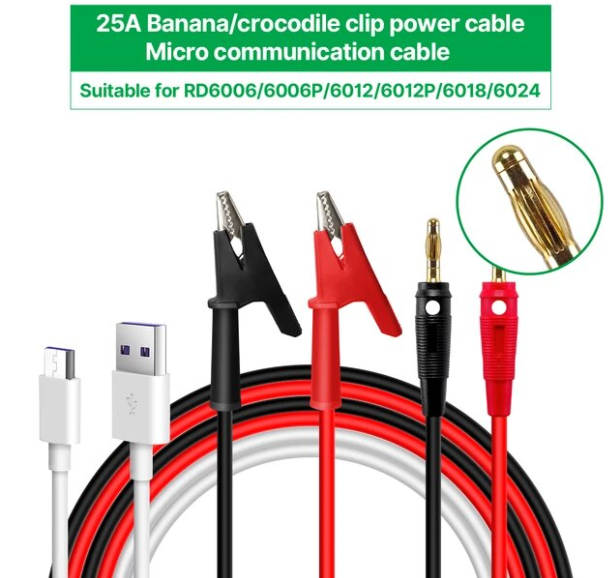

"X25A+Micro cable" contains 25A Banana Plug to Alligator Clip Test Cable and Micro-USB communication cable, it is suitable for RD6006/RD6006P/RD6012/RD6012P/RD6018/RD6024 series

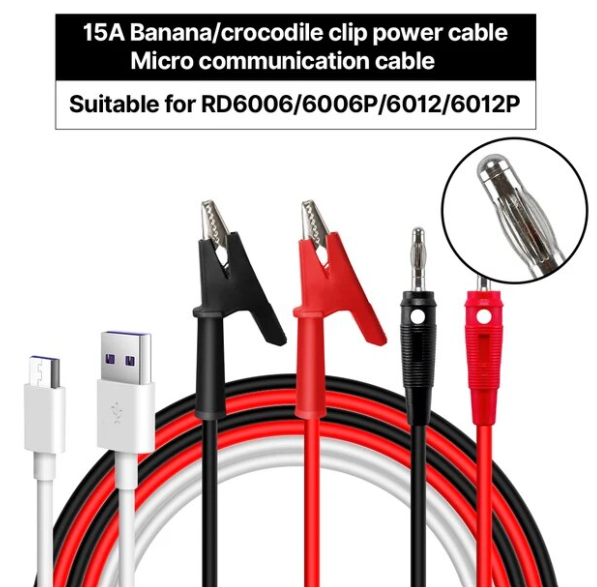

"X15A+Micro cable" contains 15A Banana Plug to Alligator Clip Test Cable and Micro-USB communication cable, it is suitable for RD6006/RD6006P/RD6012/RD6012P series

Note: you may feel it is tight when the cable is inserted and unplugged, which is a normal phenomenon. High-current output requires good contact, and it will be slightly improved after multiple plugging and unplugging.

Communication Cable：
NAME: Micro communication cable
Length: 1 meter(connector included)

Power cable:

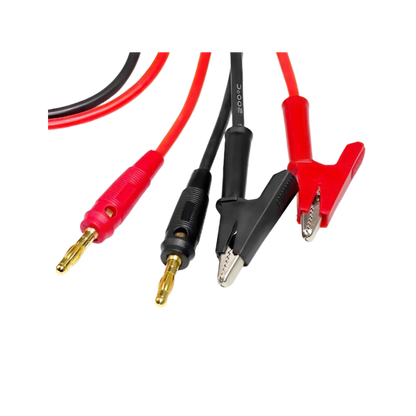

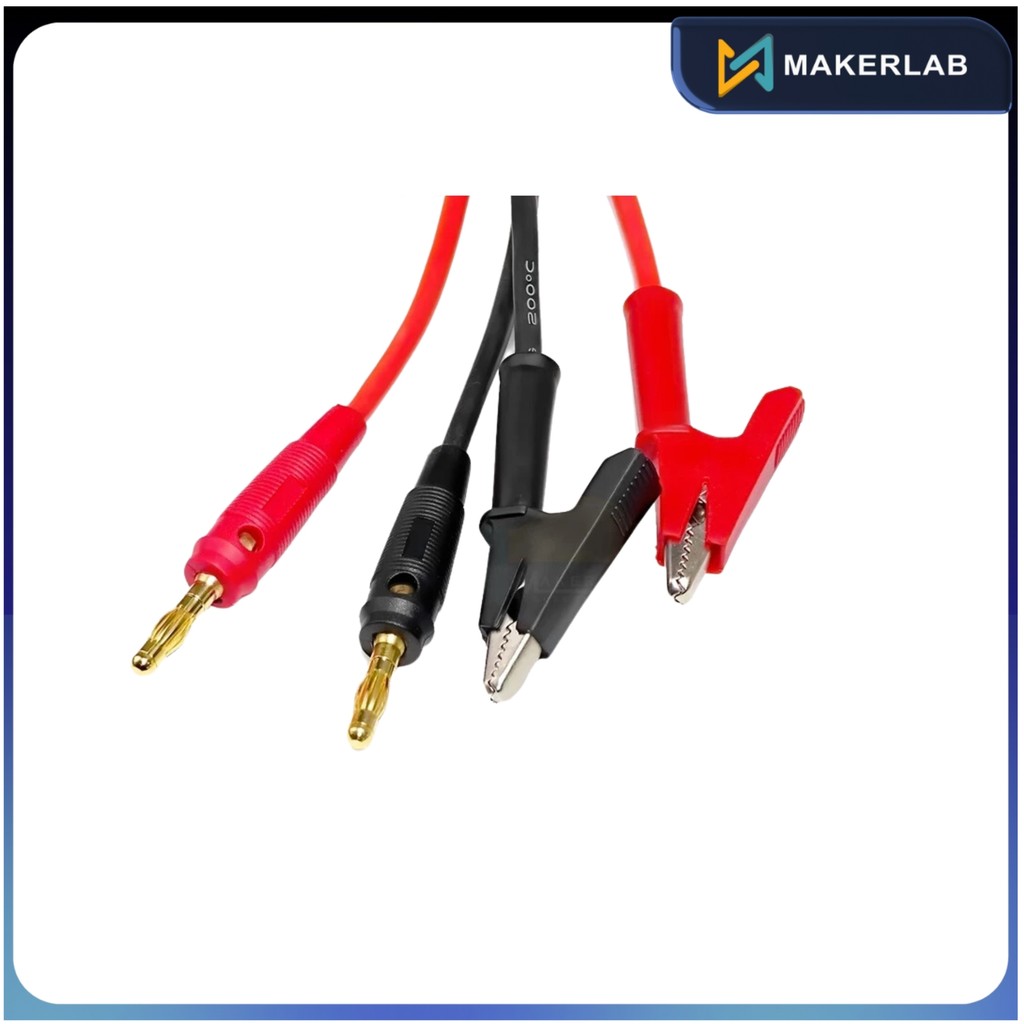

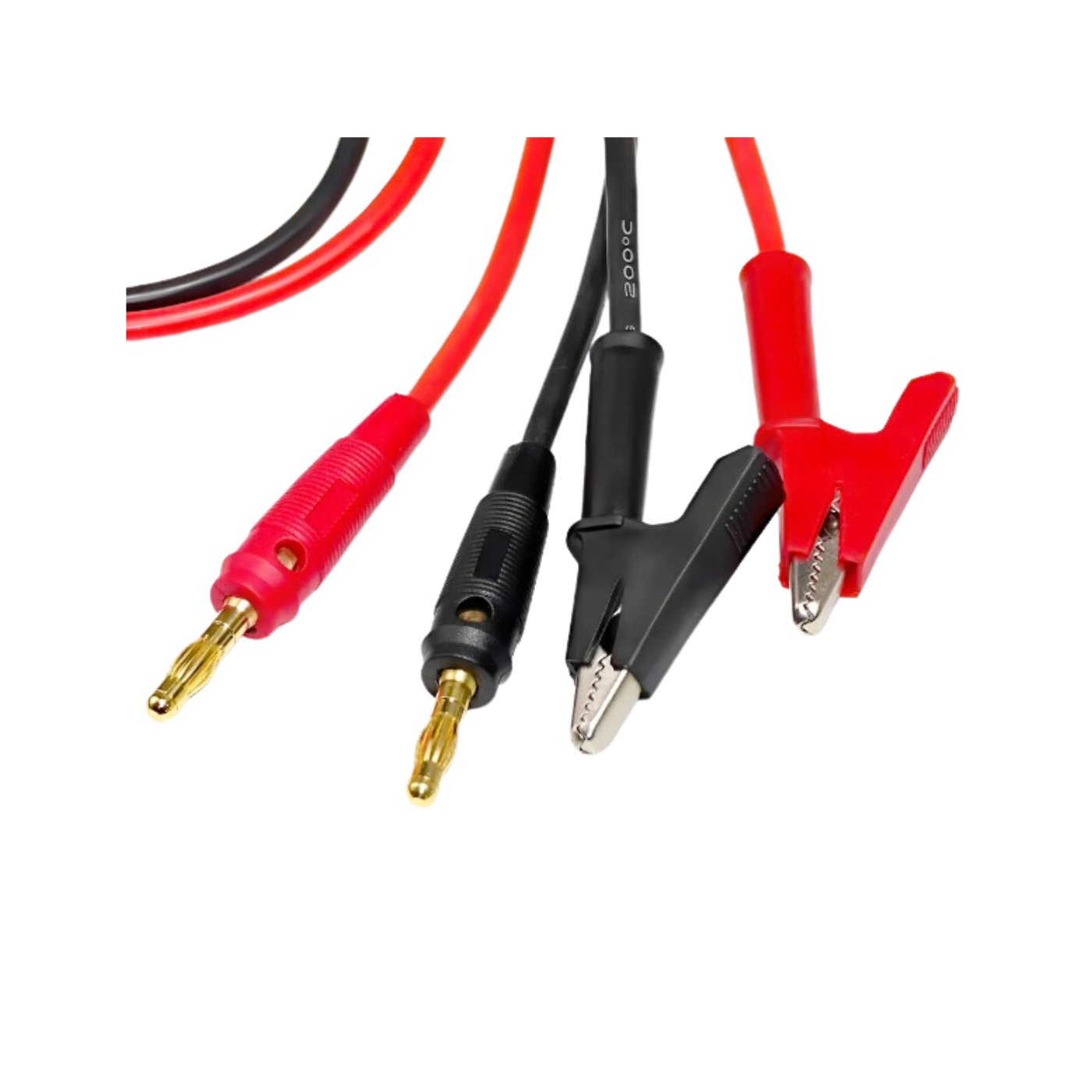

NAME: banana/ crocodile clip power cable

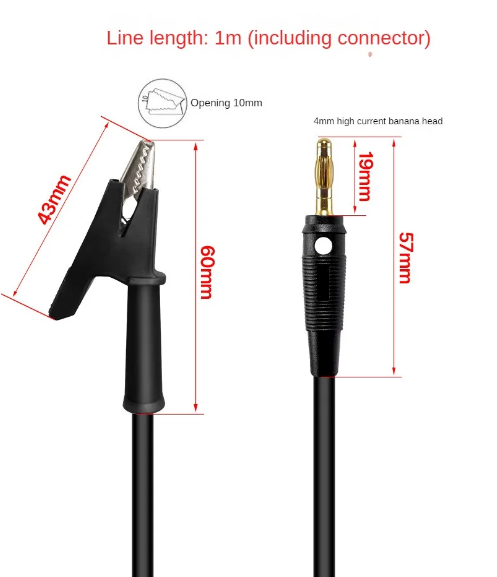

Length: 1 meter(connector included)

Cable Material: Cable sheath is special soft silicone, withstand -60℃ to +200℃, voltage resistant to 600V; The wire core is multiple strands of 0.08mm high-quality tinned copper, soft and resistant to oxidation.
Banana Plug Material: Main body is copper plating; Spring is Beryllium-Copper; Plastic part is soft PVC.
Alligator Clip Material: Main body is nickel plated copper, good conductivity and resistant to oxidation; Plastic part is soft PVC.

Current:
X25A: 25A
X15A: 15A

Wire gauge:
25A cable: wire gauge 2.51mm² (Gauge AWG: 13AWG)
15A cable: wire gauge 2.01mm² (Gauge AWG: 14AWG)
