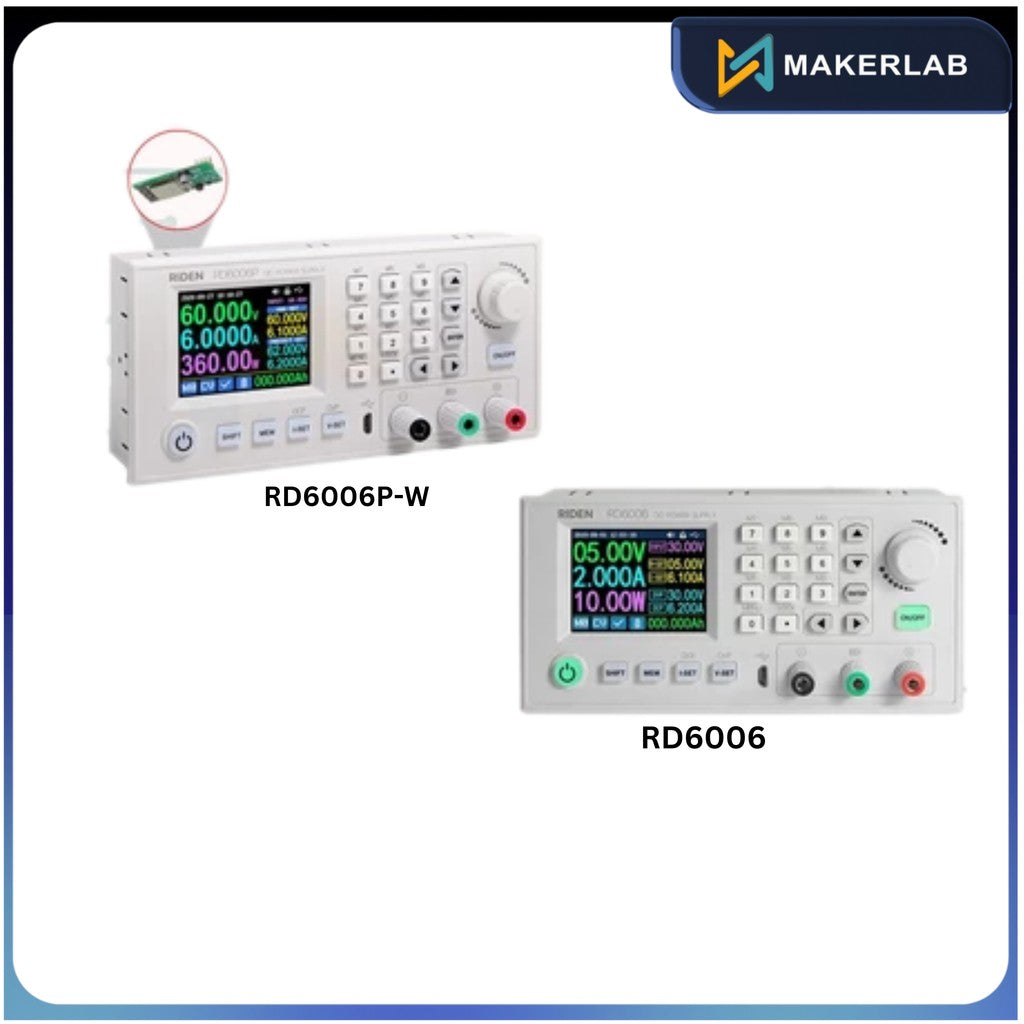

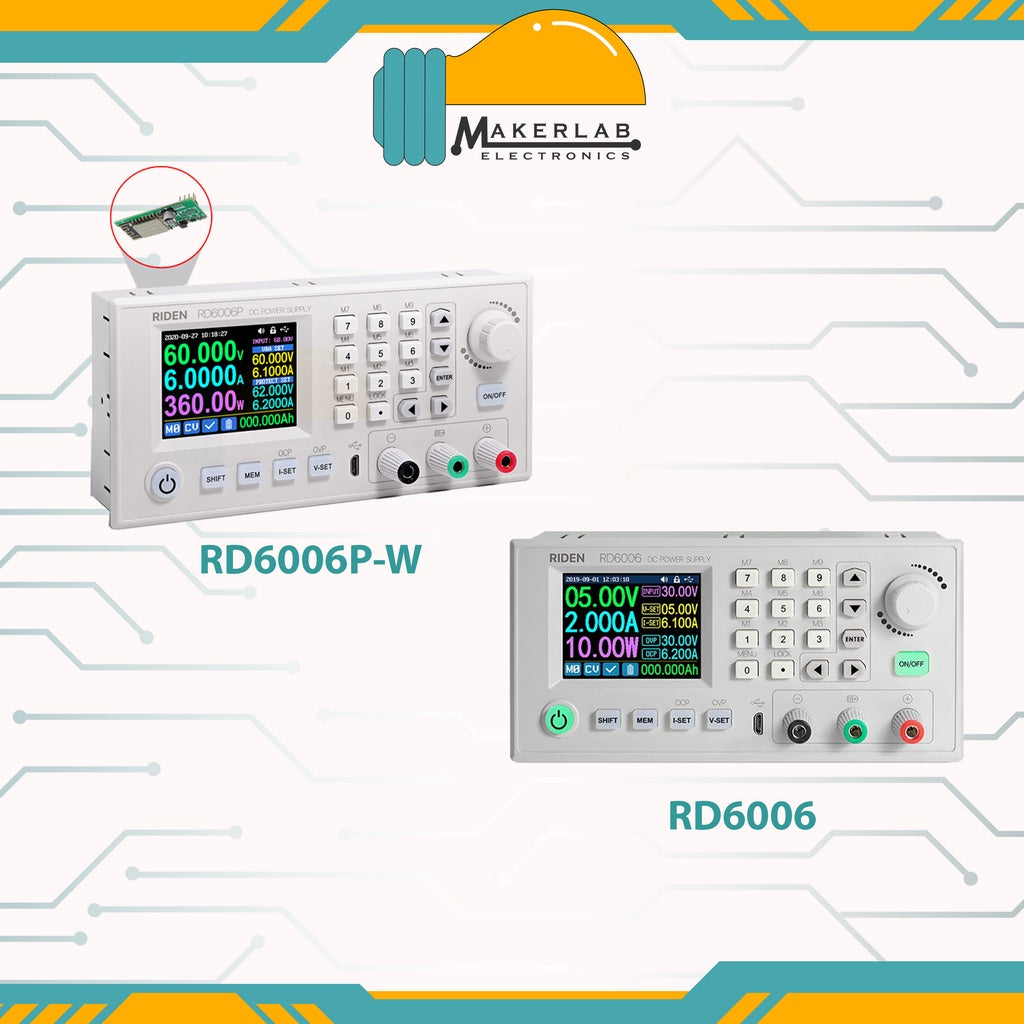

Riden Ruiden RD6006 | RD6006P-W Digital Control Switch Adjustable Power Supply DC Stabilized Power A

Riden Ruiden RD6006 | RD6006P-W Digital Control Switch Adjustable Power Supply DC Stabilized Power A

In stock

SKU:MLE03664

Regular price ₱3,800.00
Regular price Sale price ₱3,800.00
-Liquid error (snippets/price line 90): divided by 0% OFF Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model
View full details

Product Description

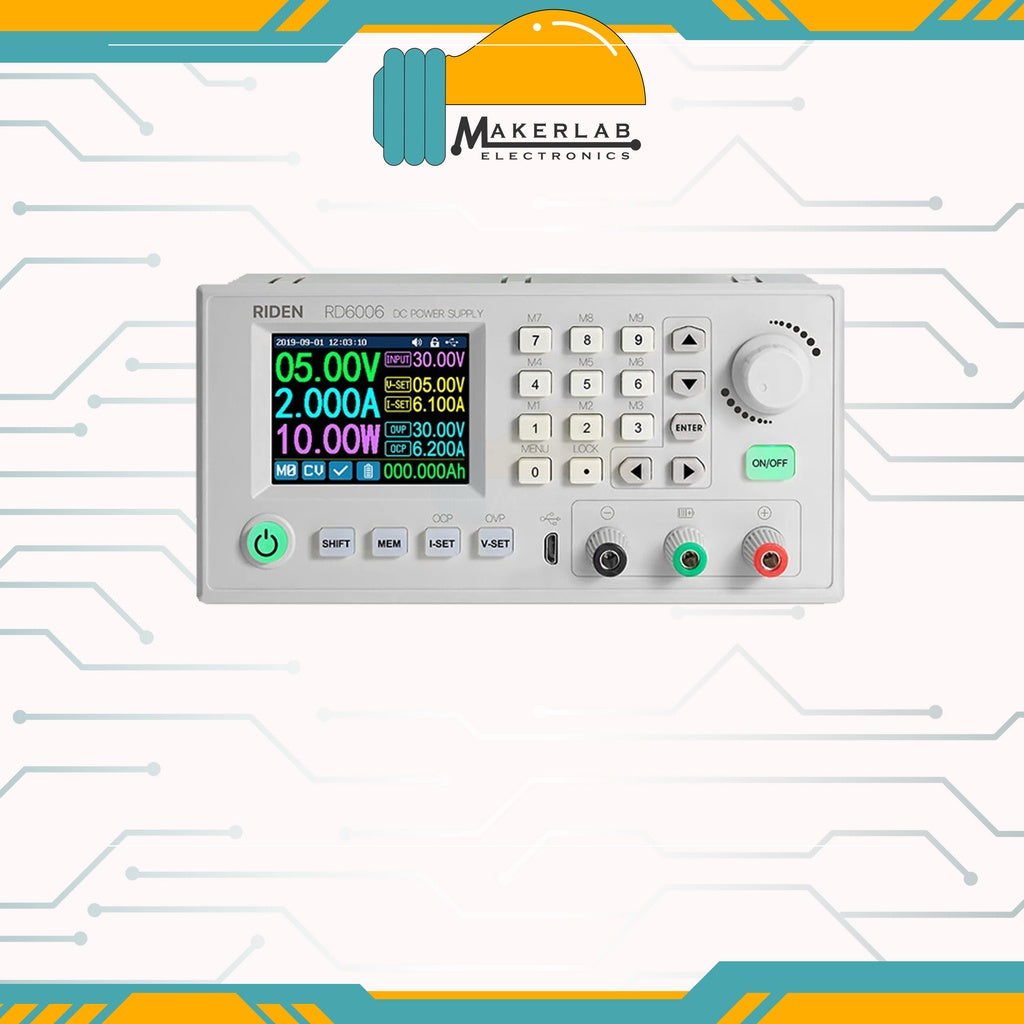

Model: RD6006
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360.0W
Output voltage accuracy: ± (0.3%+3 digits)
Input voltage accuracy: ± (1%+5 digits)
Output ripple typical: 100mV VPP
Constant voltage mode response time: 2ms(0.1A-5A load)
Constant voltage mode load adjustment rate: ± (0.1%+2 digits)
Constant current mode load adjustment rate: ±(0.1%+3 digits)
Screen brightness setting: 0-5 level total 6 levels

Weight(with package): 607g
Product dimension:167*81*65mm

Display Screen:2.4 inch color LCD display

Input voltage measurement resolution: 0.01V
Output voltage measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Output current accuracy: ±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Working temperature range:-10℃~40℃
External sensor Temperature detection range: -10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy: ± 3℃/ ± 6℉
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2%
Working mode: Buck mode
Voltage drop >1V and >10%

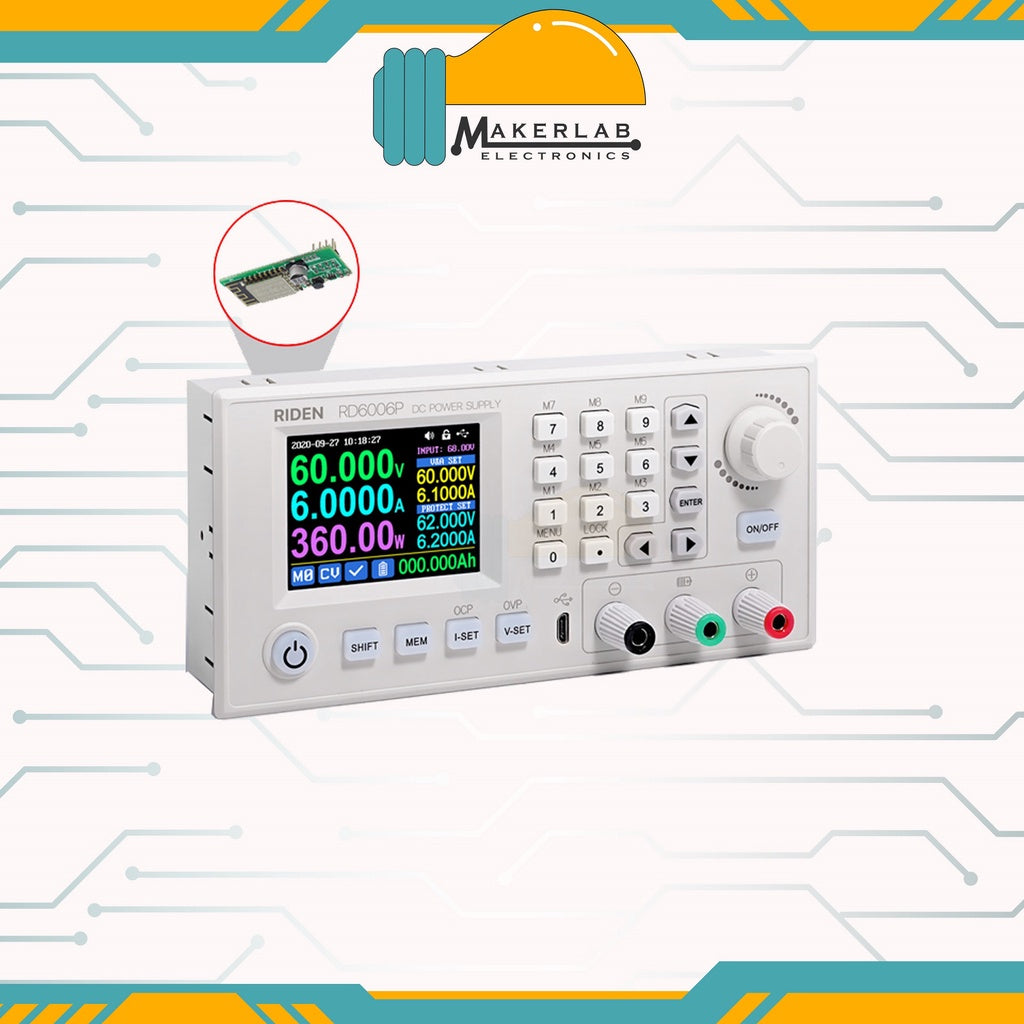

Model: RD6006P-W
Input voltage range 7-70.00V
Output voltage range 0-60.000V
Output current range 0-6.0000A
Output power range 0-360.00W
Input voltage measurement resolution 0.01V
Output voltage setting measurement resolution 0.001V
Output current setting measurement resolution 0.0001A
Battery voltage measurement resolution 0.01V
Input voltage measurement accuracy ±(1%+5 digits)
Output voltage accuracy between setting and measurement ±(0.5‰+4 digits)
Output current accuracy between setting and measurement ±(1‰+6 digits)
Battery voltage measurement accuracy ±(0.5%+3 digits)
Automatic cut off current value when charging
Set by yourself
Output ripple typical
20mV VPP Note①
Working temperature range -10℃~40℃
External sensor Temperature detection range: -10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy: ±3℃/±6℉
Constant voltage mode response time 2ms(0.1A-5A Load)
Constant voltage mode load regulation ±(0.1%+2 digits)
Constant current mode load regulation ±(0.1%+3 digits)
Capacity measurement range 0-9999.99Ah
Energy measurement range 0-9999.99Wh
Capacity and energy statistical error ±2%
Buck working mode
Voltage drop >10%*VOUT+2V
Cooling fan start condition
Output current >4A or System temperature>45℃
Cooling fan shut down condition when working
Output current <3.9A and System temperature <45℃
Over temperature protection
System temperature >80℃
Screen brightness setting 0-5(6 levels)
Screen 2.4-inch color HD display

Weight (with package)
About 0.62Kg
Product dimension
167*81*65mm

Support USB communication: Yes
Support WiFi communication: Yes
