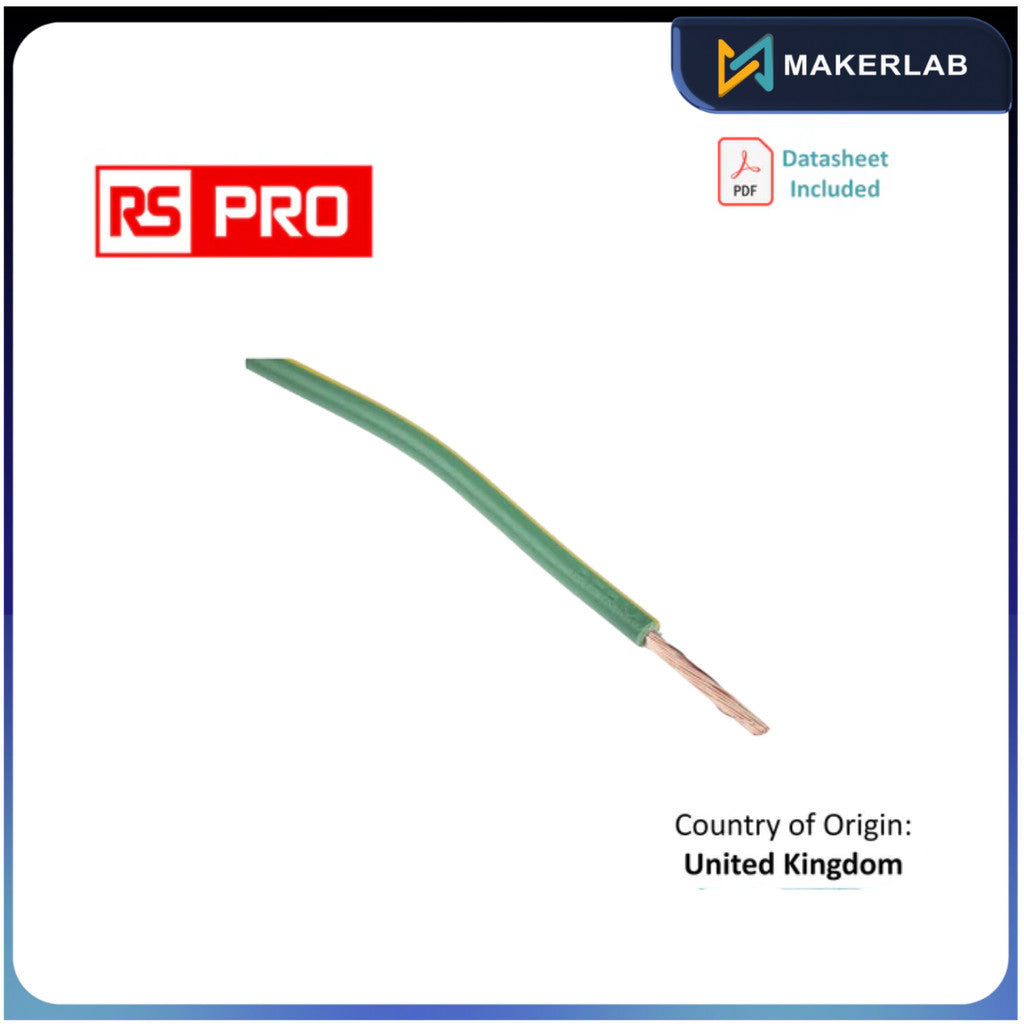

RS PRO Green/Yellow 2.5 mm² Hook Up Wire, 13 AWG, 50/0.25 mm, 100m, PVC Insulation

RS PRO Green/Yellow 2.5 mm² Hook Up Wire, 13 AWG, 50/0.25 mm, 100m, PVC Insulation

In stock

SKU:MLE04503

Regular price ₱9,000.00
Regular price Sale price ₱9,000.00
Sale Sold out
View full details

Product Details

2491X


A plain copper stranded conductor covered by a PVC insulated sheath.These flexible wires are intended for use with electrical power, lighting and internal wiring.

Features & Benefits


• Flexible class 5 conductors
• BS6004 Conductors
• Plain annealed copper conductors
• Harmonised code H05V-K

What is hook up wire used for?


This equipment wire can be applied to endless applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

• Circuit boards
• Computer internals
• Mobile phones and other battery operated devices
• Vehicle lights

What is hook up wire?


Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover (usually PVC) and act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

Benefits of a copper conductor


Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid core interior of their wire.

Note

The RS Brand range of products has been certified by engineers as offering comparable quality to that of leading brands without the premium price tag

Approvals

BASEC

Standards

BS 6004 Table 1 C

Specifications

Attribute Value
Cross Sectional Area 2.5 mm²
Sheath Colour Green/Yellow
Cable Shape Single Core
American Wire Gauge 13 AWG
Core Strands 50/0.25 mm
Length 100m
Insulation Material PVC
European Harmonised Code H07V-K
Voltage Rating 750 V
Outer Diameter 4.1mm
Maximum Operating Temperature +70°C
Conductor Material Annealed Copper
Standards Met BS 6004, RoHS Compliant
Wire Style 2491X
Insulation Wall Thickness 0.8mm
Shield Type Unshielded
Number of Strands 50
