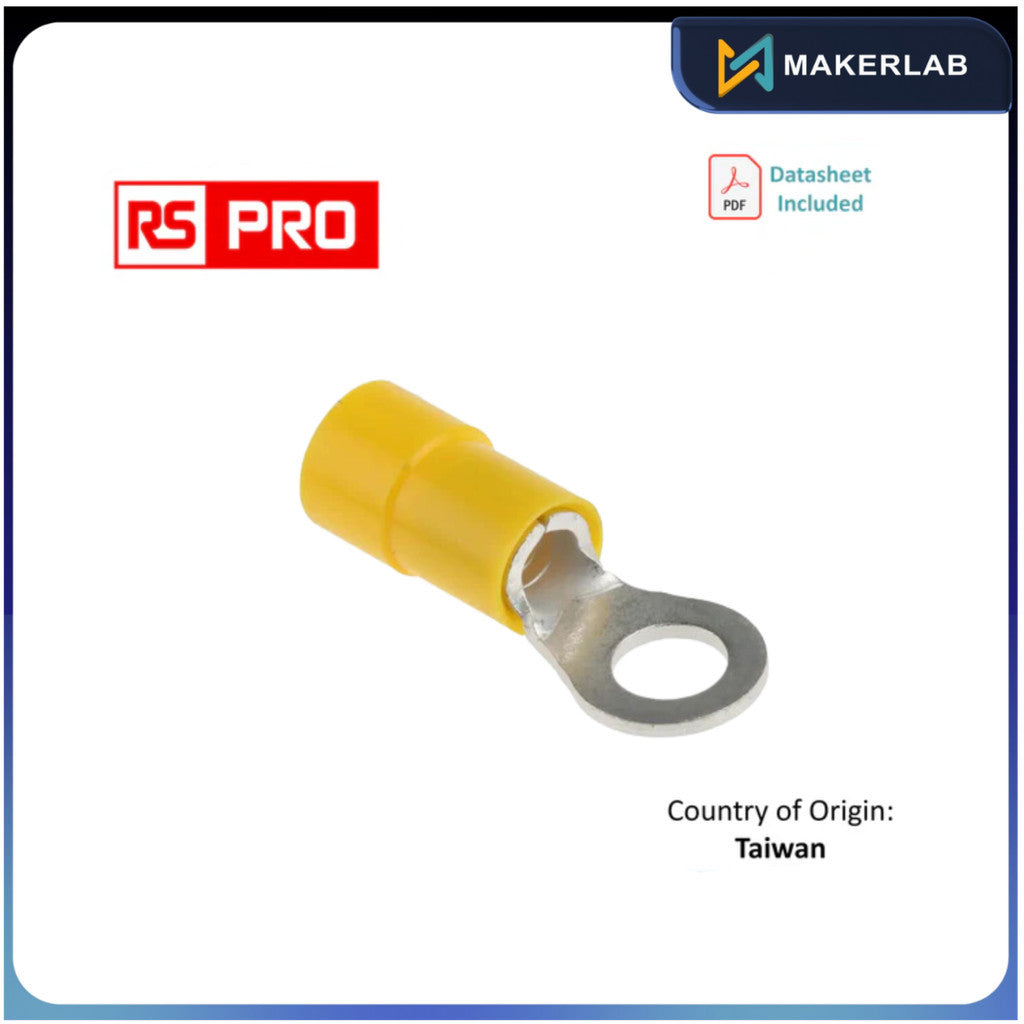

RS PRO Insulated Ring Terminal, M5 Stud Size, 4mm² to 6mm² Wire Size, Yellow

RS PRO Insulated Ring Terminal, M5 Stud Size, 4mm² to 6mm² Wire Size, Yellow

In stock

SKU:MLE04506

Regular price ₱20.00
Regular price Sale price ₱20.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

Product Details

RS Pro Insulated Crimp Ring Terminals


RS Pro range of insulated crimp ring wire terminals made from copper with a tin plating. These ring terminals have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these crimp ring terminals is colour coded to correspond with the wire size they are used with. All models are highly reliable and excellent quality.

Features and Benefits:

• Copper body material for high conductivity and easy crimping
• Tin plating for resistance to corrosion, added strength and excellent conductivity
• Vinyl insulation for electrical insulation and terminal protection
• Colour coded insulation for easy identification of terminal size
• Expanded insulation entry for easy wire insertion
• Maximum operating temperature of 75°C

Selecting the Correct Ring Terminal Size

When selecting the right ring terminal for your application, you should consider the following:

• The wire gauge mm (metric) or AWG (American Wire Gauge) of the wire or cable you are using
• The stud size to which you will be connecting the ring terminal.
• The inner diameter of the ring terminal

Wire sizes:
Red 0.5-1.5mm²
Blue 1.5-2.5mm²
Yellow 4-6mm²



RS Pro Range

Specifications

Attribute Value
Insulation Insulated
Insulation Material Vinyl
Inner Ring Diameter 5.3mm
Outer Ring Diameter 9.5mm
Minimum Wire Size mm² 4mm²
Maximum Wire Size mm² 6mm²
Minimum Wire Size AWG 12AWG
Maximum Wire Size AWG 10AWG
Stud Size M5
Colour Yellow
Contact Plating Tin
Contact Material Copper
Thickness 1mm
Overall Length 26mm
