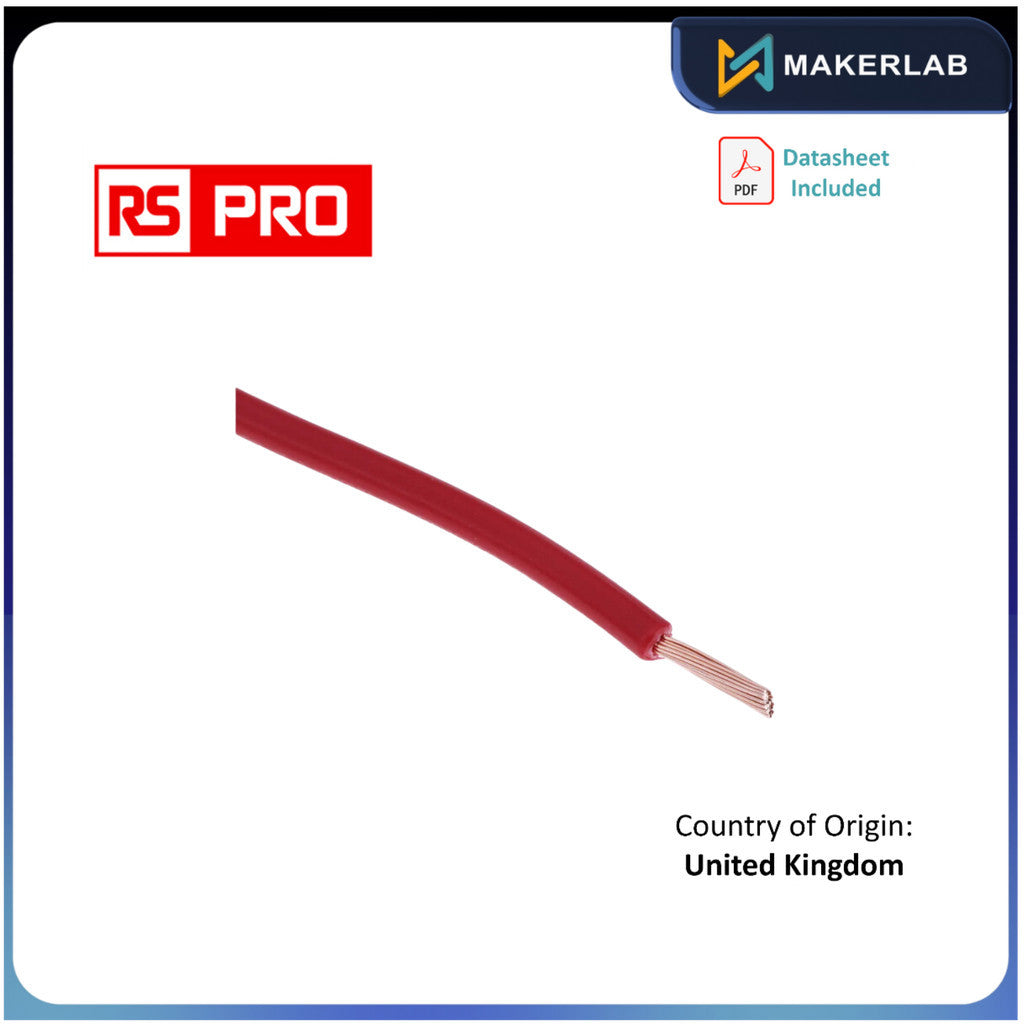

RS PRO Red 1.5 mm² Hook Up Wire, 30/0.25 mm, 1 Reel of 100m | 180-5950

RS PRO Red 1.5 mm² Hook Up Wire, 30/0.25 mm, 1 Reel of 100m | 180-5950

In stock

SKU:MLE04480

Regular price ₱9,700.00
Regular price Sale price ₱9,700.00
Sale Sold out
View full details

Product Details

RS PRO Tri-Rated 1.5mm Cable 100m

RS Stock No.:180-5950

Our RS Pro tri-rated cable has been designed to be used within electrical equipment, most commonly for wiring items that include power switchgear. The cable is also great for internal connections within rectifier equipment, motor starters, and controllers. Our RS PRO tri-rated cable range features highly durable wires that are made with flexible copper and are encased with a HR PVC (heat resistant polyvinyl chloride) insulation. The high maximum operating temperature of 105°C allows them to be used with a wide variety of applications such as electrical cabinets. RS PRO tri-rated cables are available in a variety of different coloured HR PVC sheaths including blue, black, red, brown, green, yellow and many more, to accommodate for a number of applications.

RS PRO 1.5mm cross sectional area tri-rated cables feature a maximum current rating (Amperes) of 21A.

Features & Benefits

• Through the approval of three international standards, our RS Pro tri-rated cable is perfectly suited for equipment installations that require both North America and European wiring regulations and codes of practice
• Conductor stranding is flexible, plain annealed copper
• Flame retardant, spread of flame has been tested to BS EN 50265, VW-1 and FT-1 standards
• Oil resistant with temperatures up to 60°C
• Manufactured within the United Kingdom
• Alternating voltage does not exceed 600 V to earth and direct voltage does not exceed 1000V to earth
• Variety of sheath colours
• Suitable for wiring circuits where the alternating test voltage does not exceed 4kV r.m.s for 1 minute.
• Maximum operating temperature of 105°C

What applications is Tri Rated cable used in?

These tri-rated switchgear cables are commonly used in power switchgear applications but they can be used in everyday electrical installations with the final result of overall higher quality.

• Electrical cabinets
• Switch control in power switchgear
• Relay and instrumentation panels of power switchgear
• Internal connectors in rectifier equipment
• Motor starters and controllers
• Small electrical devices
• Industrial electrical installations
• Panel building

Product Features

• Maximum operating temperature 105°C
• Oil resistant (temperatures up to 60°C)
• Flame resistant
• Manufactured in the UK

Specifications

Attribute Value
Cross Sectional Area 1.5 mm²
Sheath Colour Black
Core Strands 30/0.25 mm
Length 100m
Outer Diameter 3.3mm
Voltage Rating 1 kV dc, 600 V ac
Maximum Operating Temperature +105°C
Current Rating 21 A
Conductor Material Copper
Wire Style UL1015
Fire Behaviour Flame Retardant
Tri-rated Yes
Number of Strands 30
