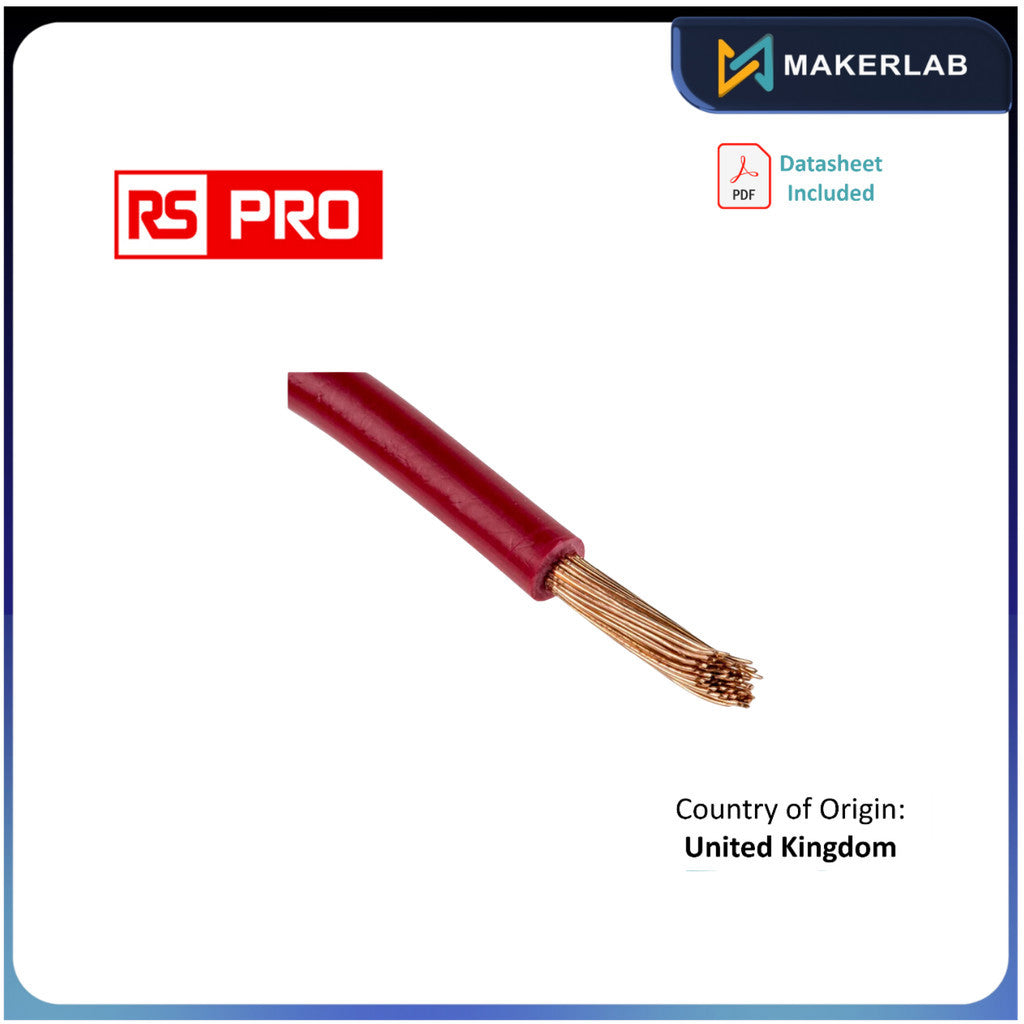

RS PRO Red 4 mm² Hook Up Wire, 12 AWG, 52/0.3 mm, 100m, PVC Insulation

RS PRO Red 4 mm² Hook Up Wire, 12 AWG, 52/0.3 mm, 100m, PVC Insulation

In stock

SKU:MLE04522

Regular price ₱12,000.00
Regular price Sale price ₱12,000.00
Sale Sold out
View full details

Product Details

Tri-Rated Switchgear Cable


A plain copper stranded conductor covered with a PVC sheath. The advantage of using this type of cable is that it allows many different approvals to be met from a single cable type, thereby simplifying purchasing, stockholding, and production. Maximum Operating Temperature 90°C (105°C for 15,000 hours) to BS6231.
RS

Specifications

Attribute Value
Cross Sectional Area 4 mm²
Sheath Colour Red
Cable Shape Single Core
American Wire Gauge 12 AWG
Core Strands 52/0.3 mm
Length 100m
Insulation Material PVC
Outer Diameter 4.3mm
Voltage Rating 1 kV
Maximum Operating Temperature +105 (Air) °C, +60 (Oil) °C
Current Rating 41 A
Conductor Material Annealed Copper
Standards Met CSA C22.2 Type TEW, UK BS 6231, UL 1015
Tri-rated Yes
Insulation Wall Thickness 0.8mm
Number of Strands 52
