Description:

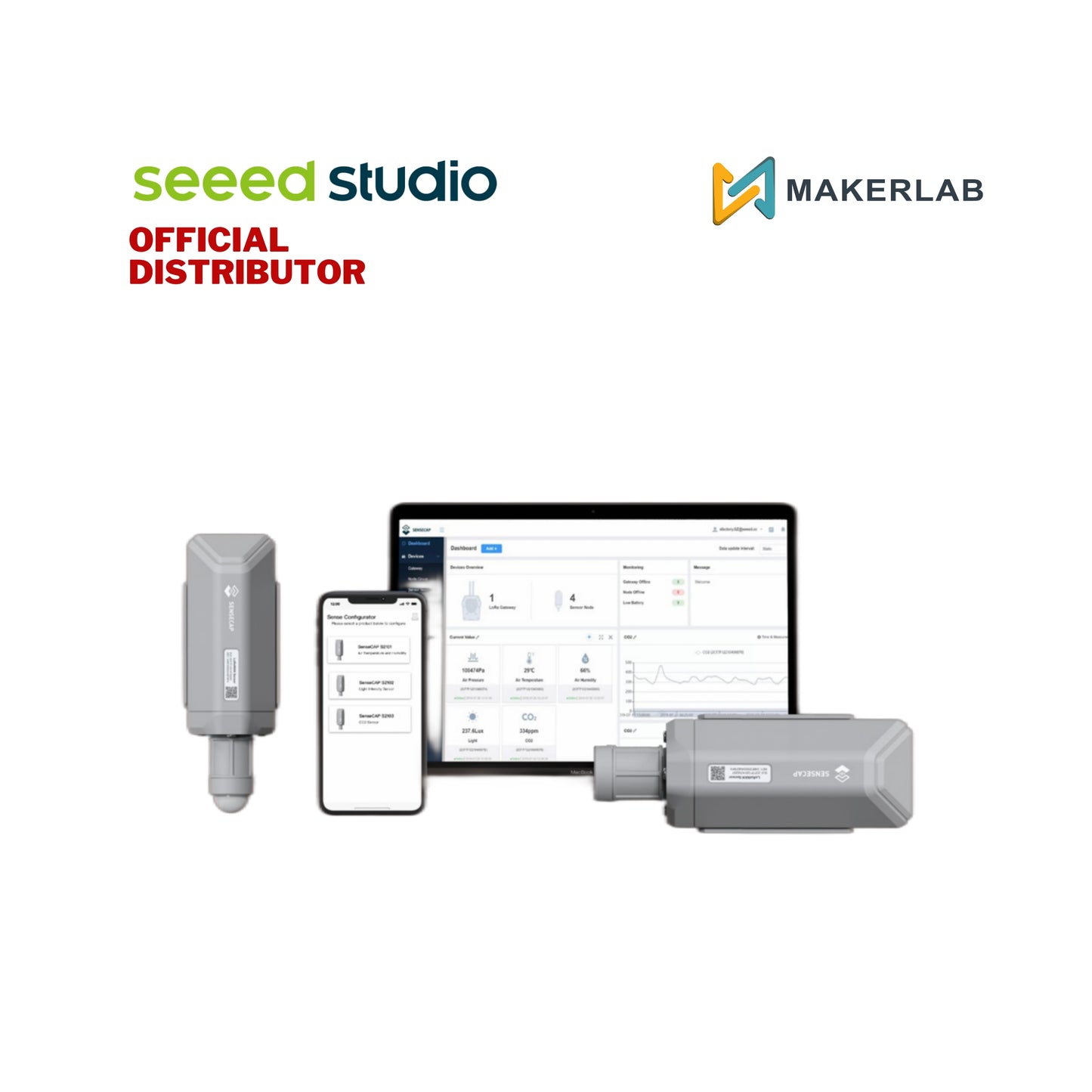

SenseCAP LoRaWAN S2102 Sensor measures light intensity at the range from 0 to 160000 lux, with an accuracy of ±5% and a resolution of 1 lux, making it widely applicable in industrial environmental sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and upgrade. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.
It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.
Features:
-
Compatible with Worldwide LoRaWAN® Networks: Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
-
Long Range & Battery powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
-
Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
-
Simple Configuration: SenseCAP provides a no-code experience that enables users to finish configuration with 4 steps through SenseCAP Mate APP.
Specifications:
Light Intensity
Range: 0 to 160000 Lux
Accuracy: ±5%
Resolution: 1 Lux
General Parameters
Product Model: S2102
Microcontroller: Wio-E5
Support Protocol: LoRaWAN v1.0.3 Class A
Built-in Bluetooth: App Tool to change parameters
LoRaWAN Channel Plan: IN865/EU868/US915/AU915/ AS923/KR920/RU864 *
Max Transmitted Power: 19dBm
Sensitivity: -136dBm@SF12 BW=125KHz
Communication Distance: 2 to10km (depending on gateway antenna and environments)
IP Rating: IP66
Operating Temperature: -40 to +85 °C
Operating Humidity: 0 to 100 %RH (non-condensing)
Device Weight: 280g
Certification: CE / FCC / RoHS
Battery (Contained in equipment)
Battery Life: Up to 10 years**
Battery Capacity: 19Ah (non-rechargeable)
Battery Type: Standard D-size SOCl2 Battery
LoRaWAN® Frequency:
Application:
Poultry Farm, Livestock Shed, Greenhouse, Hydroponics, Building and Street Lighting
LoRaWAN® gateways can provide LoRaWAN® network coverage which is required when using such sensors. S210X can be connected to different LoRaWAN® gateways while what Seeed provides offers you a seamless user experience.
Seeed provides the SenseCAP Portal platform and SenseCAP Mate APP to help users better manage and check data remotely
-
-
Includes Dashboard, Device Management, Data Management, and Access Key Management
-
Provides MQTT and HTTP API to users for further development
-
-
Works for people with less or no technical background to get started with sensor data easily
-
Acquire and view data on clean user interfaces
-
Set time intervals: improve the battery efficiency
-
Set threshold values: focus on the data you need to take action for - coming soon. Send alarms if data is out of the safe range - coming soon
Documents:
Part List:
1x Sensor Node
2x Bracket
1x Quick Start Guide
4x KA4*20mm Self-drilling Screw
