Description:
The Seeed Studio XIAO RP2040 is a compact, Arduino-compatible dev board based on Raspberry Pi RP2040. As the smallest Raspberry Pi Pico board, it features a thumb-sized and surface-mount design. Thanks to its compatibility with multiple programming languages (C, Python, Go, Rust) and a wide range of available libraries, it's a cost-effective and user-friendly microcontroller for learning coding and electronics basics.
Features:
Perfect Toolset for Learning Coding and Electronics: XIAO RP2040 offers an extensive development ecosystem that makes coding accessible for beginners while providing powerful tools for experienced developers. Code with Arduino IDE for rapid prototyping, utilize C/C++ SDK for optimal performance, explore MicroPython/CircuitPython for quick scripting, or develop with Rust and Go for modern applications. Backed by comprehensive documentation and an active Raspberry Pi community, you'll find abundant examples and resources to kickstart your projects. The board features both a 3-color User LED and an RGB LED, making it easy to add visual indicators or stunning light effects to enhance both functionality and creativity.
Classic Form Factor and Extensive Seeed Studio XIAO Ecosystem: Launched in 2021, XIAO RP2040 with the classic XIAO compact design of 21 x 17.8mm. Its native compatibility with the comprehensive XIAO Add-on ecosystem - from expansion boards, sensors and displays to connectivity modules and actuators (Grove Expansion, CAN-Bus, LoRa module, LED Matrix, Vision AI Sensor, Round Display, L76K GSP module, 2-Mic Array, ePaper Displays, mmWave sensor, AC relay, Bus Servo Driver and many more) - makes it versatile for any project, no matter how simple or complex.
Production-Ready Design with FREE PCBA Support: All Seeed Studio XIAO dev boards feature a production-optimized SMD (Surface Mount Device) design with standardized stamp holes, making it perfect for commercial PCBA (Printed Circuit Board Assembly) integration.
Specifications:
Product Name: Seeed Studio XIAO RP2040
Chipset: Raspberry Pi 2040
Processor: Dual Cortex M0+ processor running at up to 133 MHz
RAM: 264KB SRAM
Flash: 2MB Onboard Flash
Interface: GPIO Pin x14Digital Pin x11Analog Pin x4I2C x1 UART x1SPI x1; PWM x11
Onboard: User LED (3 Colors) x1; Power LED x1; RGB LED x1; Reset Button x1; Boot Button x1
Power: Input Voltage (Type-C): 5V Input Voltage (BAT): 3.3v
Software Compatibility: Arduino, PlatformIO, MicroPython, CircuitPython, tinyGo, Rust, Zephyr, and more to come
Working Temperature: -20°C-70°C

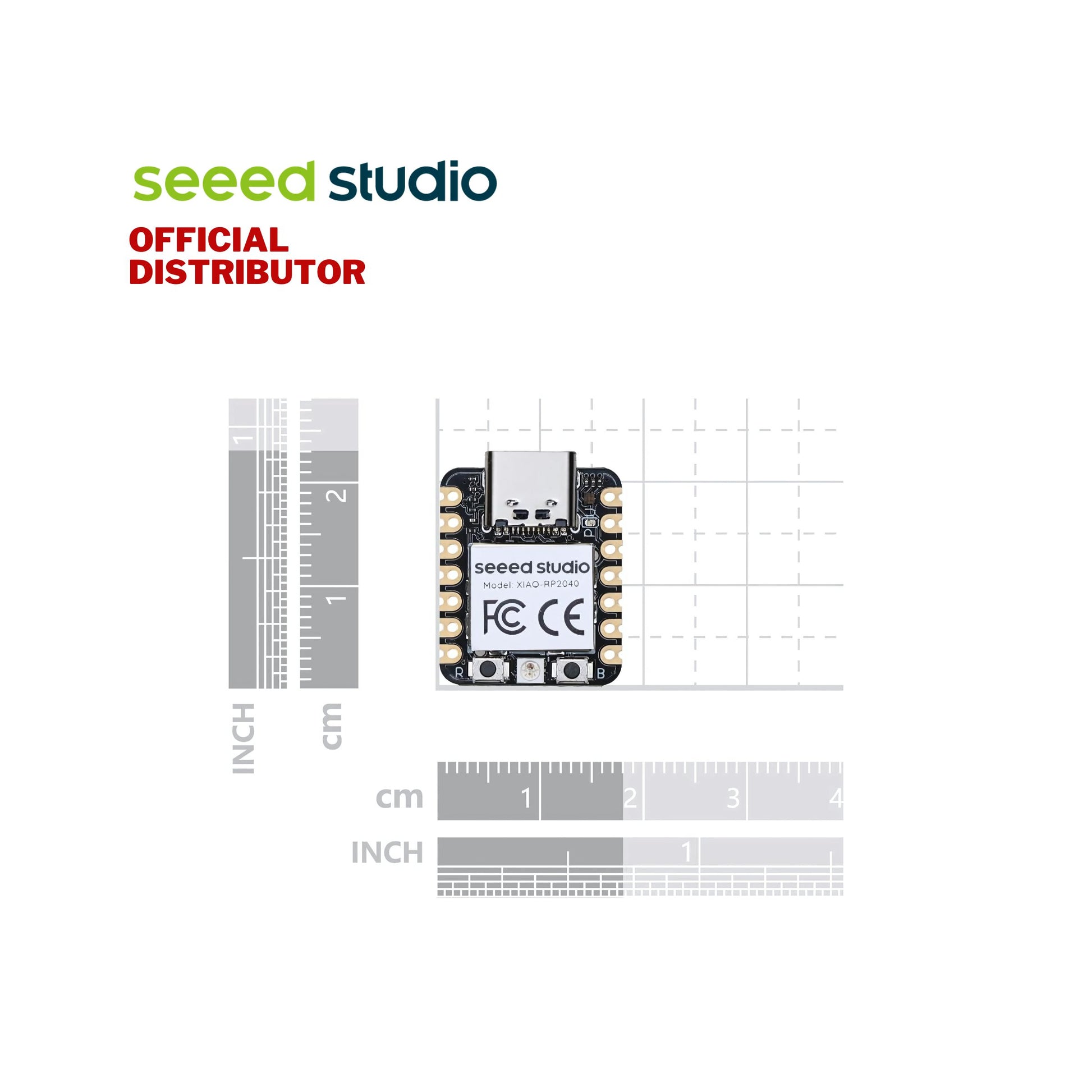

Dimensions: 21x17.8mm
Variants: XIAO RP2040 3PCS Pack; XIAO RP2040 (Pre-Soldered)
Hardware Overview:
Application:
Learning & Education: Arduino, MicroPython, CircuitPython, TinyGo, Rust, embedded systems basics
USB HID Devices: Custom keyboards, stream decks, arcade controllers, MIDI interfaces
Wearable Projects: Smart accessories, LED clothing, wrist devices, sensor wearables
IoT & Sensors: Environmental monitoring, smart home panels, weather stations, MQTT
Display Projects: LED matrices, POV displays, rotating LED spheres
Development: Rapid prototyping, hardware testing, PCB validation
Robotics: Basic motor control, sensor integration, automation
Audio/Video: Sound processing, media controls, visualizations
Documents:
Part List:
1x Seeed Studio XIAO RP2040
2x 7-Pin Header (2.54mm)
